AR35.30-P-0620TB Remove/Install Rear Axle Shaft

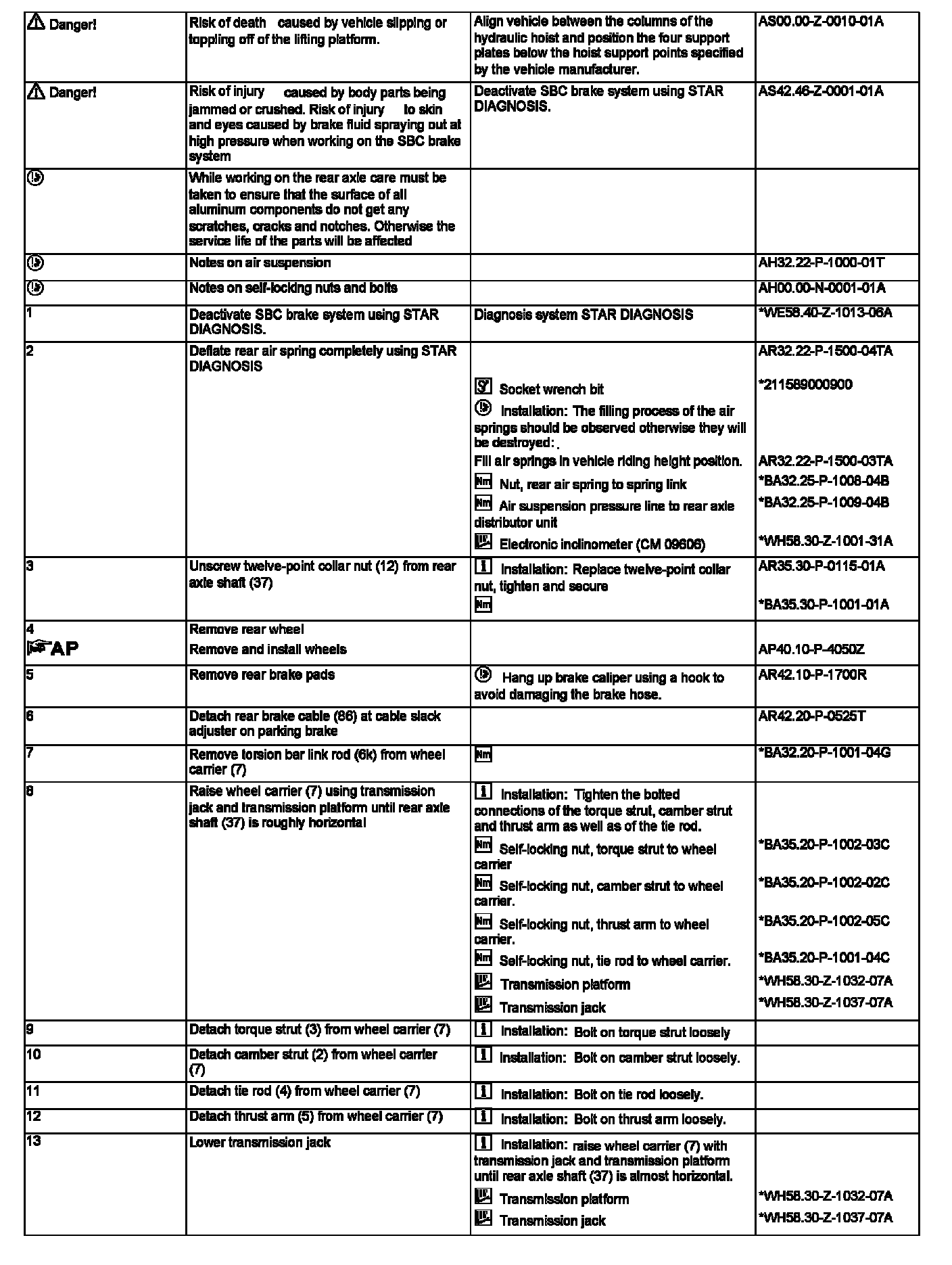

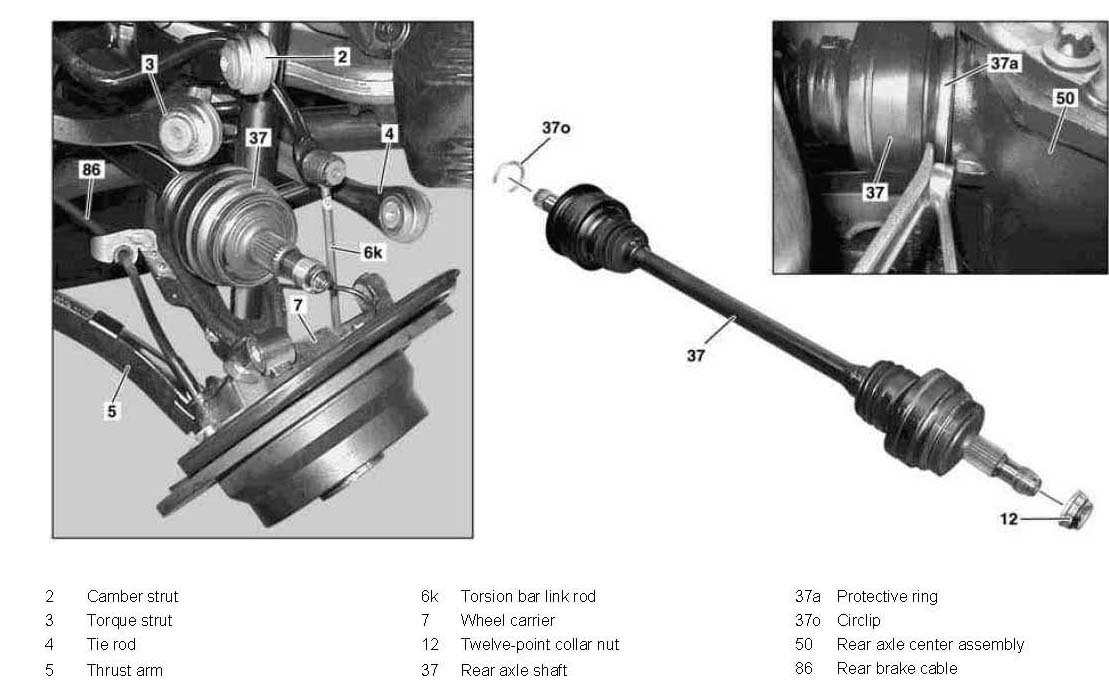

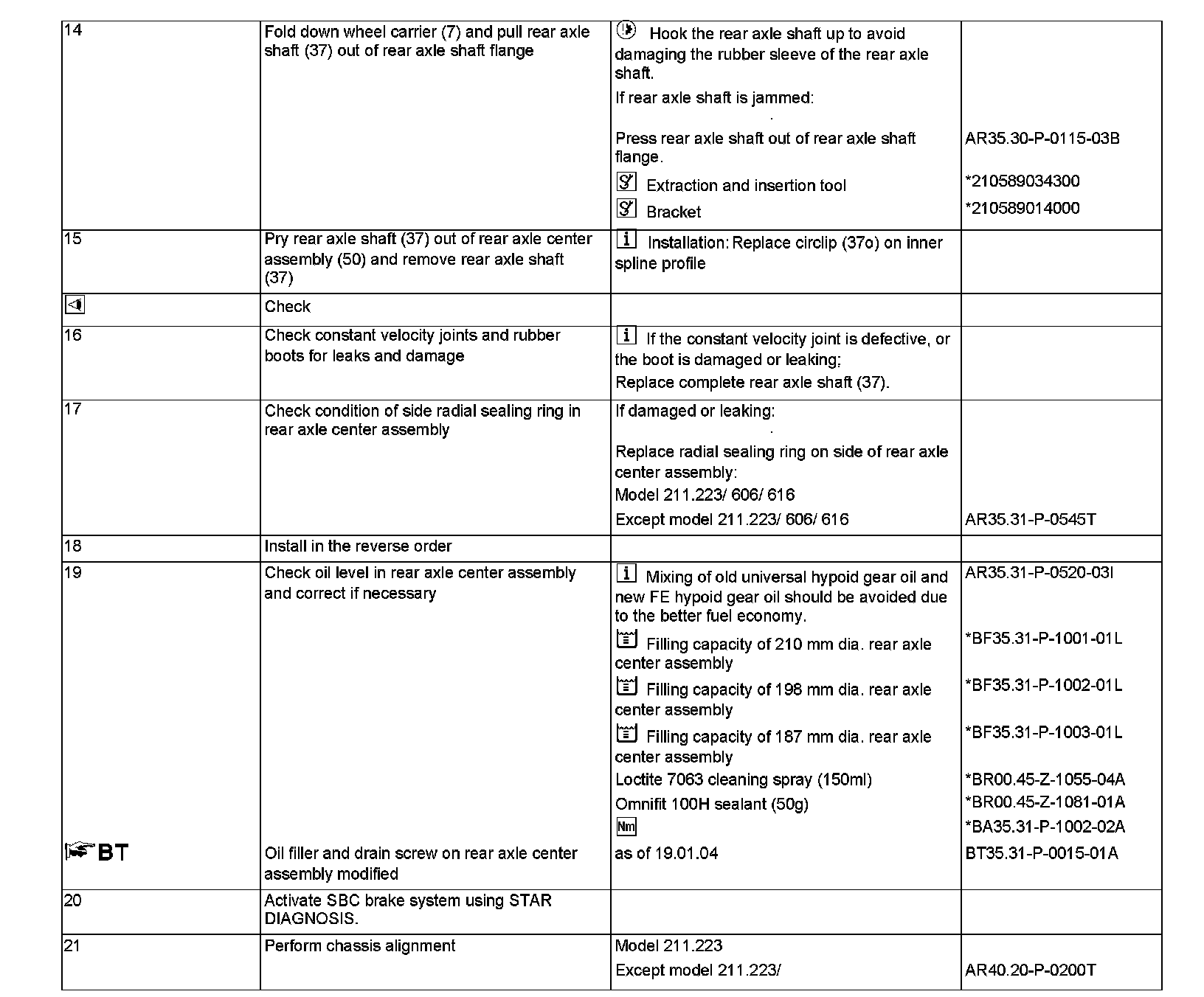

Remove/install rear axle shaft
- except CODE (498) AIRmatic (semi-active air suspension)

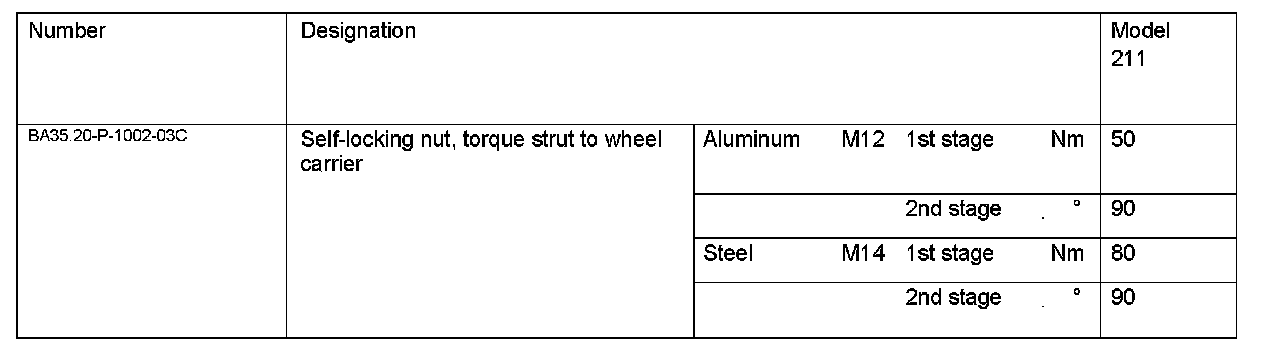

Torque strut:

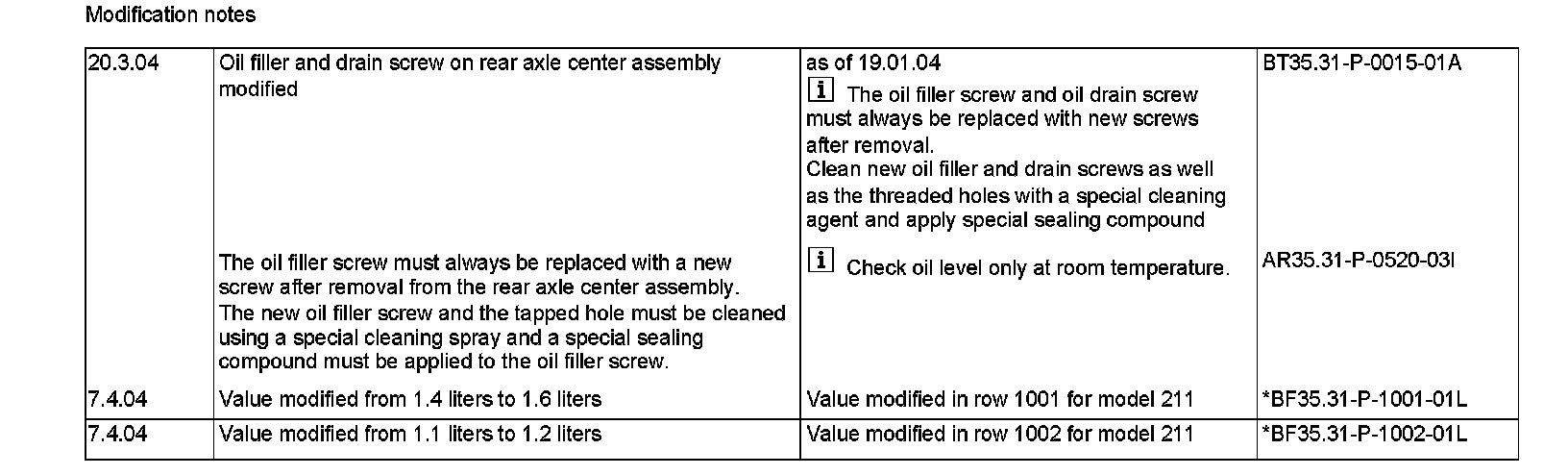

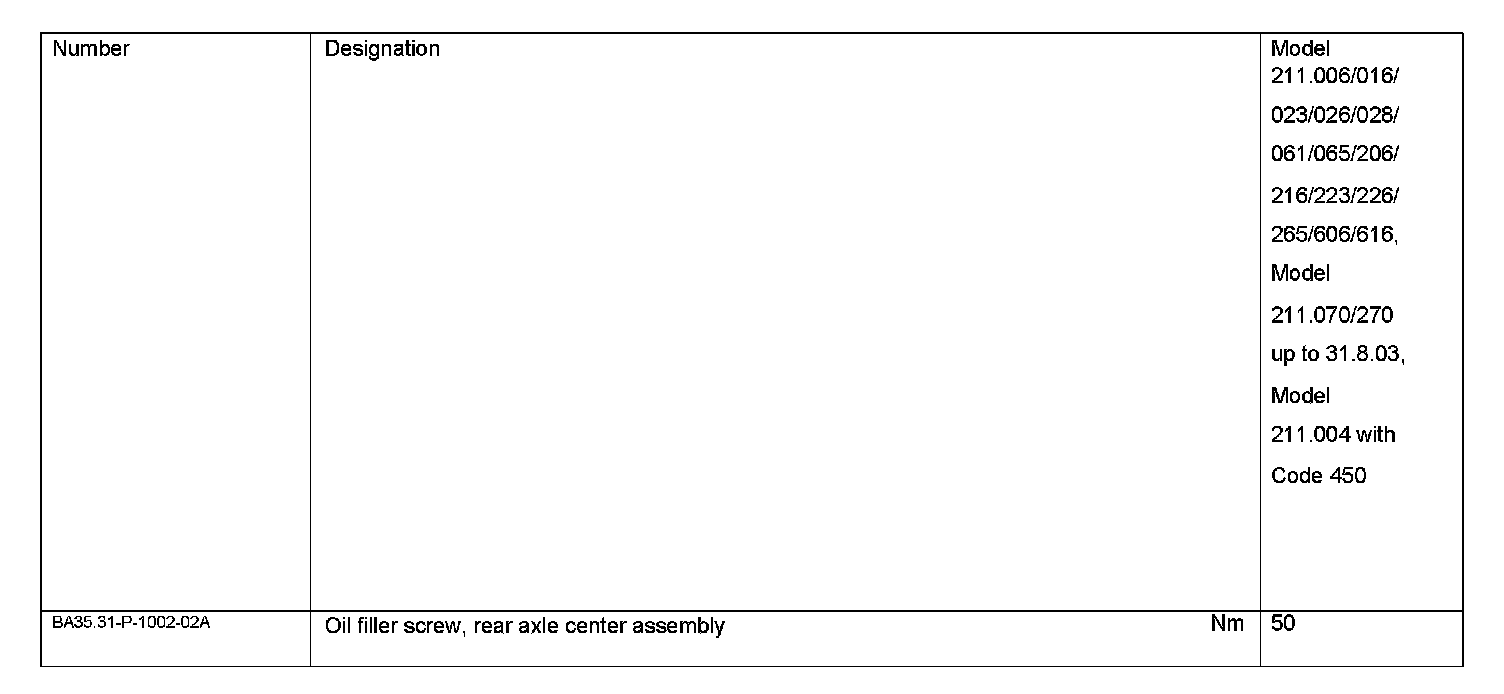

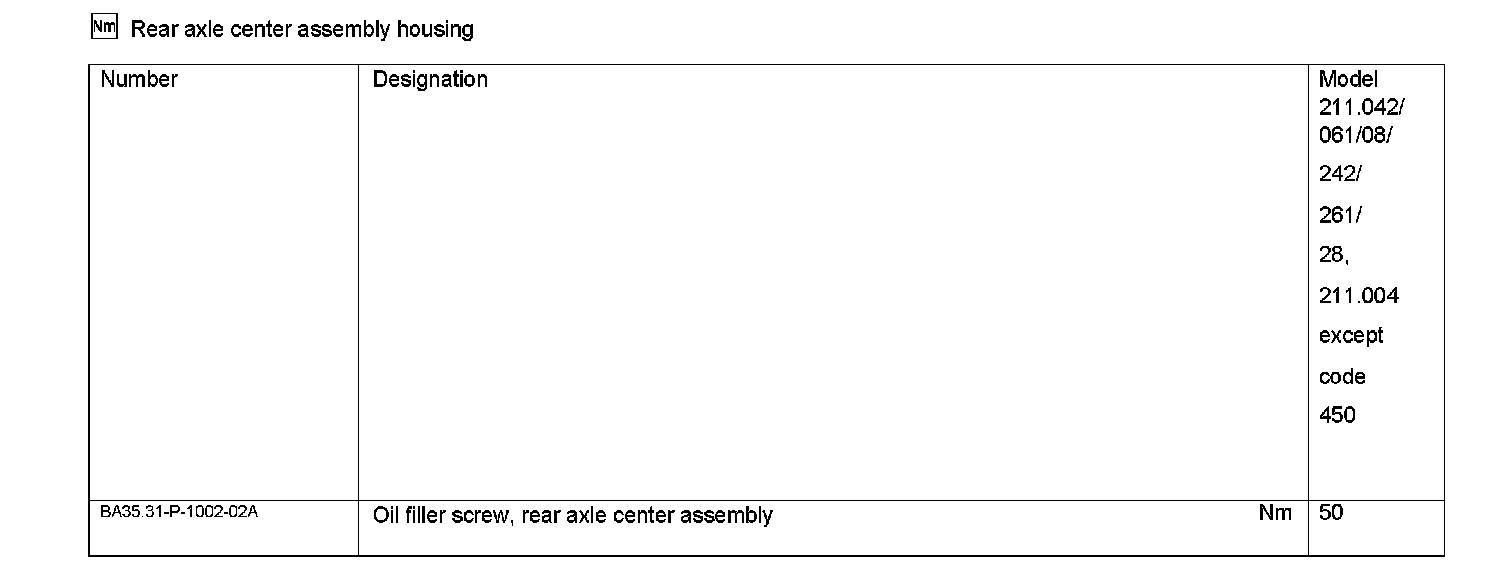

Rear axle center assembly housing:
