AR35.31-P-0520TB Remove/Install Rear Axle Center Assembly
AR35.31-P-0520TB Remove/Install Rear Axle Center Assembly

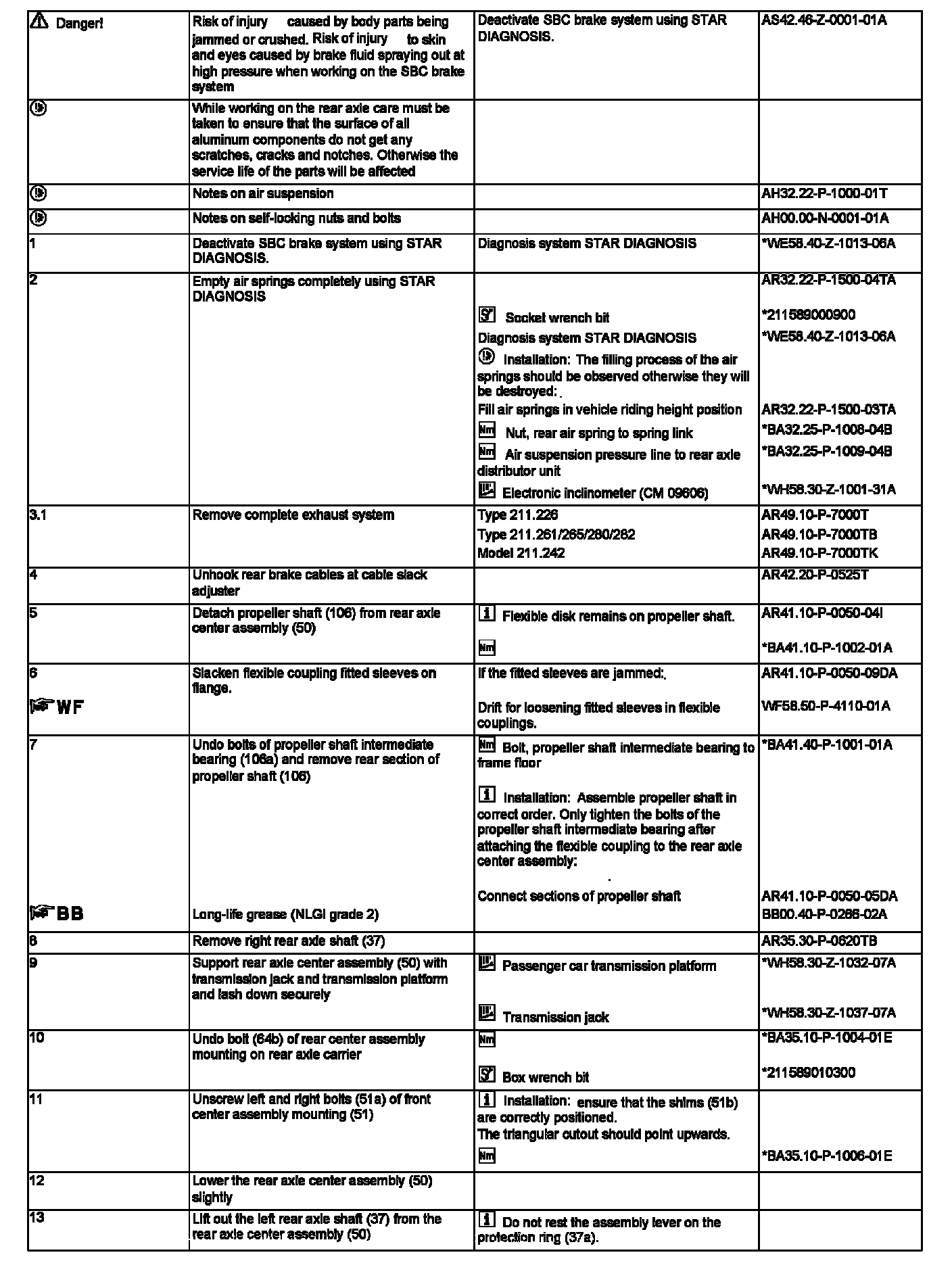

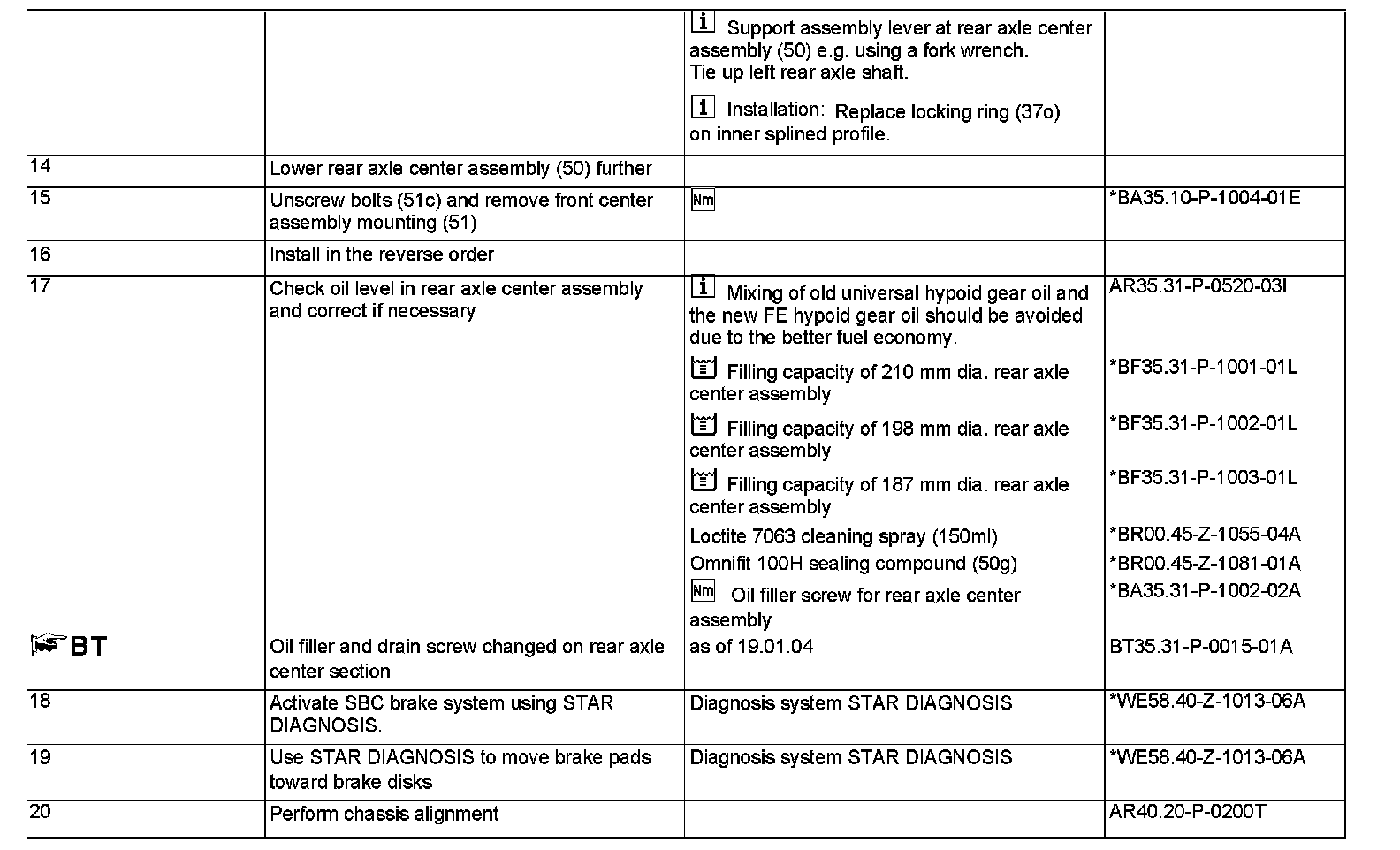

Remove/install rear axle center assembly

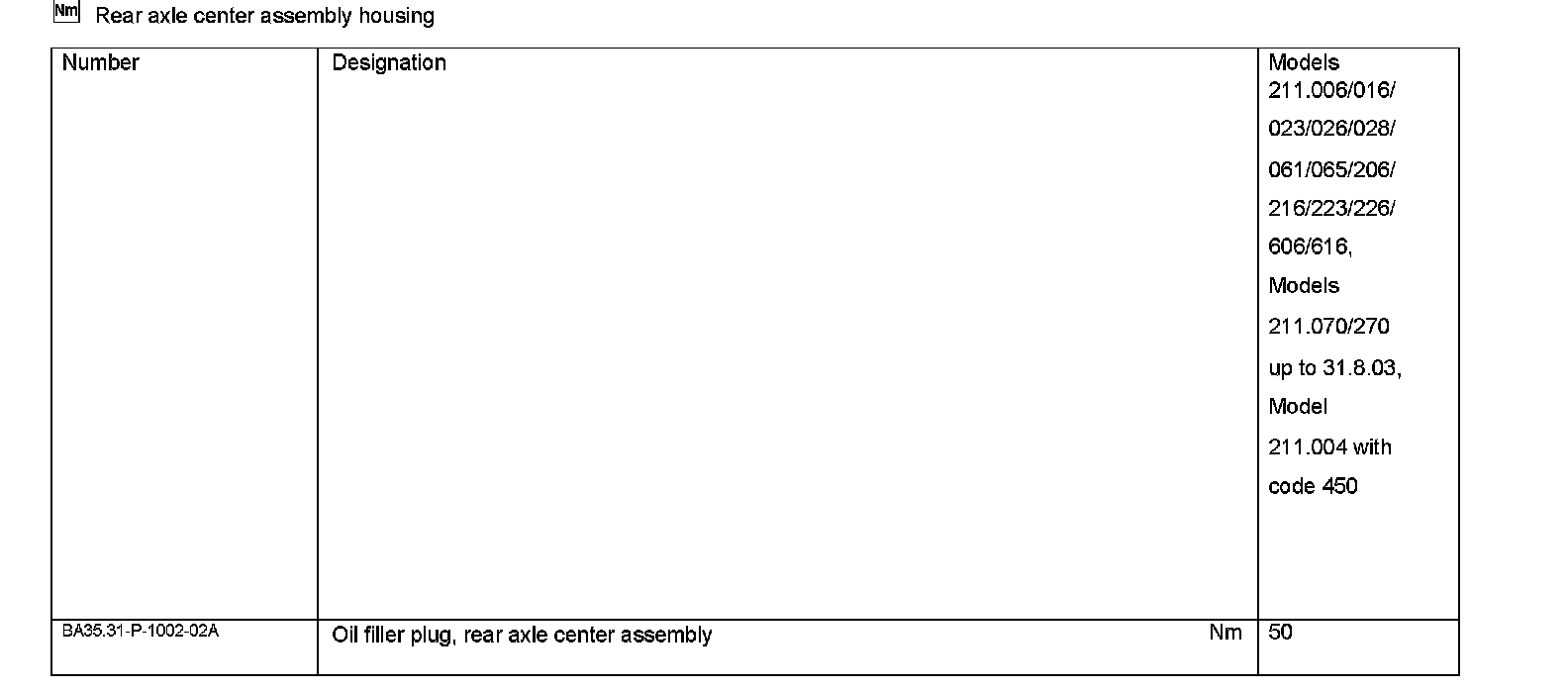

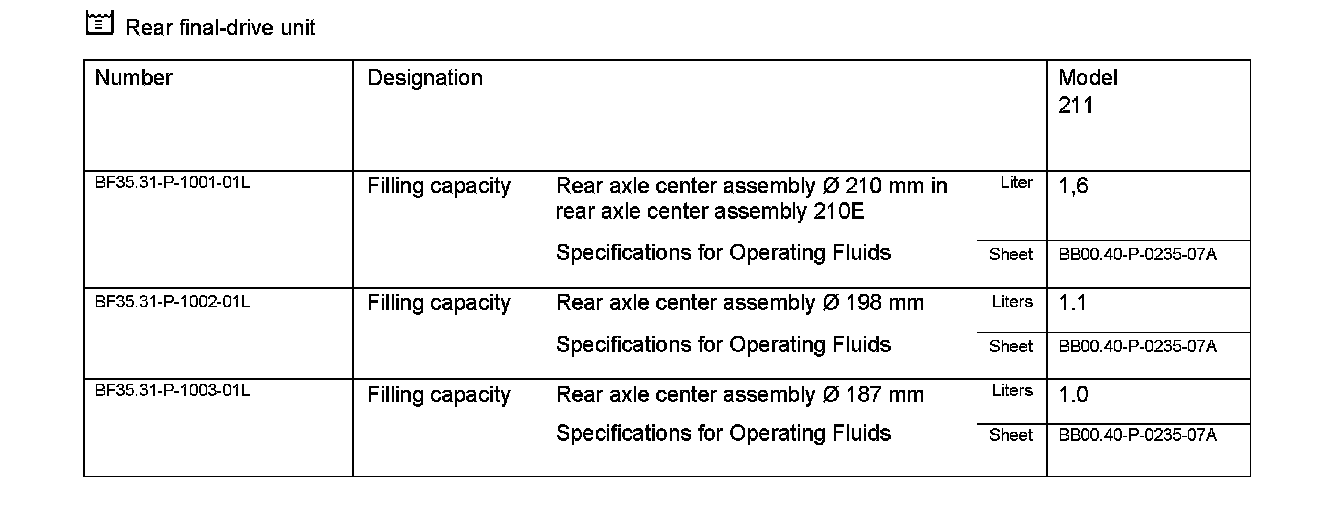

Rear axle center assembly housing:
