Automatically Shifted Manual Transmission/Transaxle: Service and Repair
AR26.10-P-0020TA Remove/install transmission
- with CODE (424) Sequentronic automated manual transmission (SEQ)

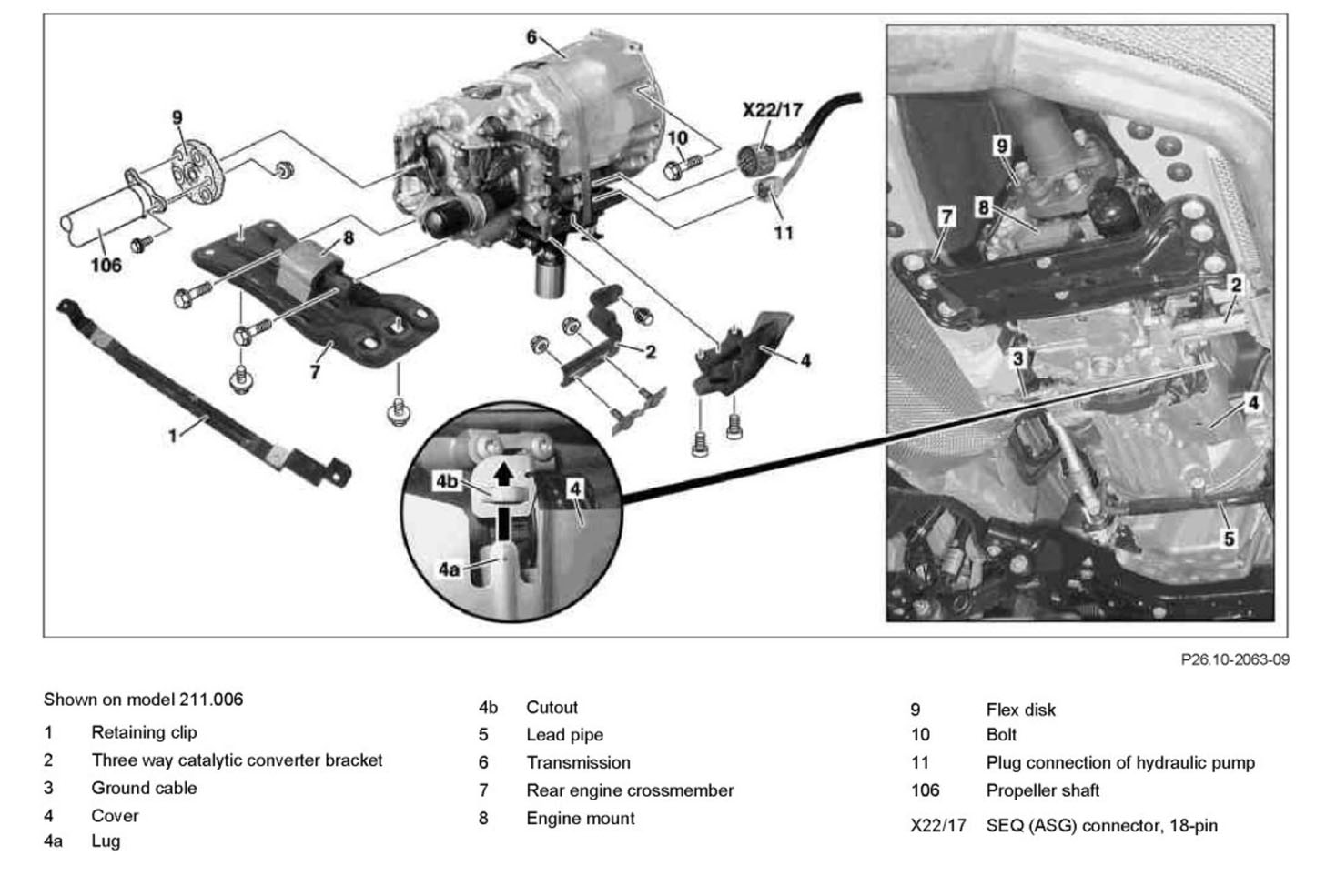

Component Identification:

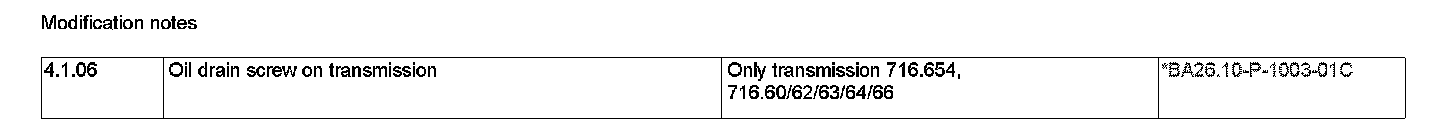

Modification notes:

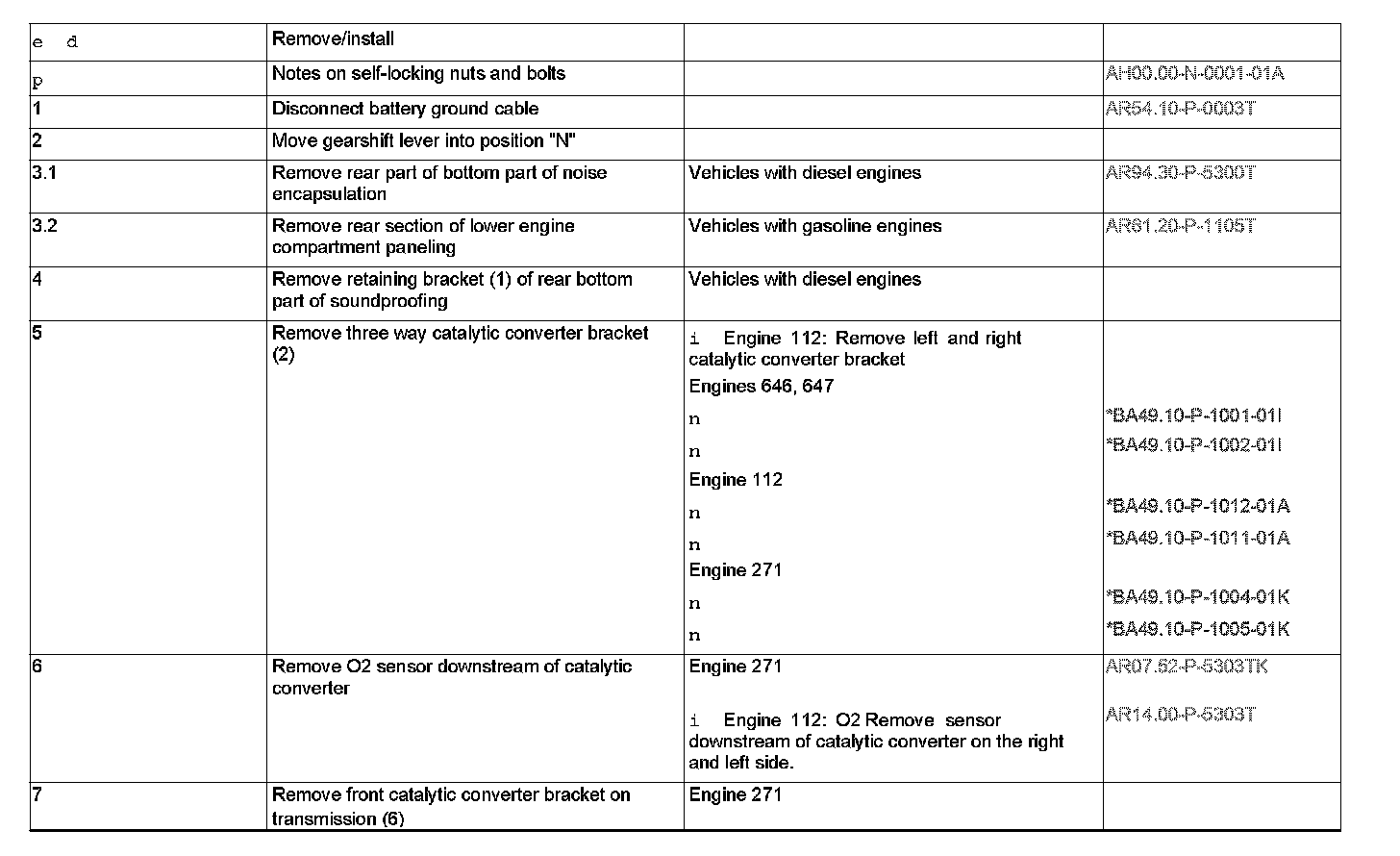

Steps 1-7:

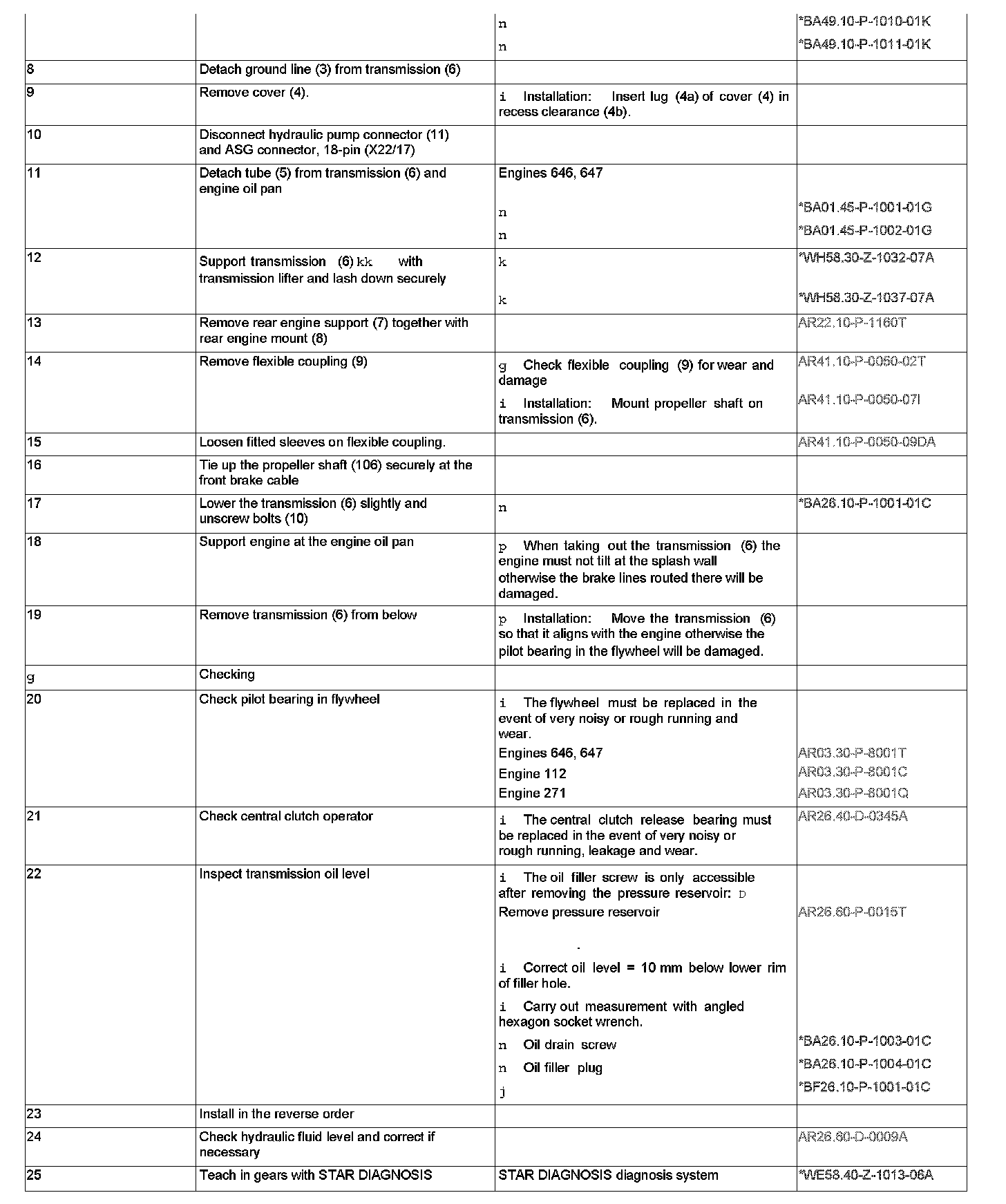

Remove/install Steps 8-25:

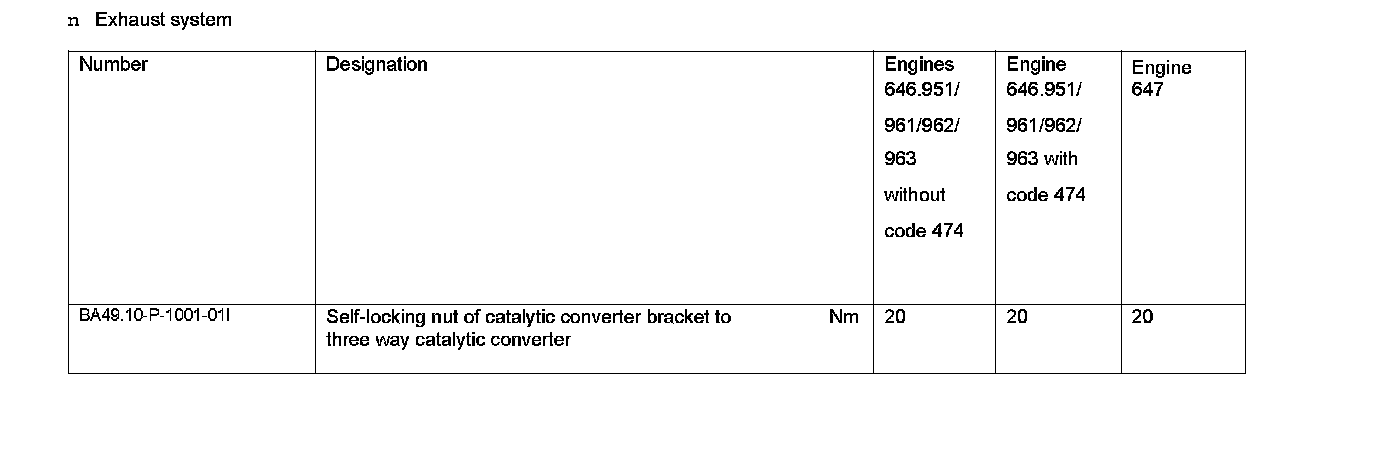

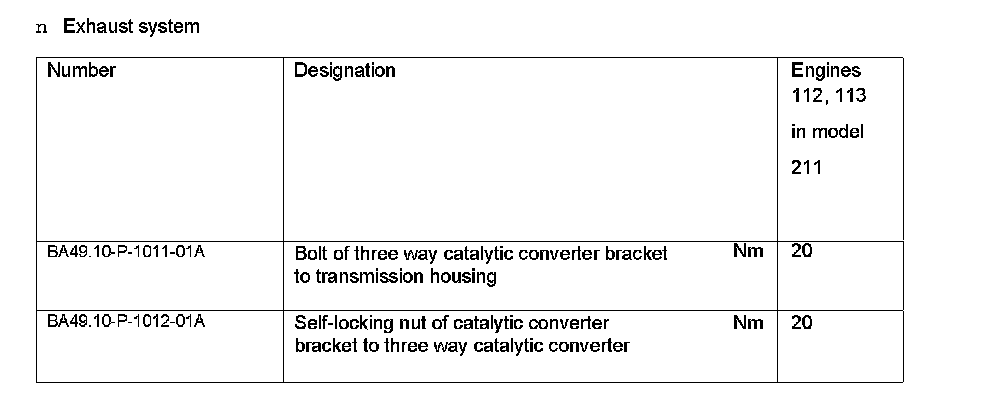

Exhaust system:

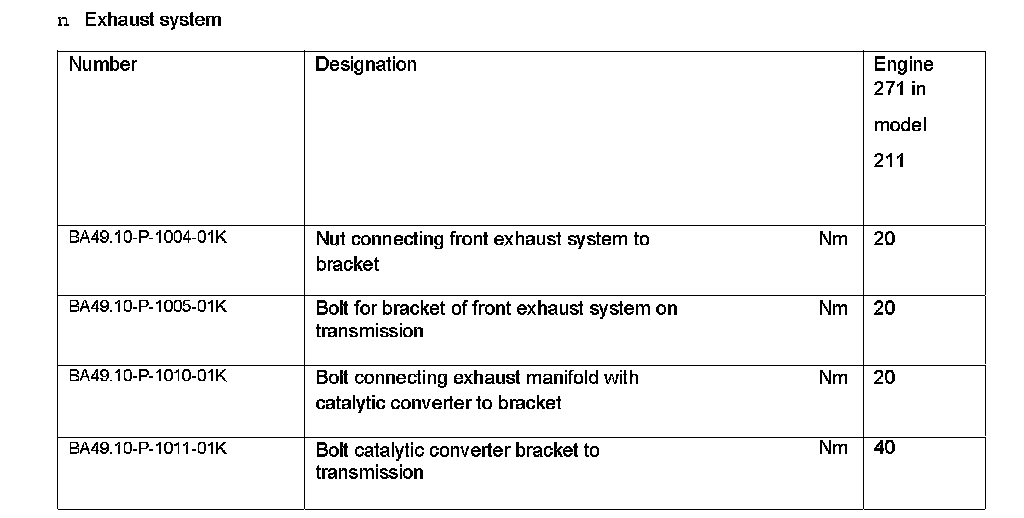

Exhaust system:
Exhaust system:
Exhaust system:

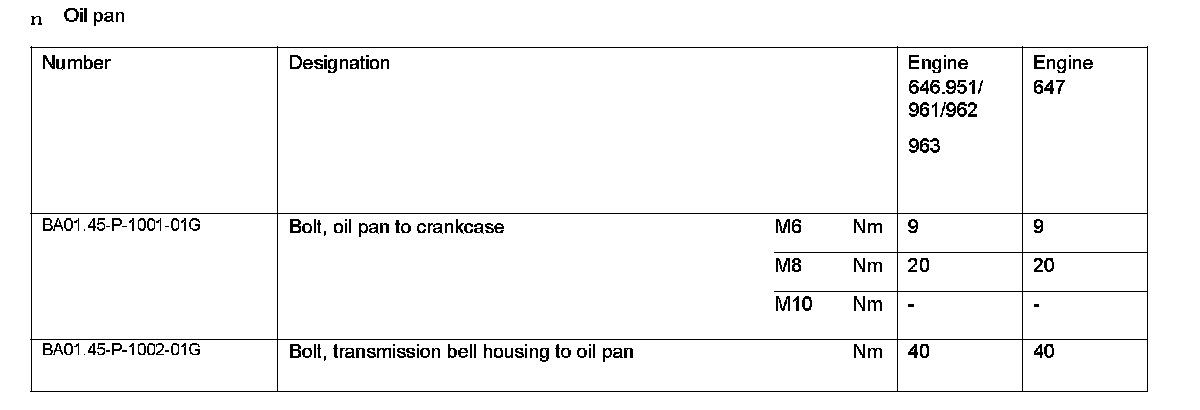

Oil Pan:

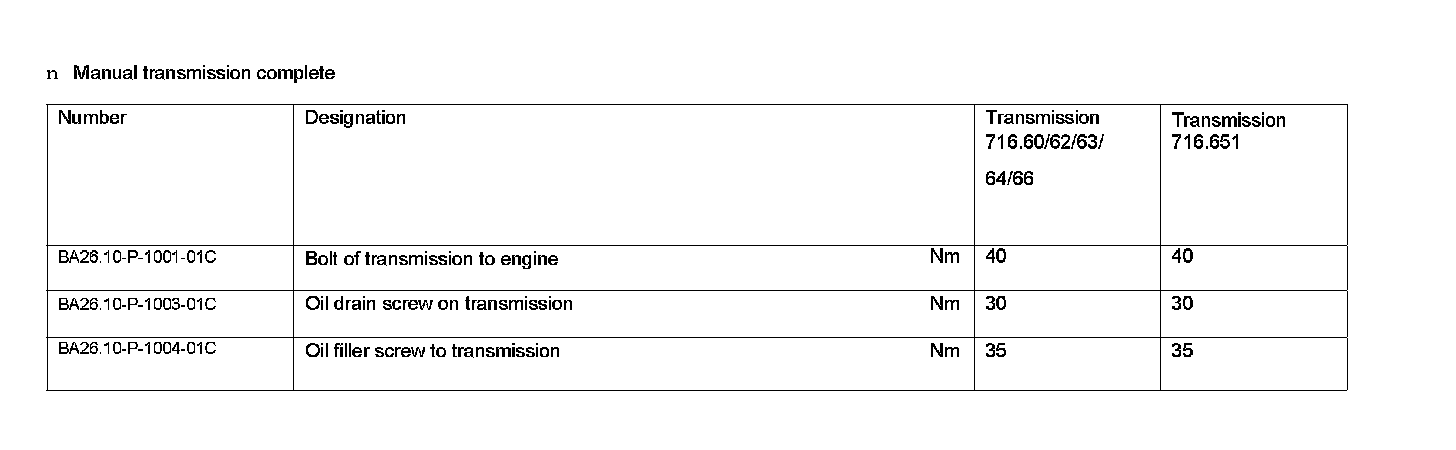

Manual transmission complete:
Manual transmission:
Manual transmission:

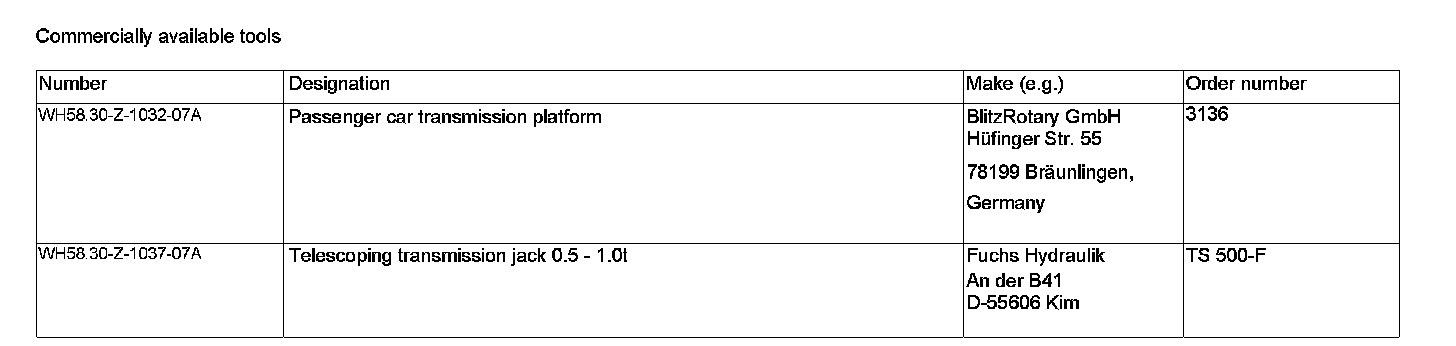

Commercially available tools:

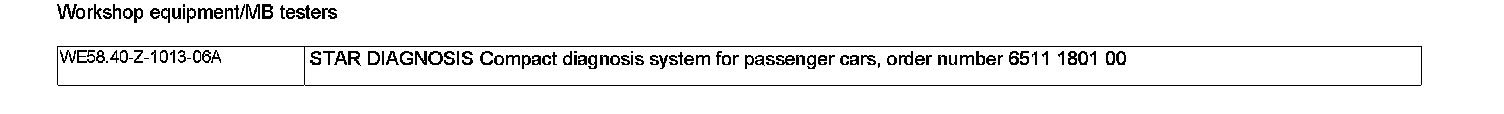

Workshop equipment/MB testers:
