AR22.10-P-4350TW Remove/Install Left Engine Support



AR22.10-P-4350TW Remove, install left engine support

Component Identification:

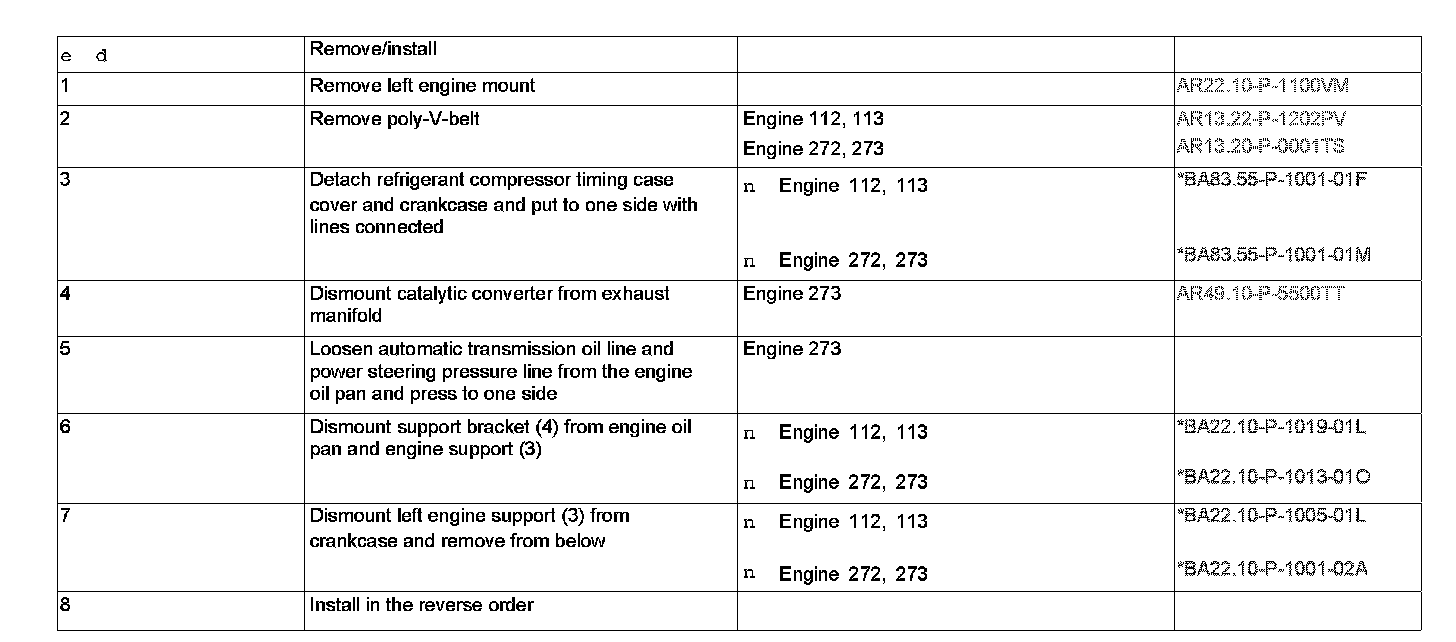

Steps 1 - 8:

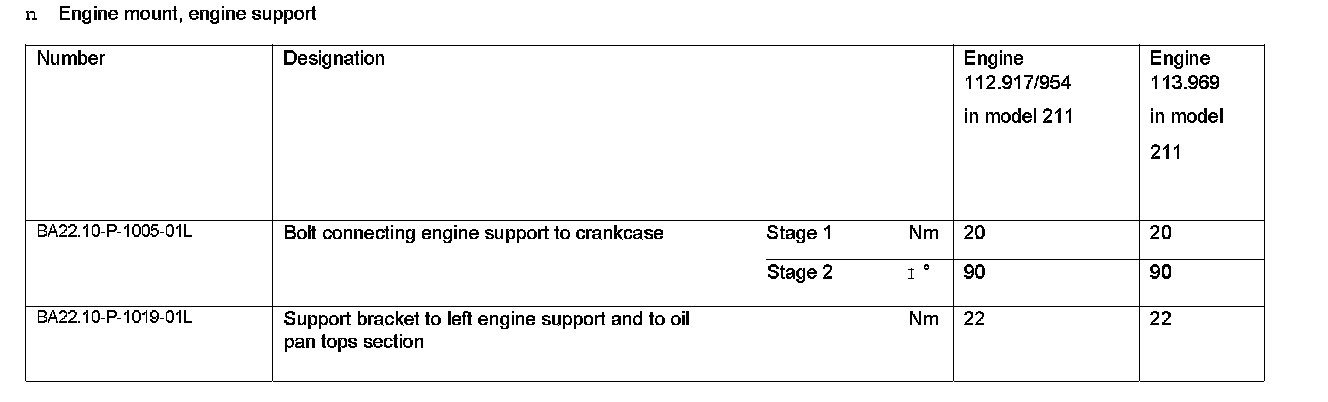

Engine mount, engine support:




Refrigerant Compressor:

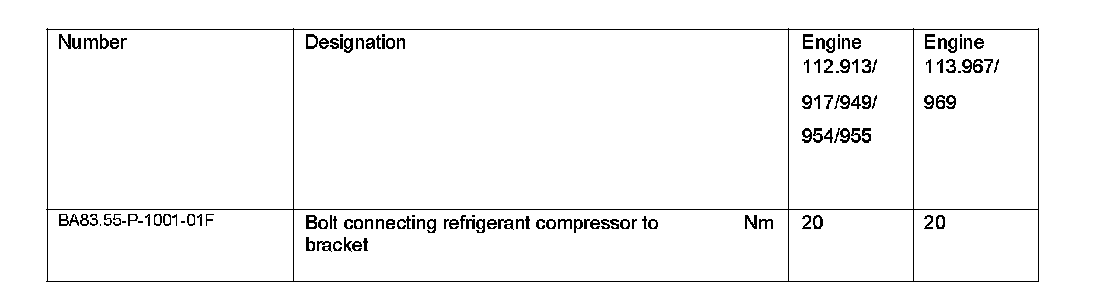

Refrigerant compressor:

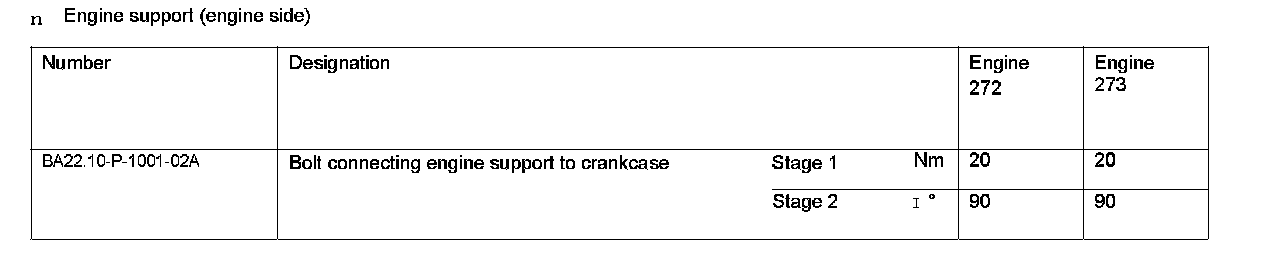

Engine support (engine side):

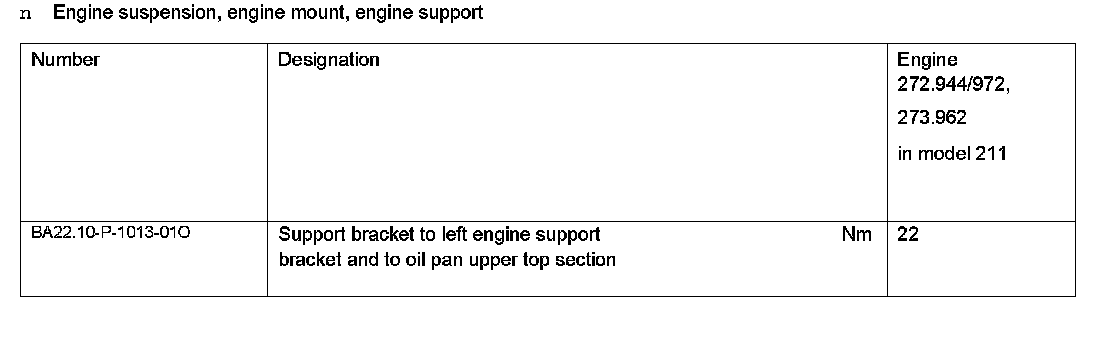

Engine suspension, engine mount, engine support:
