AR22.10-P-1100VM Remove/Install Engine Mount



AR22.10-P-1100VM Remove, install engine mount

Component Identification:

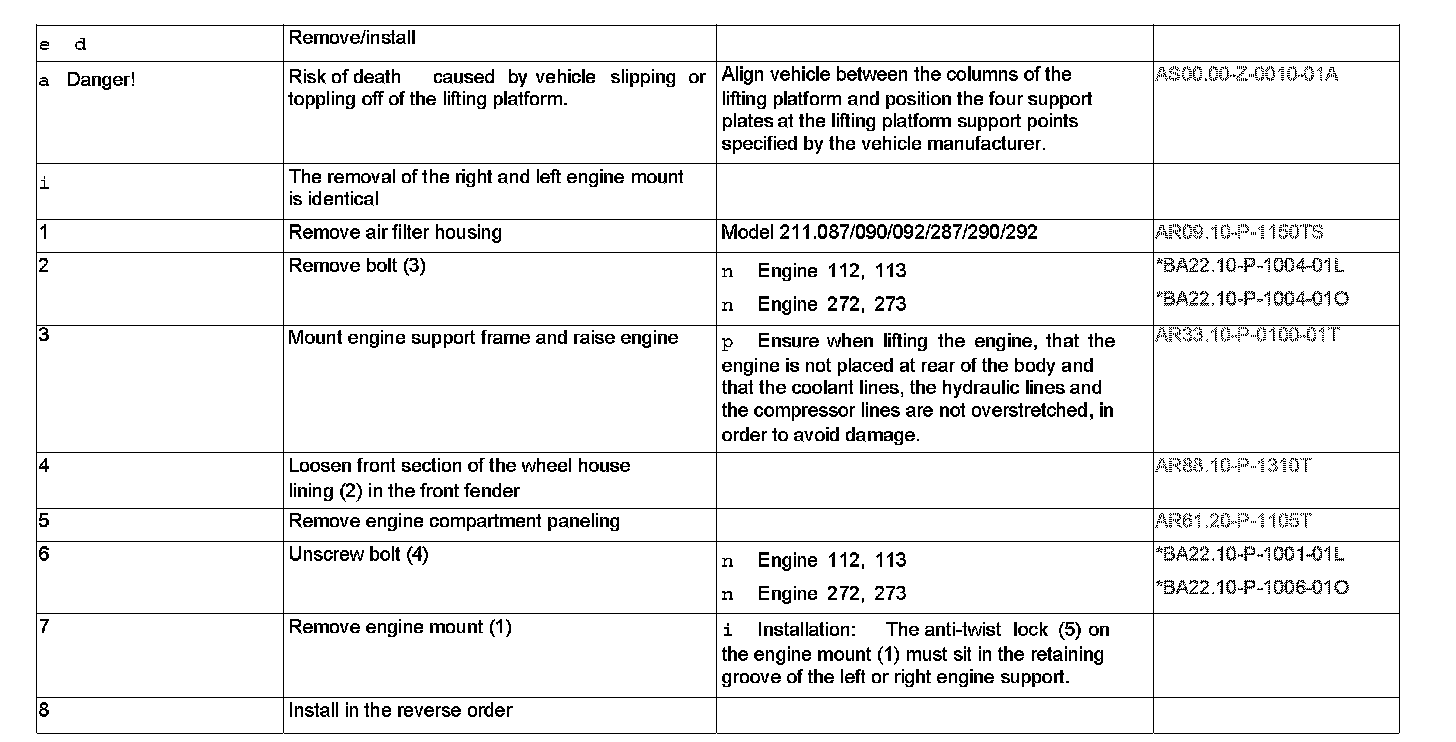

Steps 1 - 8:

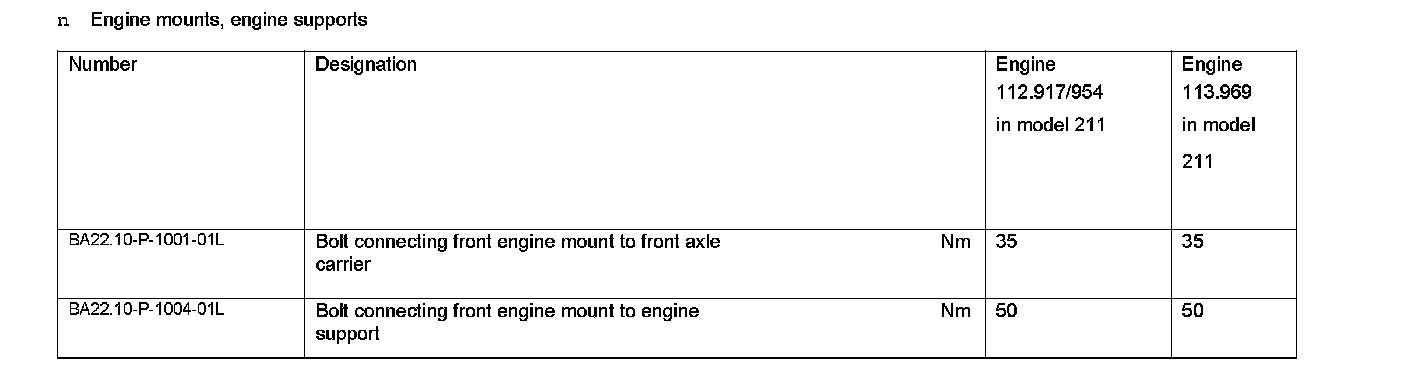

Engine Mounts, Engine Supports:

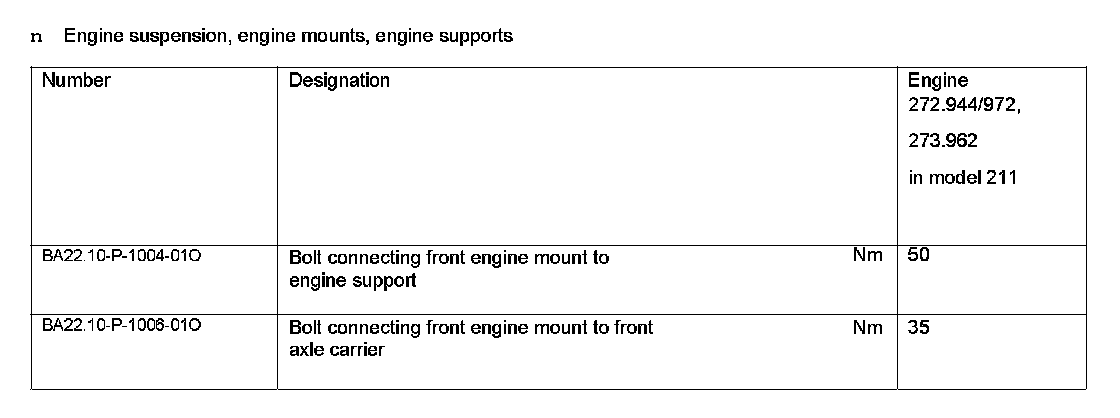

Engine Suspension, Engine Mounts, Engine Supports:
