Home >> Mercedes Benz >> 2005 >> E 320 4MATIC Wagon (211.282) V6-3.2L (112.954) >> Repair and Diagnosis >> Body and Frame >> Seats >> Head Rest >> Service and Repair >> Removal and Replacement >> AR91.16-P-1800T Remove/Install Pneumatic Pump For Head Restraint Lowering Mechanism In Rear Seat Backrest

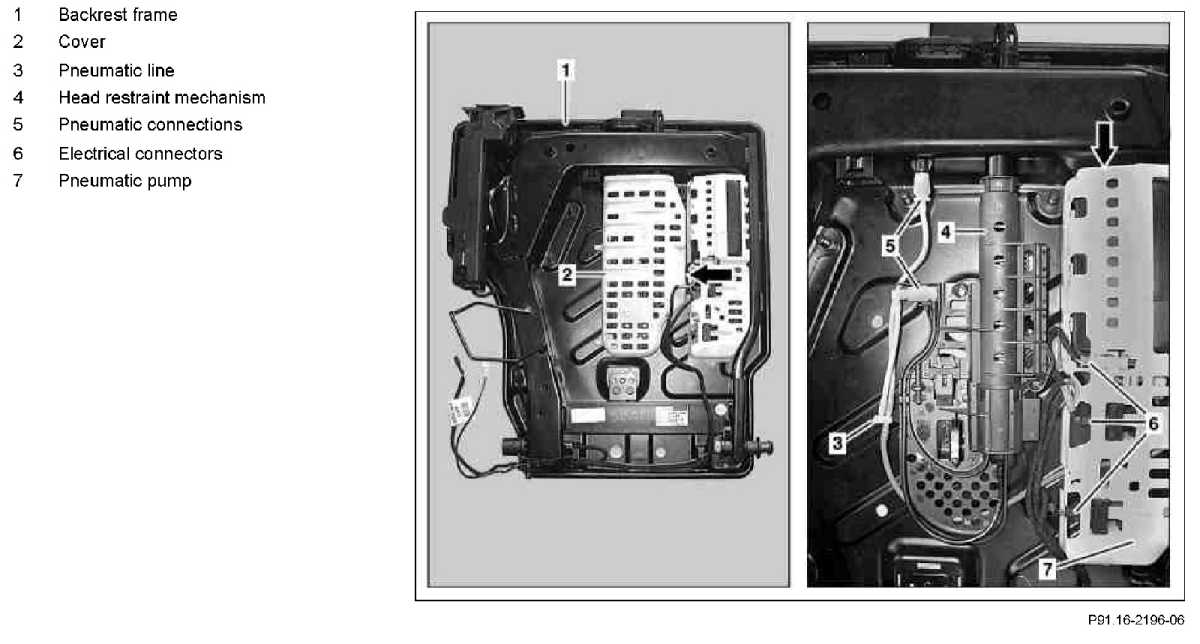

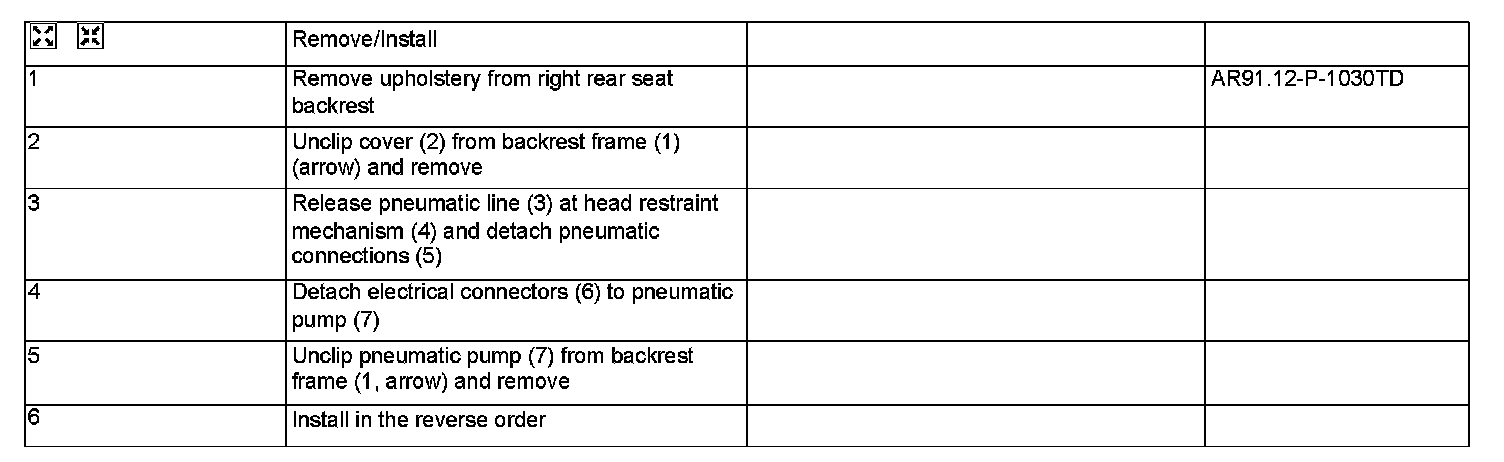

AR91.16-P-1800T Remove/Install Pneumatic Pump For Head Restraint Lowering Mechanism In Rear Seat Backrest



AR91.16-P-1800T Remove/Install Pneumatic Pump For Head Restraint Lowering Mechanism In Rear Seat Backrest
