Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Arm >> Adjustments >> AR82.30-P-6000Q Check Wiper Arms and Adjust

AR82.30-P-6000Q Check Wiper Arms and Adjust

AR82.30-P-6000Q Check Wiper Arms and Adjust

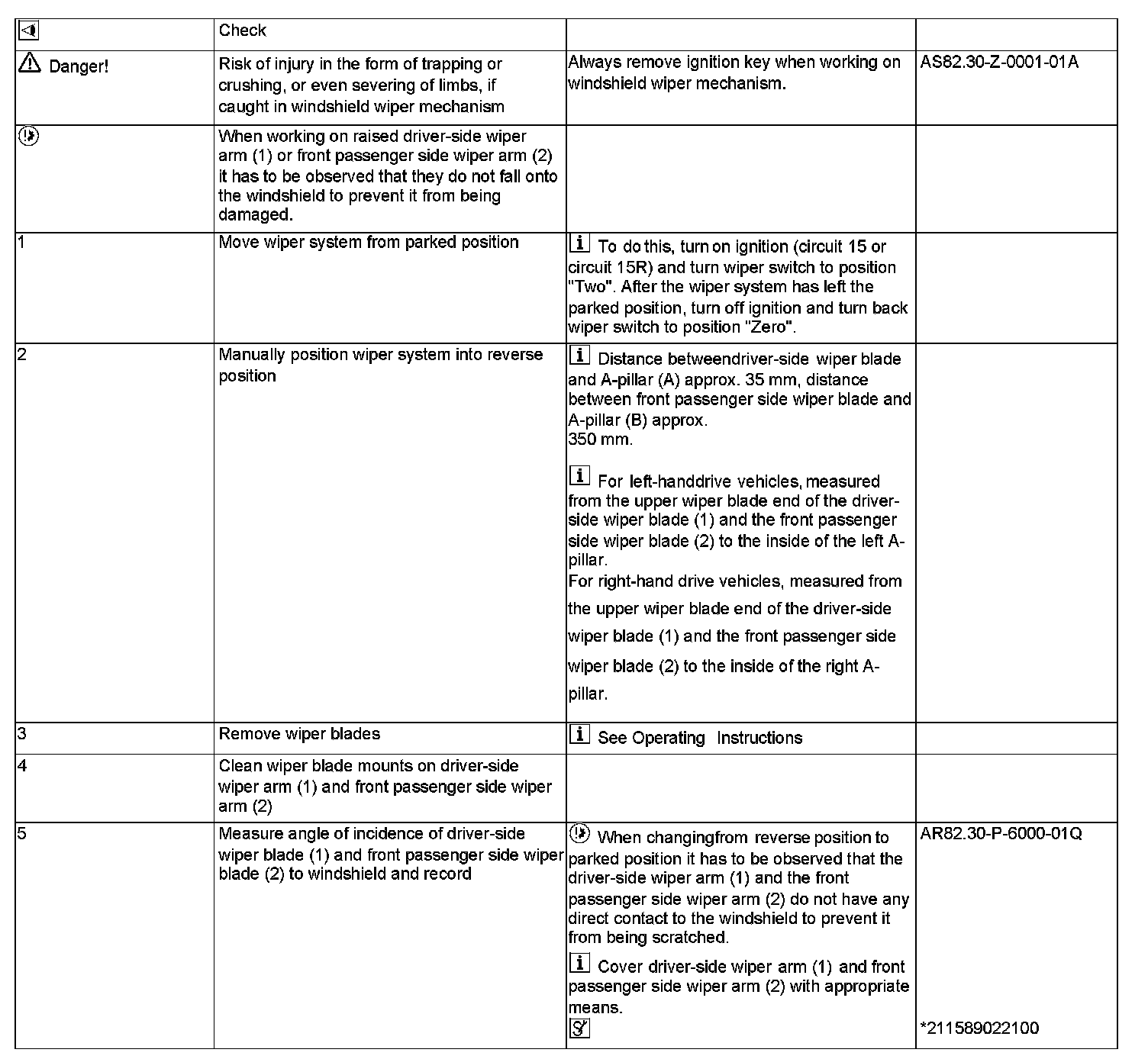

Part 1:

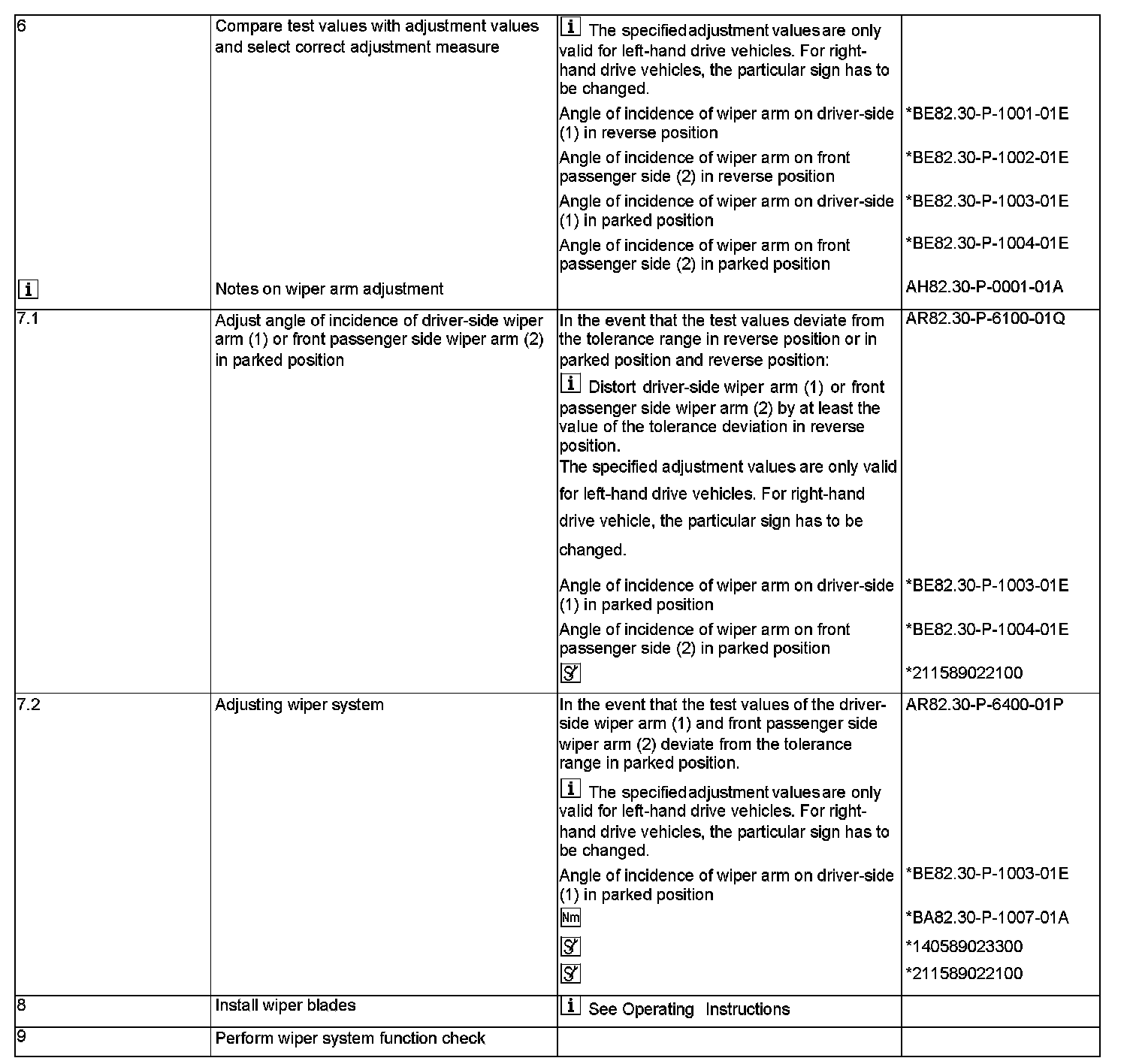

Part 2:

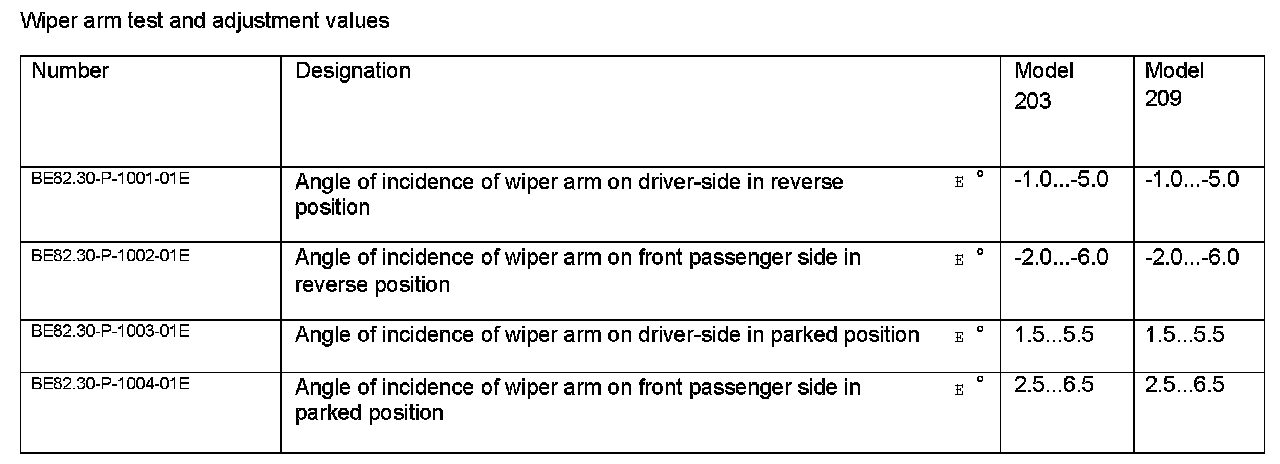

Wiper Arm Test And Adjustment Values:

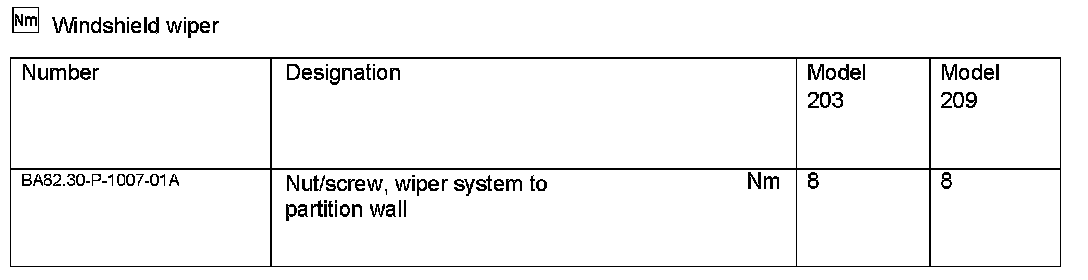

Windshield Wiper:
