AR82.35-P-6002QBS Remove/Install Windshield Washer System Pump



AR82.35-P-6002QBS Remove/Install Windshield Washer System Pump
- with CODE (P98) Black Series

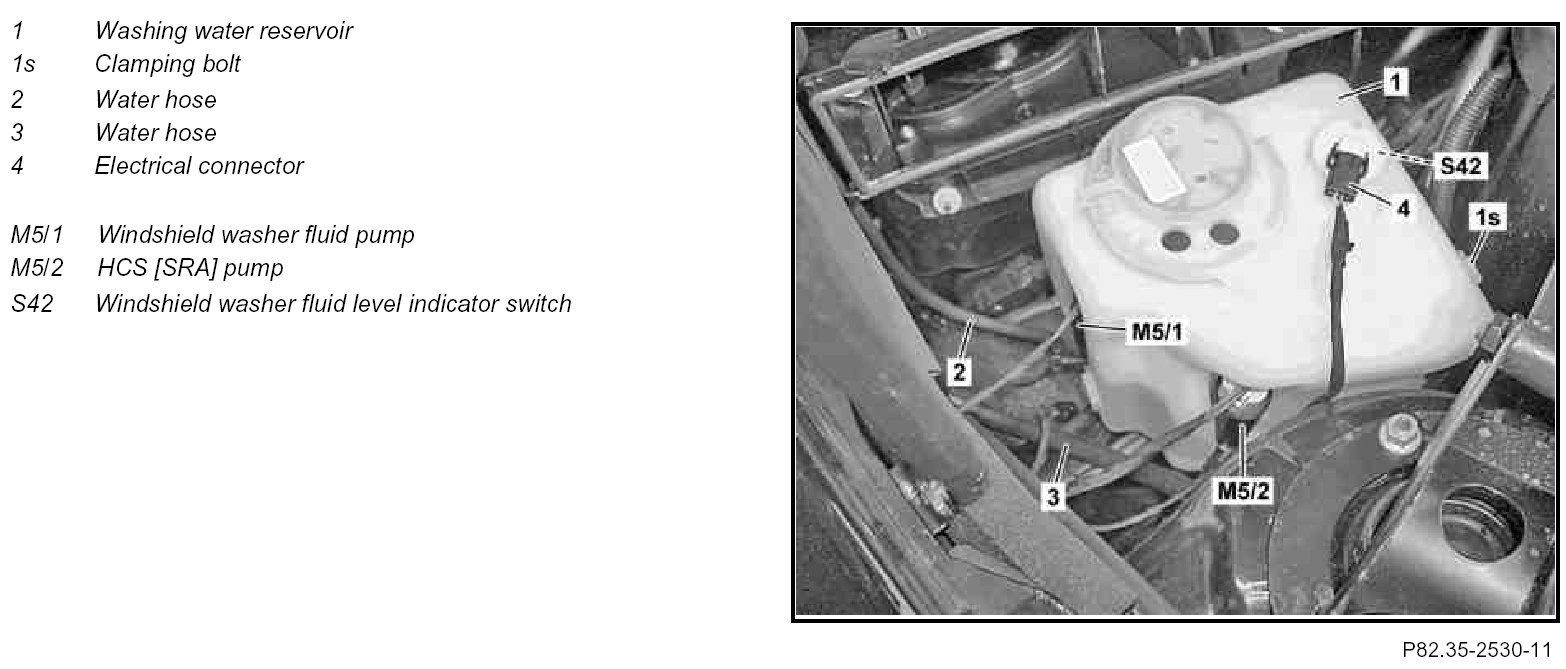

Component Identification:

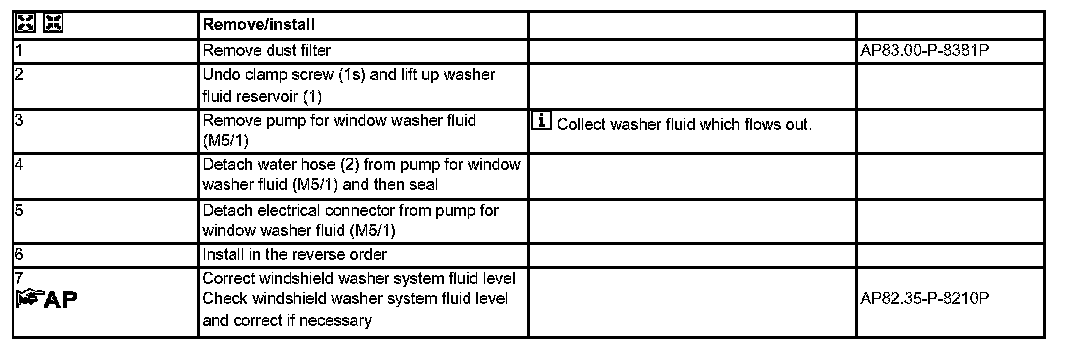

Steps 1 - 7:
