Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Hose >> Service and Repair >> AR82.35-P-6980QBS Remove/Install Windshield Washer Hose

AR82.35-P-6980QBS Remove/Install Windshield Washer Hose



AR82.35-P-6980QBS Remove/Install Windshield Washer Hose
- with CODE (P98) Black Series

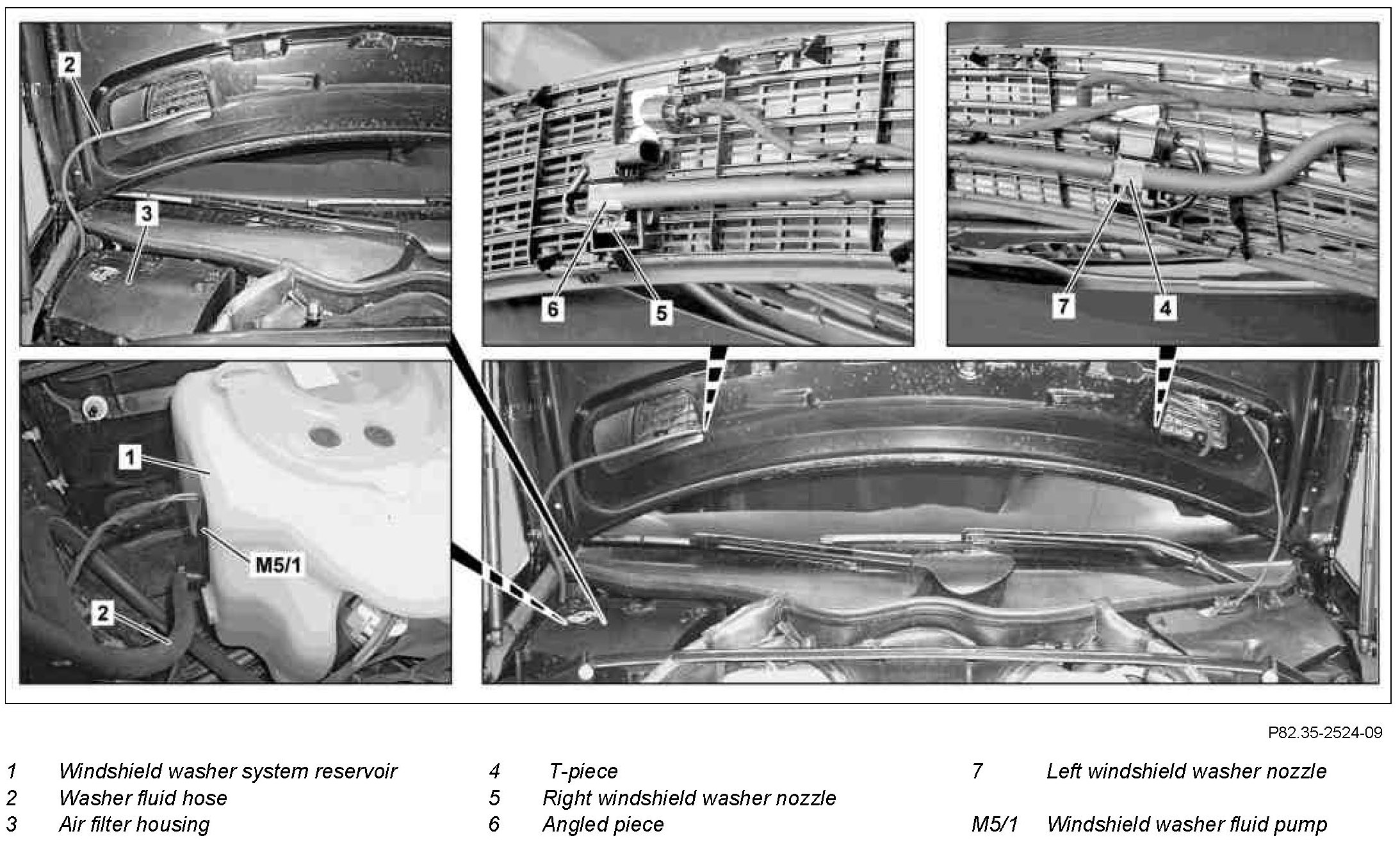

Component Identification:

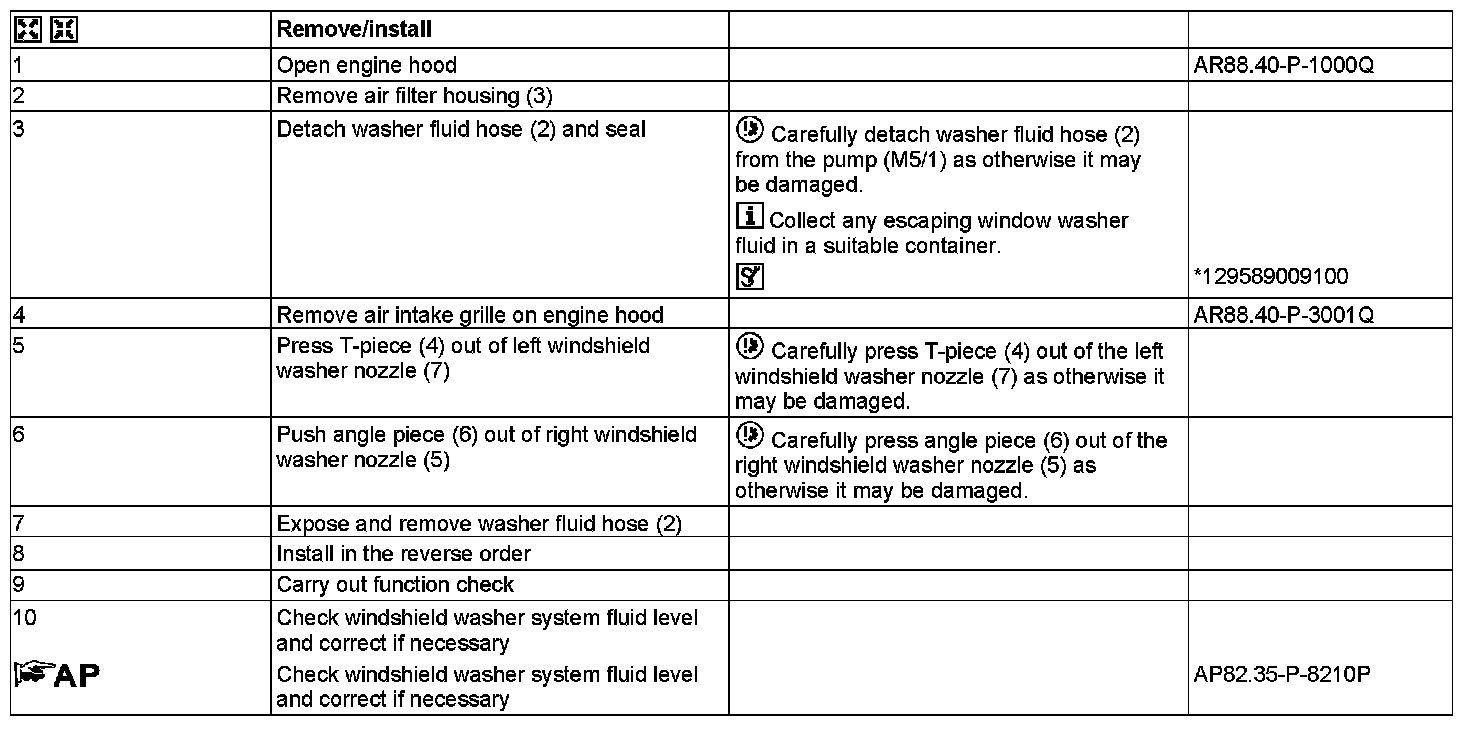

Steps 1 - 10:

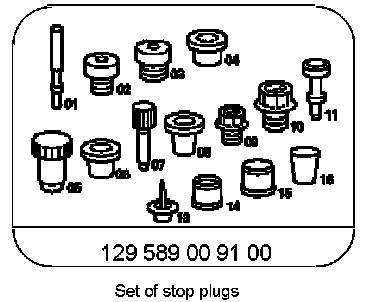

Special Tools:
