Washers/Wipers - Washer Reservoir Hard To Fill

Date: April 20, 2007

Order No.: P-B-82.35/579

Group: 82

SUBJECT:
Model 203.061/064/065/081/084/261/264/281/284/740/747/764
Model 209.365/375/376/465/475/476

Windshield Washer Fluid Reservoir Difficult to Refill

If you receive customer reports in the above model vehicles of difficulty refilling the windshield washer fluid reservoir, this may be due to the breather hose becoming detached from the filler neck. To resolve, perform the following.

1. Remove filler neck as per WIS document AR82.35-P-6007P.

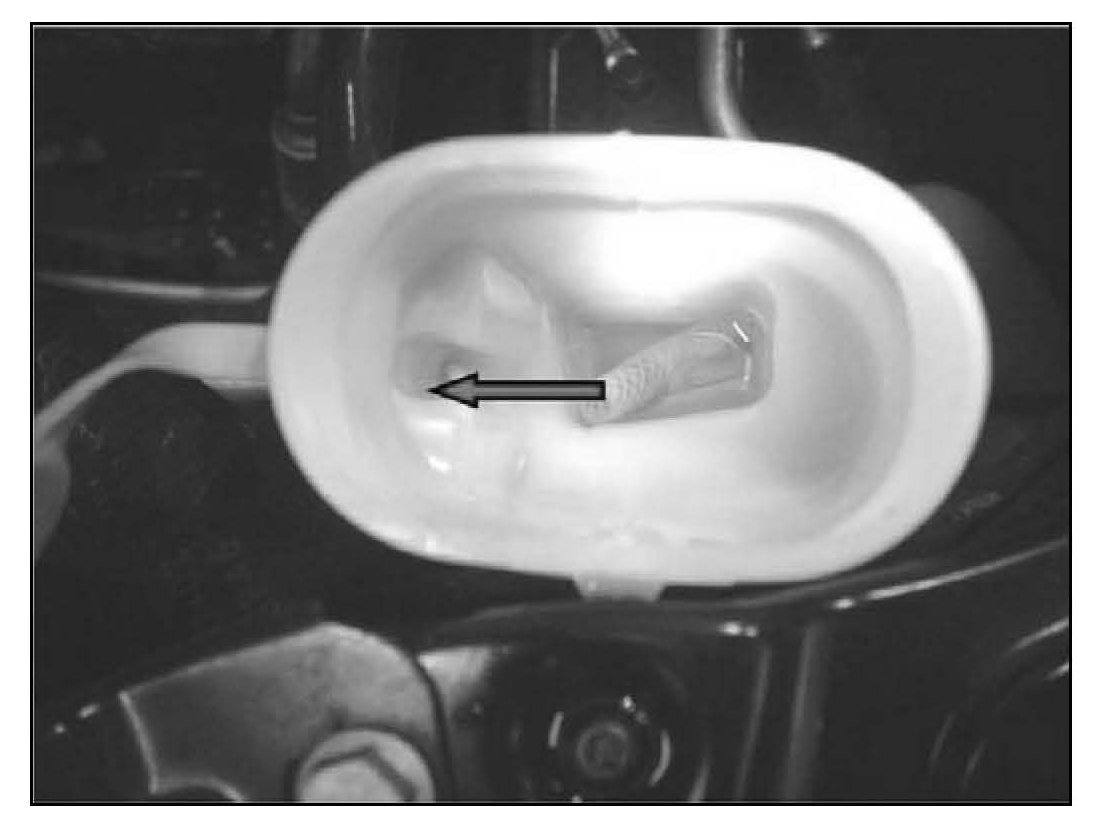

2. Install a newly designed breather hose on to the detent (Figure 1, arrow) in the filler neck.

3. Reinstall filler neck as per WIS document AR82.35-P-6007P.





Parts Information

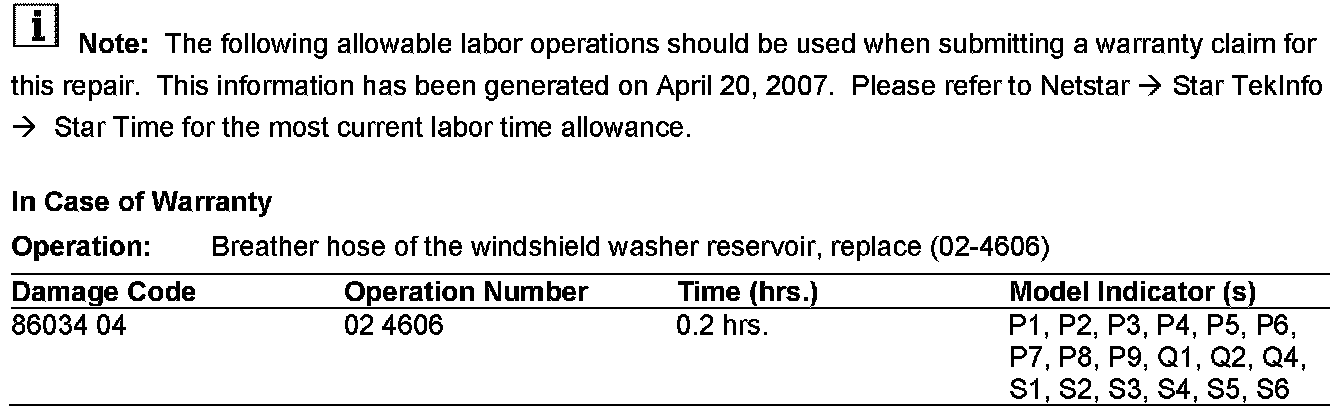

Warranty Information





In Case of Warranty, use the table.
