Headlamp Washer Spray Nozzle: Service and Repair

AR82.15-P-6100Q Remove/Install Telescopic Nozzle of Headlamp Cleaning System
- with CODE (600) Headlamp cleaning system

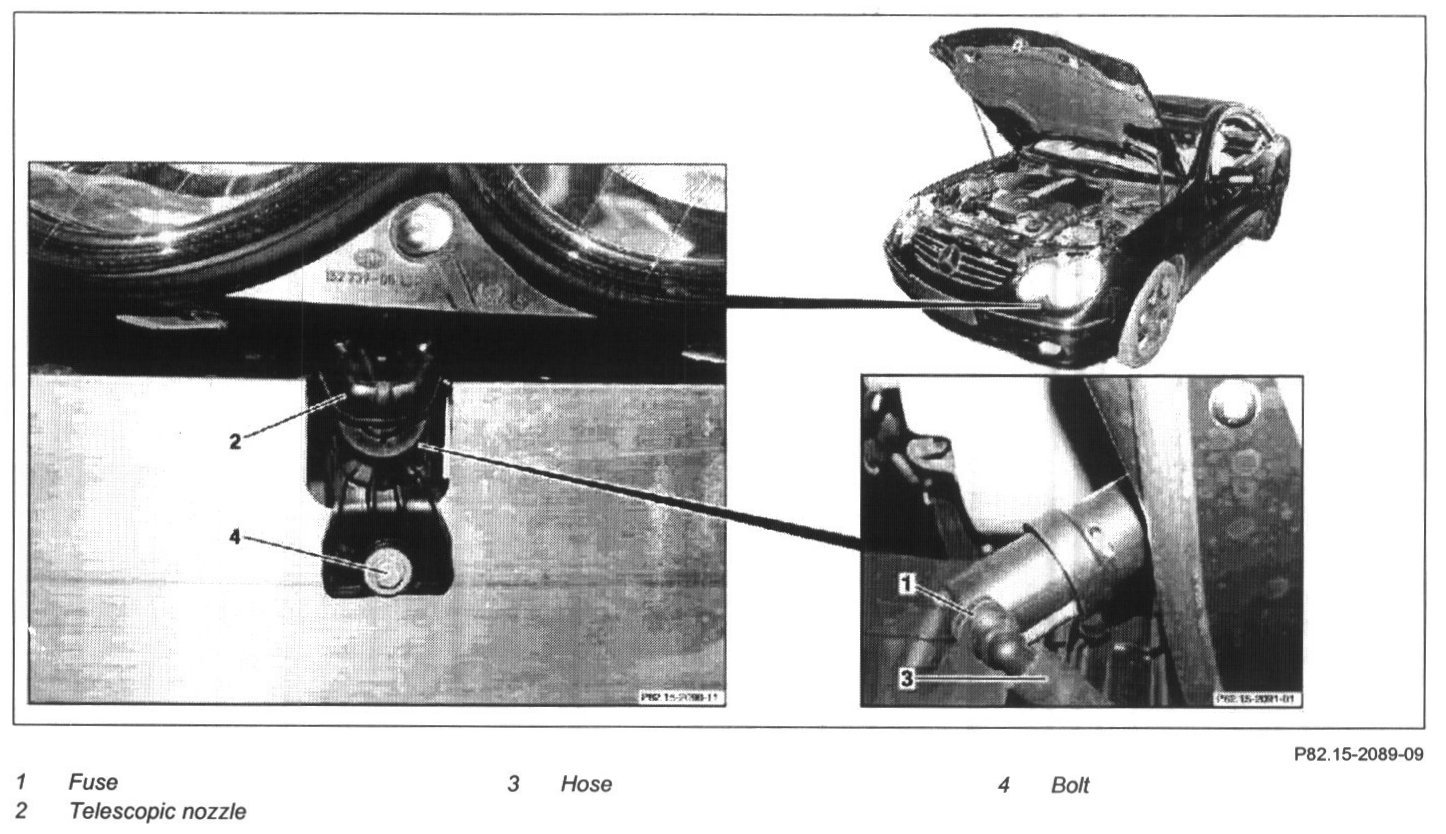

1 Remove front bumper
2 Remove fuse (1)
3 Disconnect hose (3) at the telescopic nozzle (2) and seal off
Set of plugs, See Special Tools below
4 Unscrew screw (4)
5 Remove telescopic nozzle (2)

NOTE:
Installation: ensure correct seating.

6 Install in the reverse order
7 Check for proper function
8 Correct fluid level of windshield washer system
Windshield washer system - inspect fluid level, adjust to correct level

Set Of Plugs - 129 589 00 91 00:
