Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Shade Motor >> Service and Repair

Window Shade Motor: Service and Repair

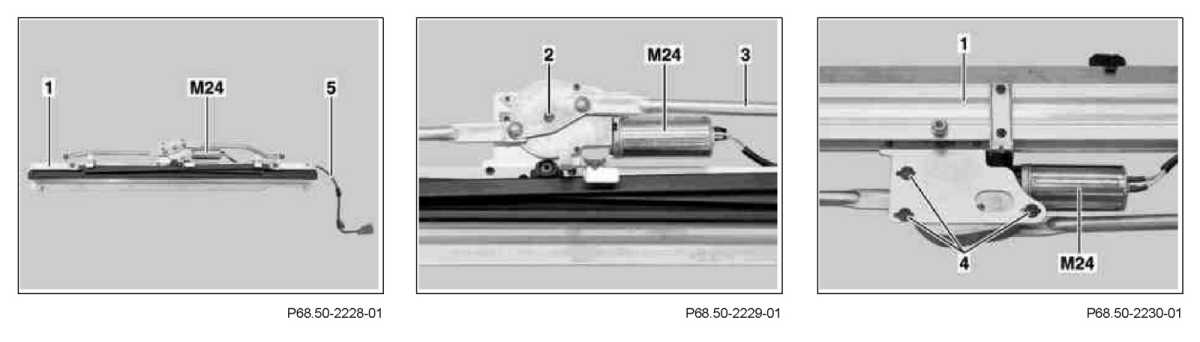

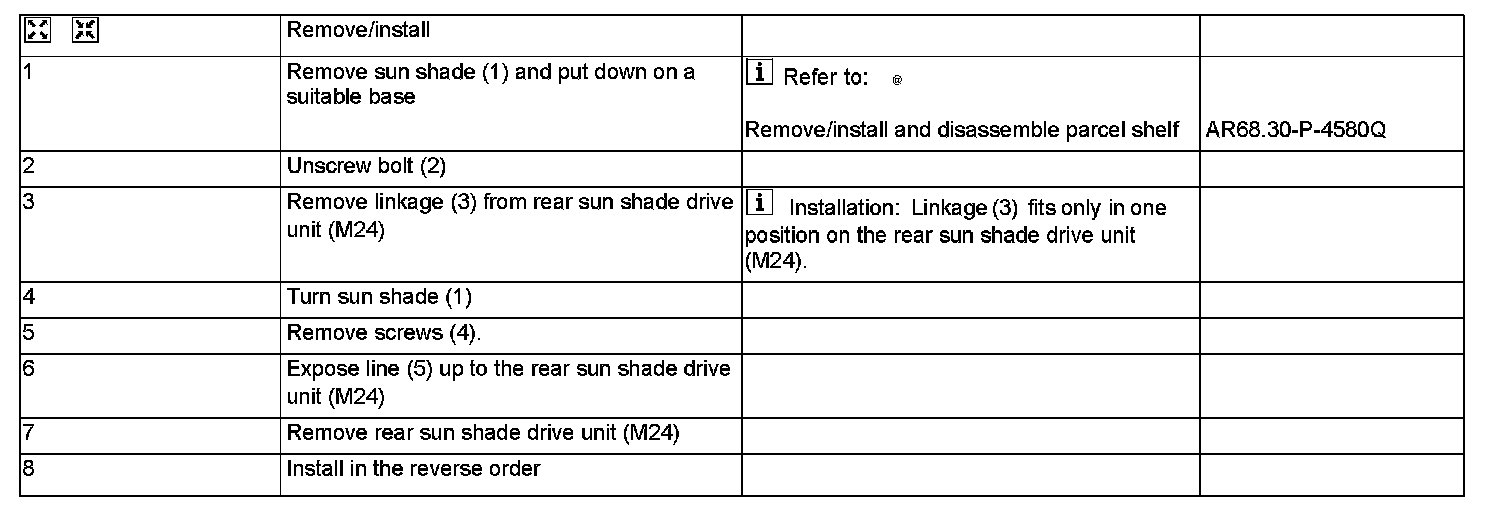

AR68.50-P-4800Q Remove/Install Sun Shade Motor
- with CODE (540a) Electric sun shade for rear window
