Transmission Mount: Service and Repair

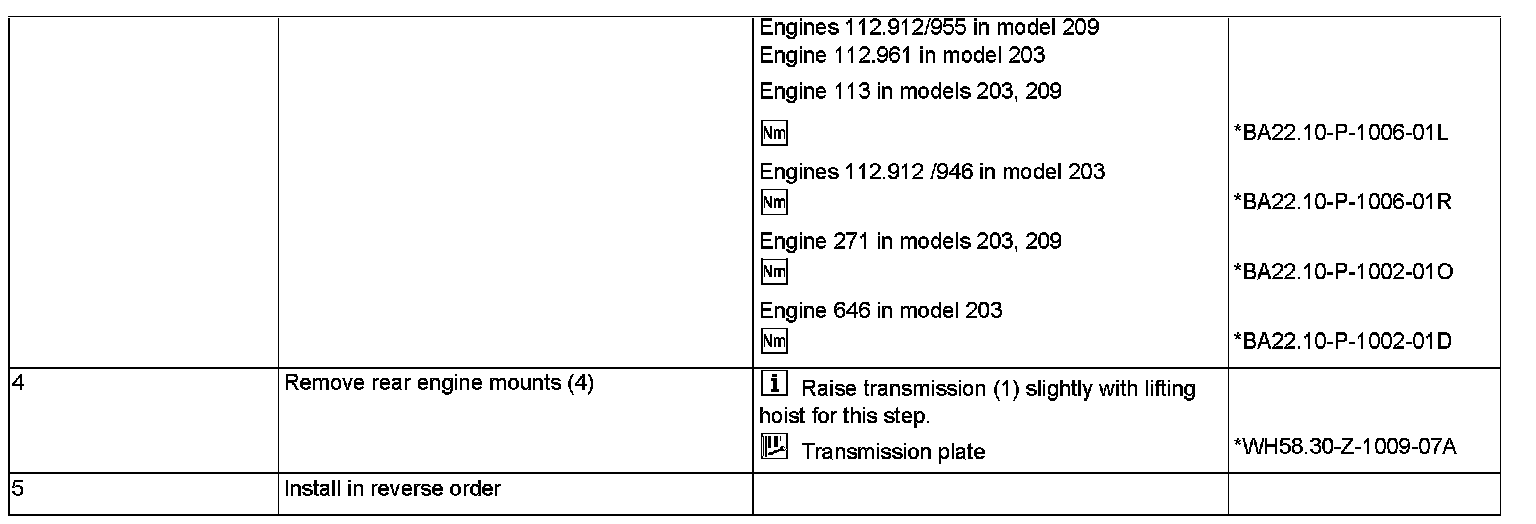

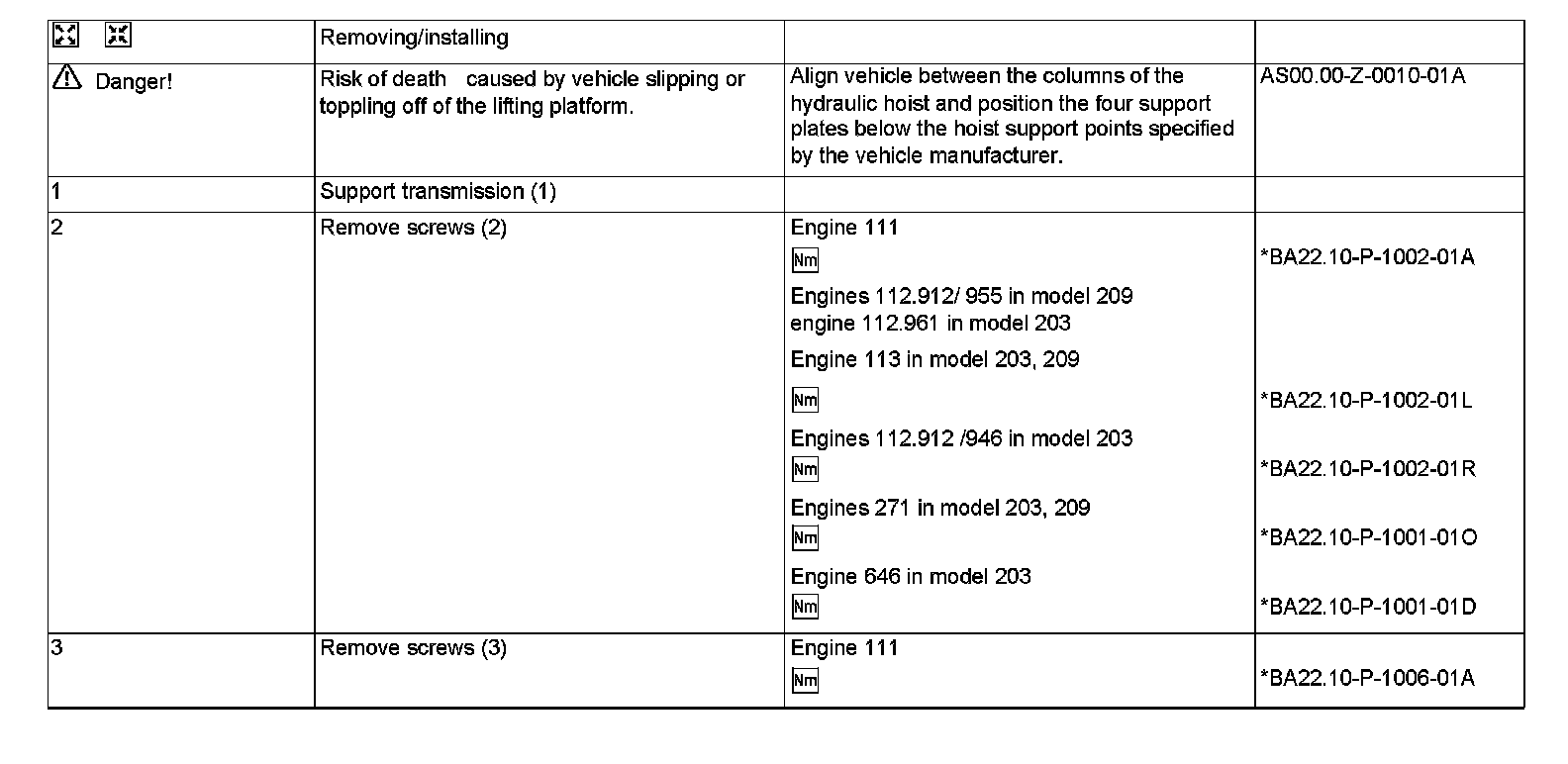

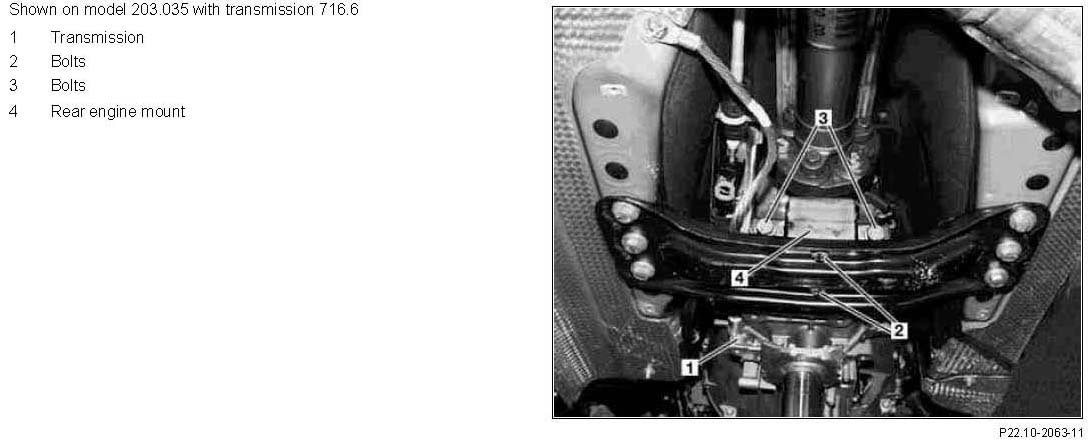

Removing/installing rear engine mount

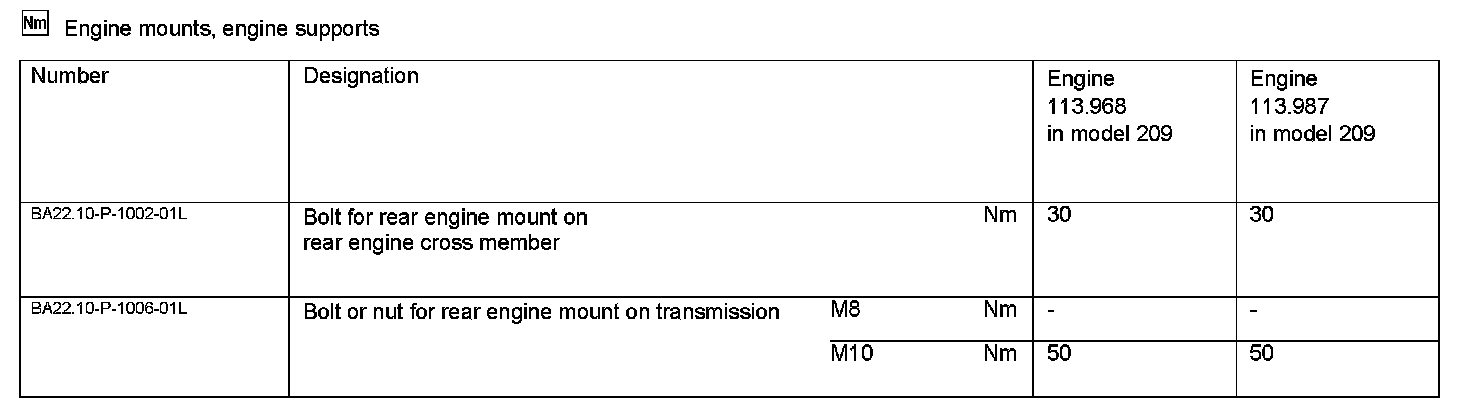

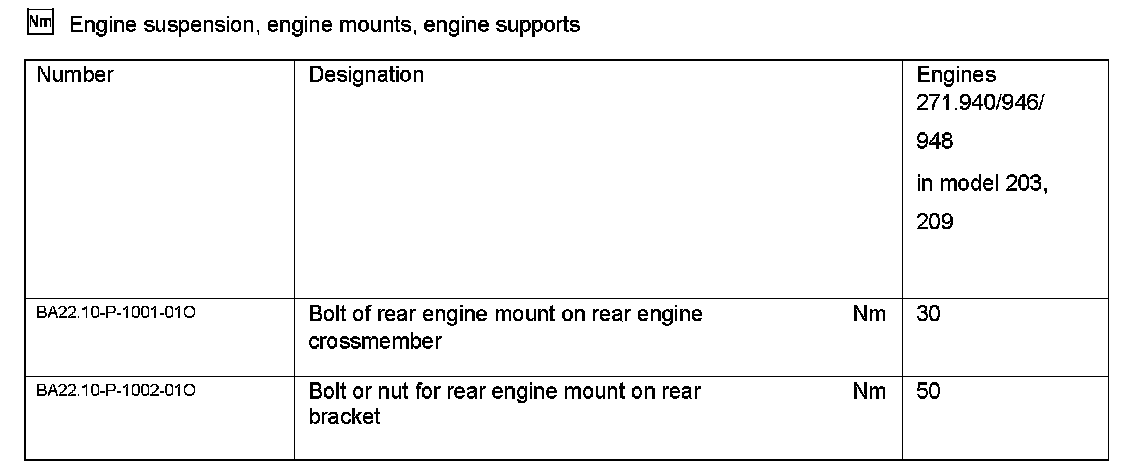

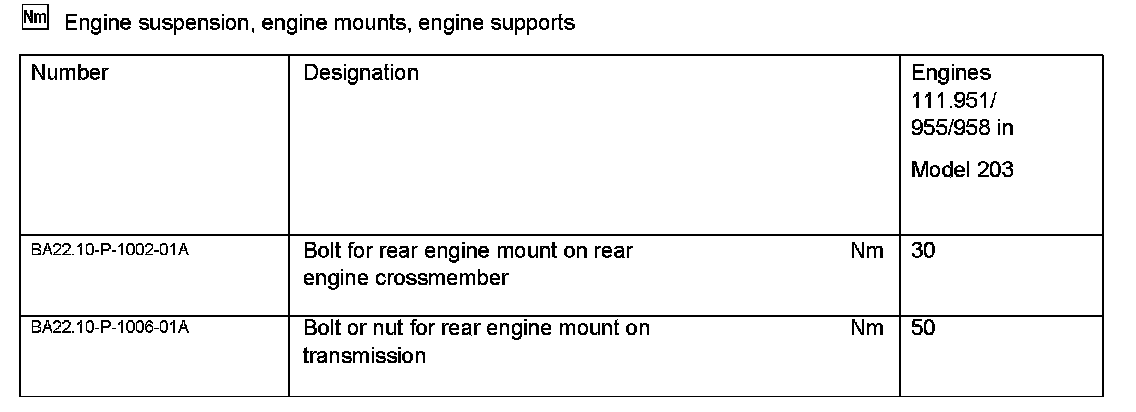

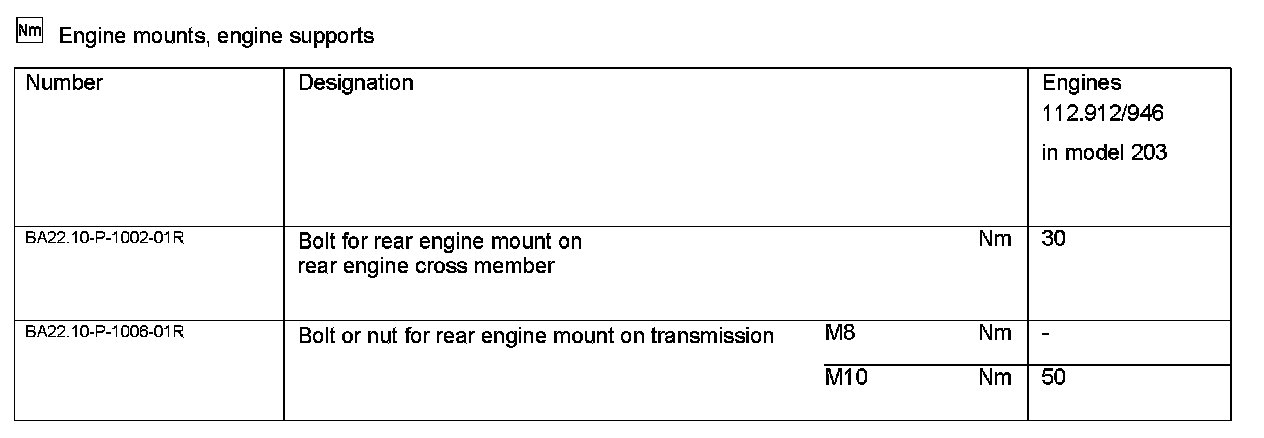

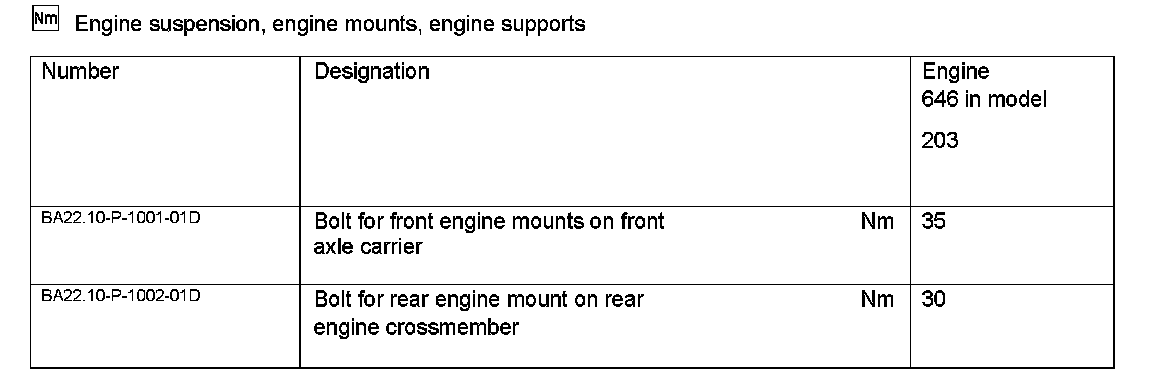

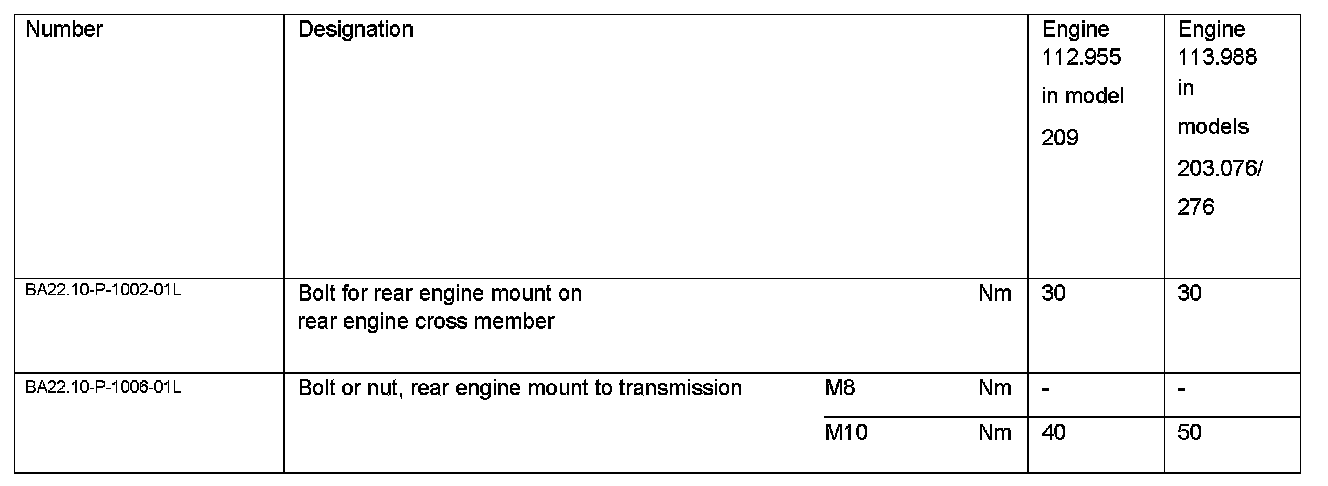

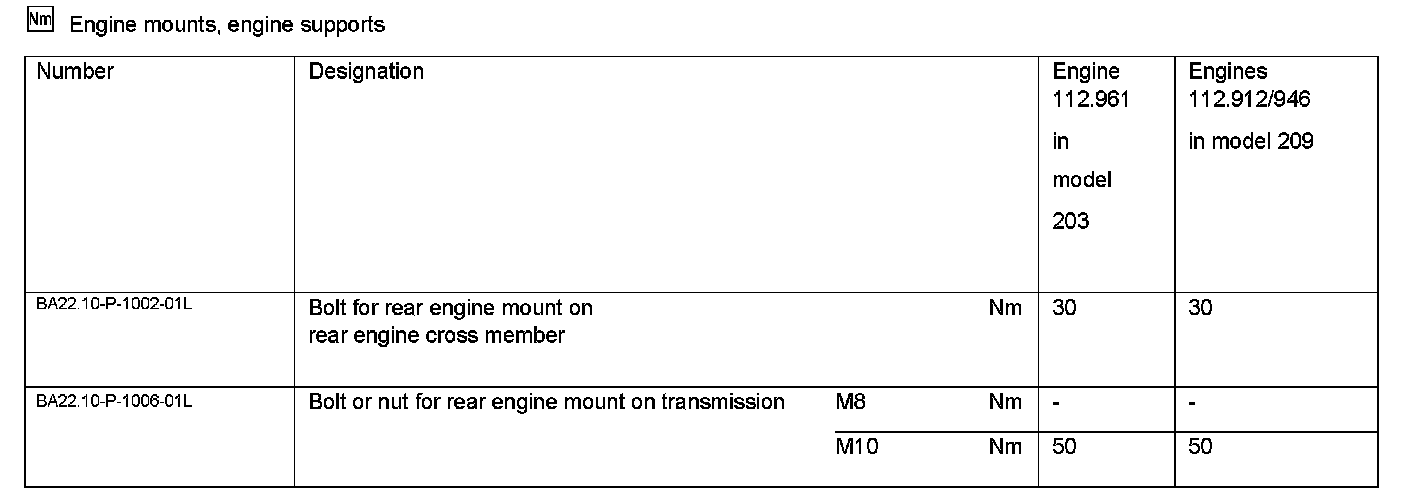

Engine mounts, engine supports:
