Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Transmission and Drivetrain >> Flywheel >> Specifications

Flywheel: Specifications

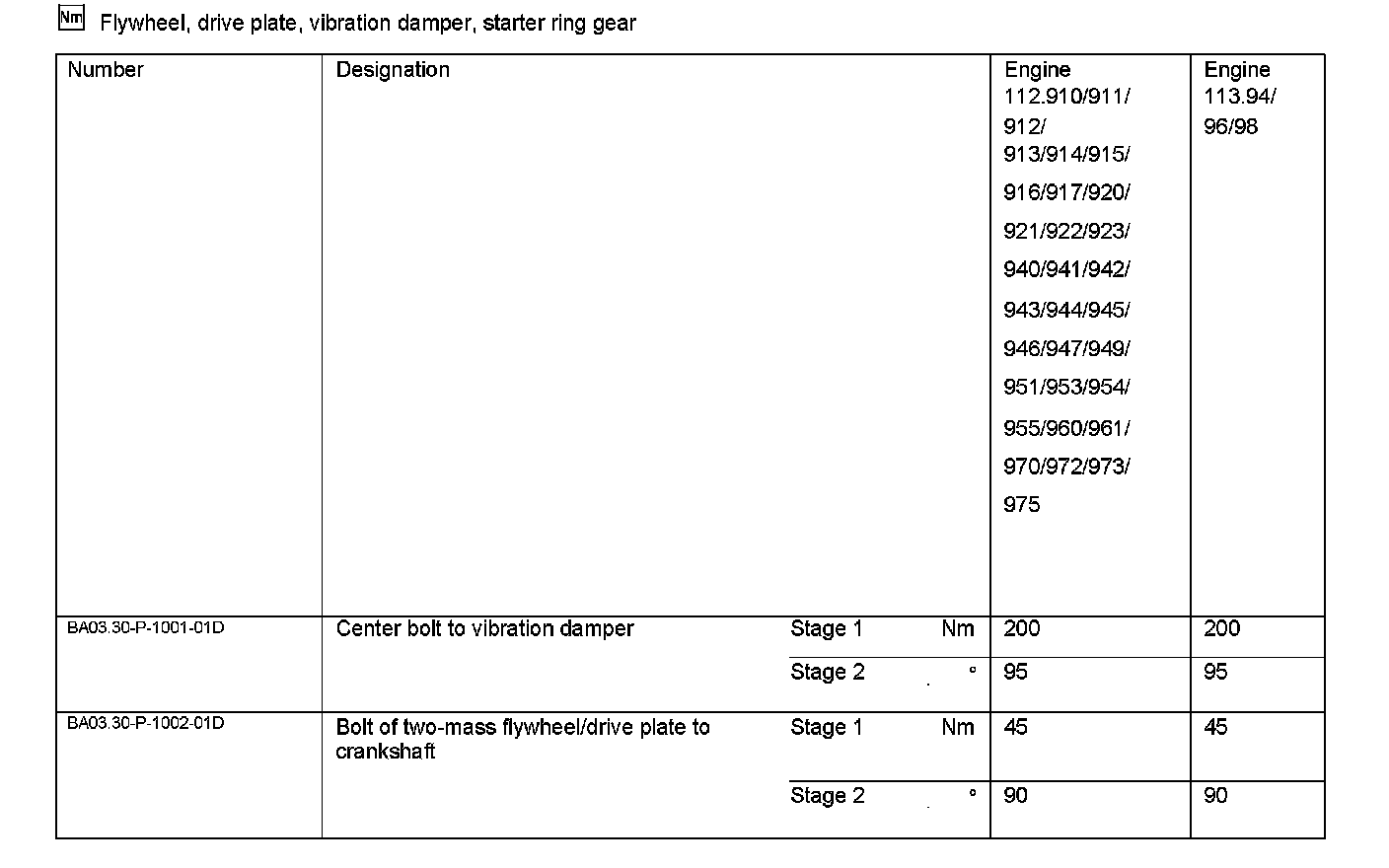

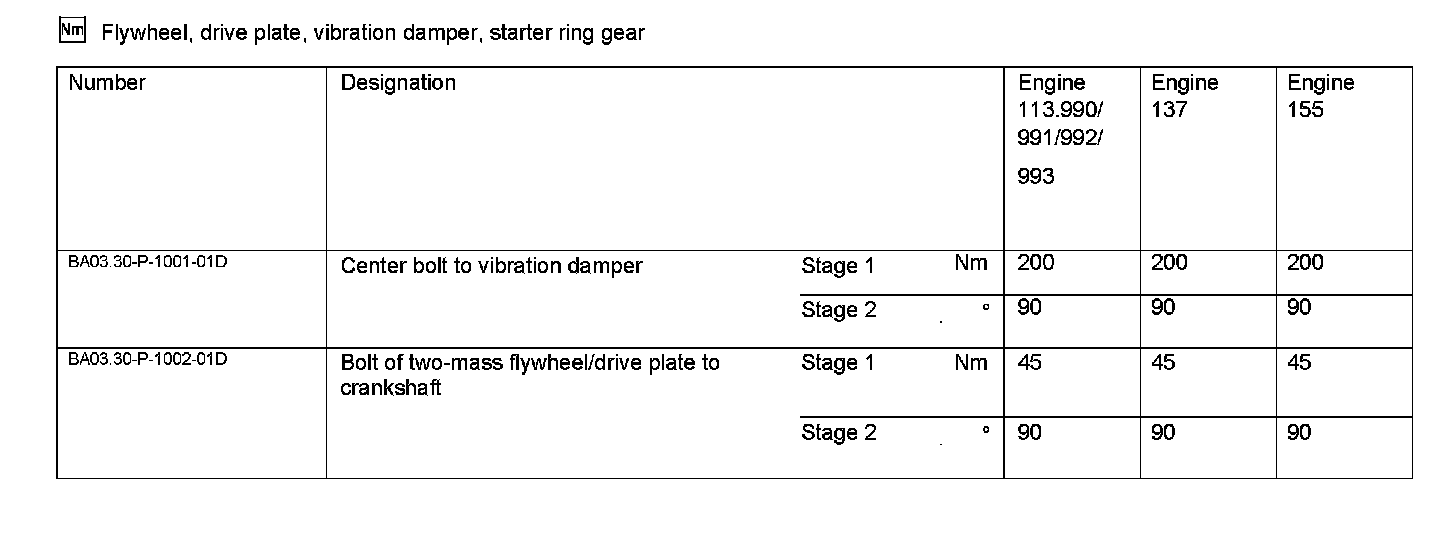

Flywheel, drive plate, vibration damper, starter ring gear
