FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2005
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Flywheel
>>
Service and Repair
Flywheel: Service and Repair
AR03.30-P-5000B Remove/install retaining lock for crankshaft/ring gear

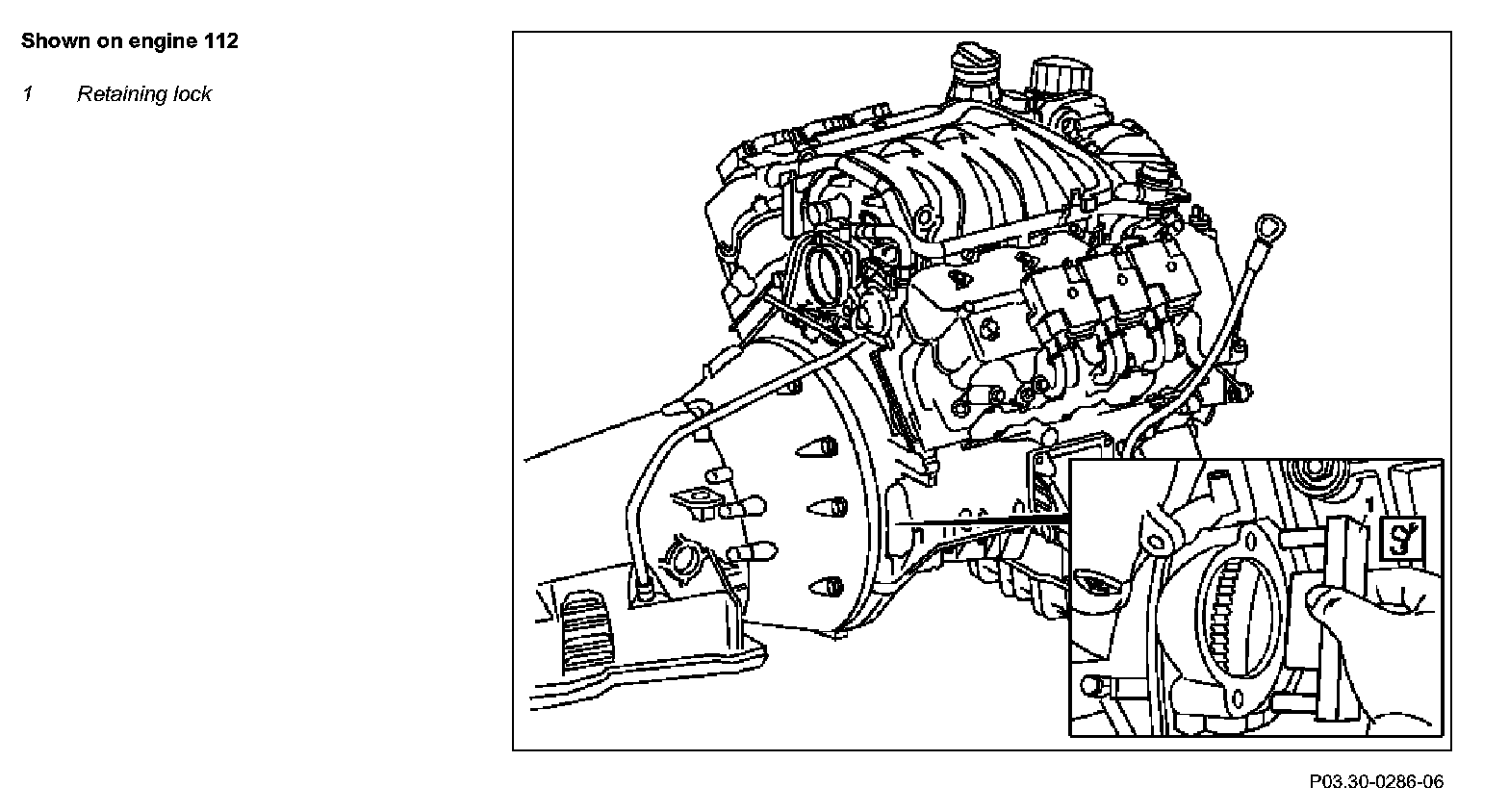

Component Identification:

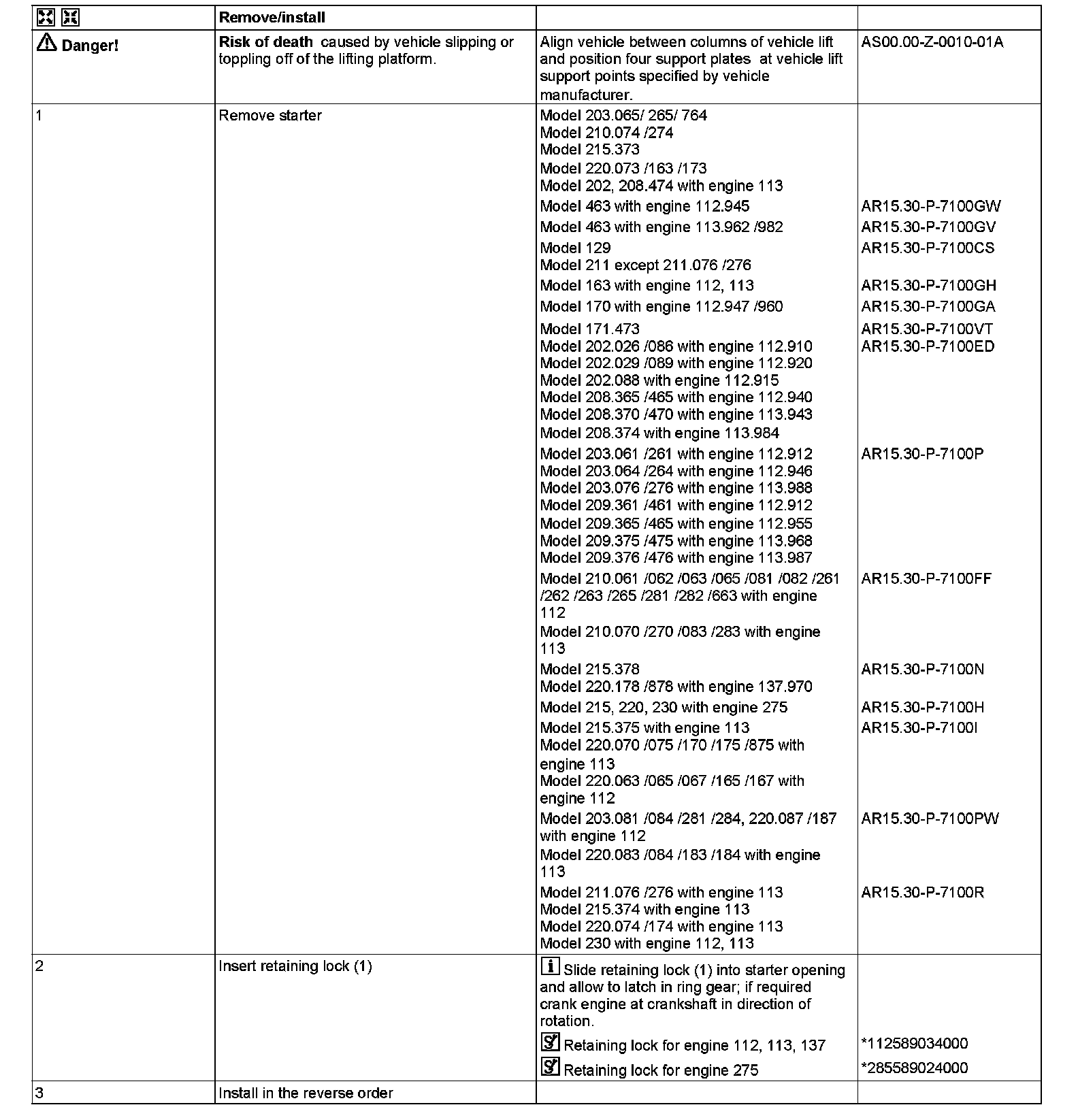

Steps 1-3:

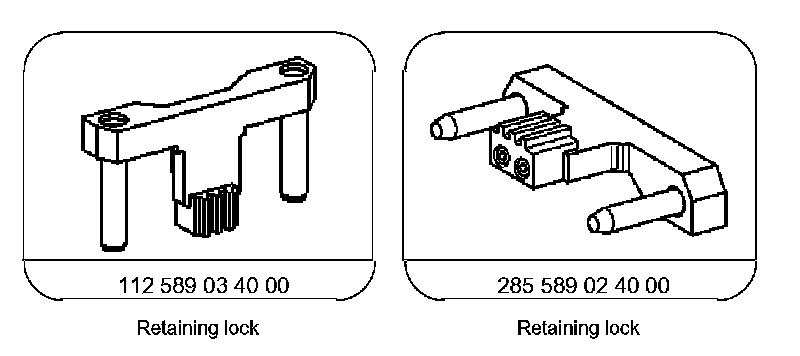

Special Tools:
