AR35.30-P-0660-03AF Inner constant-velocity joint - Dismantling, inspecting for wear, assembly
- Bolted rear axle






Dismantle constant velocity joint
1 Mark relative positions of joint ring, joint hub and ball retainer before dismantling using electric scriber or whetting stone.
2 Swivel joint hub and ball retainer and remove individually.

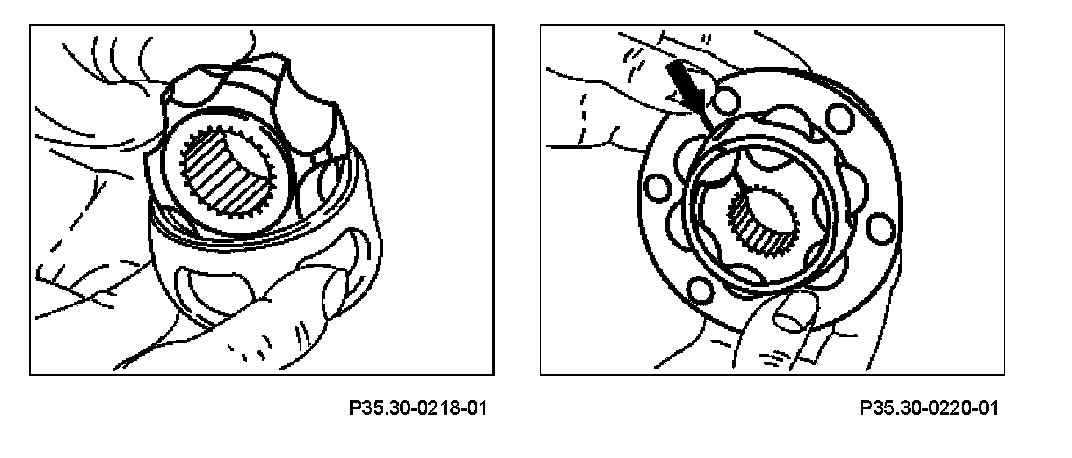

3 Remove joint hub and ball retainer from joint ring.

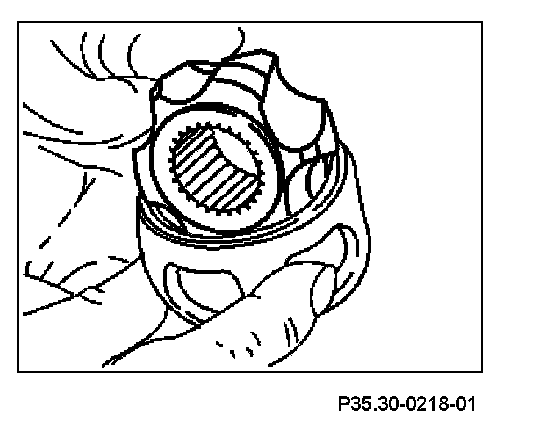

4 Swivel joint hub toward ball cage by 90 degrees and remove.
5 Clean all parts.





Check constant velocity joint
6 Check joint ring, joint hub, ball retainer ball raceways and ball bearings for depressions (pitting) and traces of wear (arrows).

If these parts exhibit major signs of wear, then the complete constant velocity joint must be replaced. Smoothing and marking, caused by the balls, are not a reason to replace the constant velocity joint.





Assembling CV joint

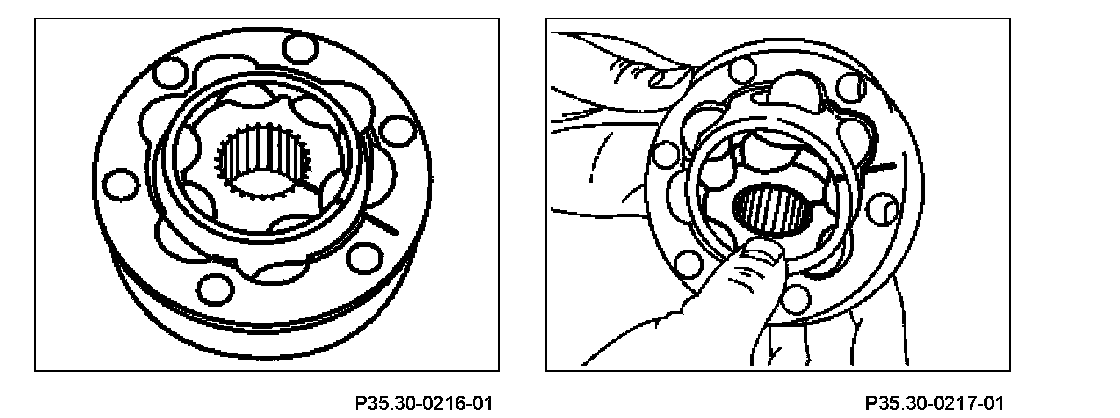

7 Place joint hub in vertical position to ball retainer and insert.

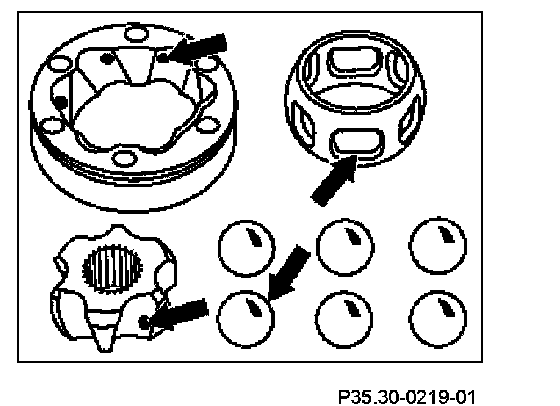

8 Insert one ball bearing, paying attention to the markings on the joint hub and the ball retainer.
9 Insert joint hub with ball retainer and ball bearings into joint ring, also paying attention to markings (arrow).

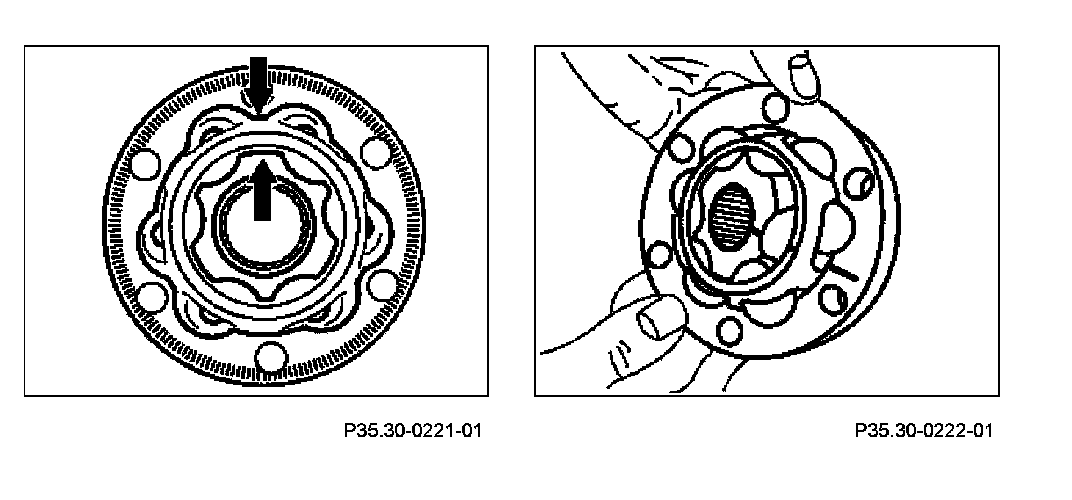

If no markings have been made, assemble the joint ring such that the narrow side of the ball raceway always faces the wide side of the joint hub or vice-versa (arrows).
10 Align the joint hub with the ball retainer to the extent that one ball after the other can be inserted in each case.
