AR41.10-P-0050-03EA Detach Rear Propeller Shaft From Rear Axle Center Assembly

AR41.10-P-0050-03EA Detach rear propeller shaft from rear axle center assembly

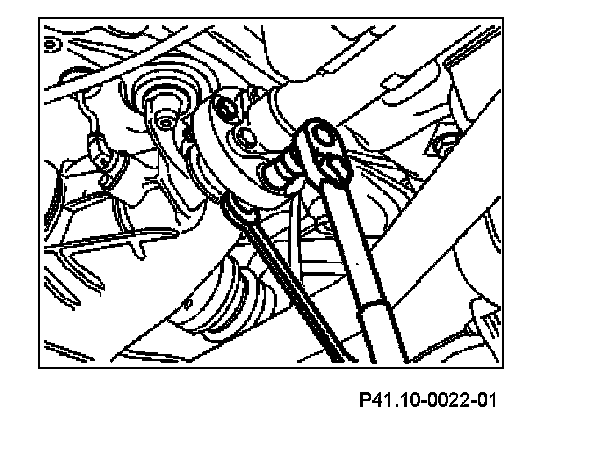

1 Disconnect rear propeller shaft from rear axle center assembly.

Before disassembling the rear propeller shaft, mark the installation position of the rear propeller shaft relative to the flexible coupling.

The flexible coupling remains on the propeller shaft.

Shown on model 202.1
