AR41.10-P-0085-03P Measure Absolute Angle at Rear Axle Housing

AR41.10-P-0085-03P Measure absolute angle at rear axle housing

Measurement -Angle 4
The vehicle must be on its wheels for the measurement.

All four angles should be measured in succession without interruption.

An angle that has already been measured can be measured a second time if required. To do this, with the Measurement menu displayed, press the STEP button repeatedly until the display indicates Ready to measure the relevant angle.

Component Identification:

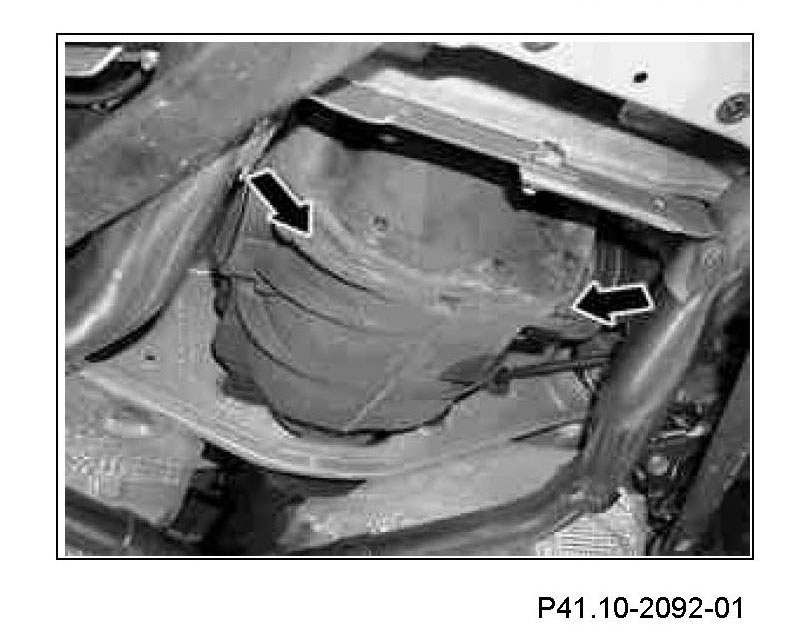

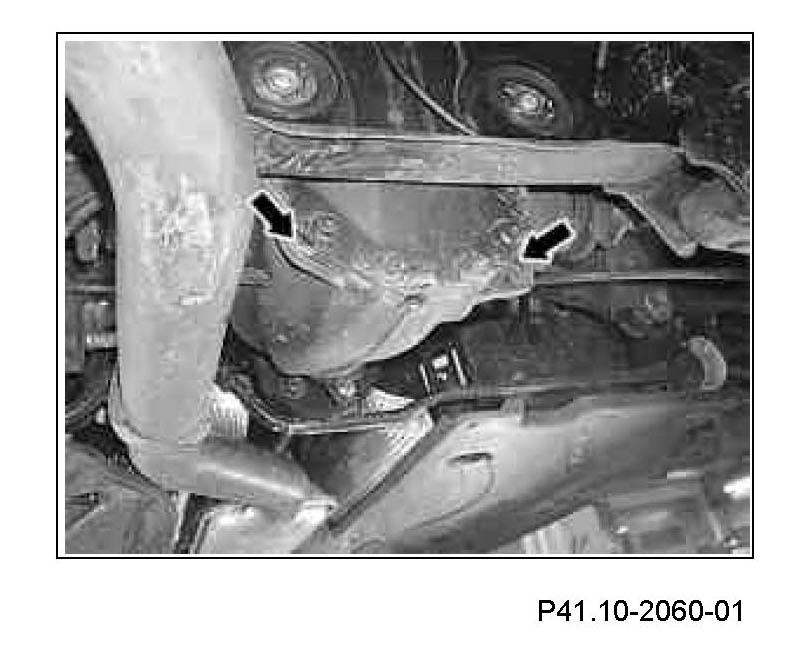

1 Clean contact surfaces (arrows) at rear axle housing to remove paint and/or gasket residuals and remove uneven material using a suitable tool.

Shown on model 203, 209

Component Identification:

Show on model 230

Component Identification:

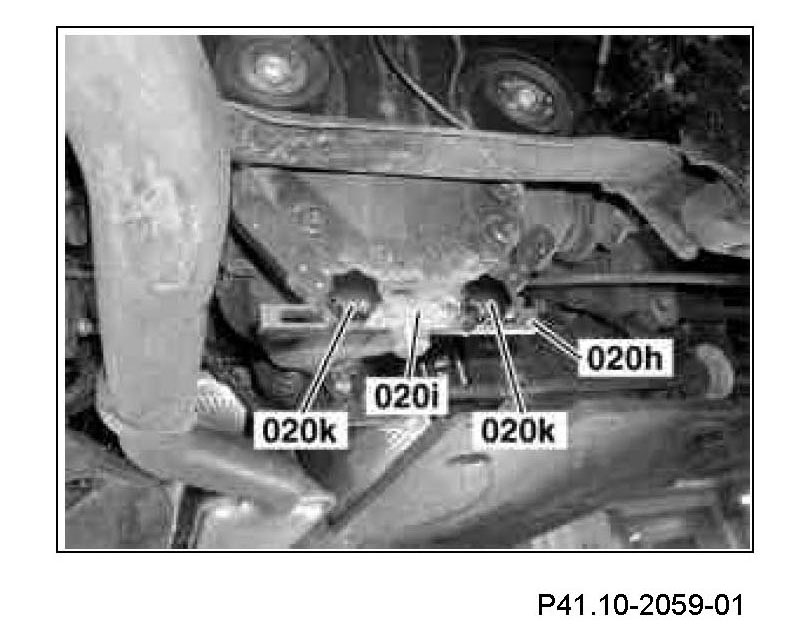

2 Position rear axle center assembly adapter (020h) on rear axle housing (magnetic).
3 Align rear axle center assembly adapter (020h) in transverse direction using spirit level (020i).
4 Tighten retaining bolts (020k) for rear axle center assembly adapter (020h).

Shown on model 203, 209

Component Identification:

Show on model 230

Component Identification:

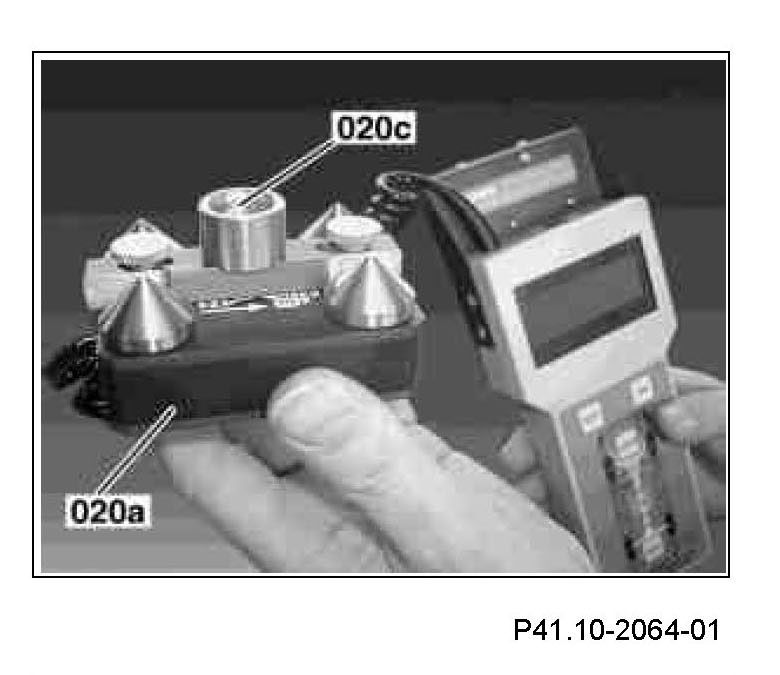

5 Mount sensor mount (020c) with the two knurled bolts centrally on the sensor (020a).

Component Identification:

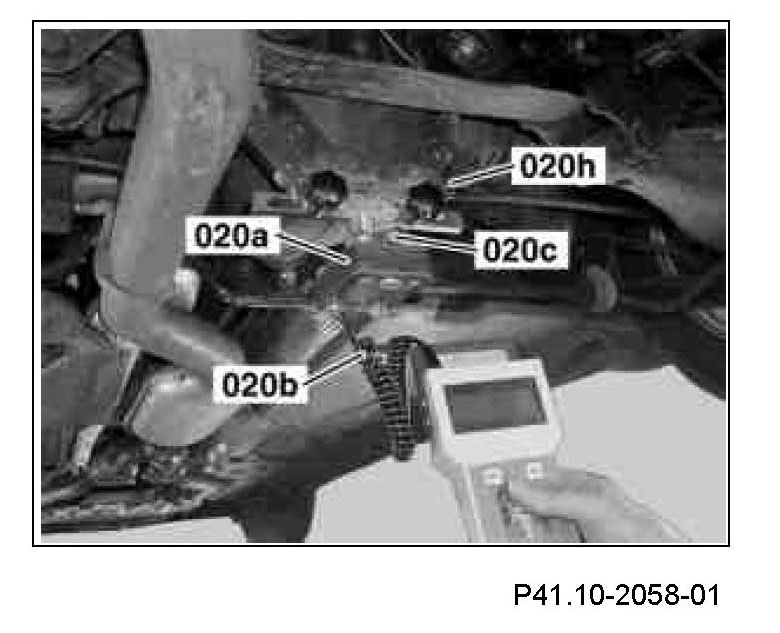

6 Position sensor bracket (020c) with sensor (020a) on rear axle center assembly adapter (020h) by turning slightly to left/right (magnetic).

The spiral cable (020b) of the sensor (020a) must point in the direction of travel for each measurement. Otherwise the measurement will be inaccurate.

Shown on models 203, 209

Component Identification:

Show on model 230

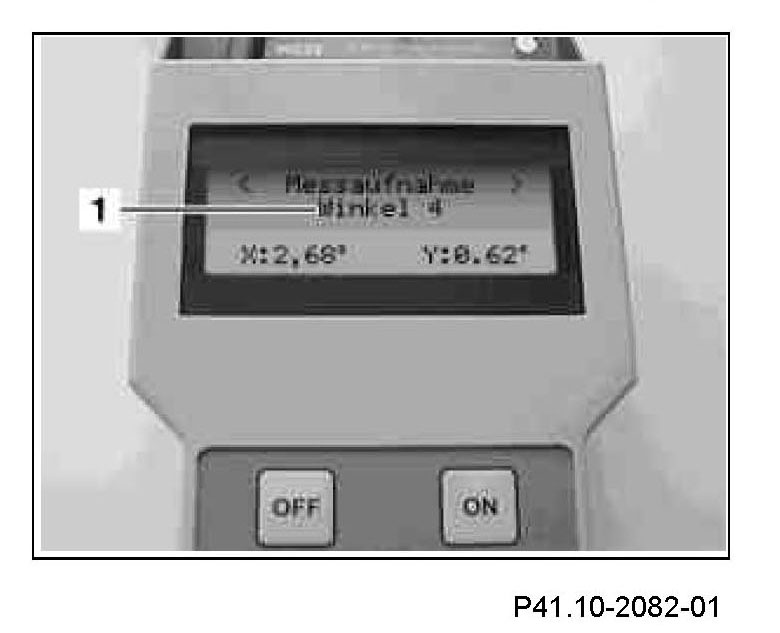

Measured Values Screen For Angle 4, Display E.G. 2.68 Degrees:

The meter is ready to take a measurement. The value measured is shown on the display.

7 Press SAVE button. The values are saved.

Measured values screen for angle 4, display e.g. 2.68 degrees

Confirmation Screen:

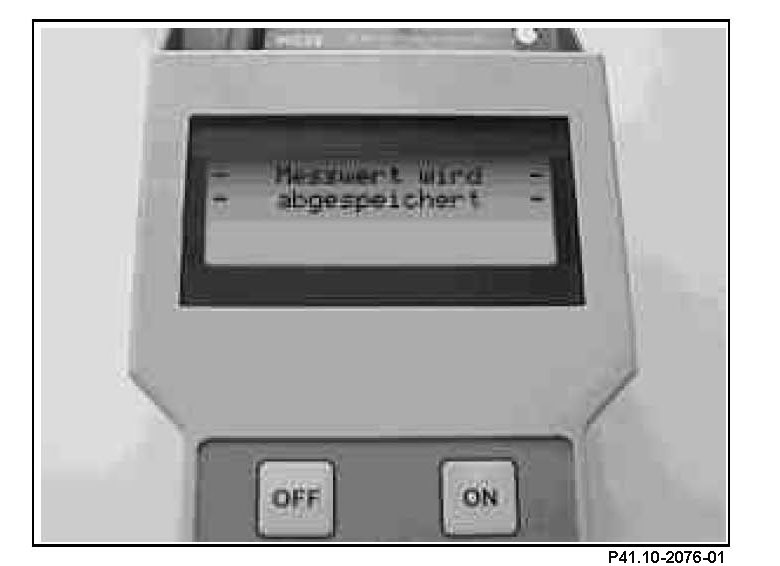

A confirmation message appears briefly and then the meter indicates that it is ready to measure the next angle (angle 5). The measurement is completed and stored in memory.

8 Remove sensor (020a) from rear axle center assembly.
9 Remove rear axle center assembly adapter (020h).
10 Detach sensor mount (020c) from sensor (020a).

Confirmation screen
