AR41.10-P-0200-03P Press In Guide Sleeve
AR41.10-P-0200-03P Press in guide sleeve

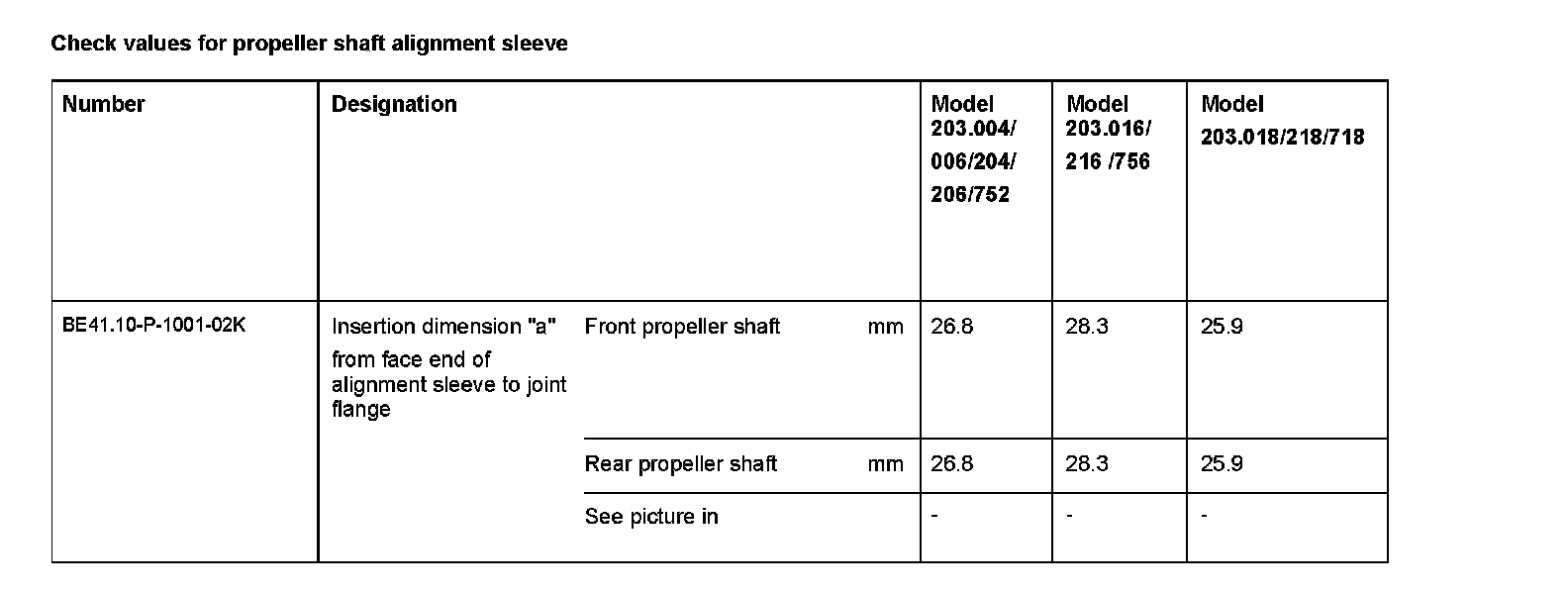

Check values for propeller shaft alignment sleeve:

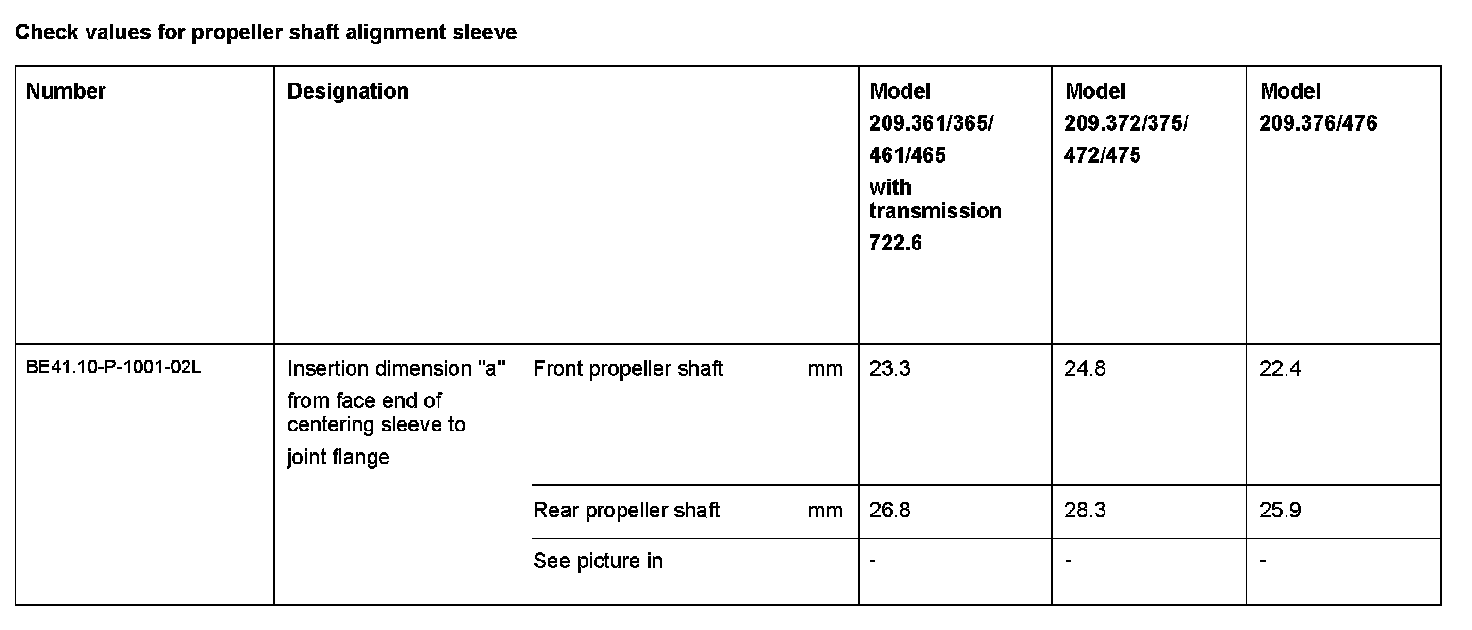

Check values for propeller shaft alignment sleeve:

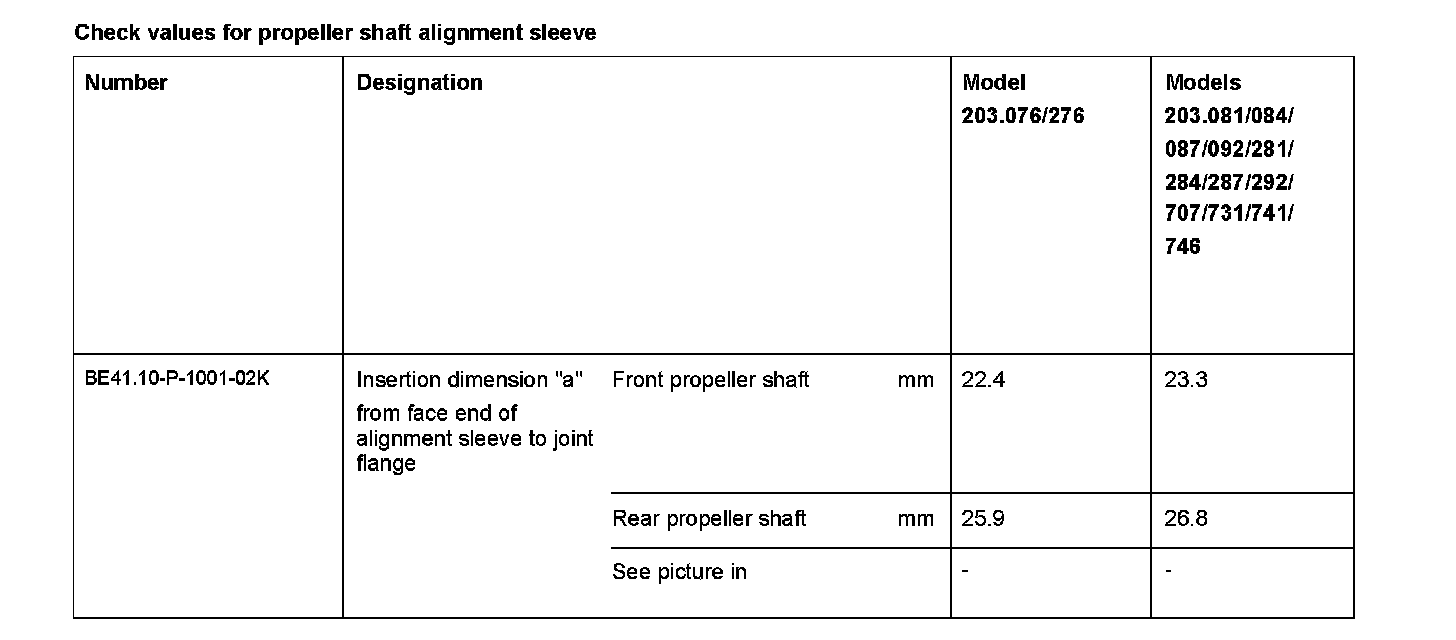

Check values for propeller shaft alignment sleeve:

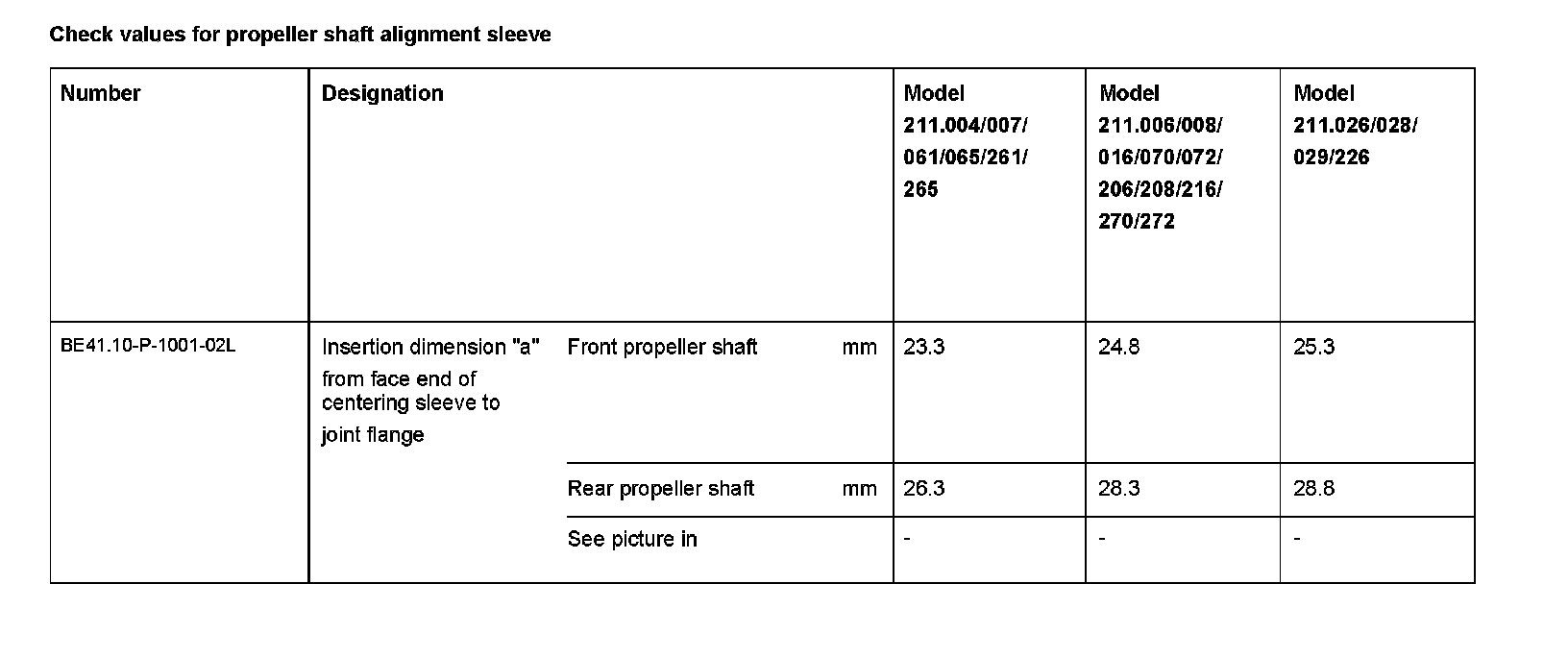

Check values for propeller shaft alignment sleeve:

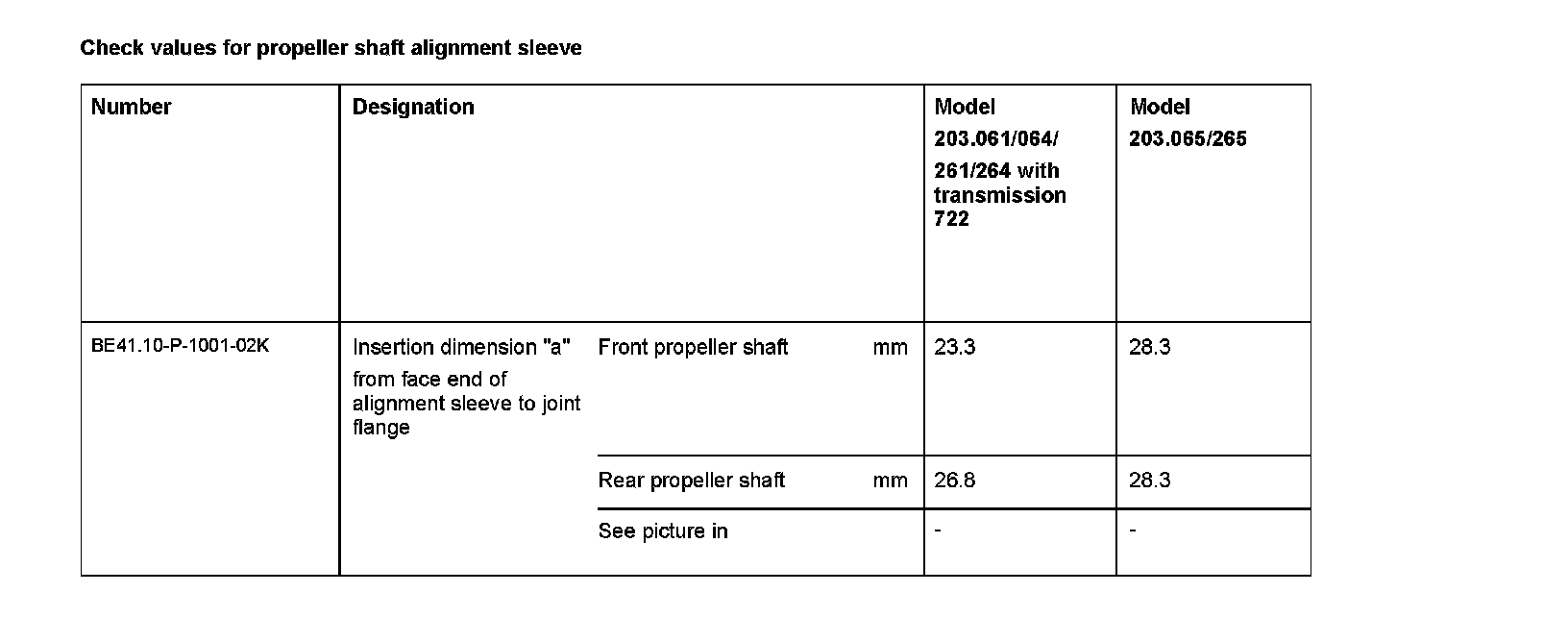

Check values for propeller shaft alignment sleeve:

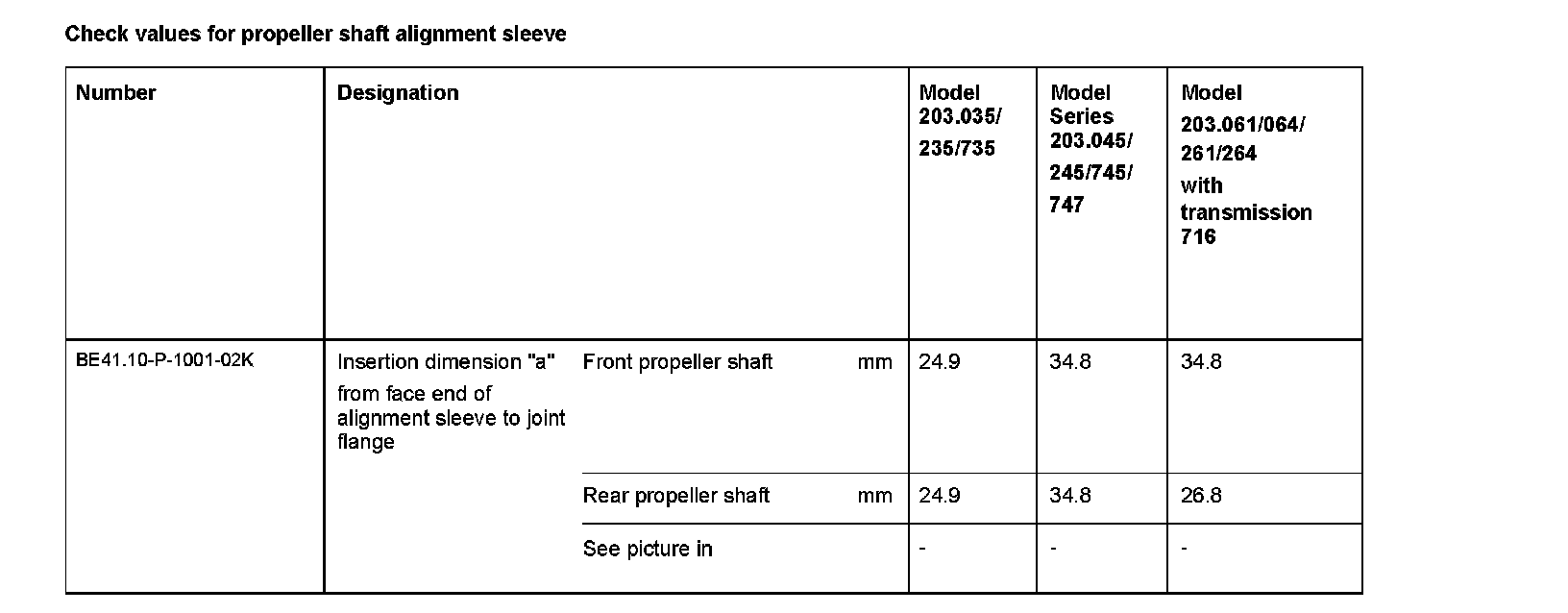

Check values for propeller shaft alignment sleeve:

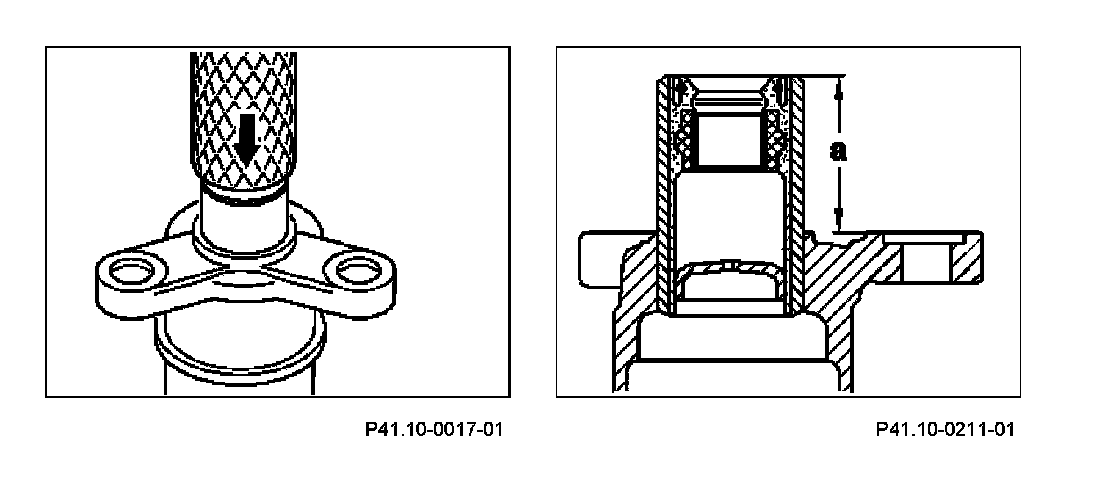

1 Use a suitable drift to drive in the new guide sleeve.
Observe press-in dimension "a" from the end face of the centering sleeve to the flange.
Depending on the version of the flex disk thickness the specified press-in dimension "a" may deviate. Then the dimension measured before removal is to be taken into account.
