AR41.10-P-0100-06DA Pull Rubber Sleeve Onto Joint Fork

AR41.10-P-0100-06DA Pull rubber sleeve onto joint fork

Component Identification:

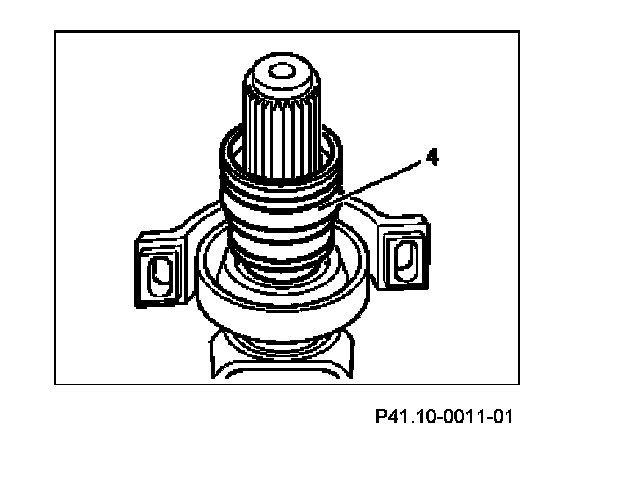

1 Draw rubber boot (4) over the teeth.

Replace damaged boot (4). Pay attention to correct seating of boot (4) on small diameter.
