AR35.20-P-0130-03A Remove/Install Double-Row Angular Ball Bearing In Wheel Carrier

AR35.20-P-0130-03A Remove/install double-row angular ball bearing in wheel carrier

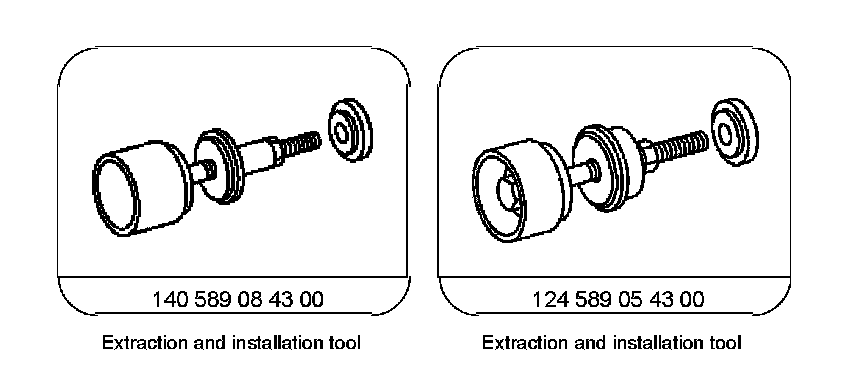

Special Tools:

Special tool assignment:

Model 140, 163, 215, 220:
Extraction and installation tool 140 589 08 43 00

Model 129, 170, 202, 203, 208, 209, 210:
Extraction and installation tool 124 589 05 43 00

Component Identification:

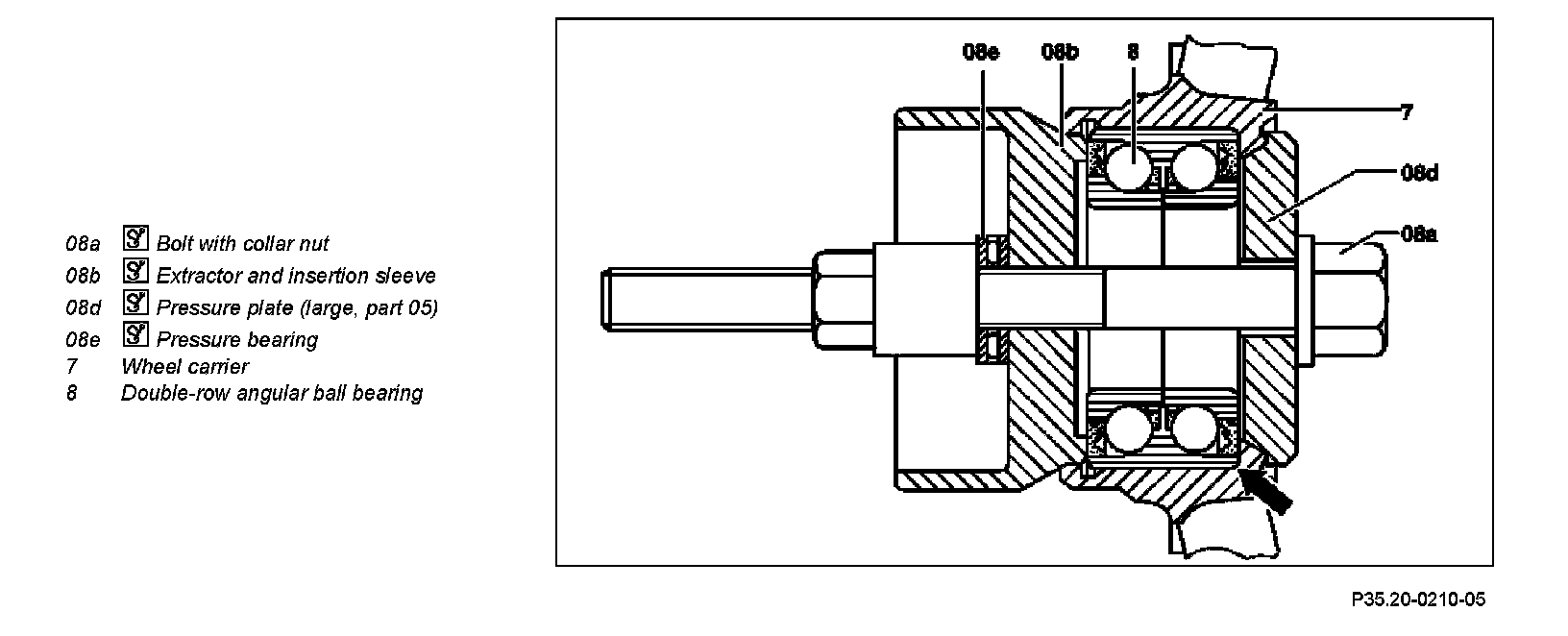

Pull out angular contact ball bearing
1 Pull double-row angular ball bearing (8) out of wheel carrier (7) using extraction and insertion tool and remove.

Component Identification:

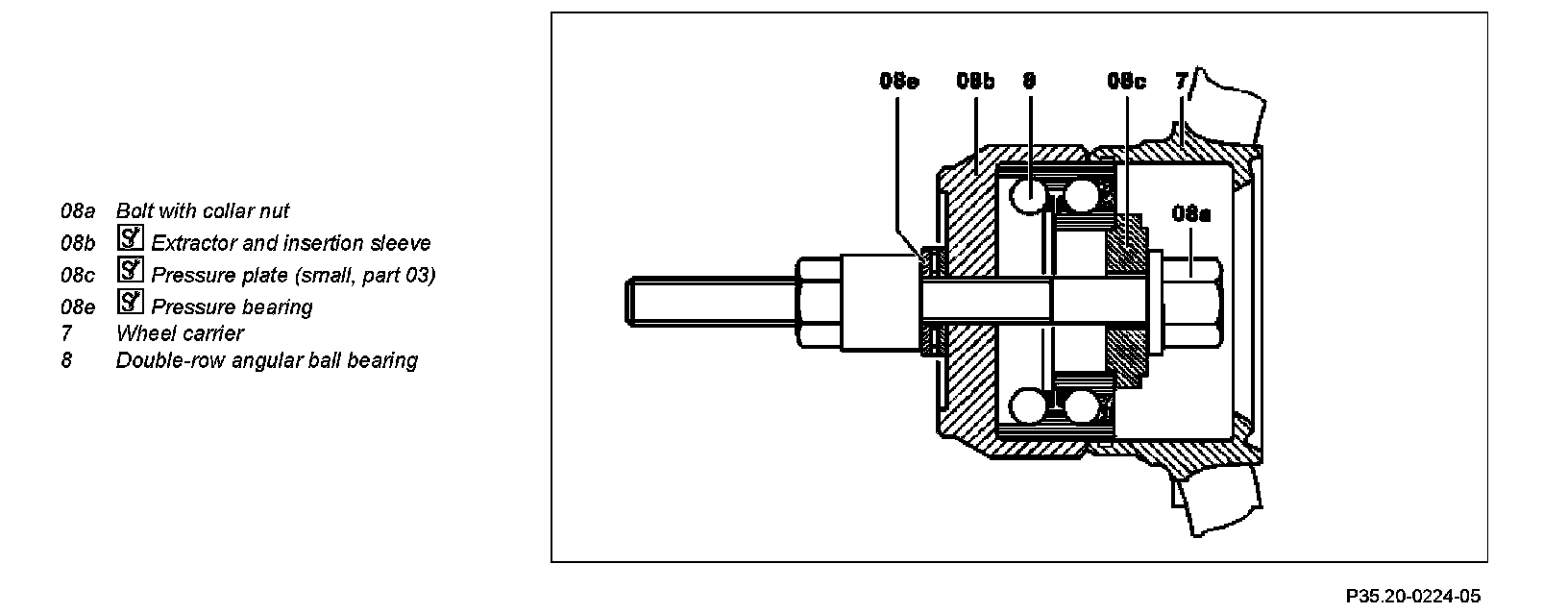

Pull in angular contact ball bearing
2 Pull double-row angular ball bearing (8) into wheel carrier (7) using extractor and insertion tool until it touches the shoulder (arrow).
