AR33.20-P-0302QBS Remove/Install Wheel Bearing



AR33.20-P-0302QBS Remove/install wheel bearing
- with CODE (P98) Black Series

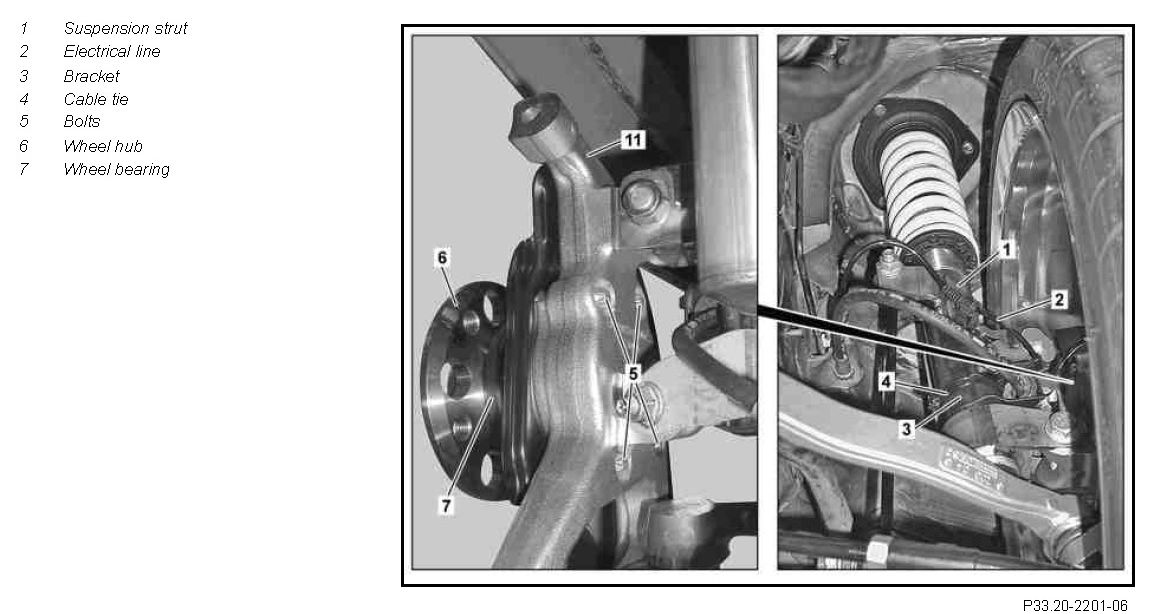

Component Identification:




Component Identification:

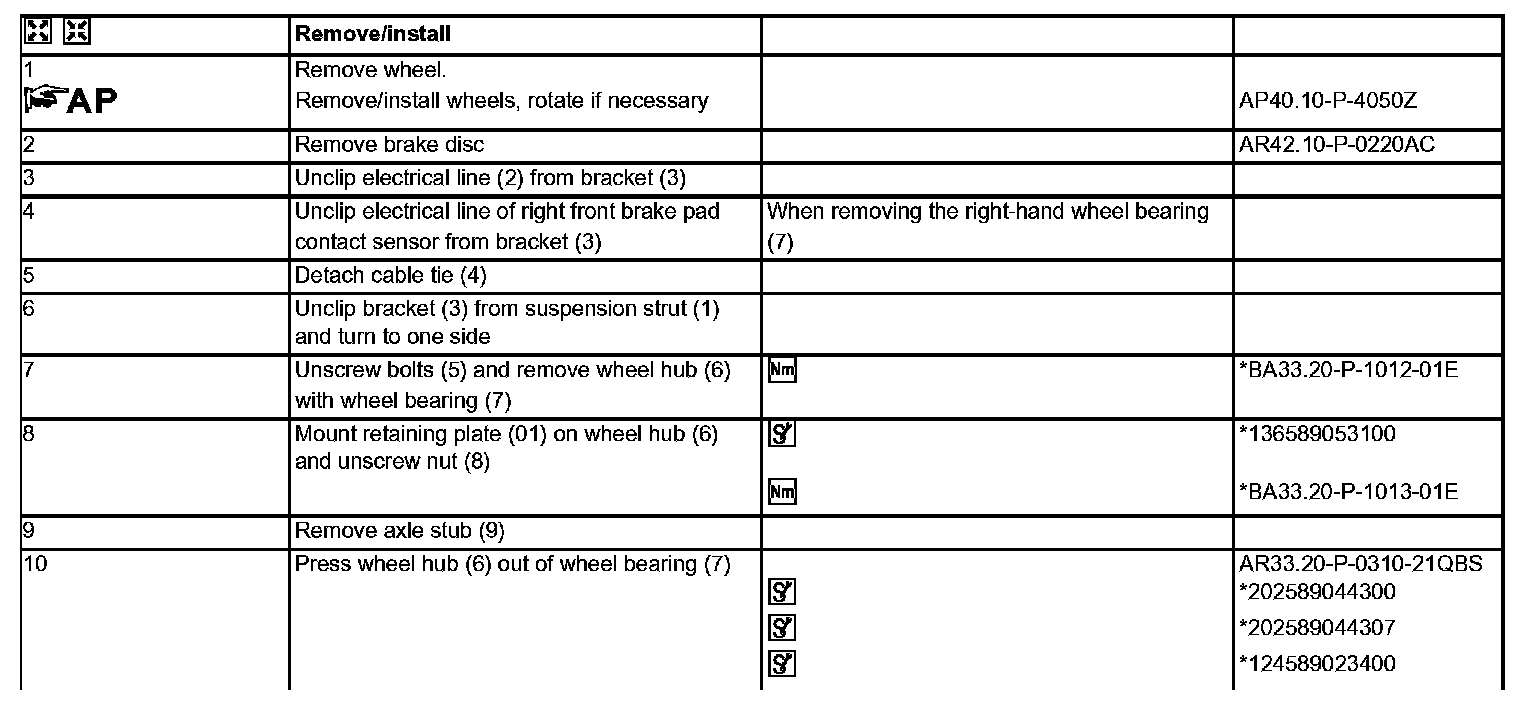

Remove/install Steps 1-10:

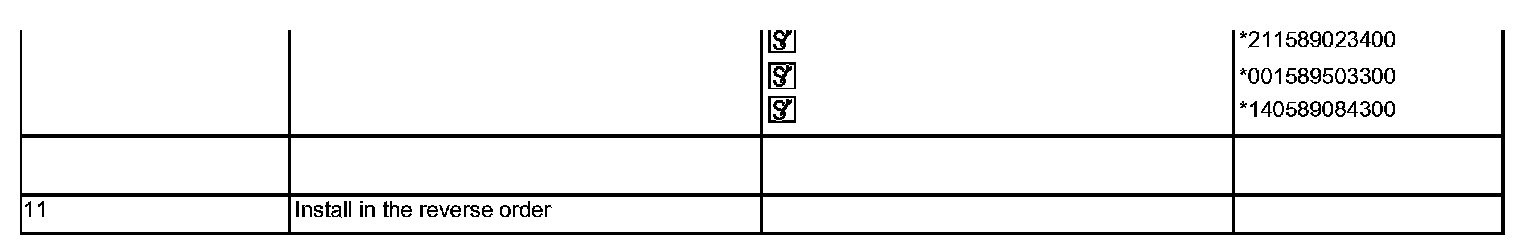

Remove/install Steps 10 (Continued)-11:

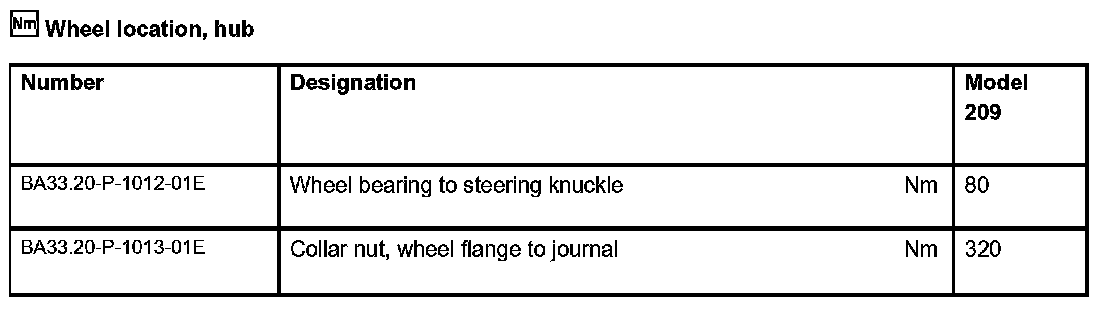

Wheel location, hub:

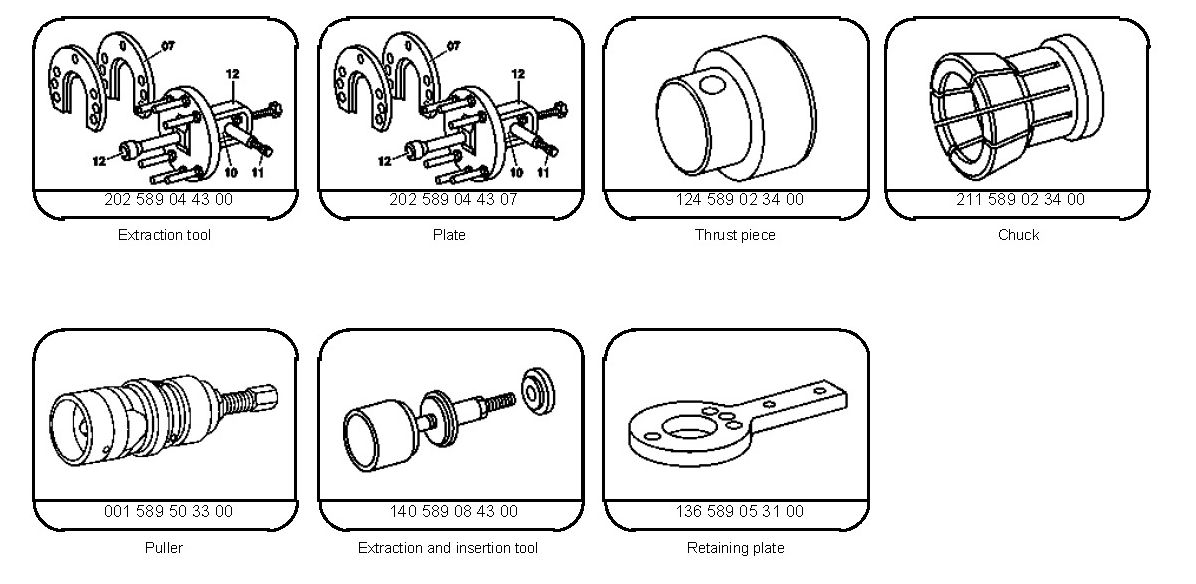

Special Tools:
