AR35.30-P-0620-02P Extract/Press In Rear Axle Shaft From Rear Axle Differential

AR35.30-P-0620-02P Extract/press in rear axle shaft from rear axle differential
- Rear axle fitted

Component Identification:

Pull out rear axle shaft

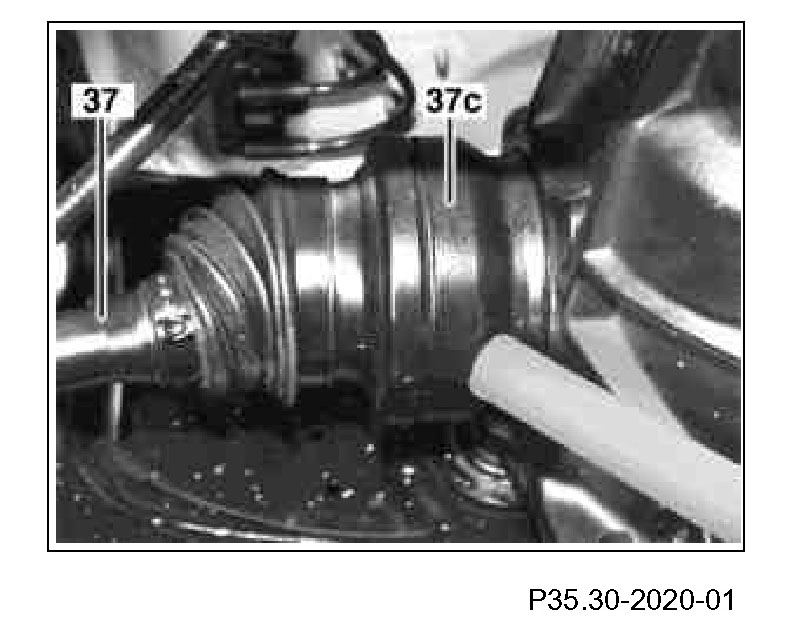

1 Using a suitable tool (e.g. screwdriver, assembly lever), press rear axle shaft (37) out of the rear axle center assembly.

When pressing out the rear axle shaft (37), do not damage the radial sealing ring in order to prevent leakage. Rear axle shafts (37) with damaged joints or boots must be replaced in order to guarantee full functioning.

Component Identification:

Press in rear axle shaft

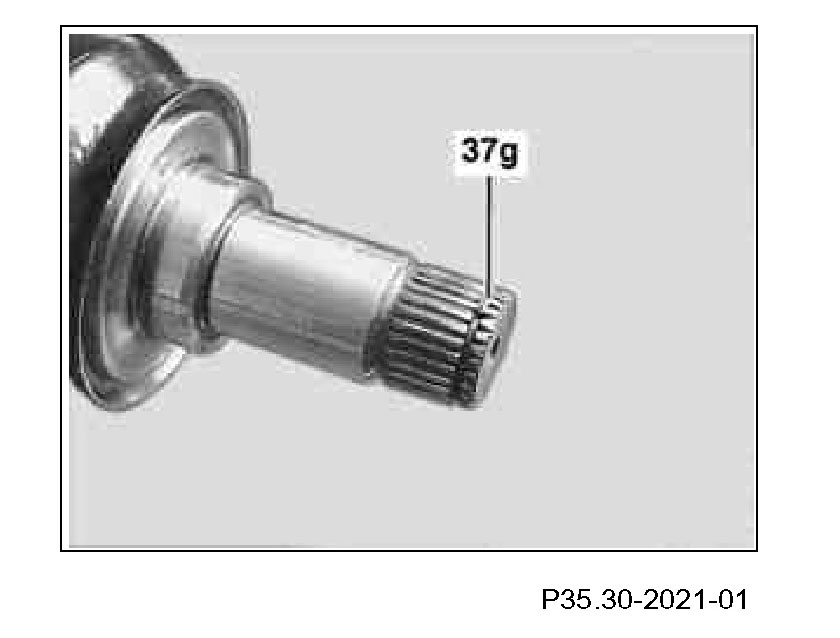

2 Press in rear axle shaft (37) until circlip (37g) is felt to engage.

Align the joint ring (37c) horizontally before inserting it. The splined profile may otherwise tilt when being inserted and therefore be damaged.

When pressing the rear axle shaft (37) into the rear axle center assembly, do not damage the radial sealing ring in order to prevent leakage. The joint ring (37c) must be flush with the rear axle housing.
