AR35.30-P-0660-01AF Installing End Cover and Cup Seal on Joint Ring

AR35.30-P-0660-01AF Installing end cover and cup seal on joint ring
- Bolted rear axle

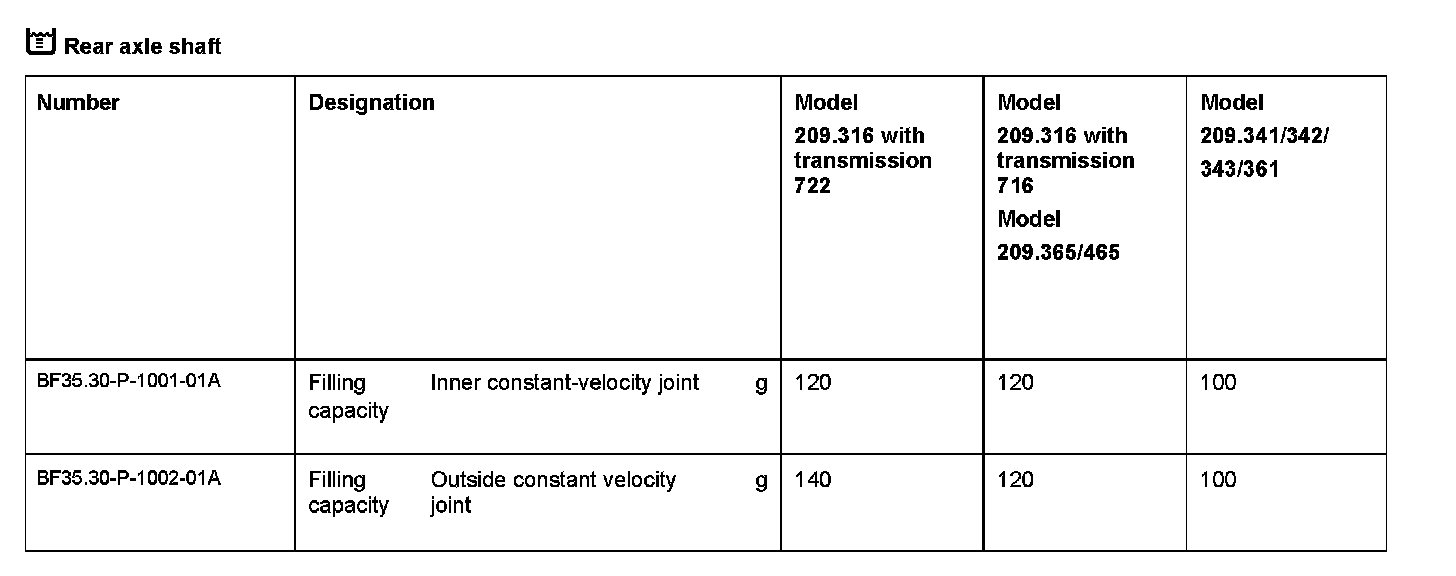

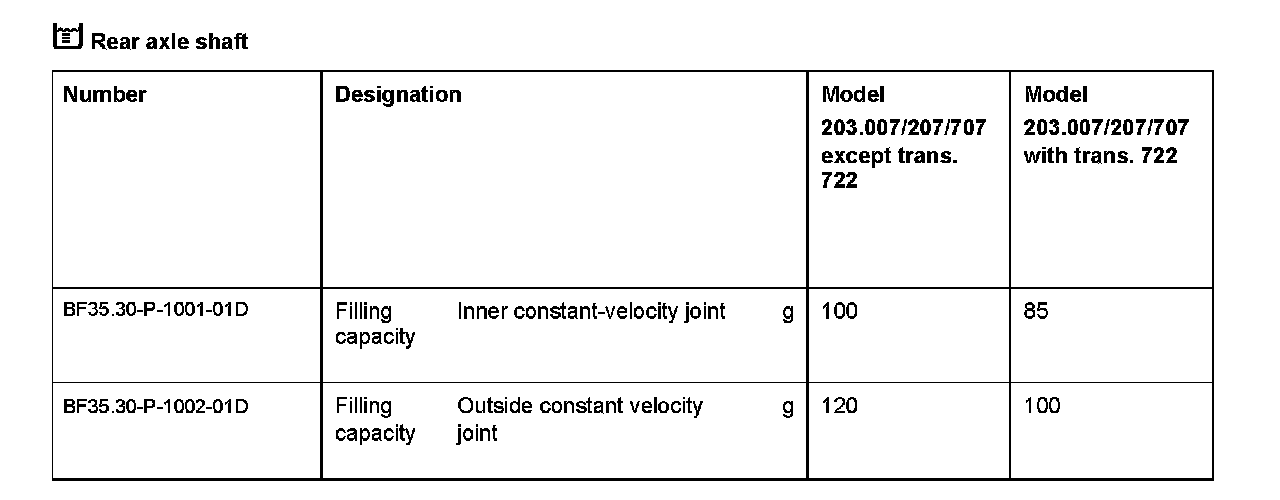

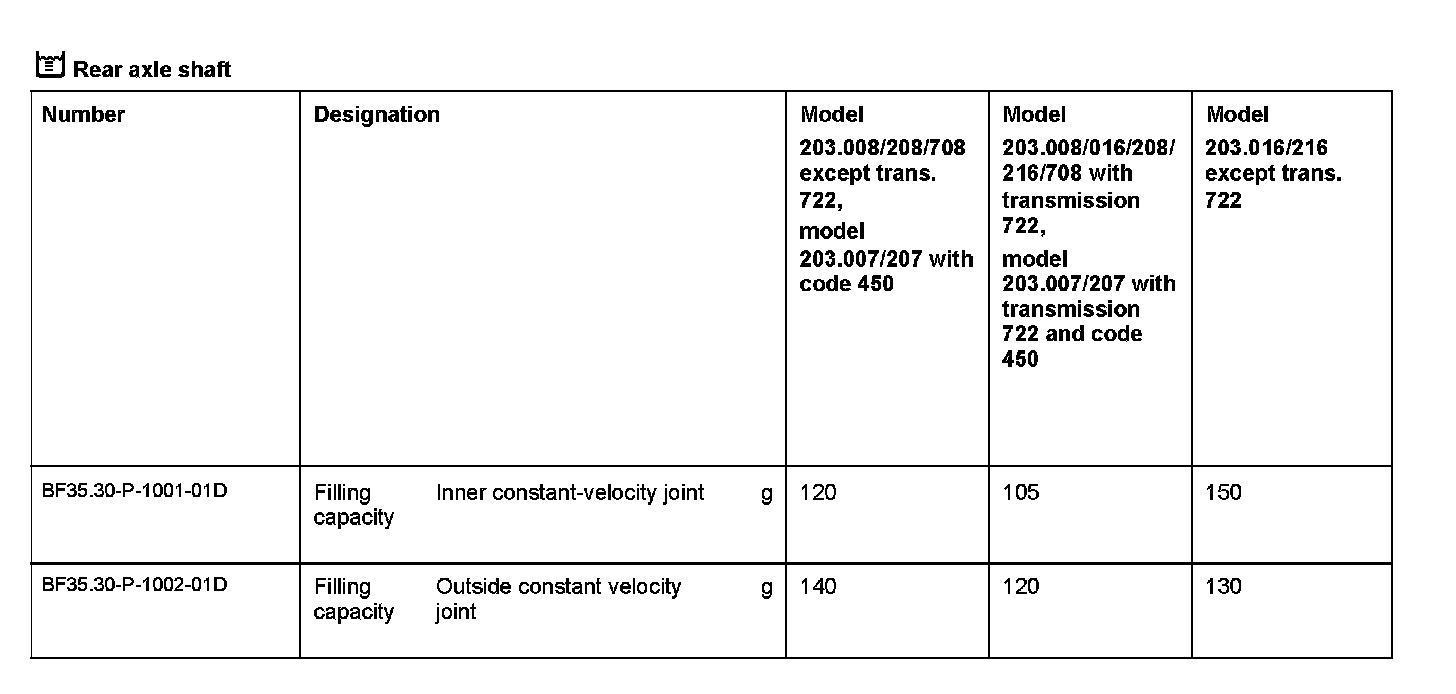

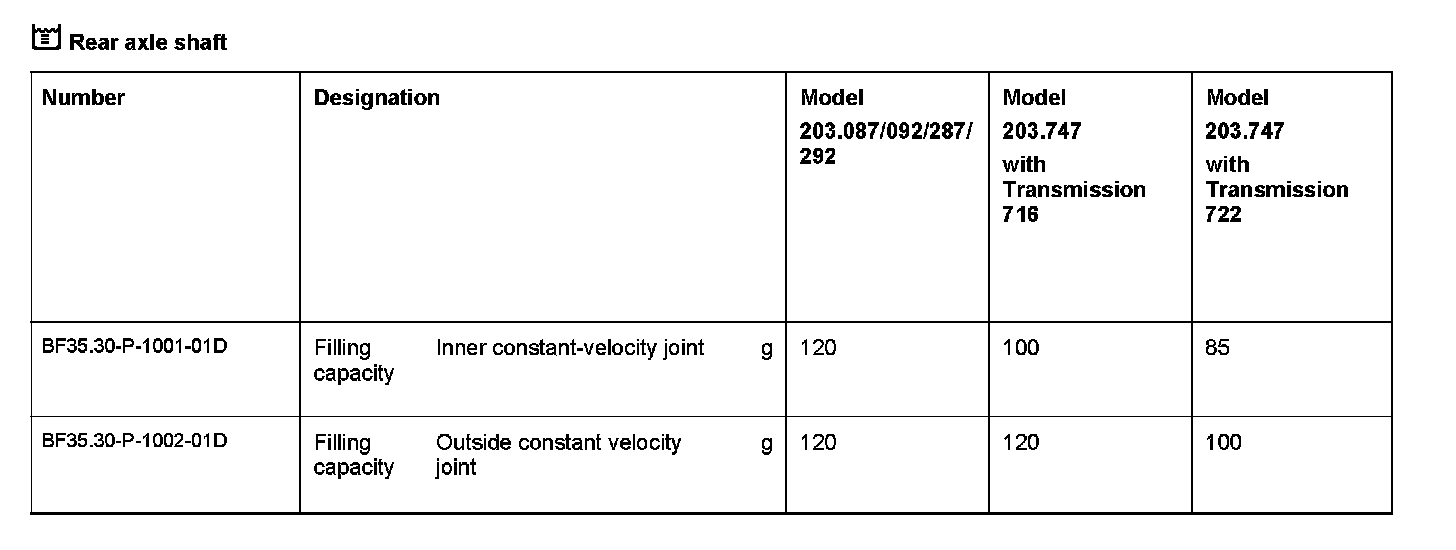

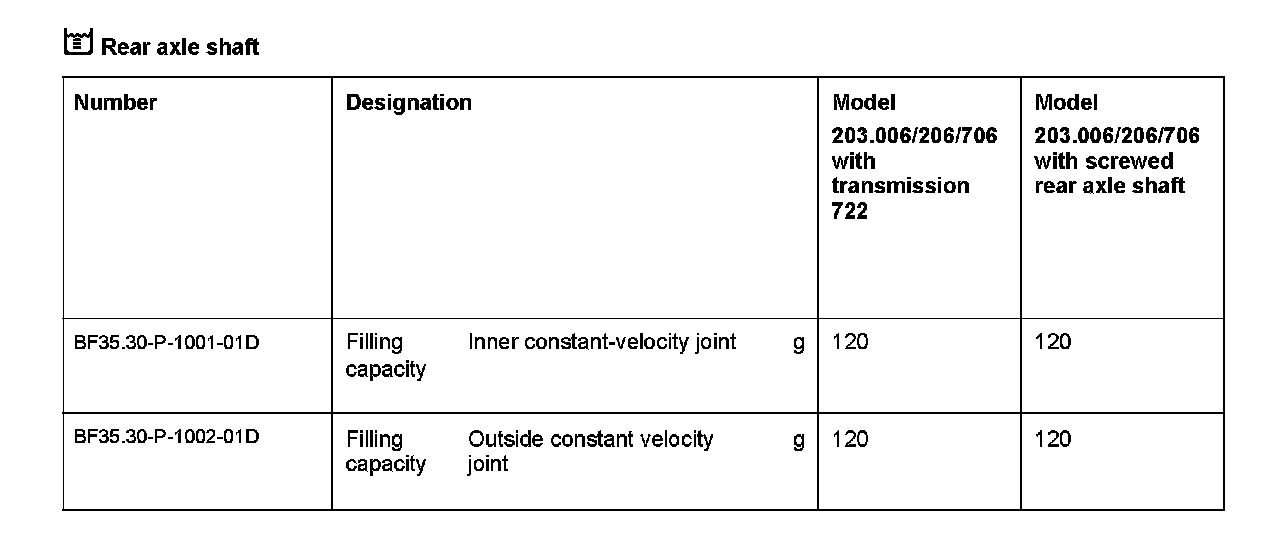

Rear axle shaft:

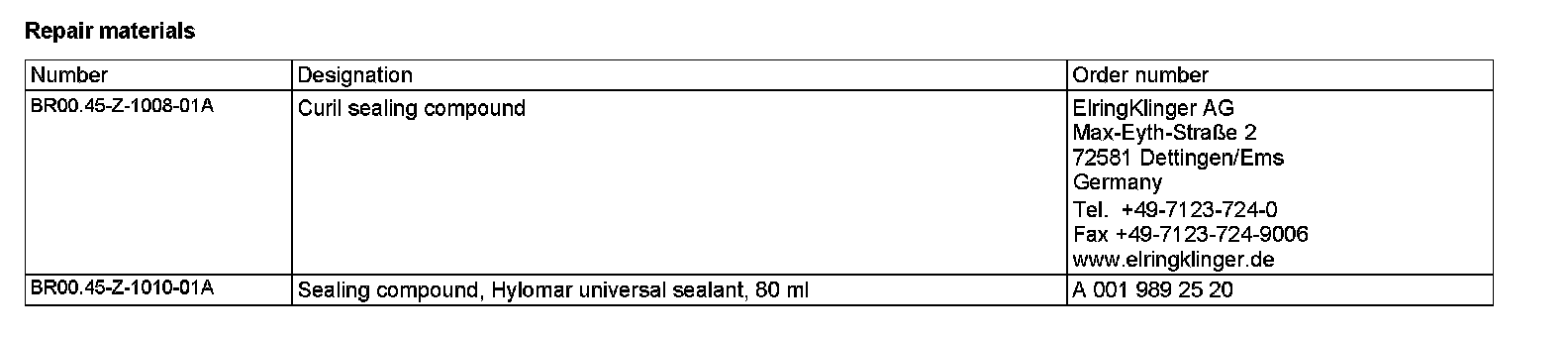

Repair materials:

1 Fill grease from the repair kit into CV joint.

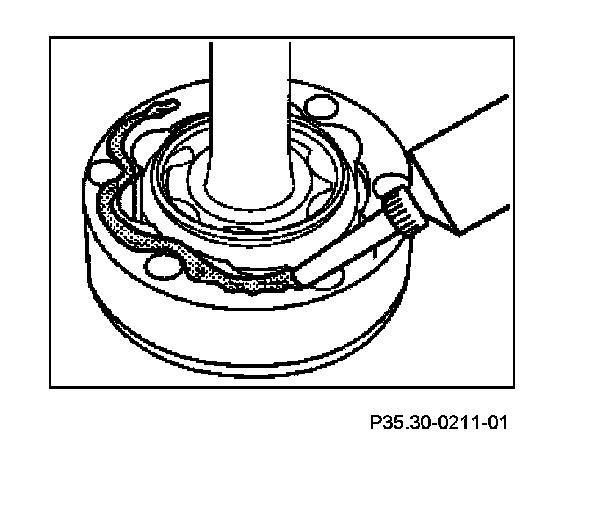

2 Clean sealing surfaces of end cover and cup seal and coat with specified sealant.
3 Fit new end cover and cup seal.

Shown: Rear axle shaft as full shaft
