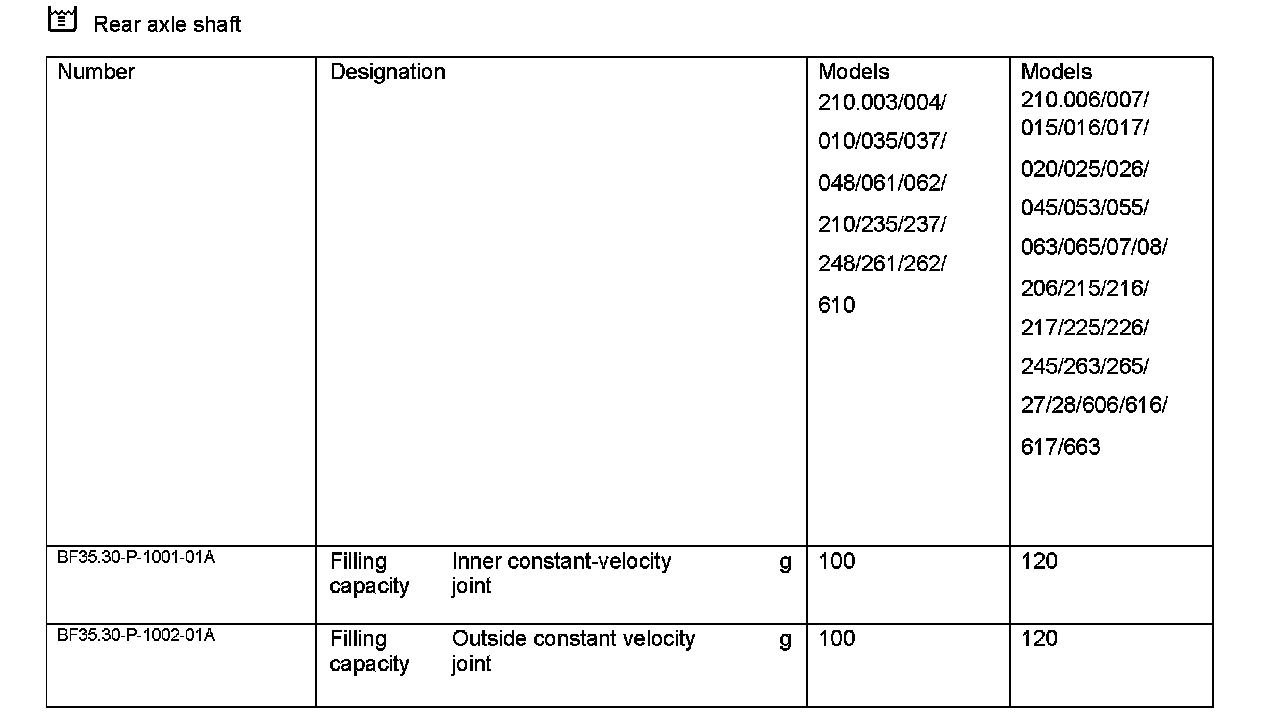

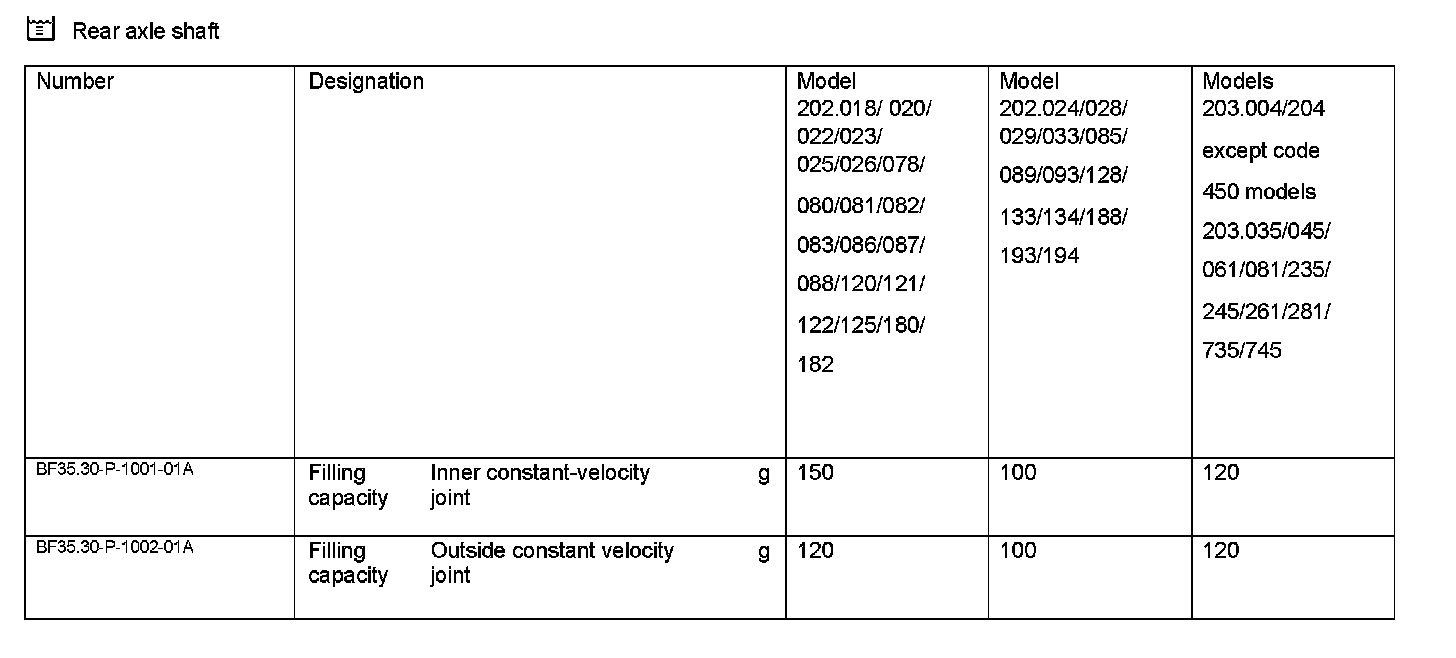

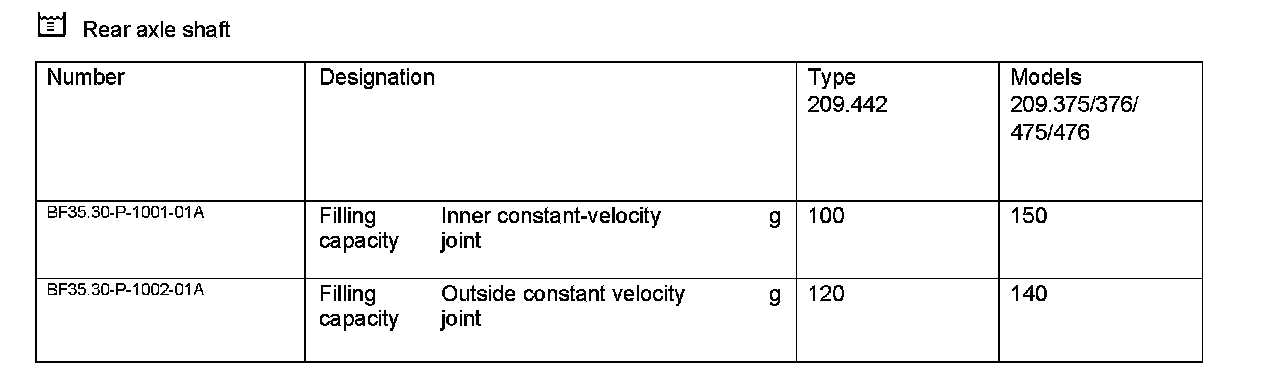

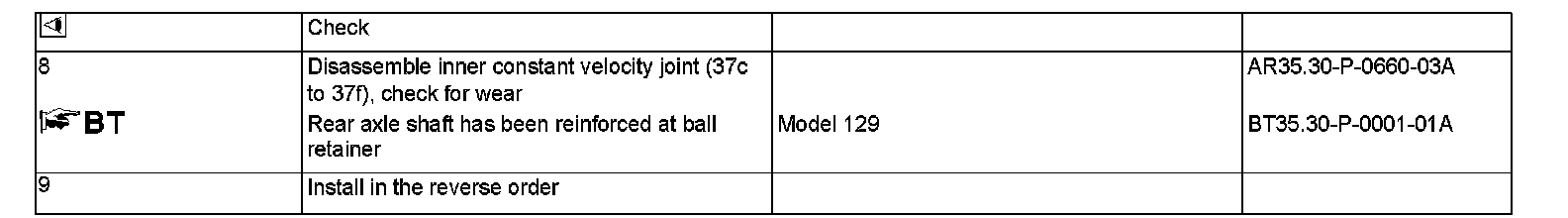

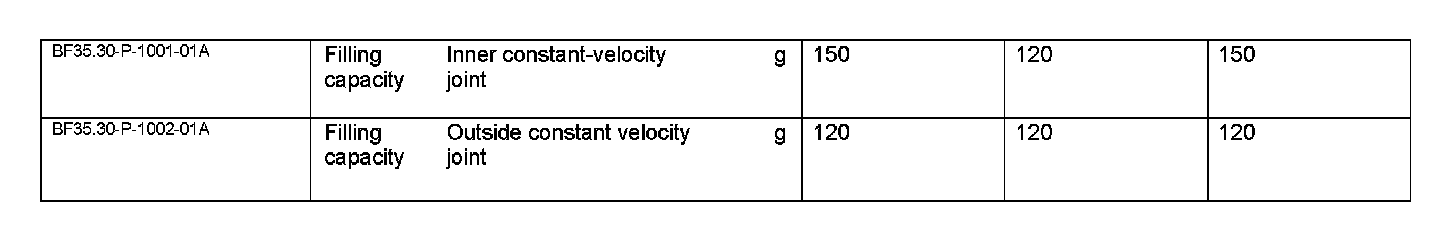

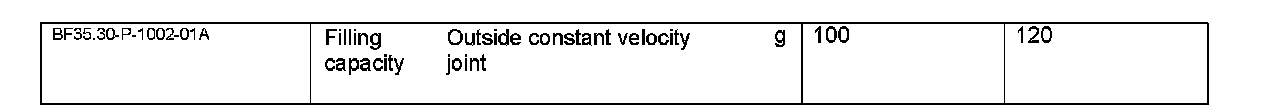

AR35.30-P-0660A Remove/Install Inside CV Joint or Rubber Boots on Rear Axle Shaft
AR35.30-P-0660A Remove/Install Inside CV Joint or Rubber Boots on Rear Axle Shaft

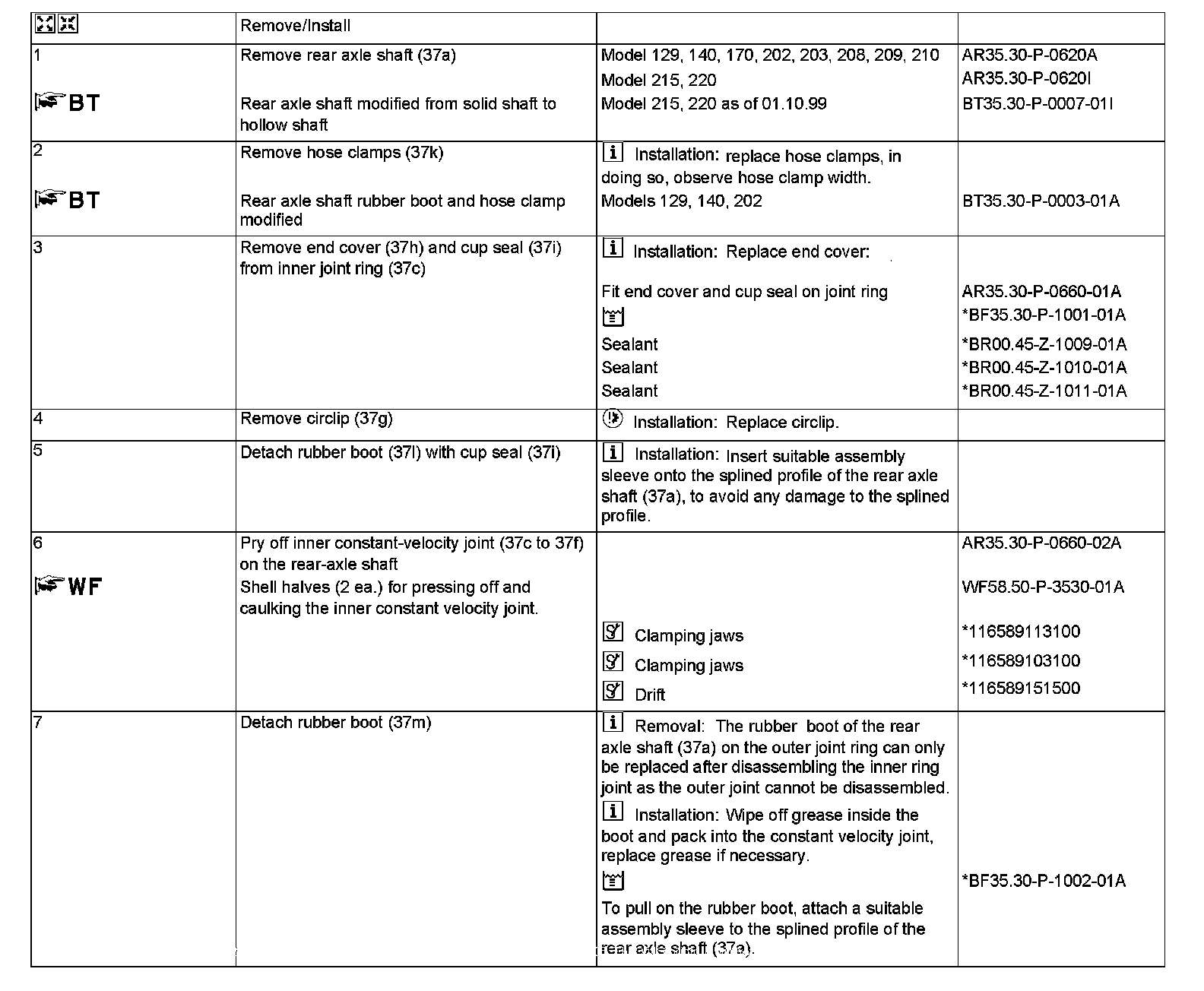

Remove/install inside CV joint or rubber boots on rear axle shaft
