AR35.30-P-0620AC Remove/Install Rear Axle Shaft

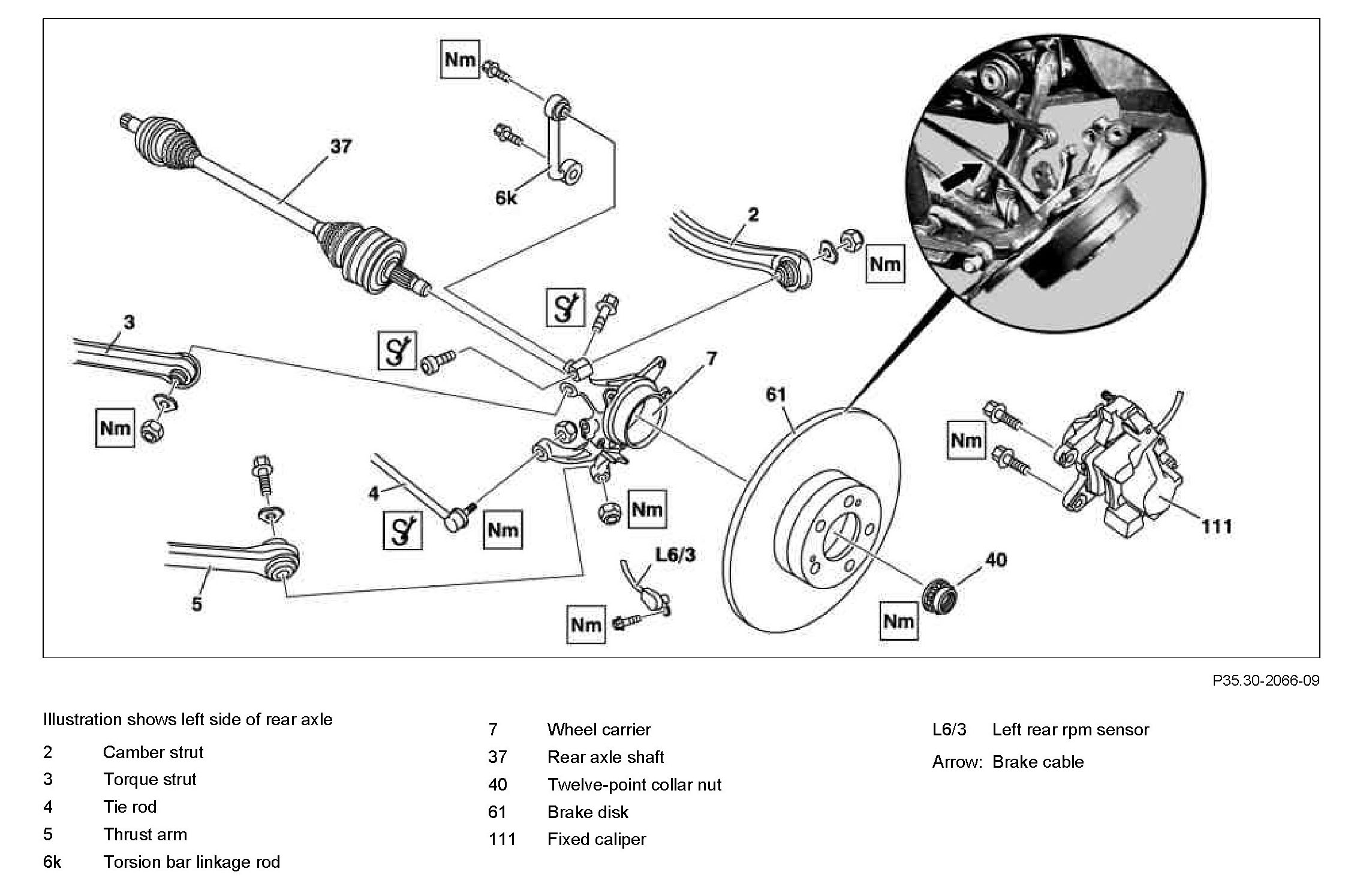

Component Identification:

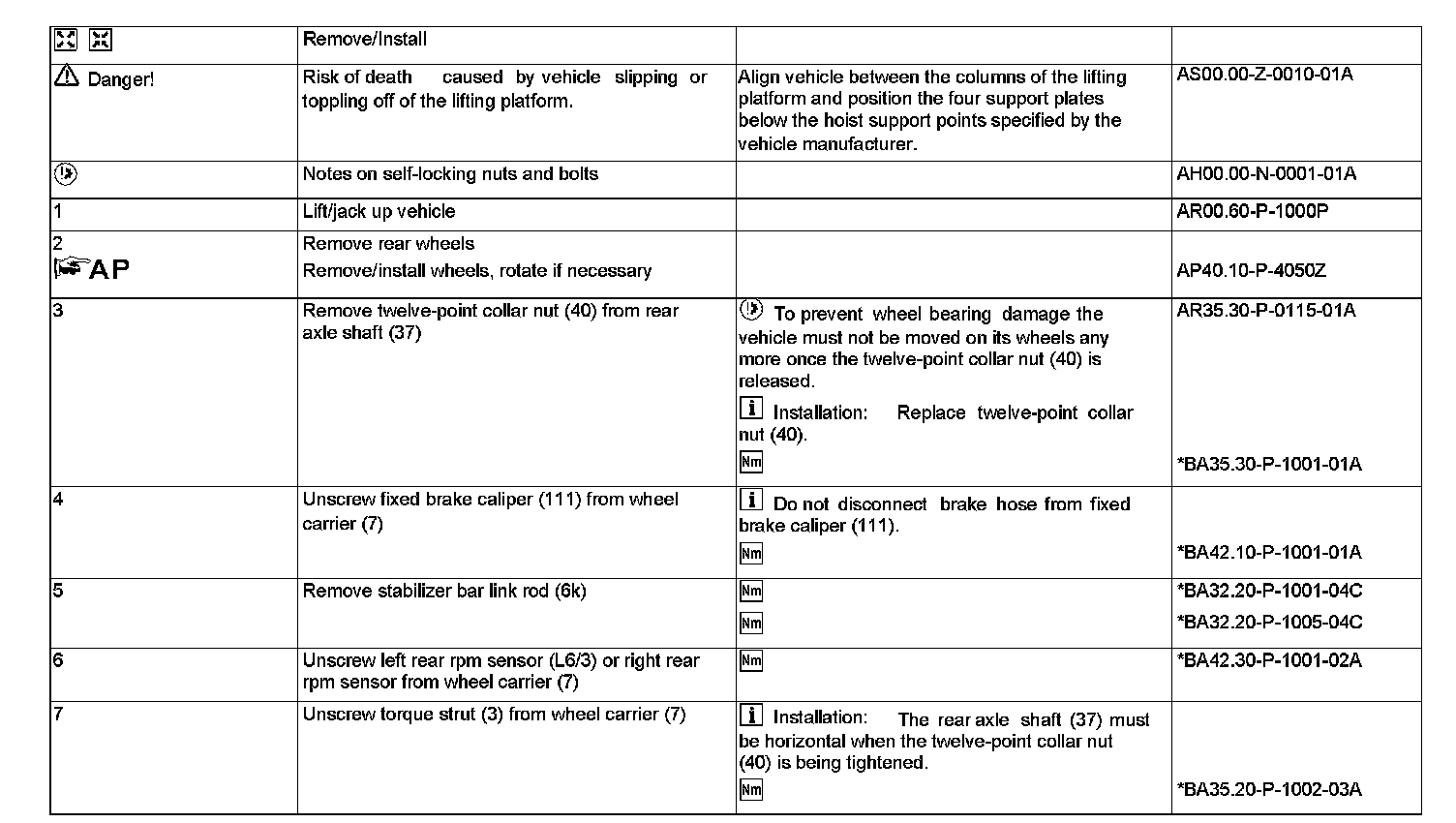

Steps 1 - 7:

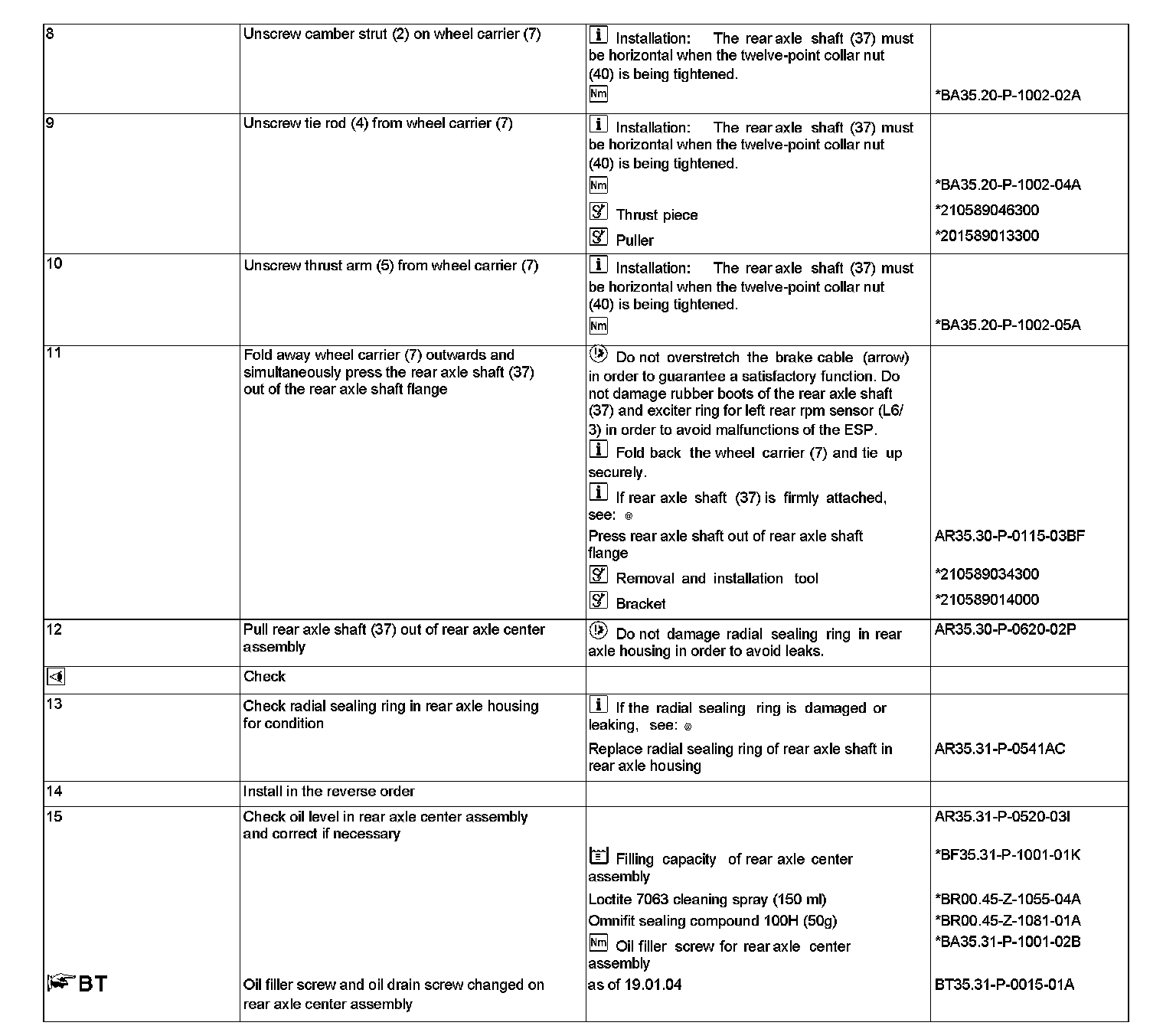

Steps 8 - 15:

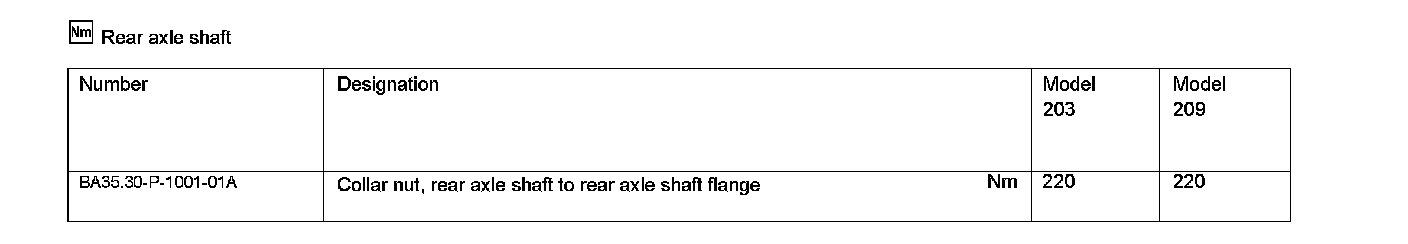

Rear Axle Shaft:

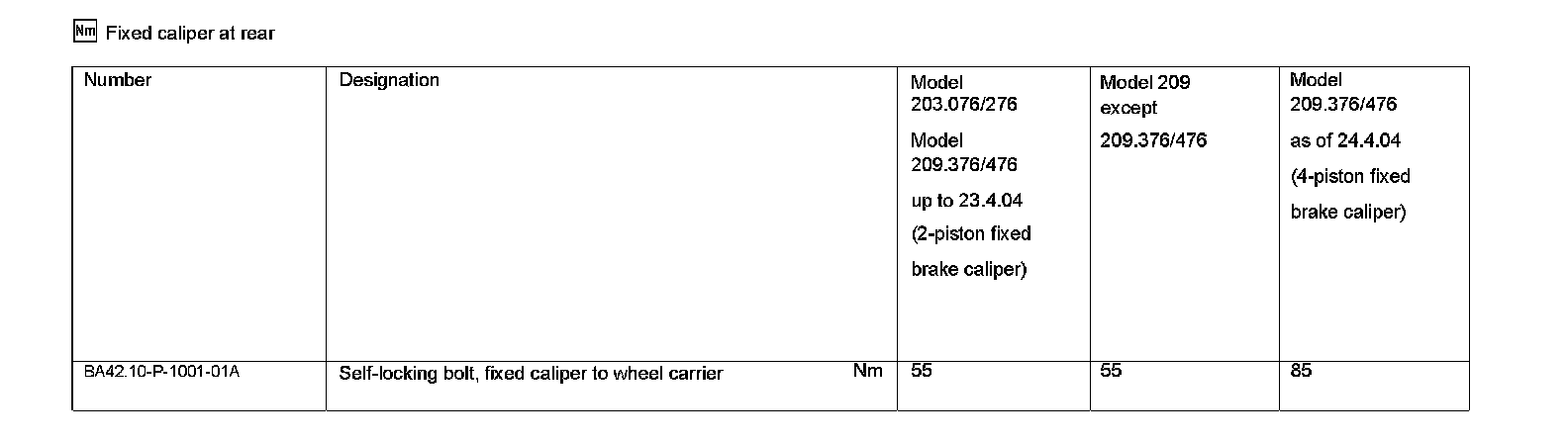

Fixed Caliper At Rear:

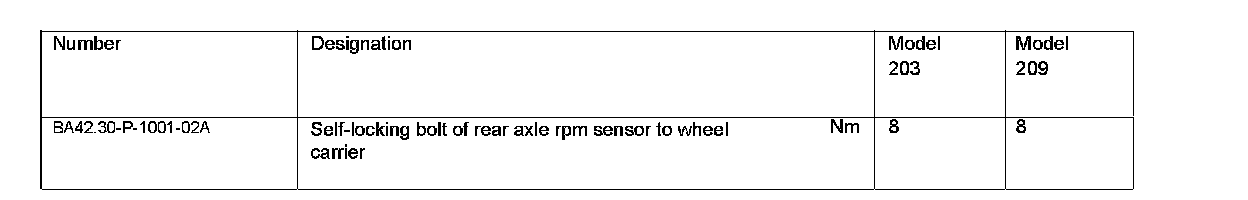

Rear Axle RPM Sensor:

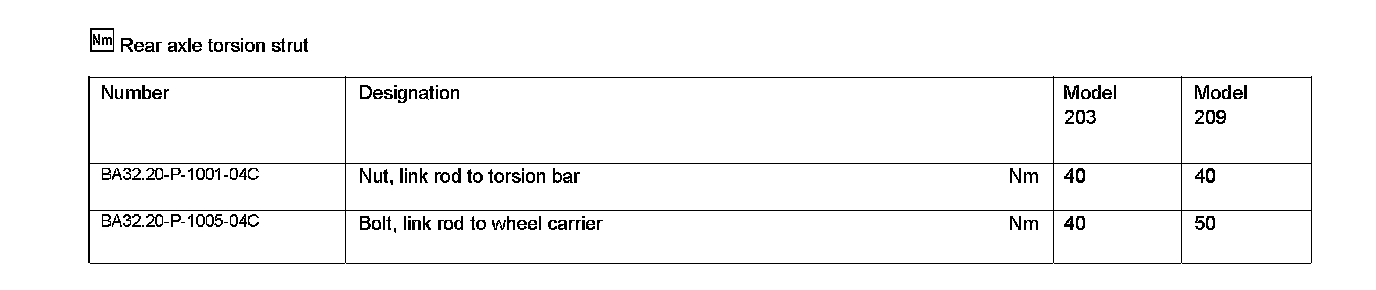

Rear Axle Tension Strut:

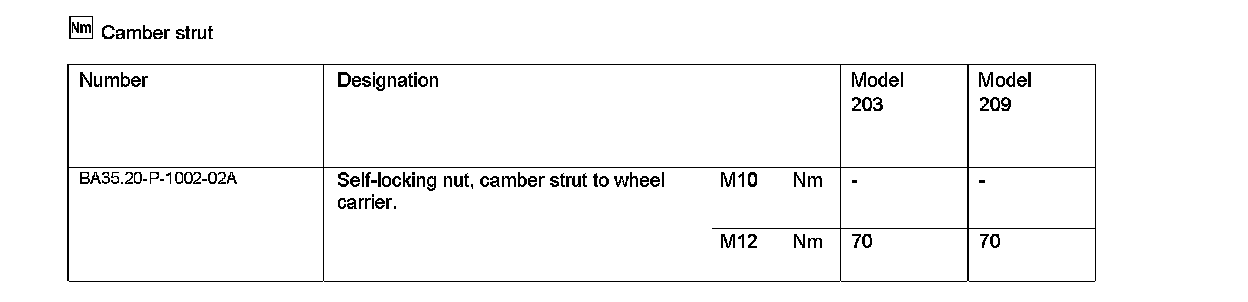

Camber Strut:

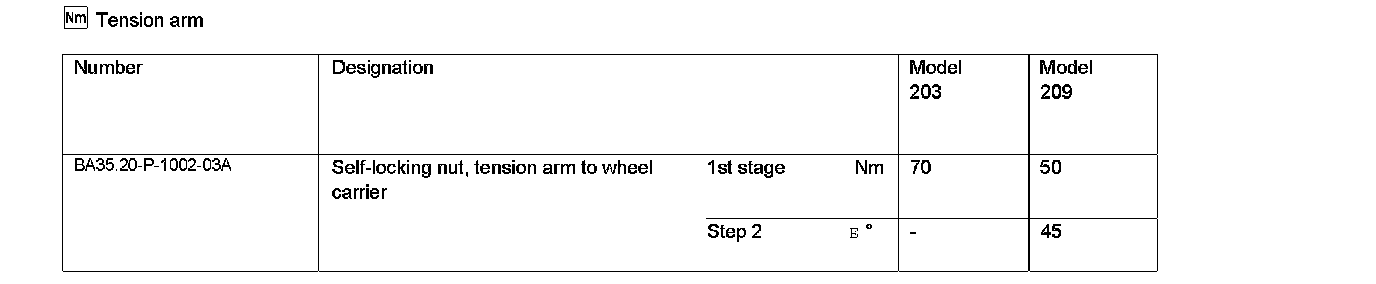

Tension Arm:

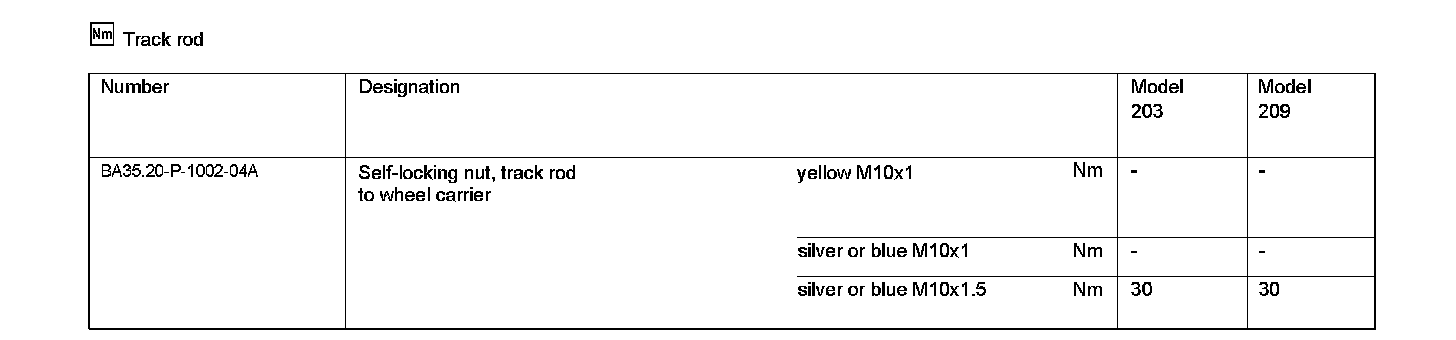

Track Rod:

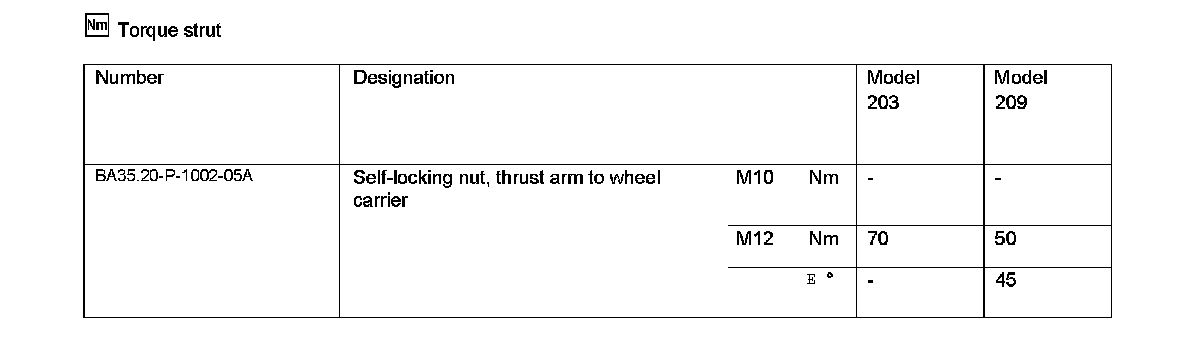

Torque Strut:

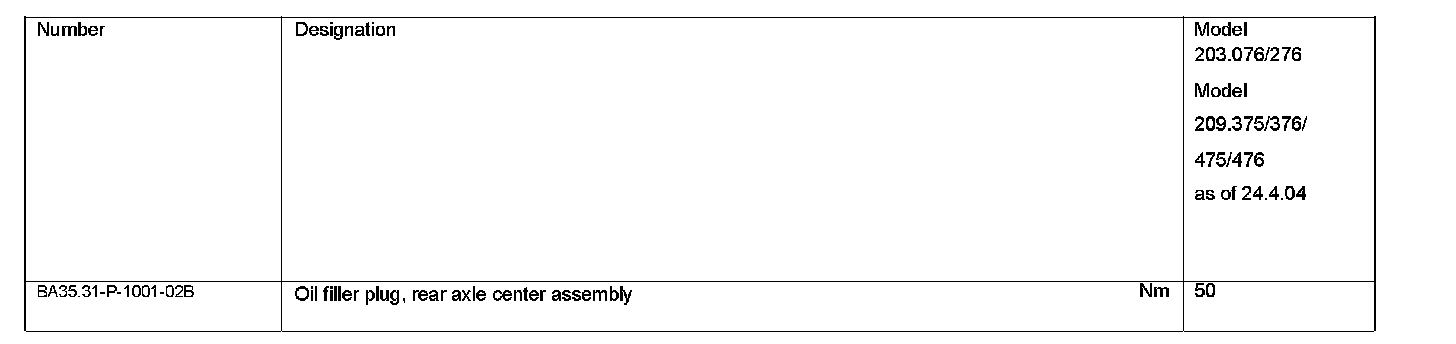

Rear Axle Center Assembly Housing:

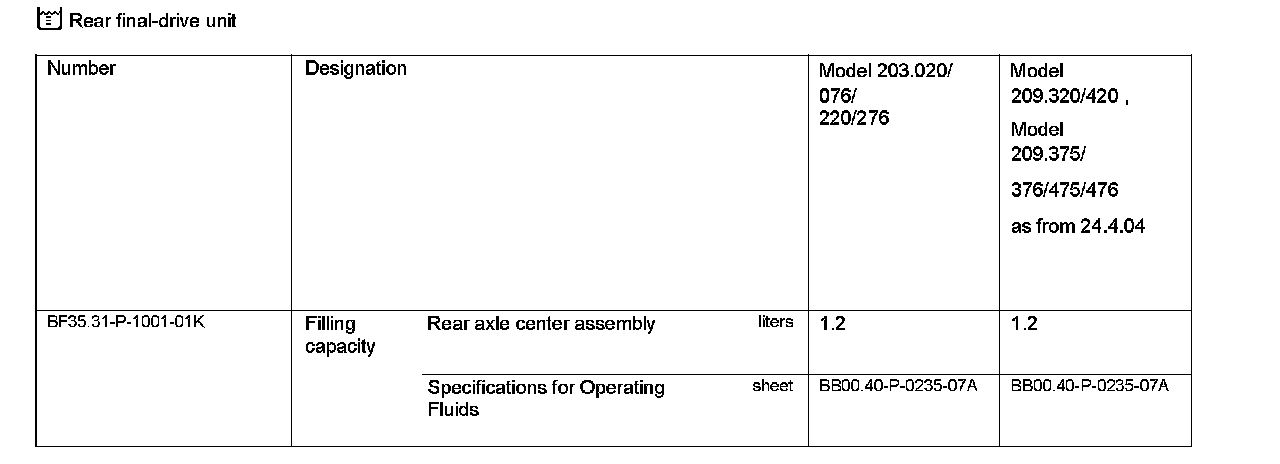

Rear Final-drive Unit:

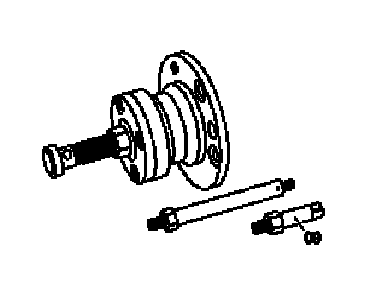

Special Tools:
