AR35.31-P-0520-03P Check Rear Axle Differential Oil Level, Correct If Necessary

AR35.31-P-0520-03P Check rear axle differential oil level, correct if necessary
- Rear axle center assembly Dia. 185 [model 203]
- Rear axle center assembly Dia. 187 [model 209]
- except CODE (P98) Black Series [model 209]

Oil filler/drain screw on rear axle differential modified

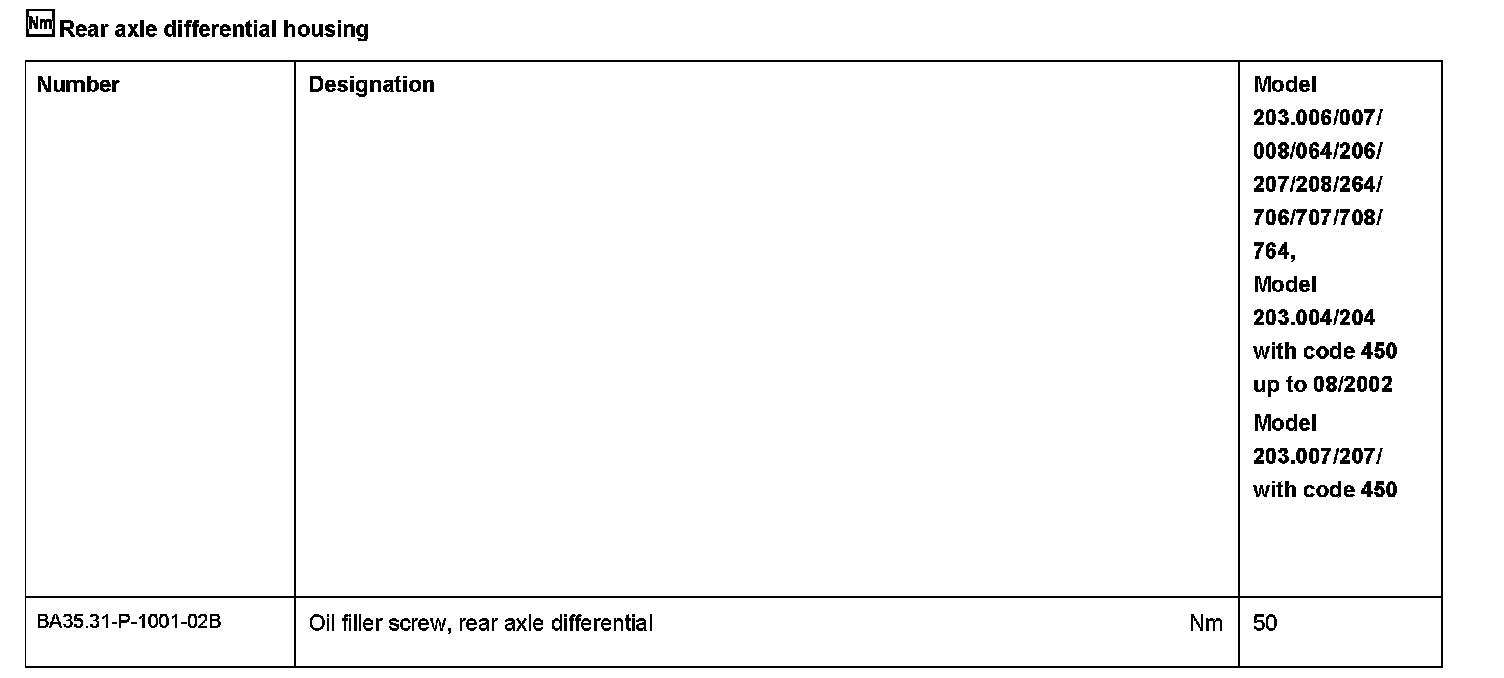

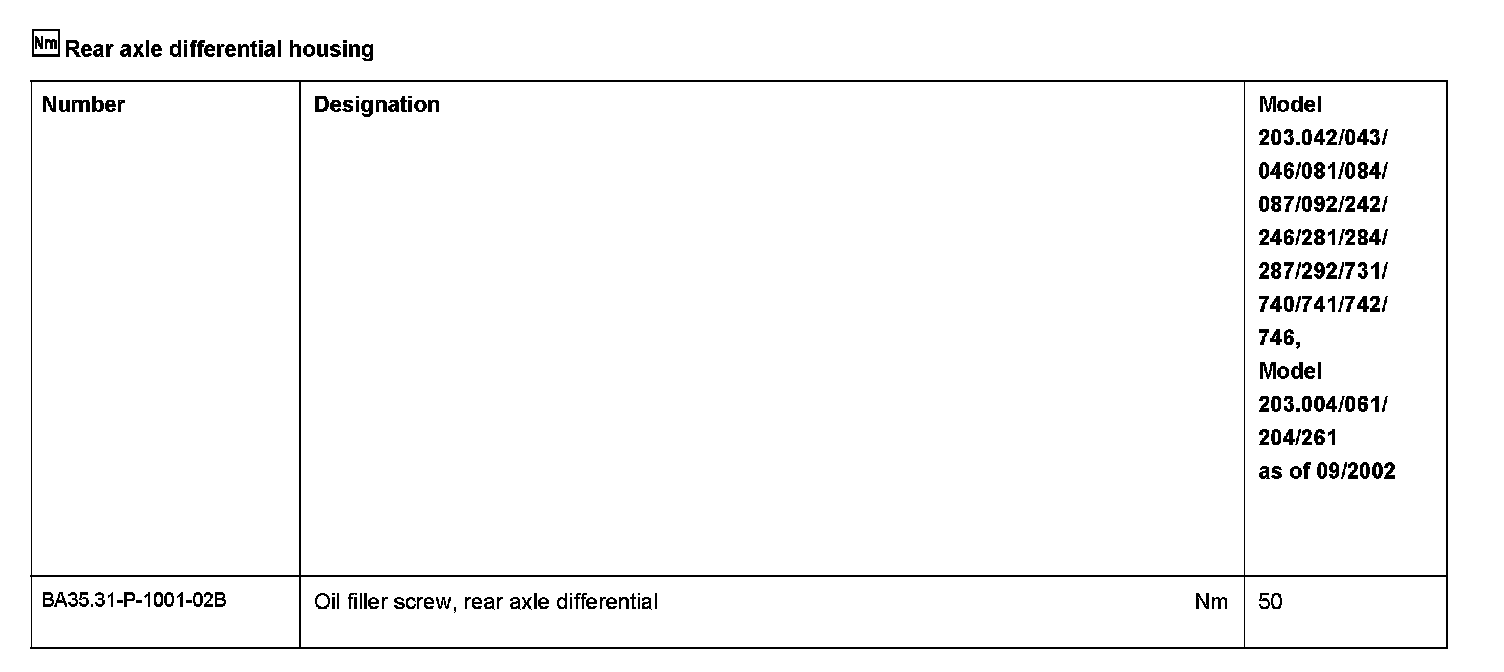

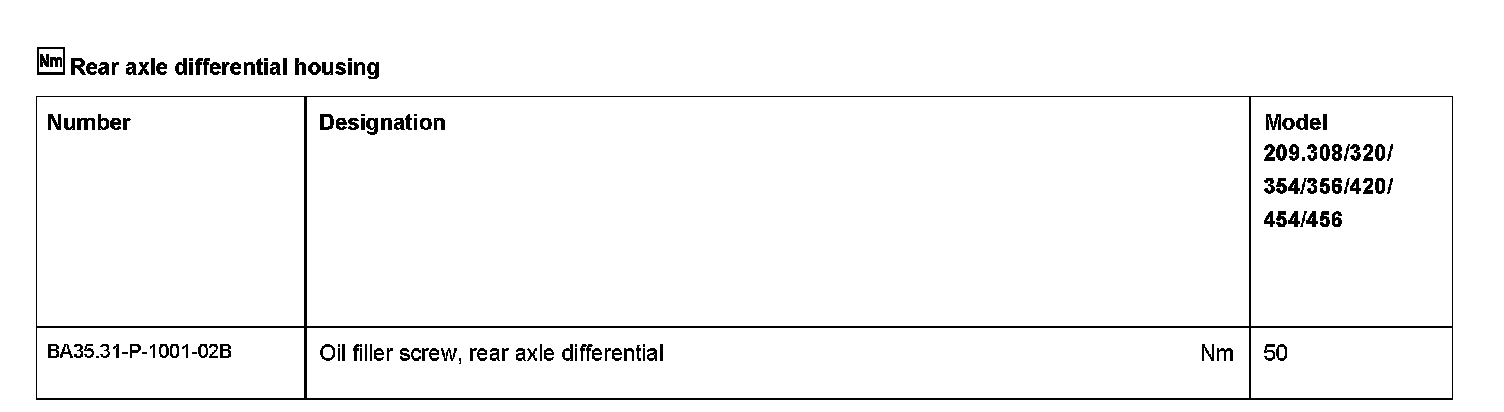

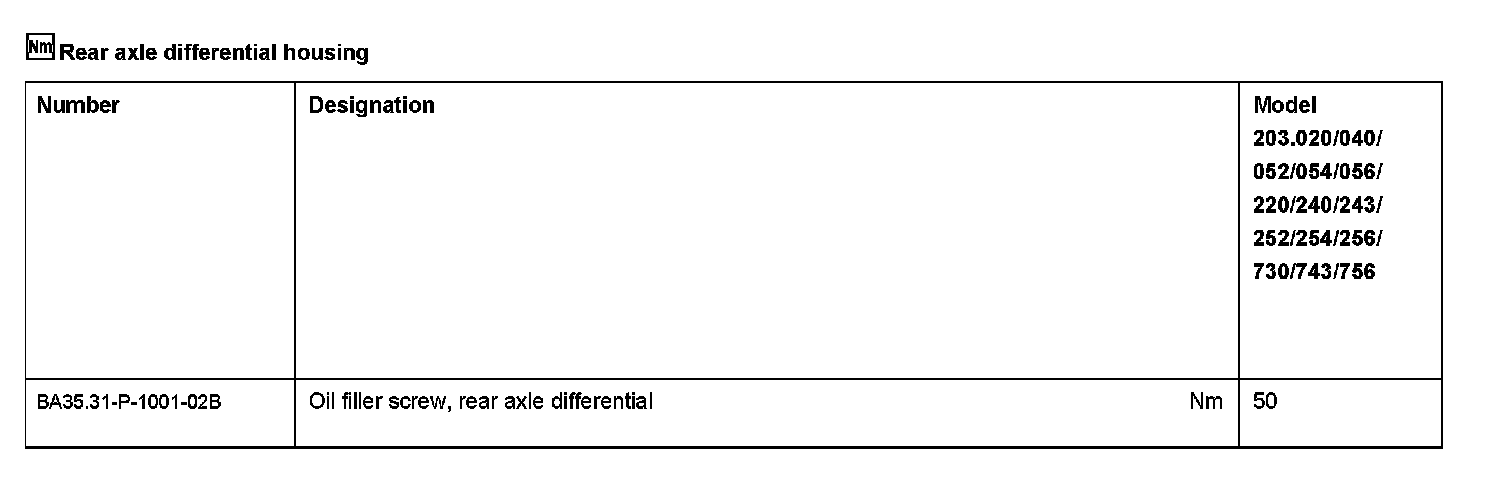

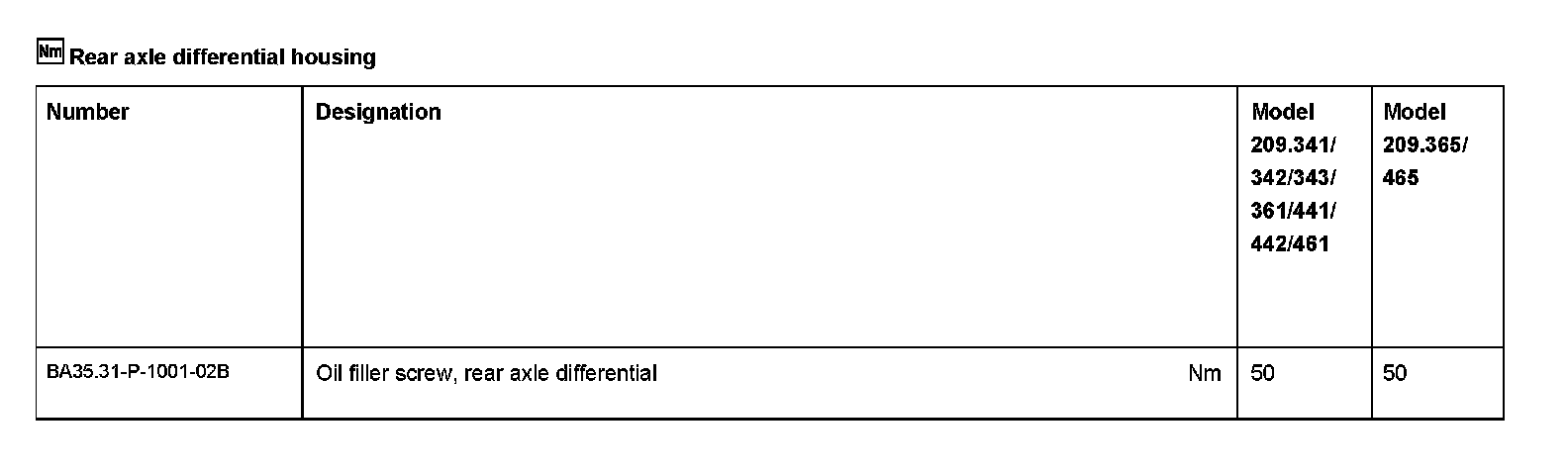

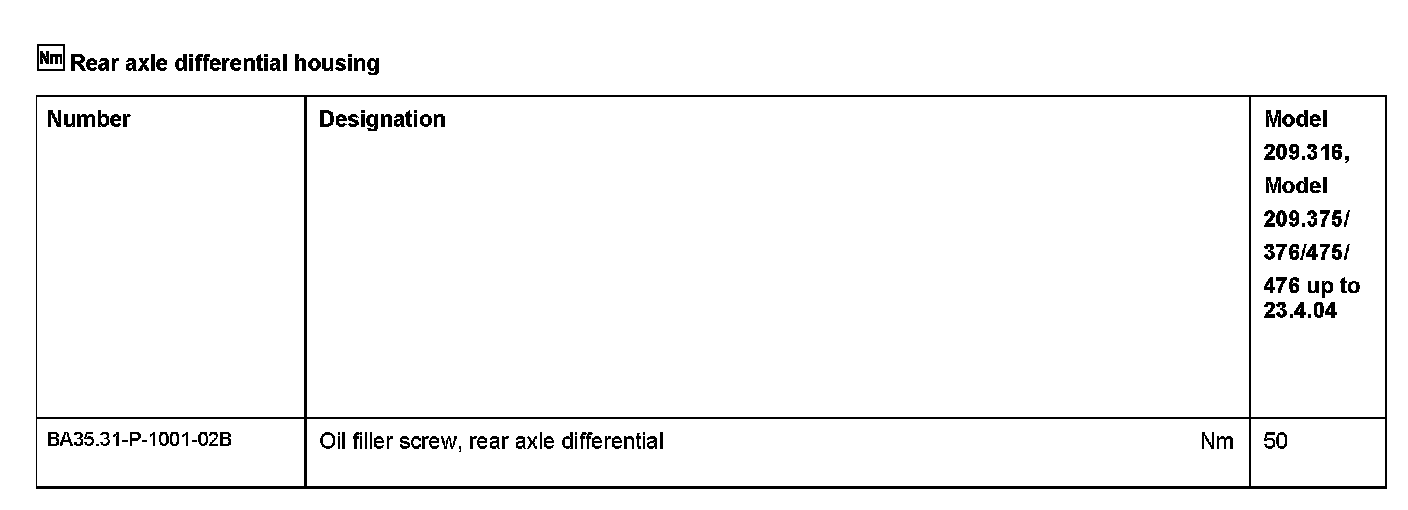

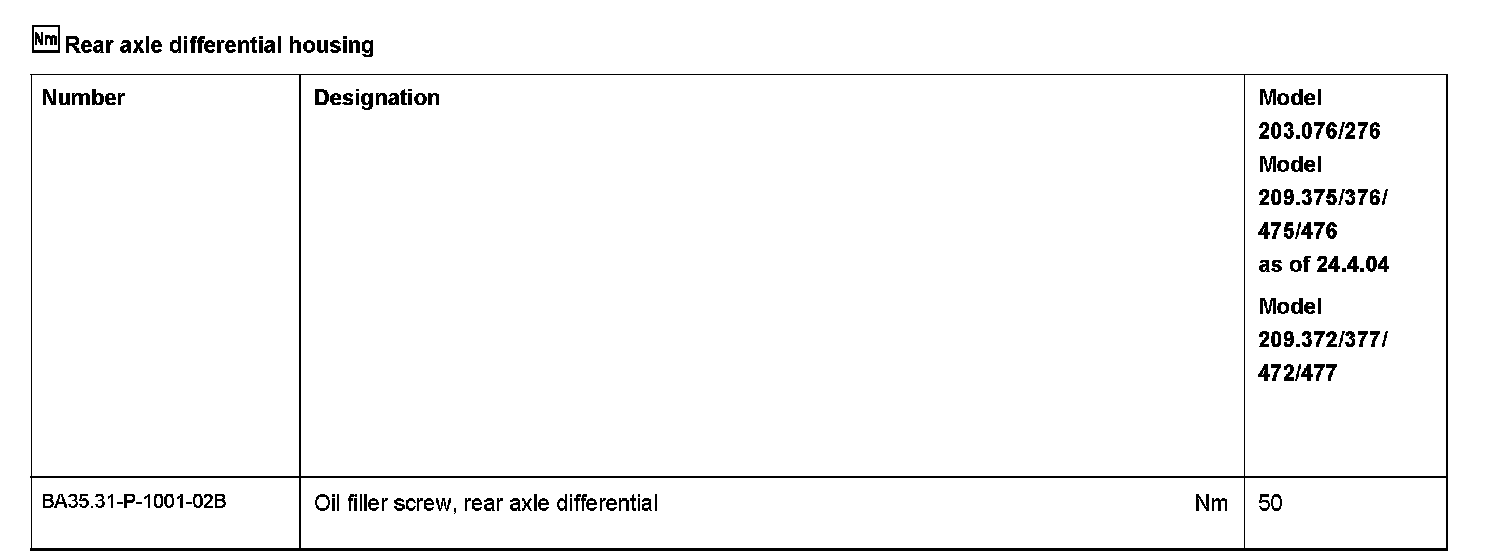

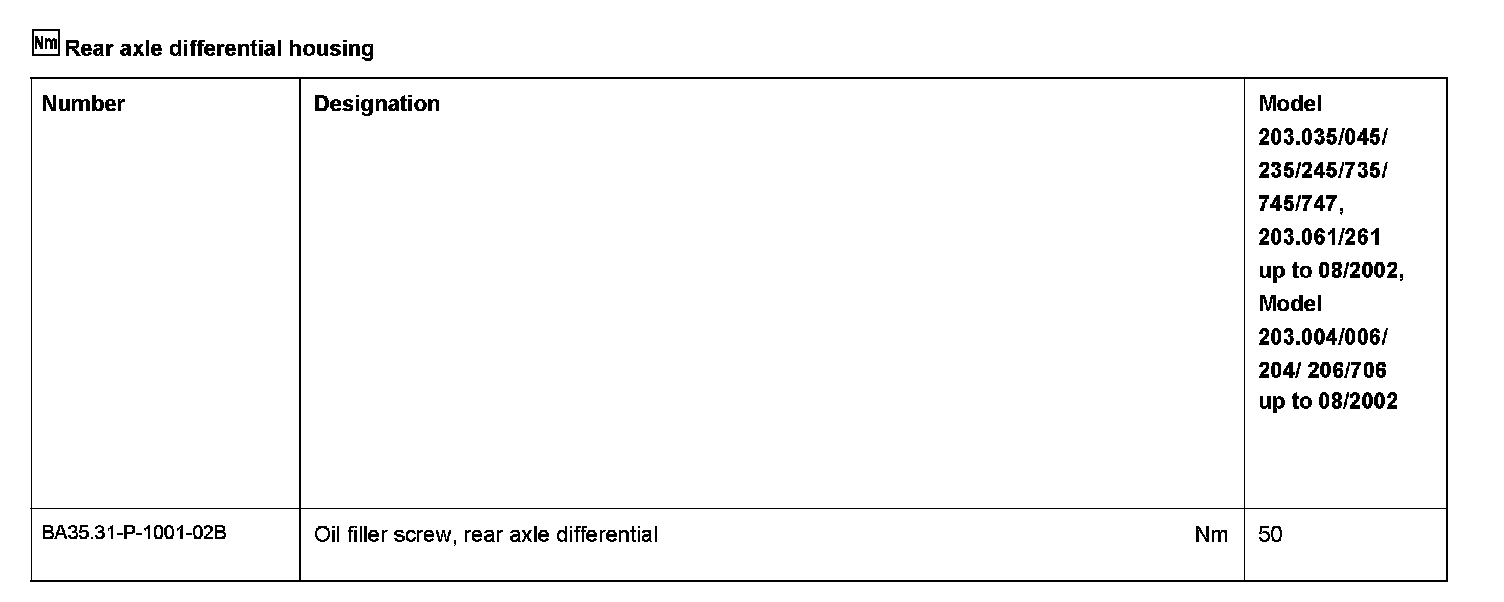

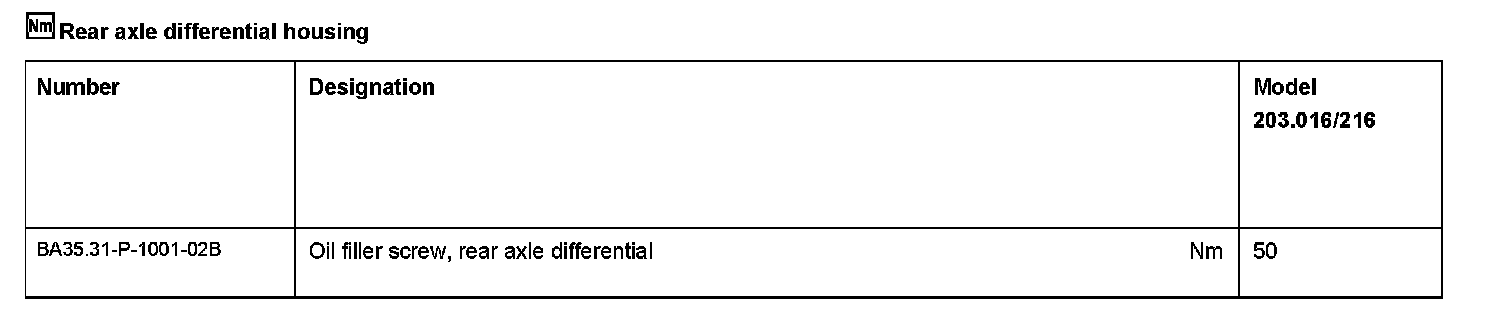

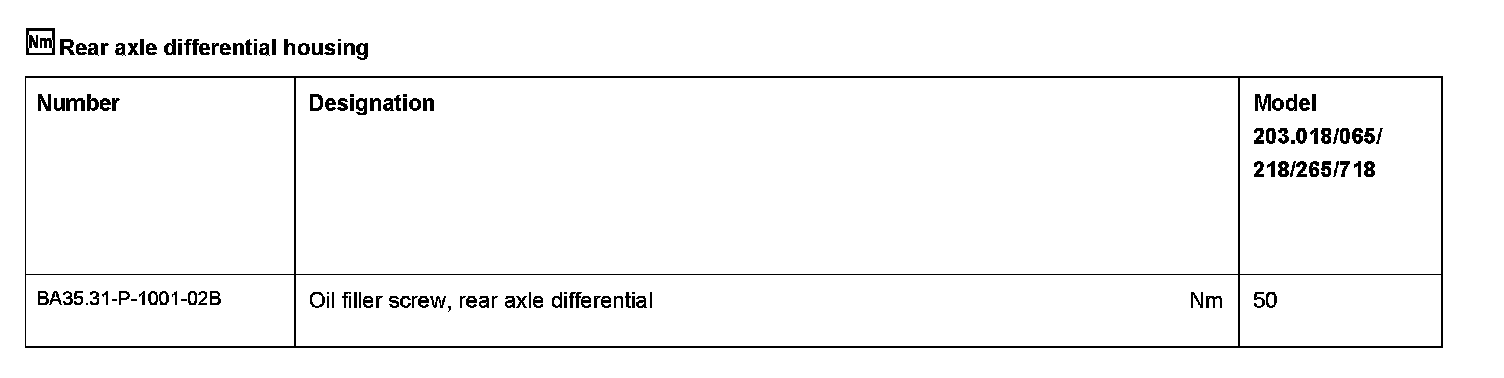

Rear axle differential housing:

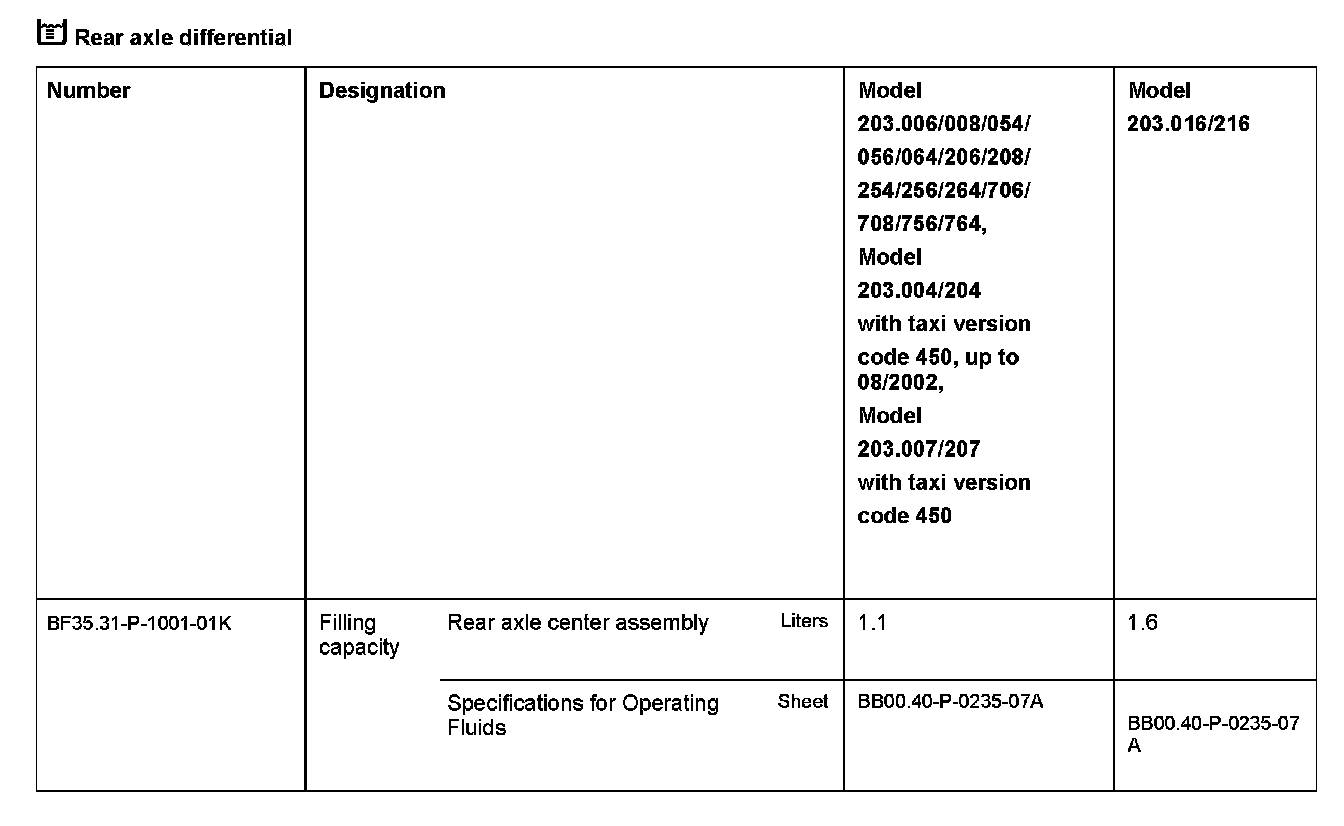

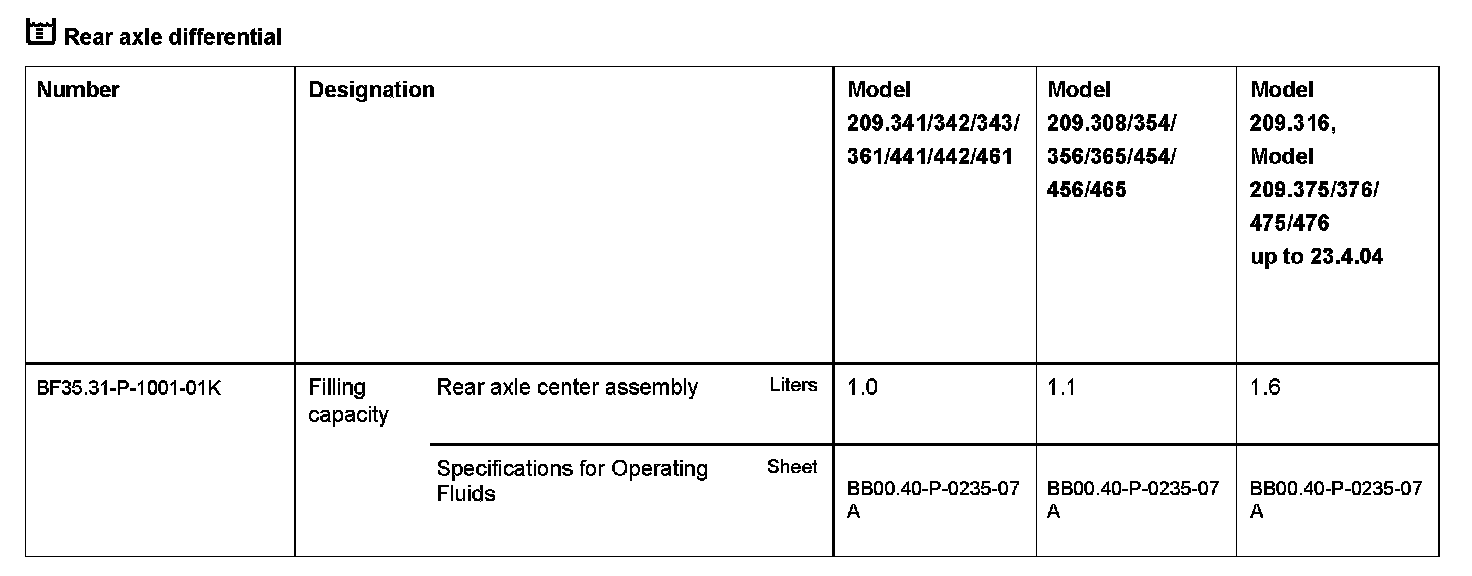

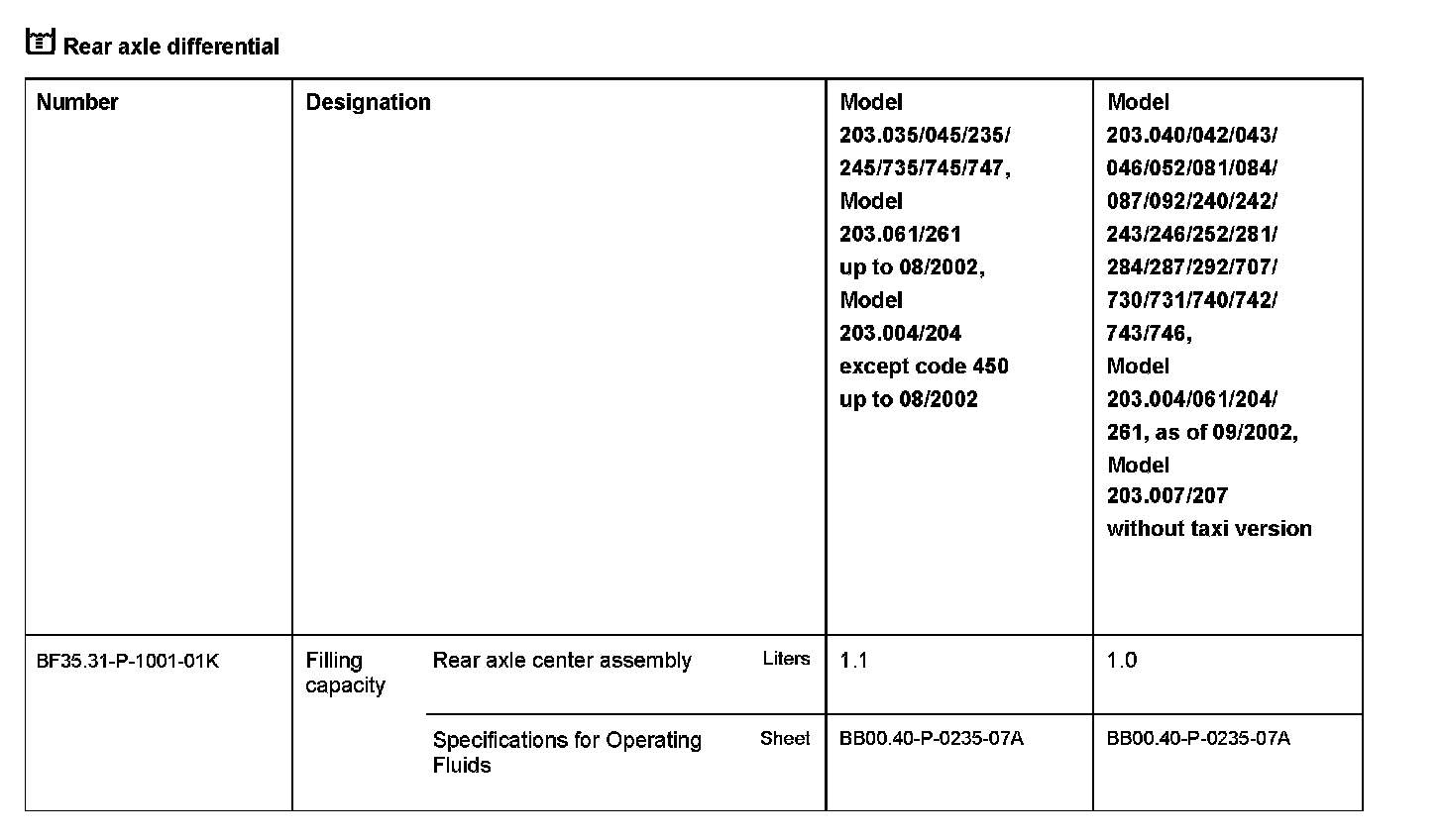

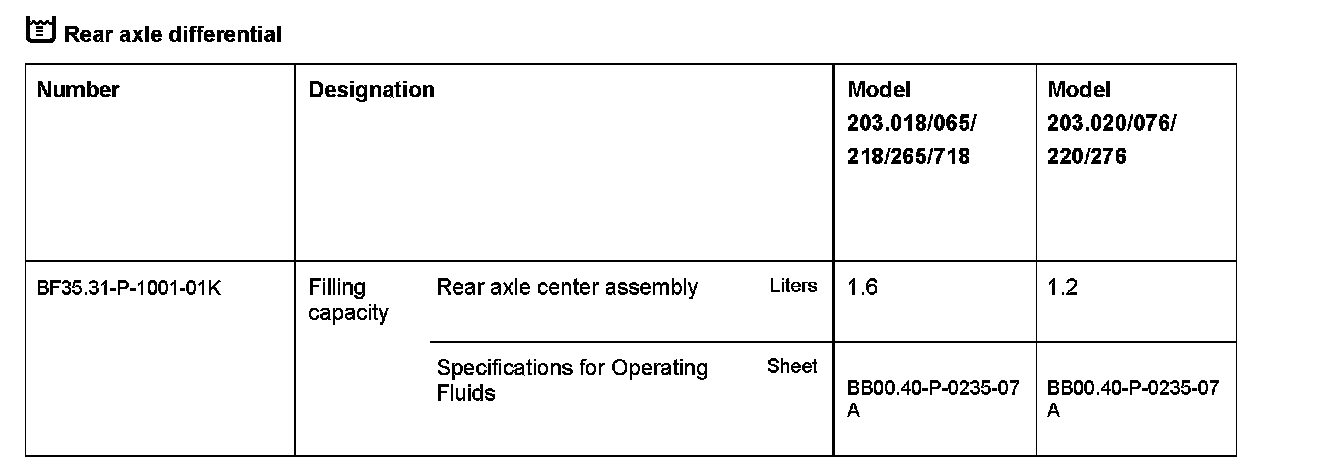

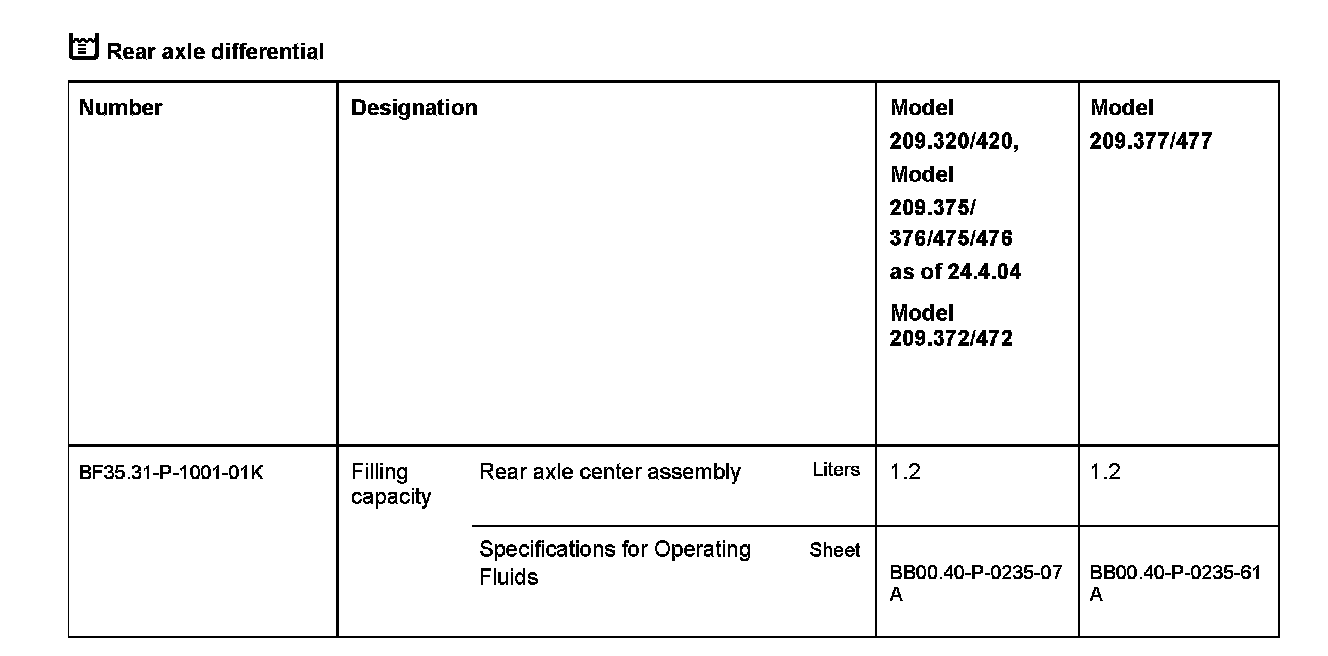

Rear axle differential:

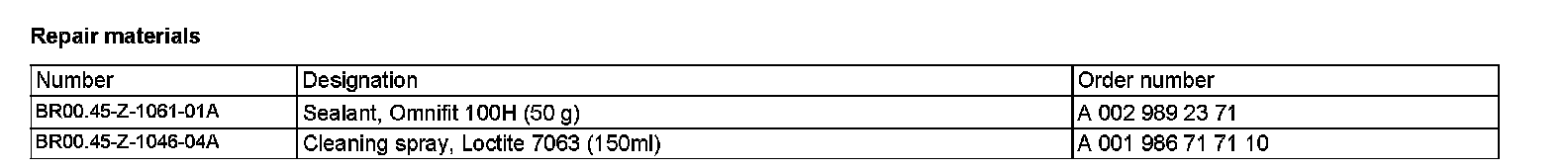

Repair materials:

Component Identification:

1 Clean area around oil filler screw (50g).

Only carry out the oil level check at interior temperature and not on a rear axle center assembly which is at operating temperature. Otherwise, when the rear axle differential is at operating temperature, required oil could escape.

2 Remove oil filler screw (50g)

Replace oil filler screw (50g).

3 If necessary collect oil running out and allow to run out until oil only drips out of opening.

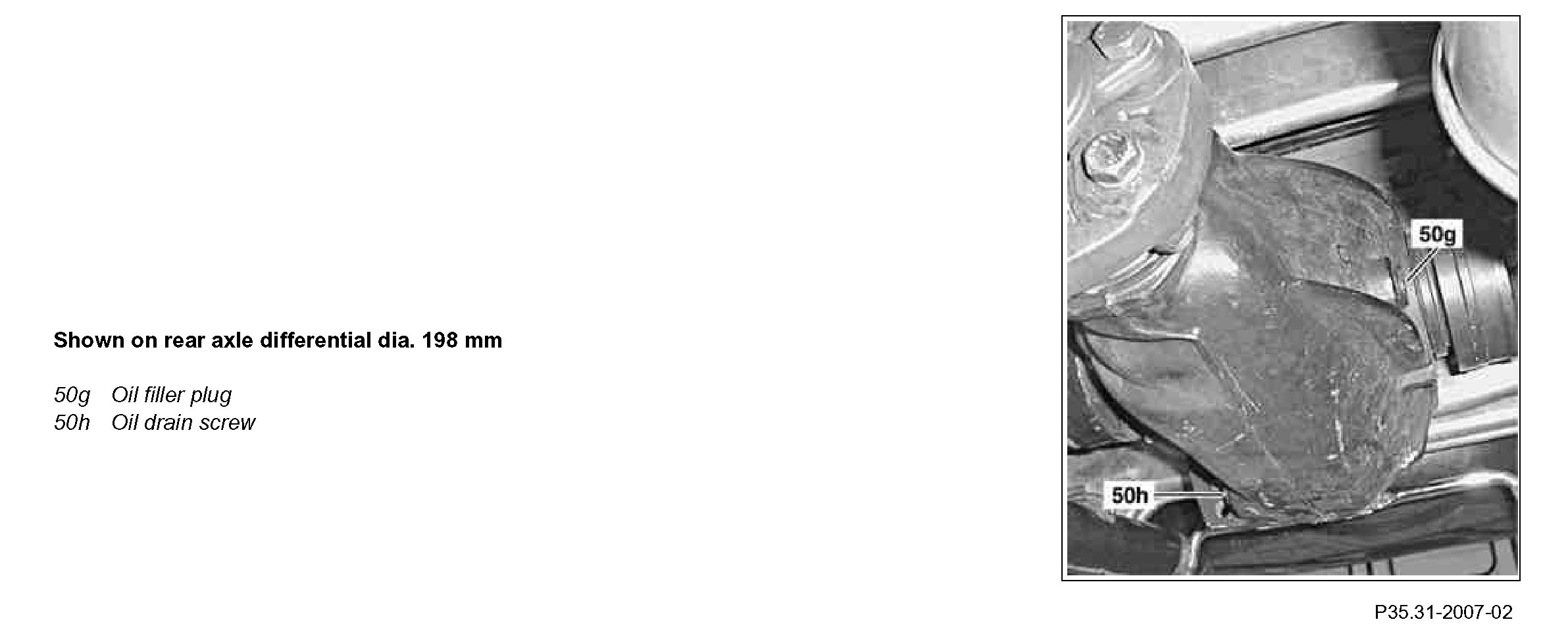

Shown on rear axle differential dia. 198 mm
4 Check oil level.

Correct oil level=underside of filler opening, refill if necessary.

The fully synthetic oil can also be used without reservations on rear axle center assemblies which have been produced before 4.11.2001. Mixing old universal hypoid gear oil and new FE hypoid gear oil does not impair the basic functions such as wear characteristics, leaktightness, etc. at the rear axle differential, but should, however, be avoided in the interest of better fuel economy.

5 Clean the new oil filler screw (50g) and the threaded hole in the rear axle differential with Loctite(R) 7063 cleaning spray and a suitable rag.

The oil filler screw (50g) and tapped hole must be free of oil and grease.

6 Apply about a drop of Omnifit(R) sealing compound 100H on the second or third lower thread of the oil filler screw (50g).
7 Screw oil filler screw (50g) into rear axle center assembly immediately and tighten to specified tightening torque.
