AR35.31-P-0560-04PA Installing Rear Axle Side Gears and Differential Bevel Gears

AR35.31-P-0560-04PA Installing rear axle side gears and differential bevel gears
- Rear axle center assembly dia. 185, 198, 210

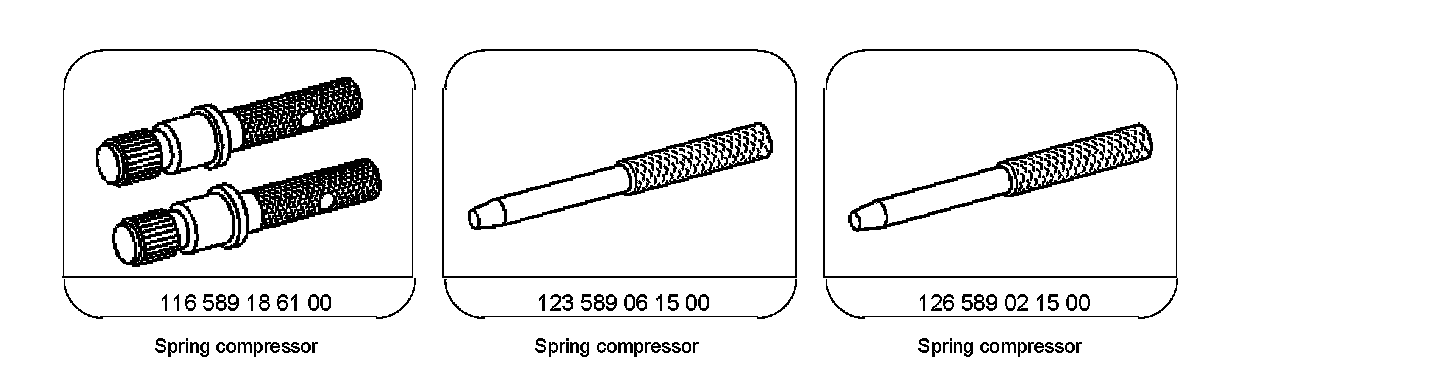

Special Tools:

Component Identification:

1 Insert assembly mandrels (046) into drill holes of differential housing.

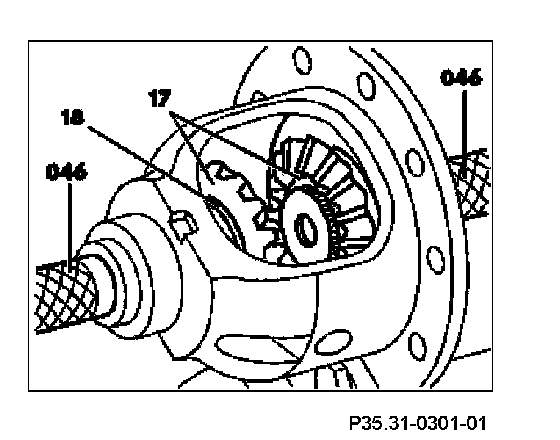

2 Mount both rear axle side gears (17) with thrust plates (18) on the assembly mandrels (046) in the differential case.

Component Identification:

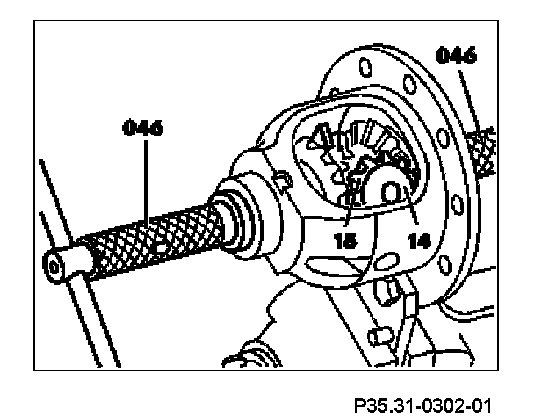

3 Insert the two differential pinions (15) and spherical washers (14) together and exactly opposite in the differential case and position using assembly mandrels (046).

Component Identification:

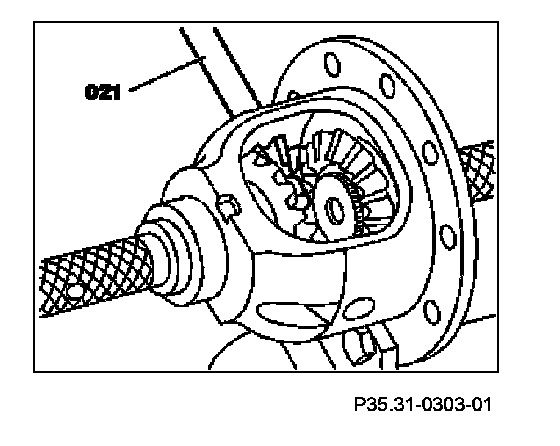

4 Instead of the differential pinion shaft, push the assembly mandrel (021) for fixing differential pinions (15) and spherical washers (14) in position into the differential case.

With 185 mm dia. ring gear, use assembly mandrel (021) 123 589 06 15 00.

With ring gear [diameter] 198 mm and 210 mm use assembly drift (021) of 126 589 02 15 00.
