AR35.31-P-0560-03PA Removing Differential Pinions and Rear Axle Side Gears

AR35.31-P-0560-03PA Removing differential pinions and rear axle side gears
- Rear axle center assembly dia. 185, 198, 210

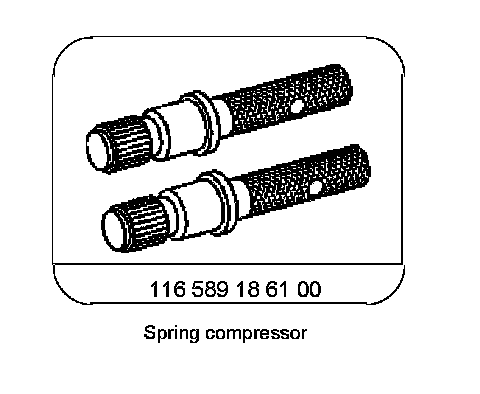

Special Tools:

Component Identification:

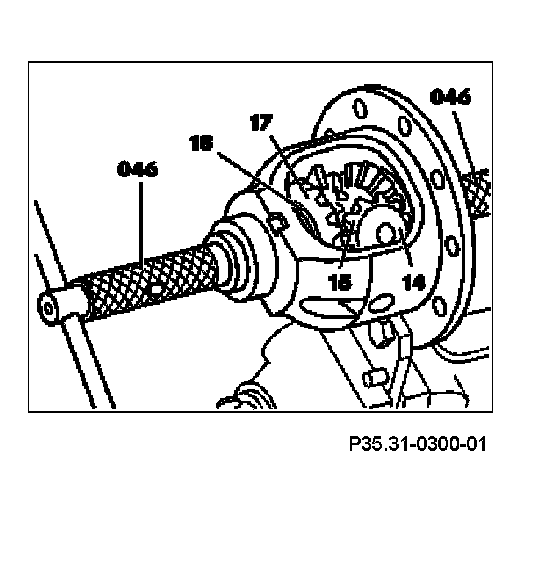

1 Insert assembly mandrels (046) and turn until differential pinions (15) are vertical in opening.
2 Remove differential pinions (15) with spherical washers (14).
3 Remove rear axle side gears (17) with thrust washers (18).
