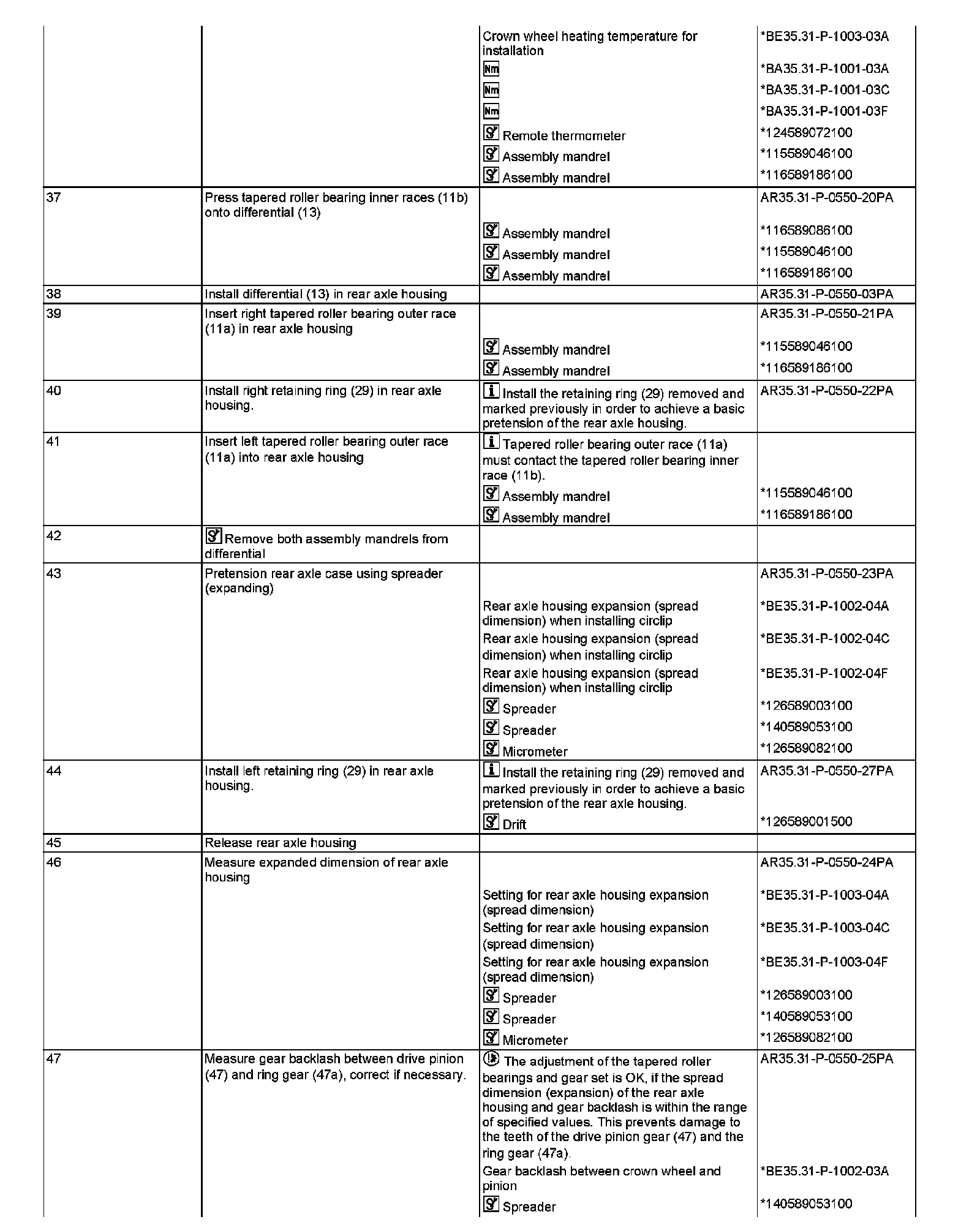

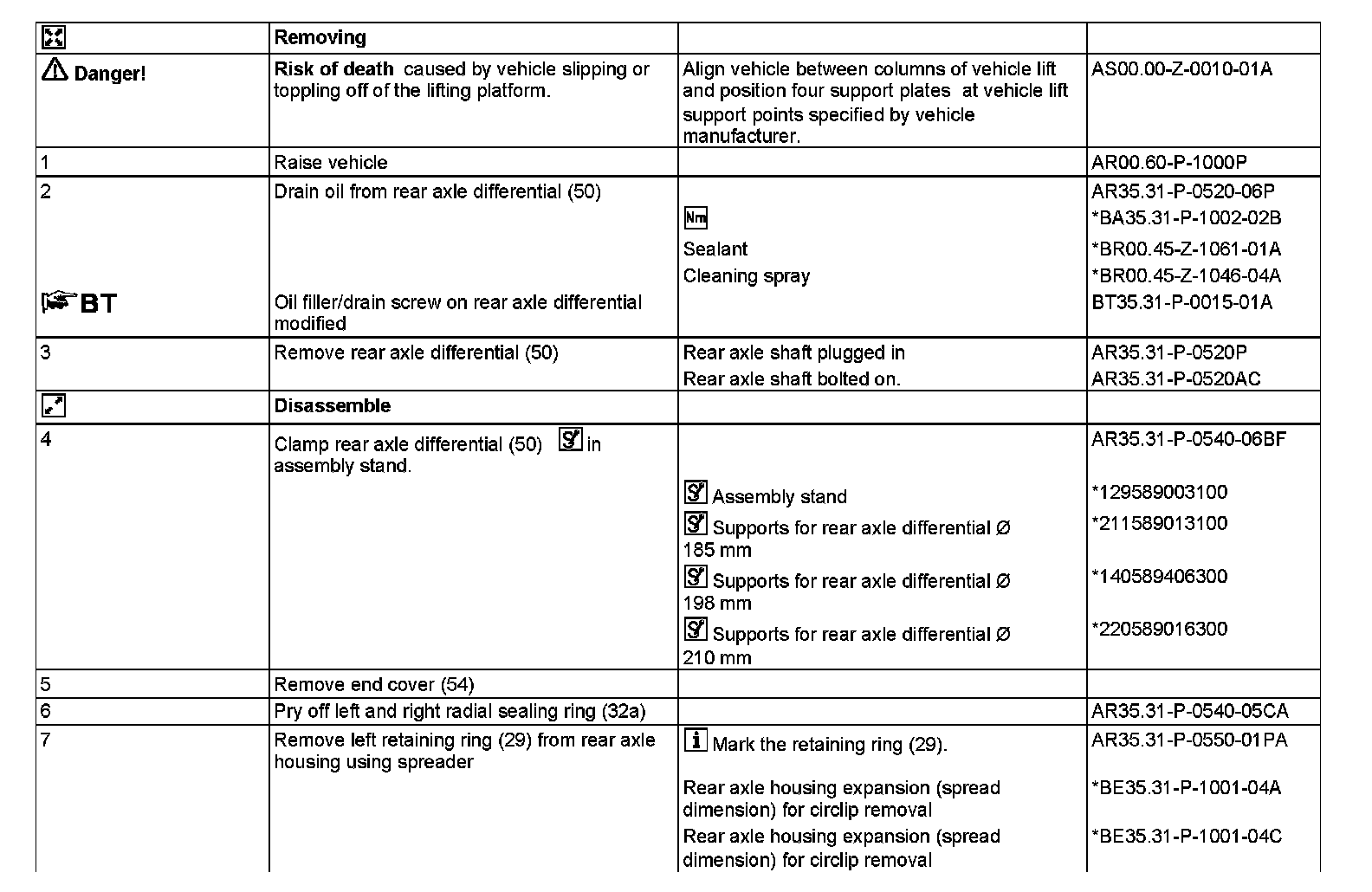

AR35.31-P-0550PA Disassembling and Assembling Rear Axle Differential, Adjusting Gear Set

Component Identification:

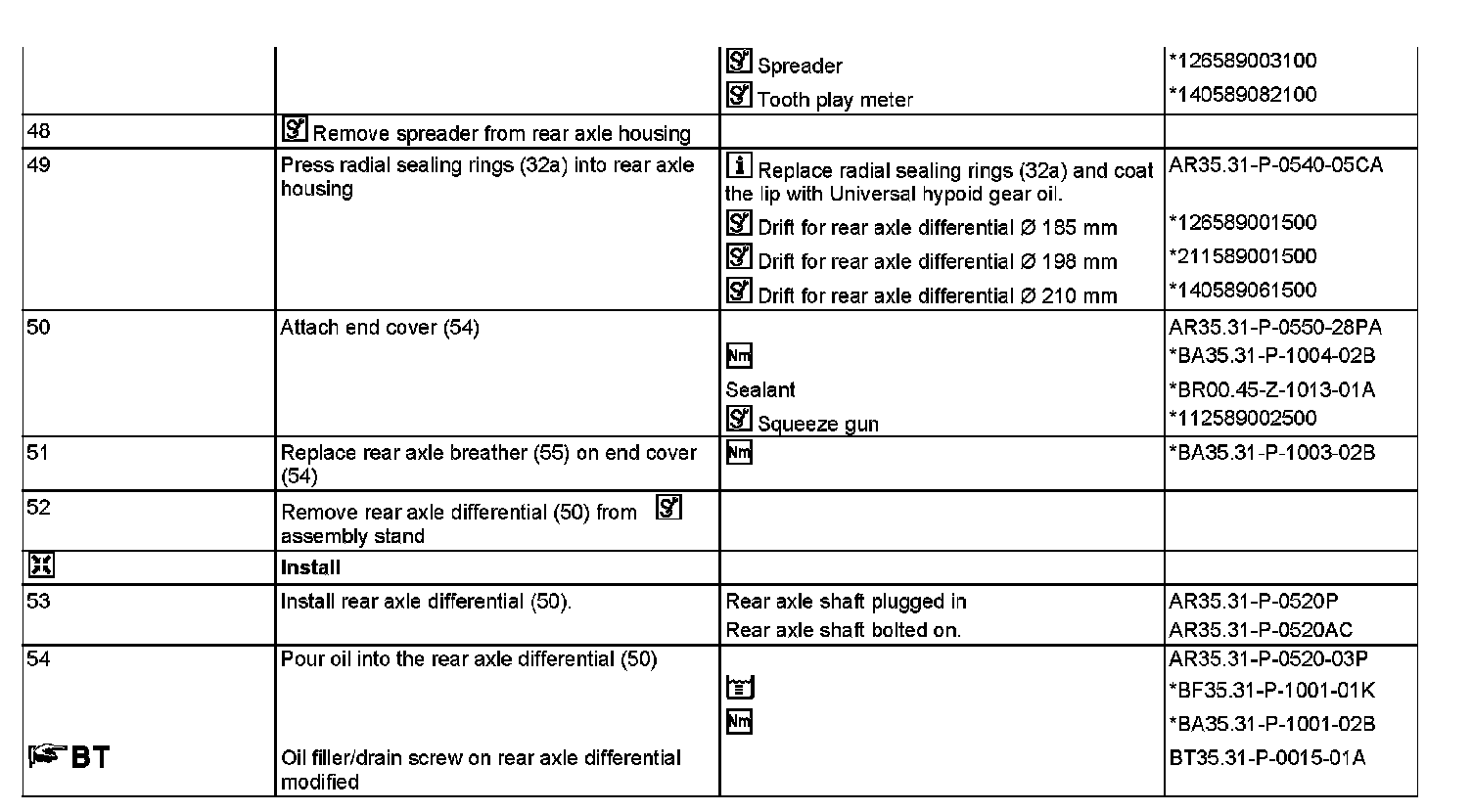

Steps 1-7:

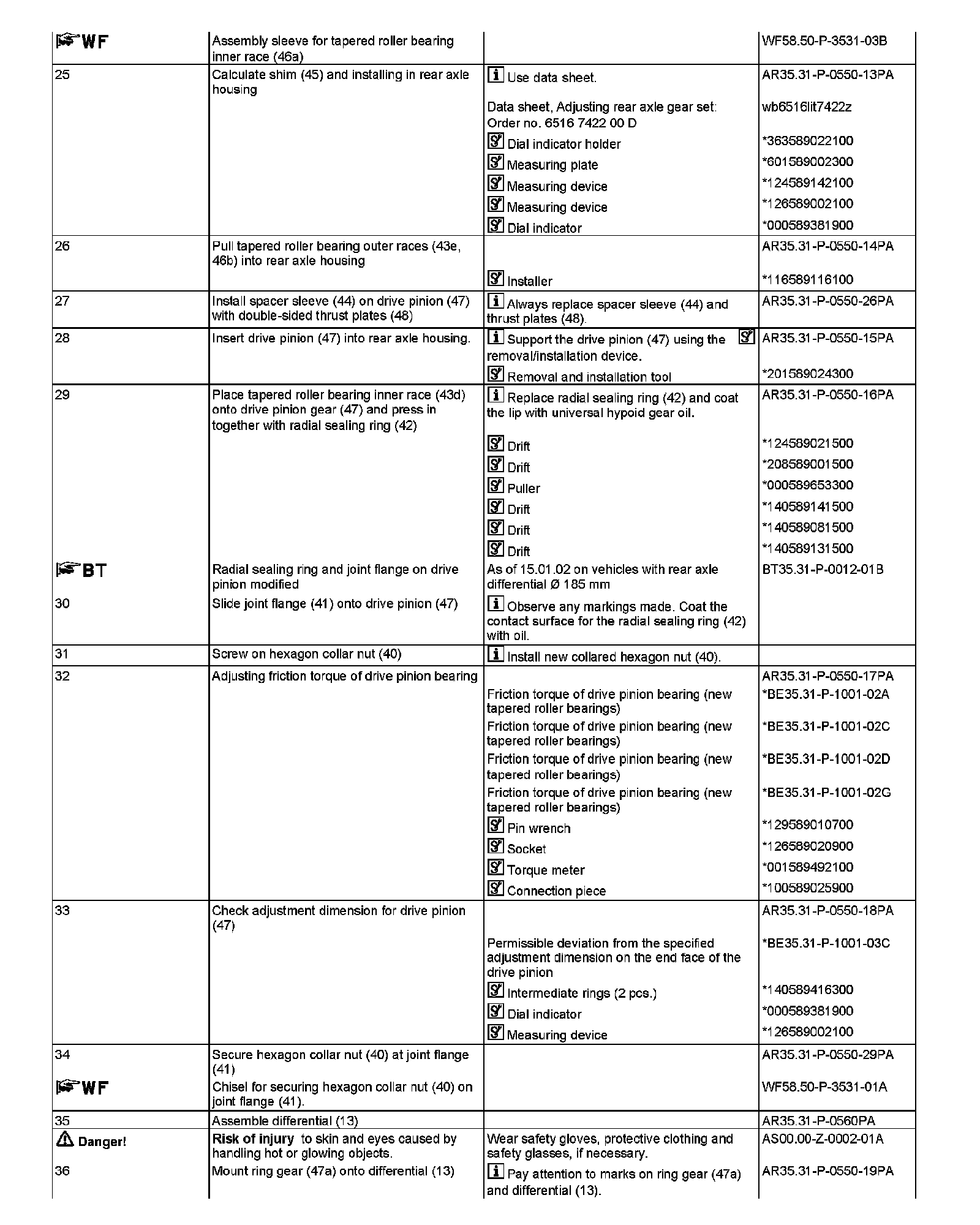

Steps 7 (Continued)-24:

Steps 24 (Continued)-36:

Steps 36 (Continued)-47:

Steps 47 (Continued)-54:

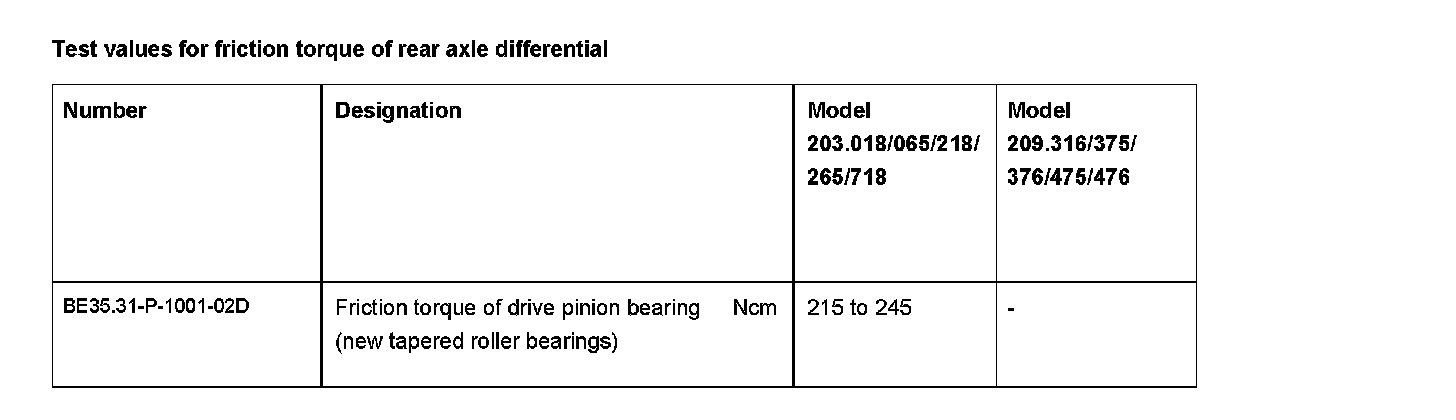

Test values for friction torque of rear axle differential:

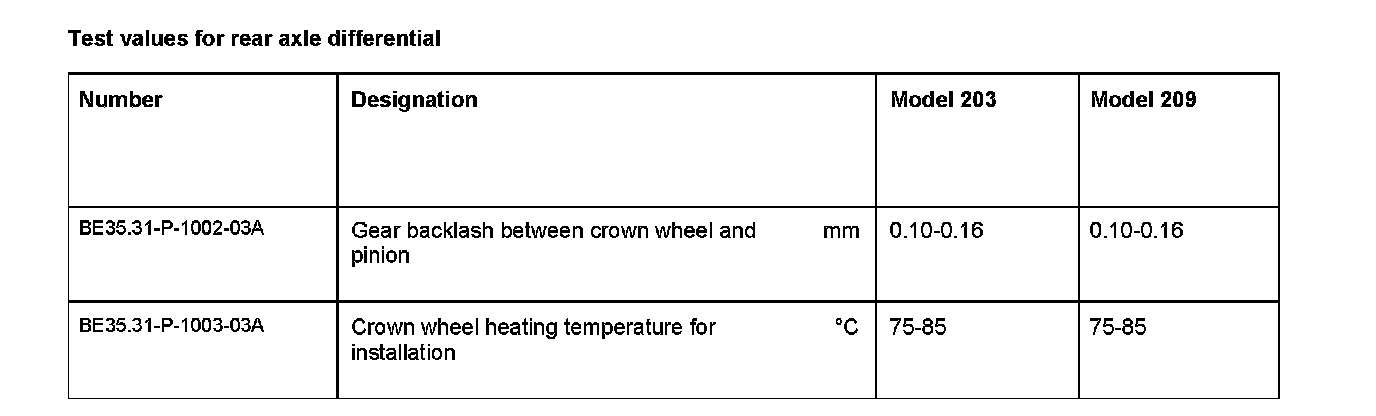

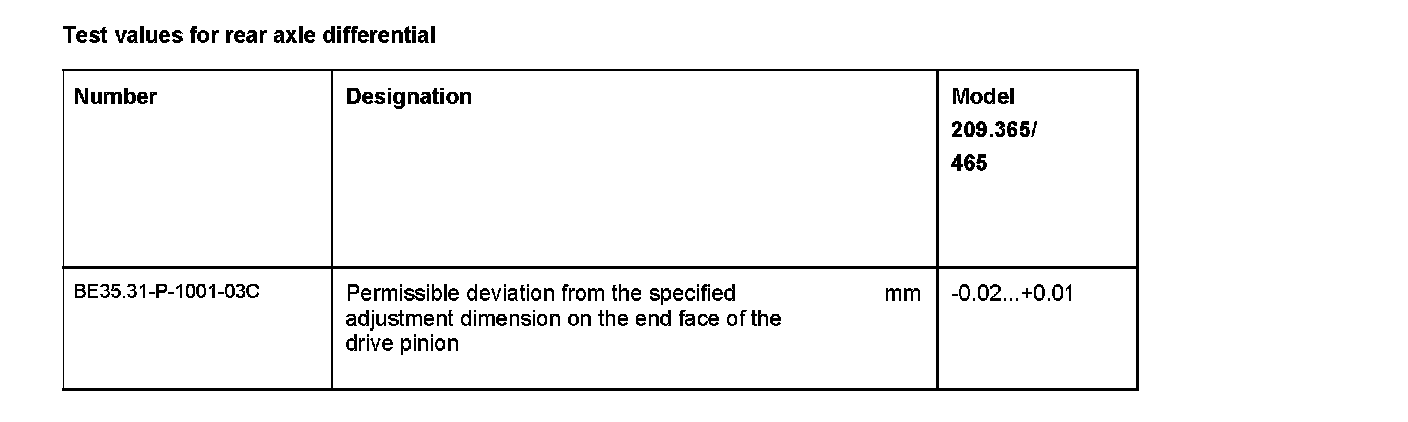

Test values for rear axle differential:

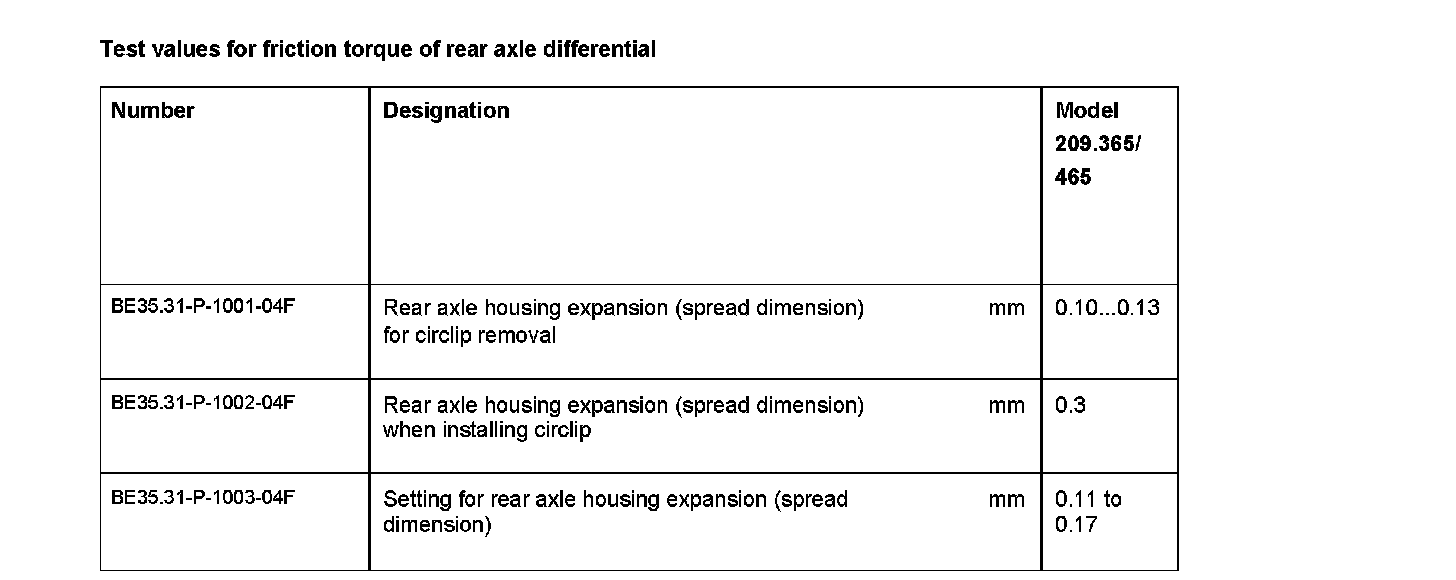

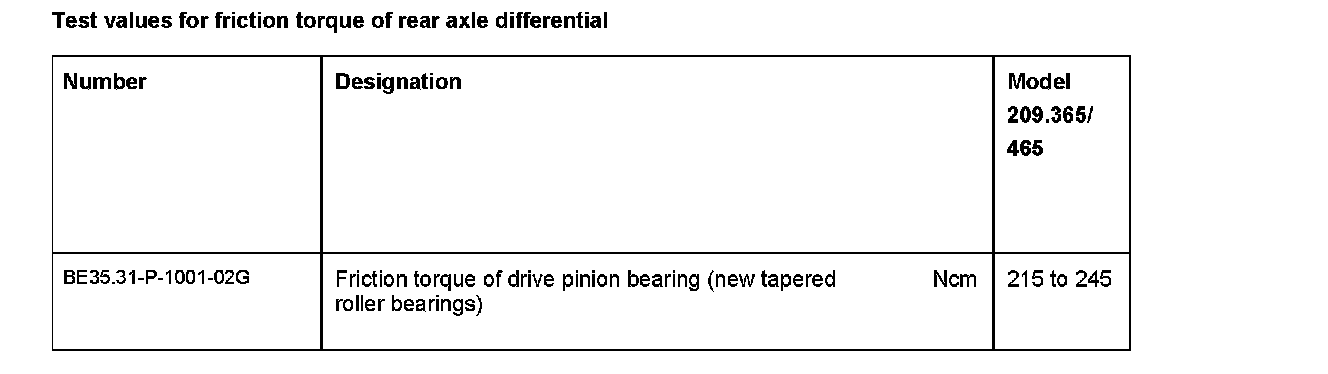

Test values for friction torque of rear axle differential:

Test values for rear axle differential:

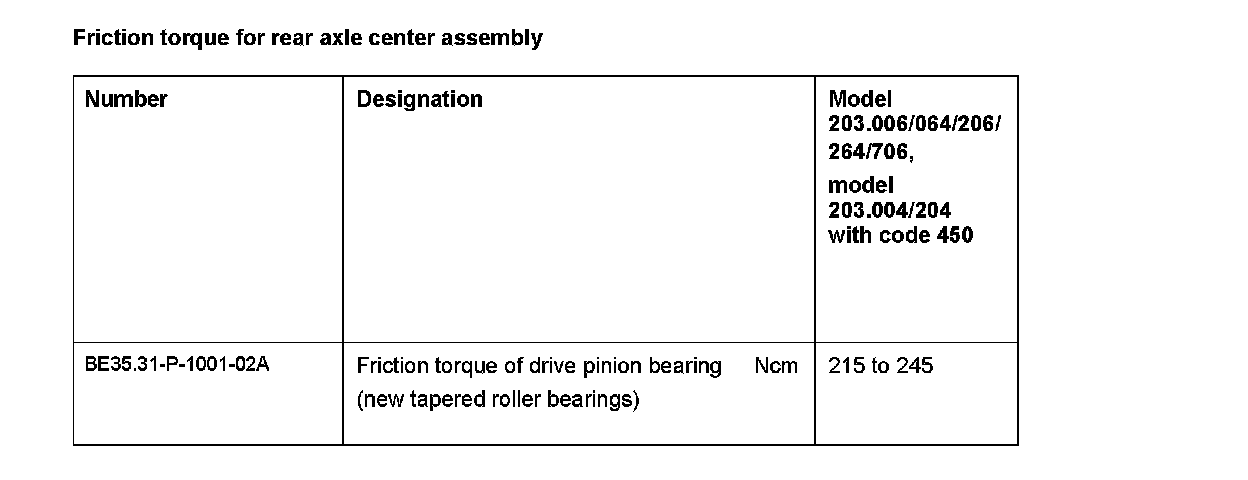

Friction torque for rear axle center assembly:

Test values for friction torque of rear axle differential:

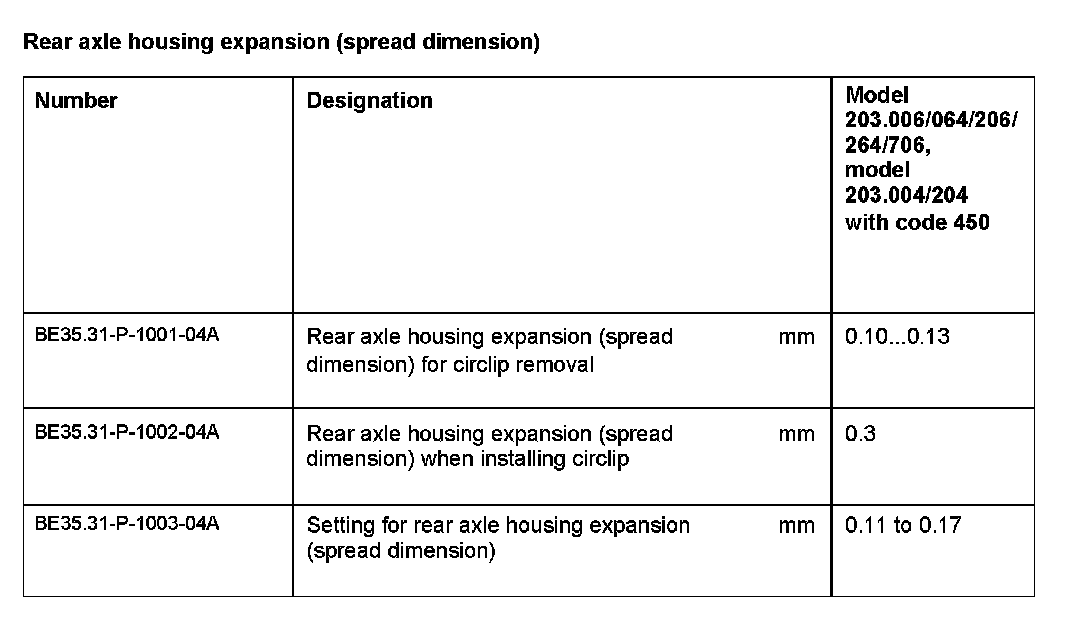

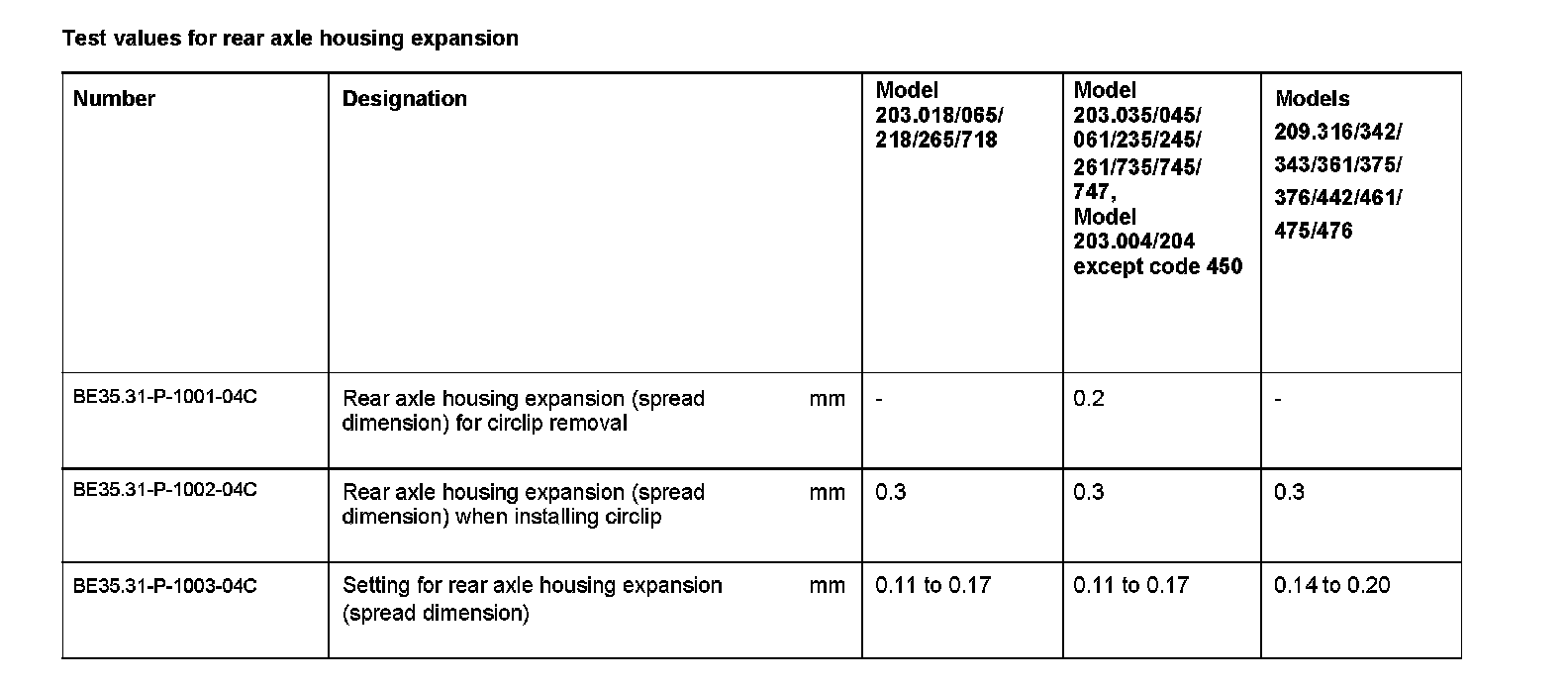

Rear axle housing expansion (spread dimension):

Test values for rear axle housing expansion:

Test values for friction torque of rear axle differential:

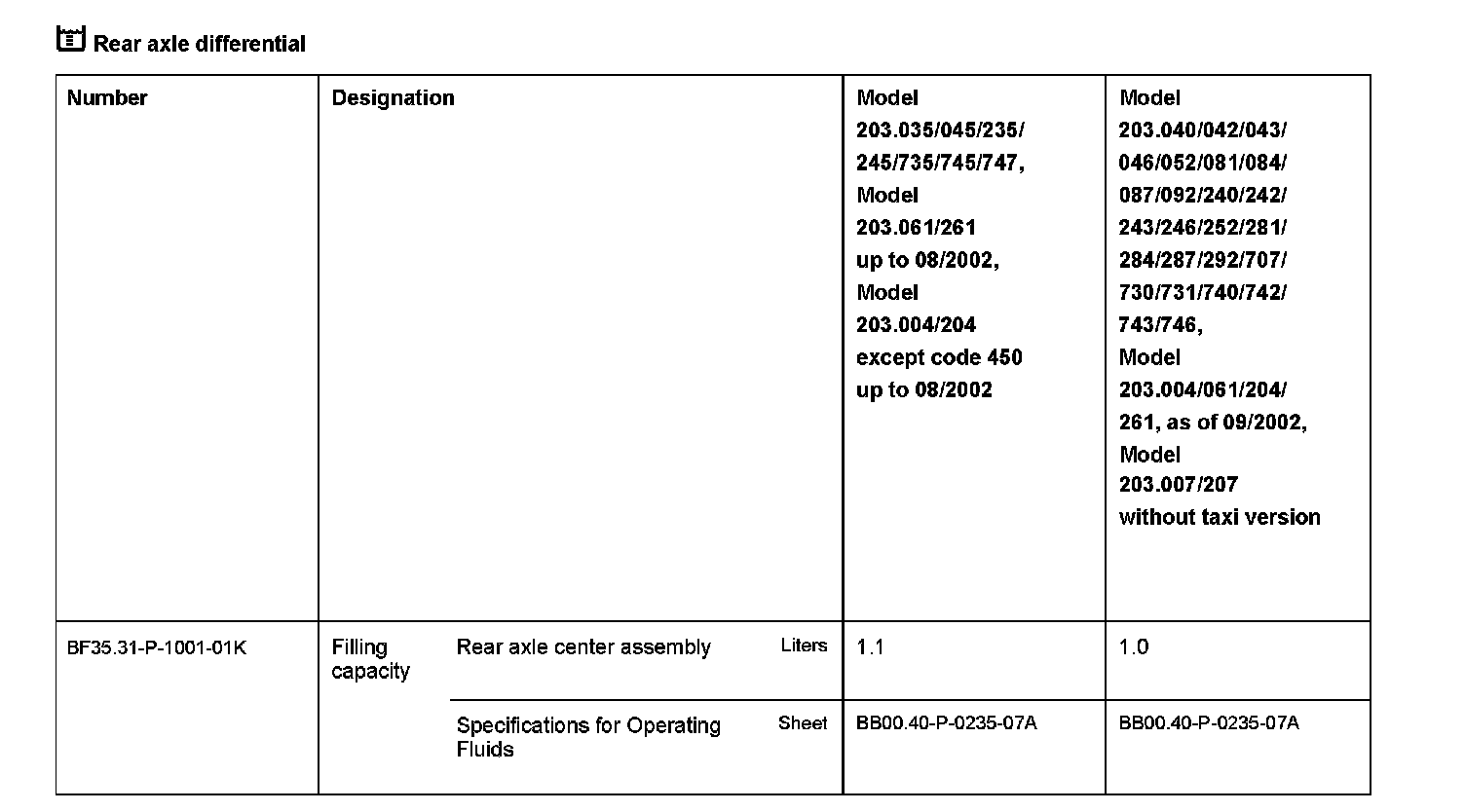

Rear axle differential gear set:

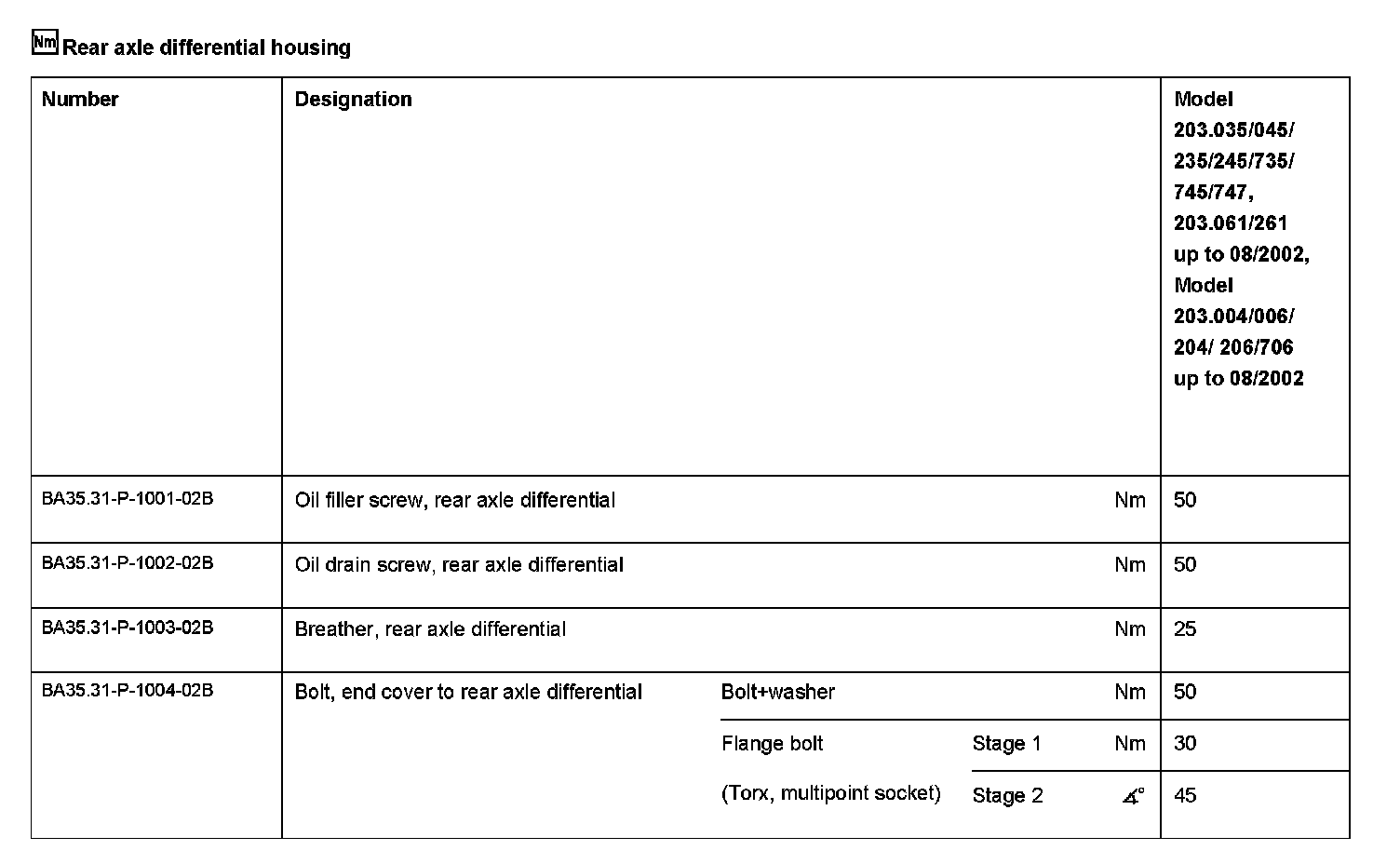

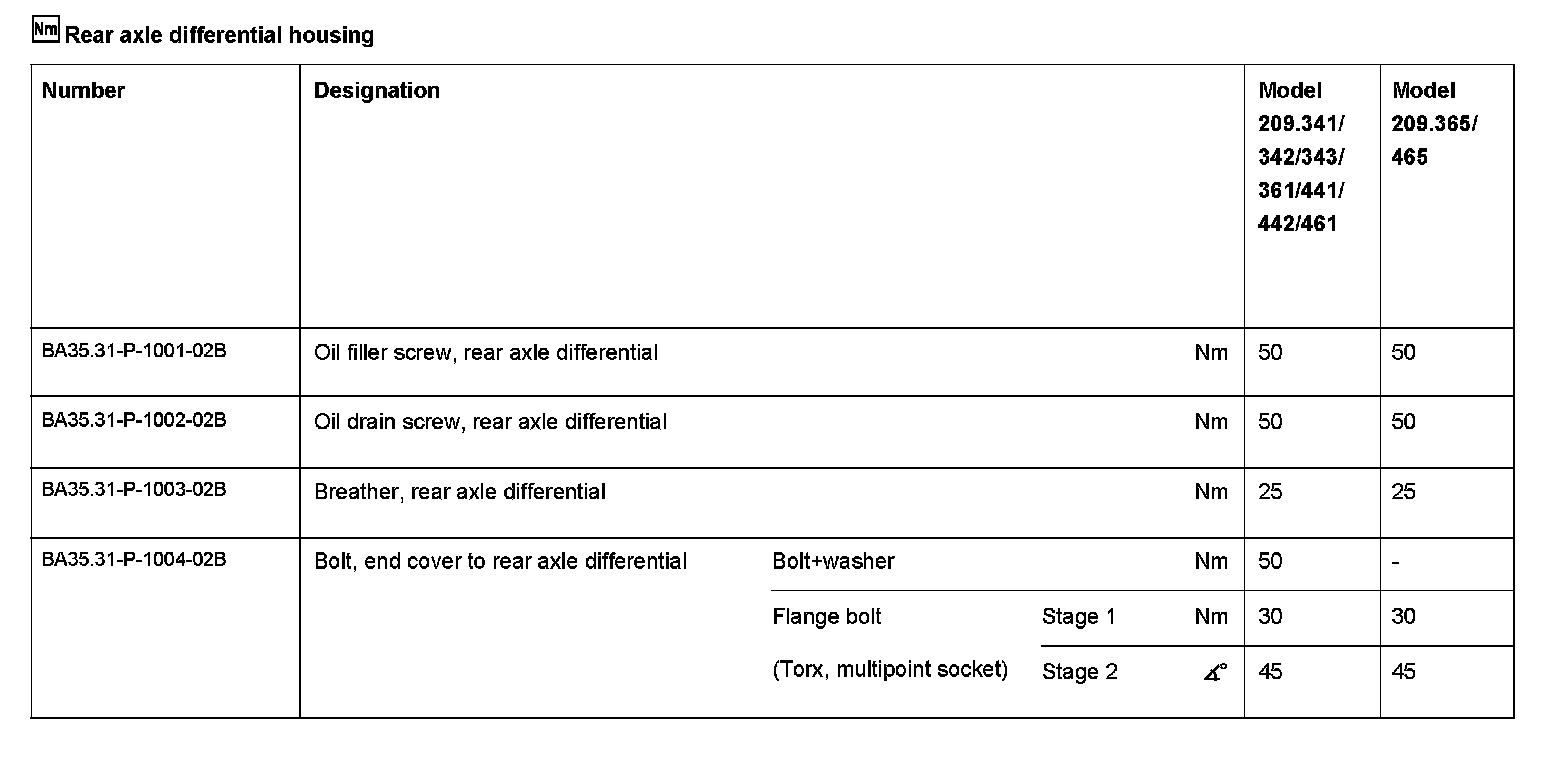

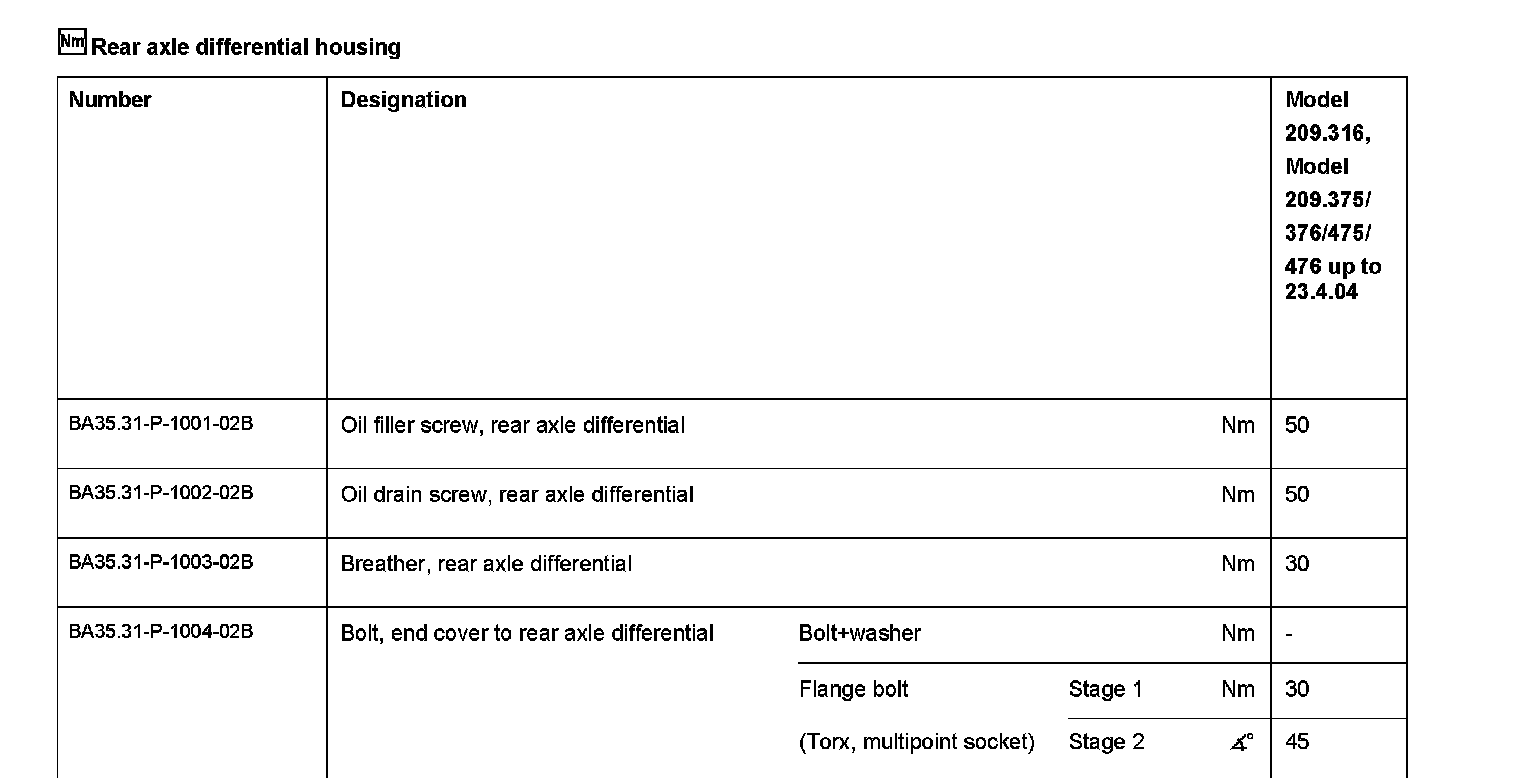

Rear axle differential housing:

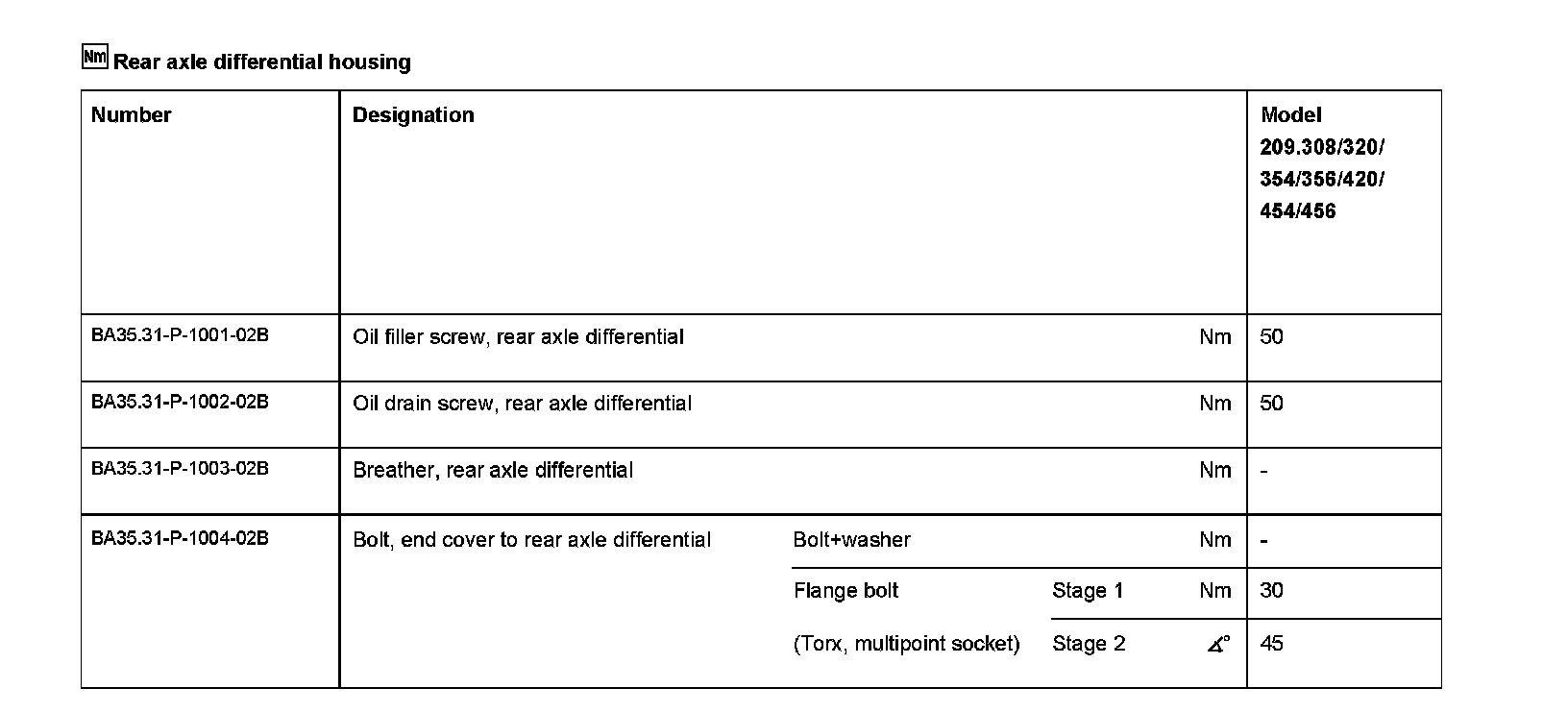

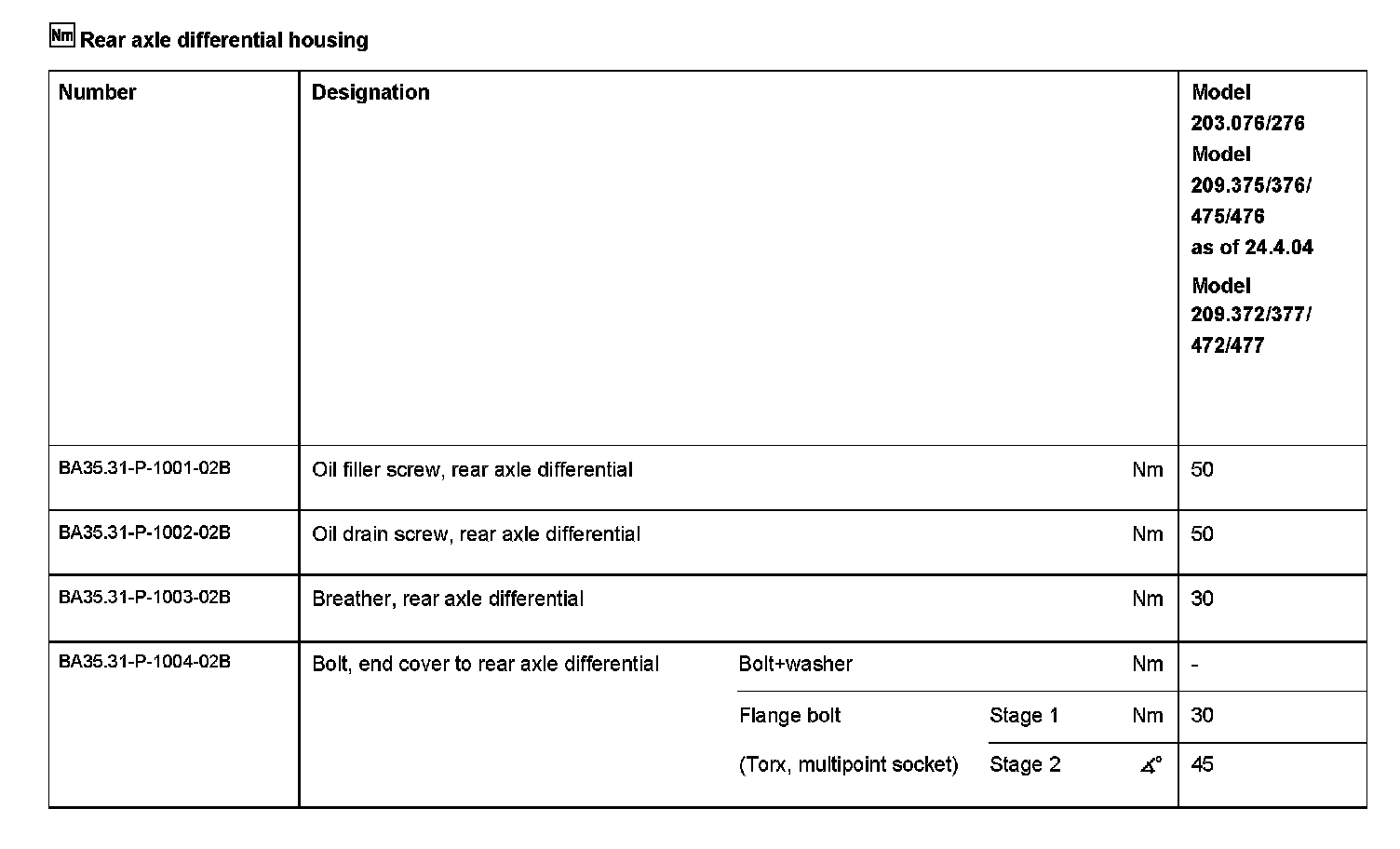

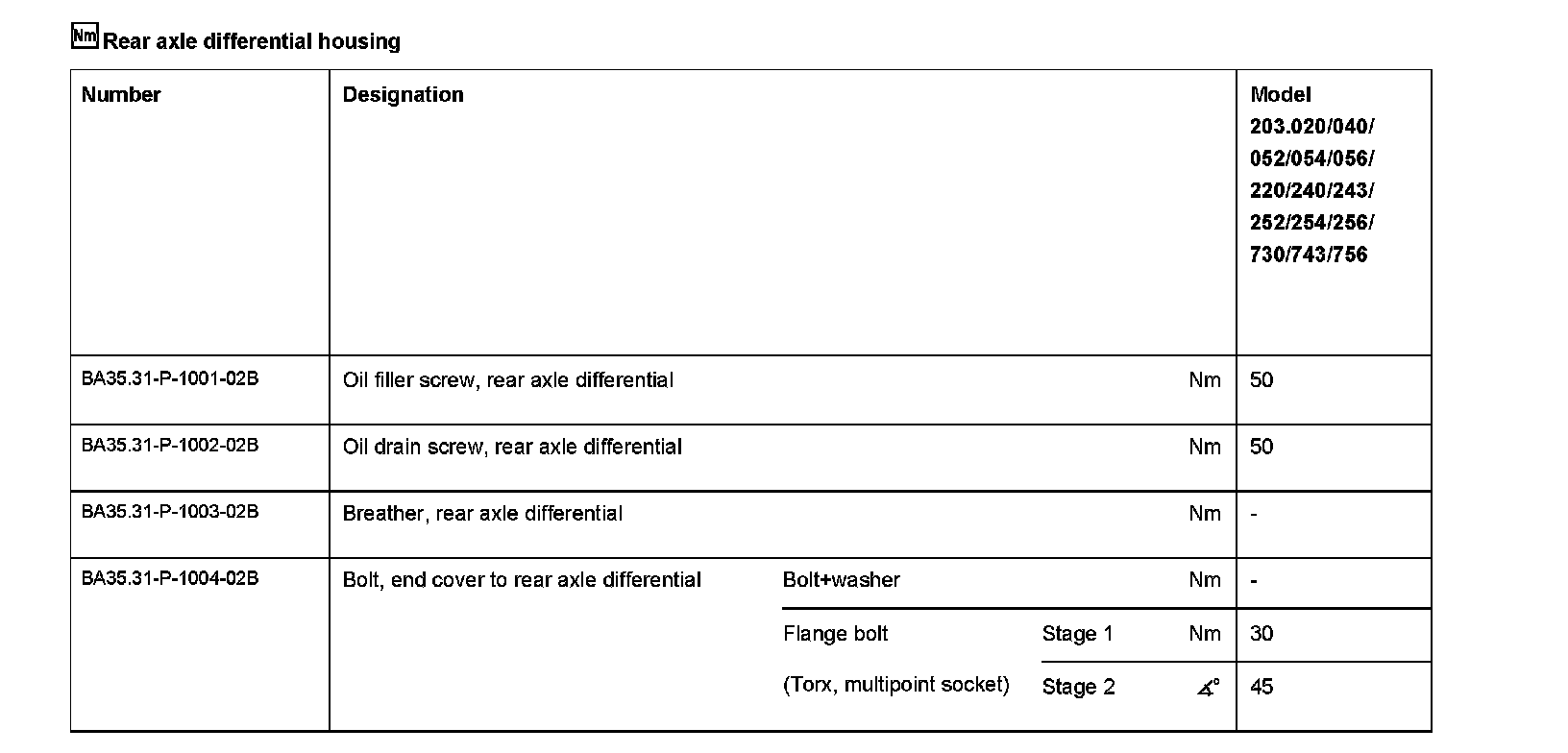

Rear axle differential housing:

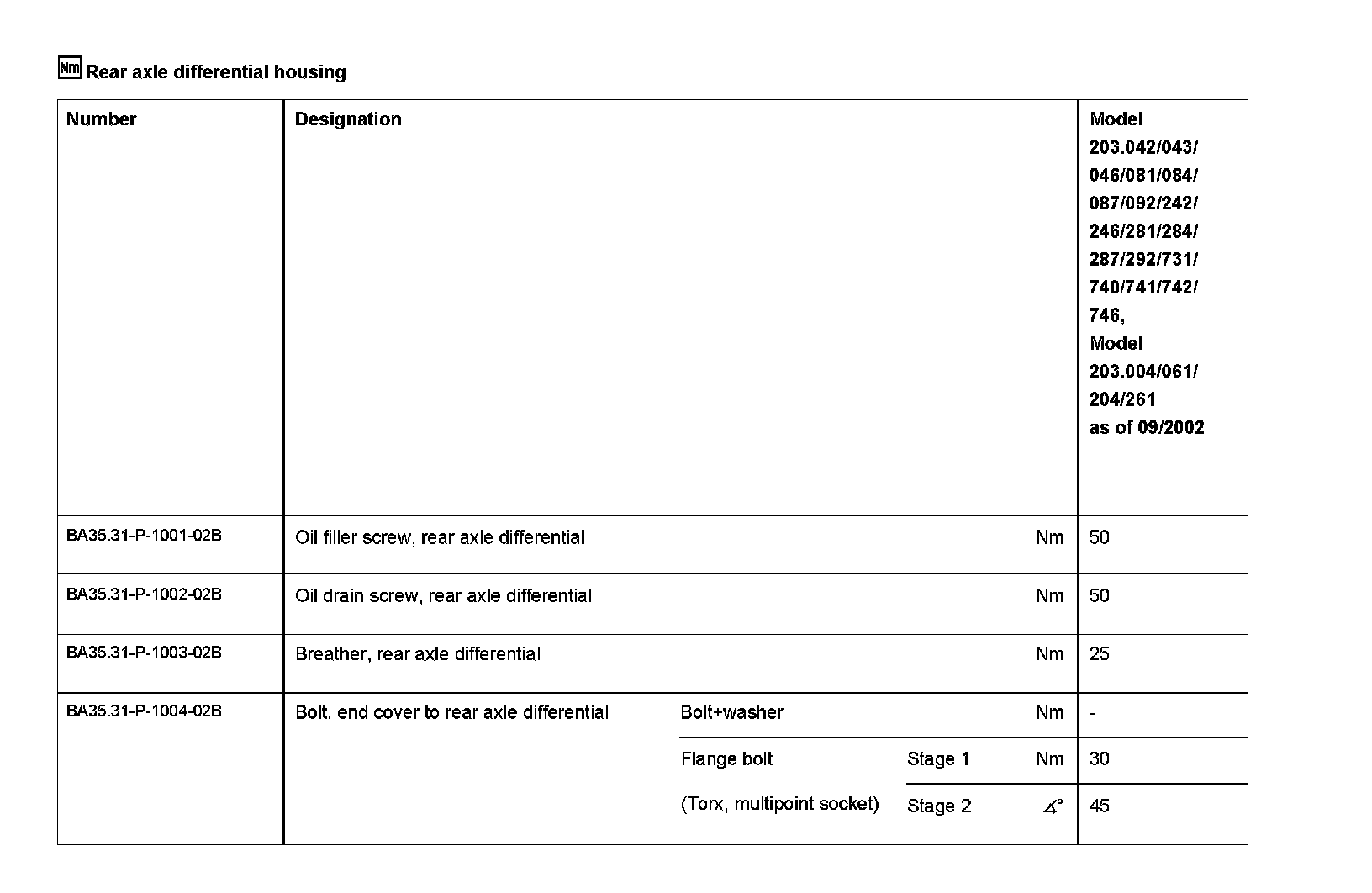

Rear axle differential housing:

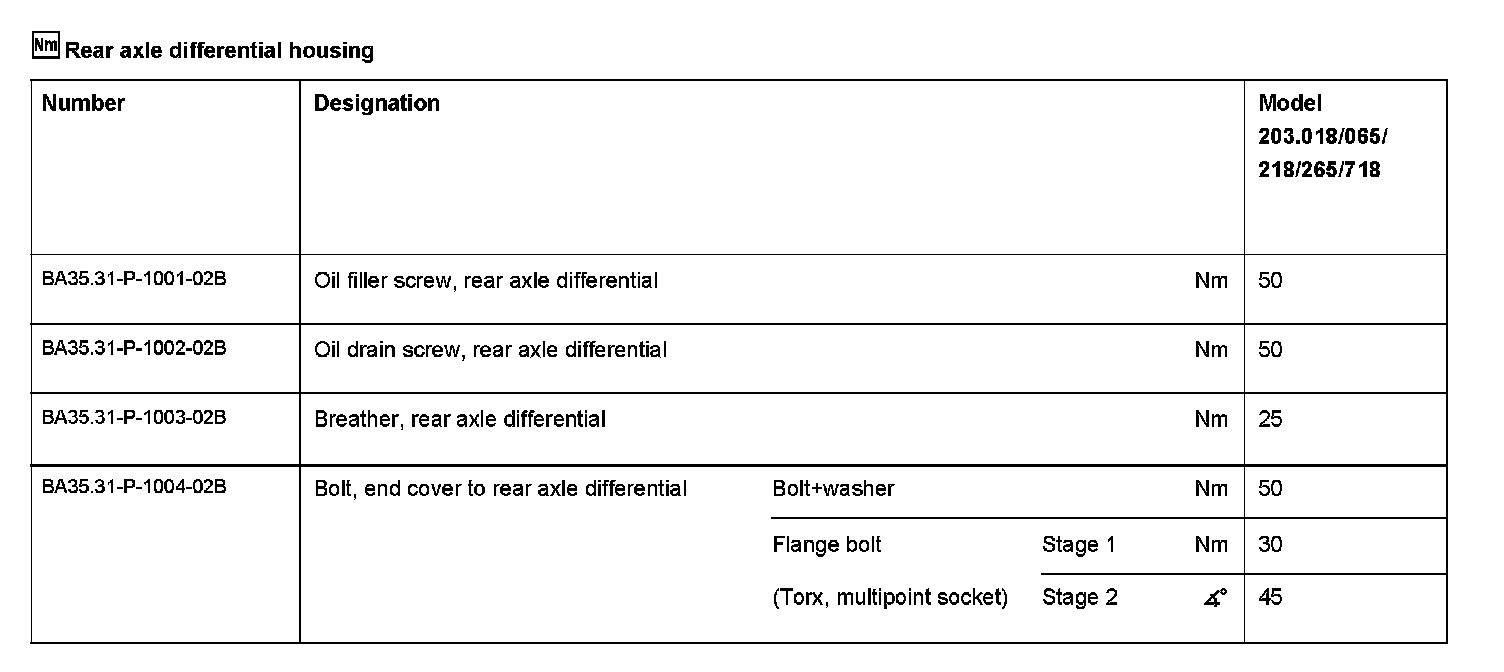

Rear axle differential housing:

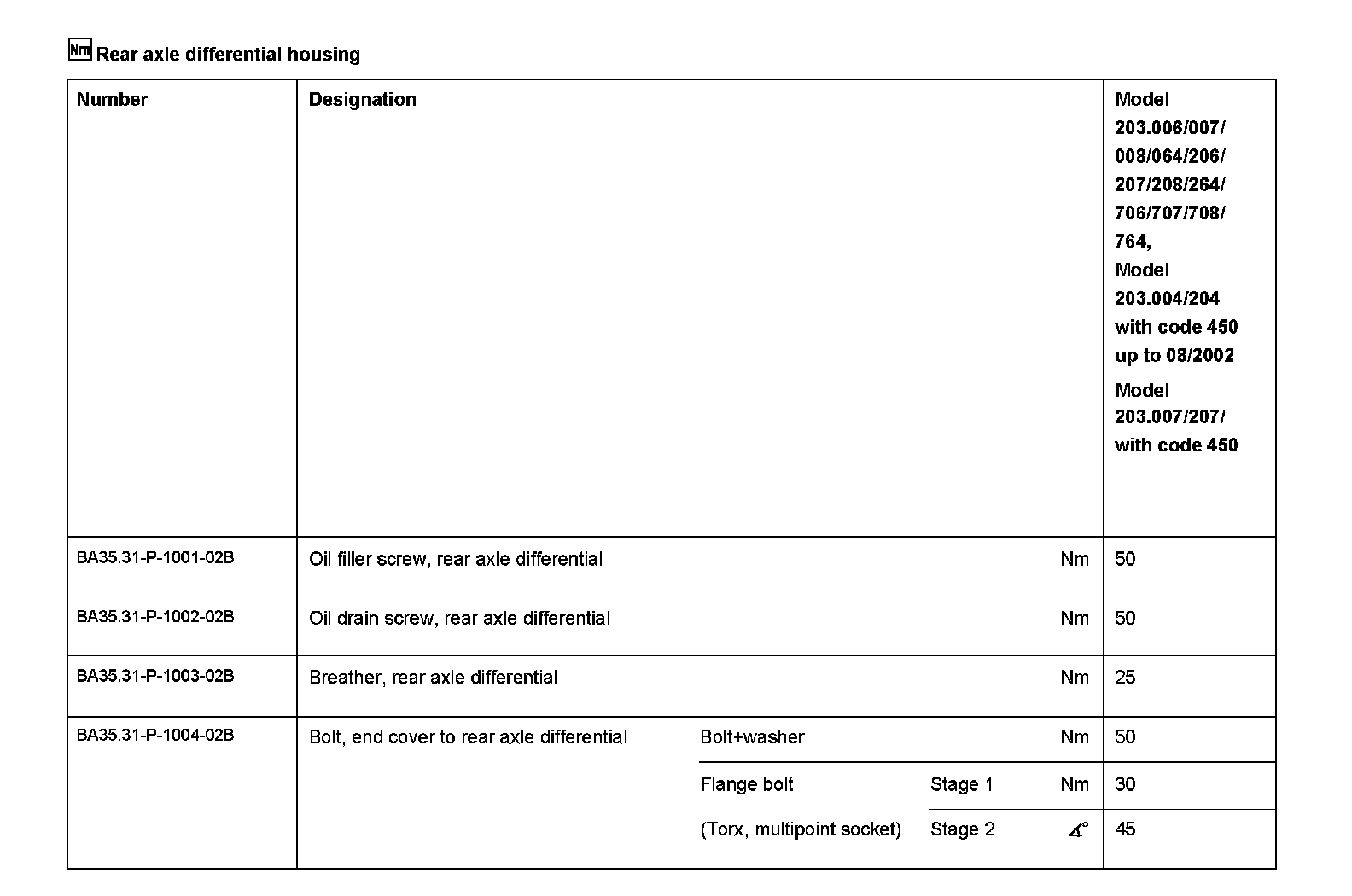

Rear axle differential housing:

Rear axle differential housing:

Rear axle differential housing:

Rear axle differential housing:

Rear axle differential housing:

Rear axle differential housing:

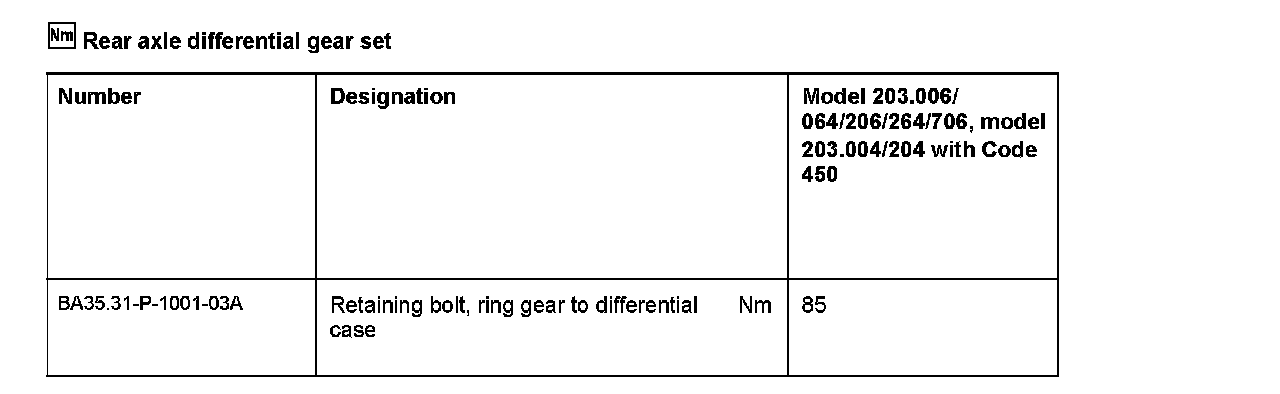

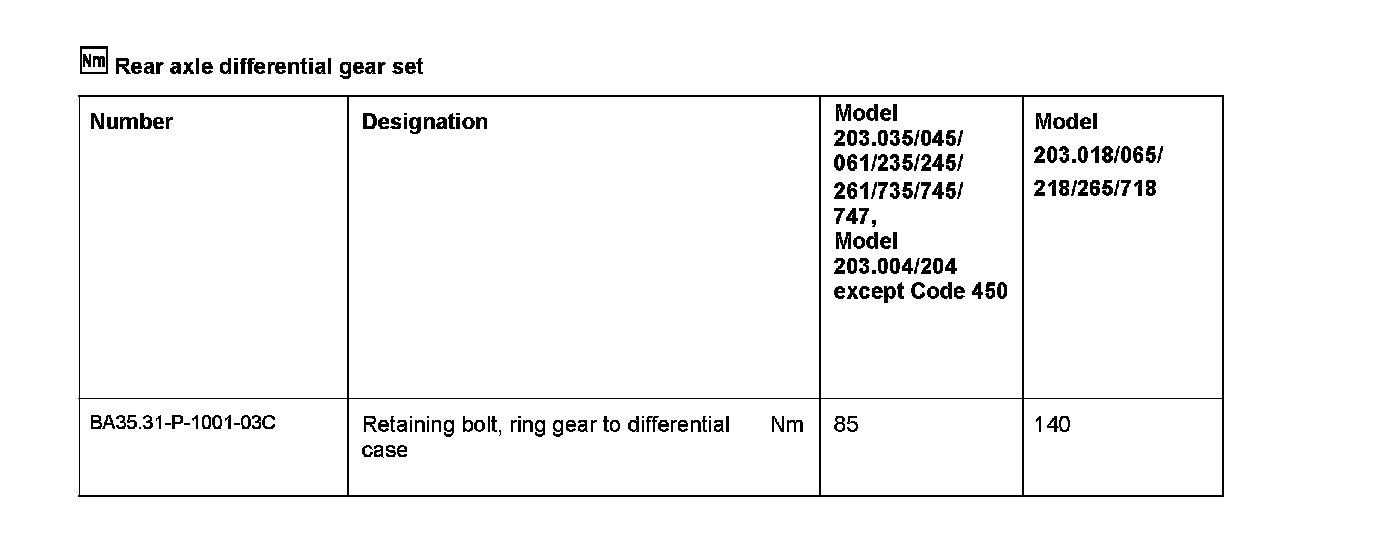

Rear axle differential gear set:

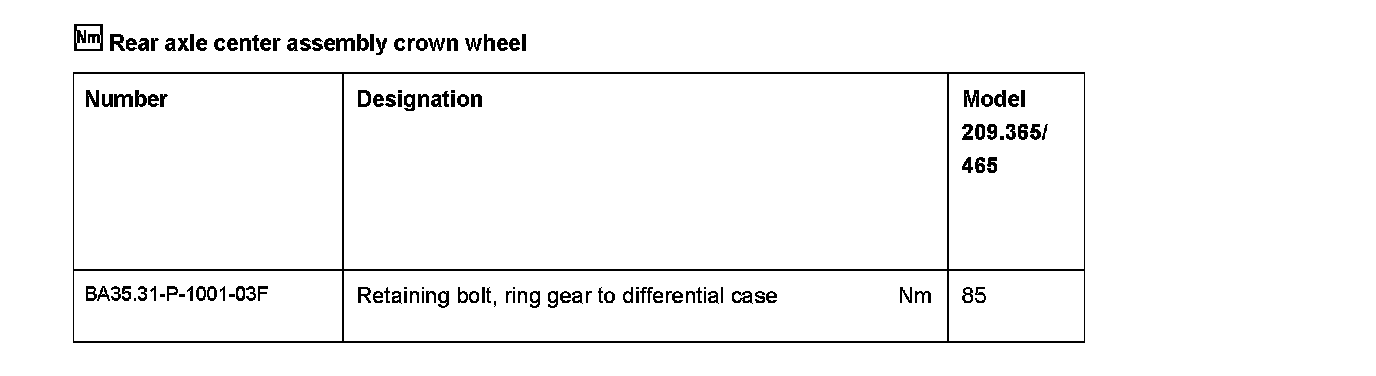

Rear axle center assembly crown wheel:

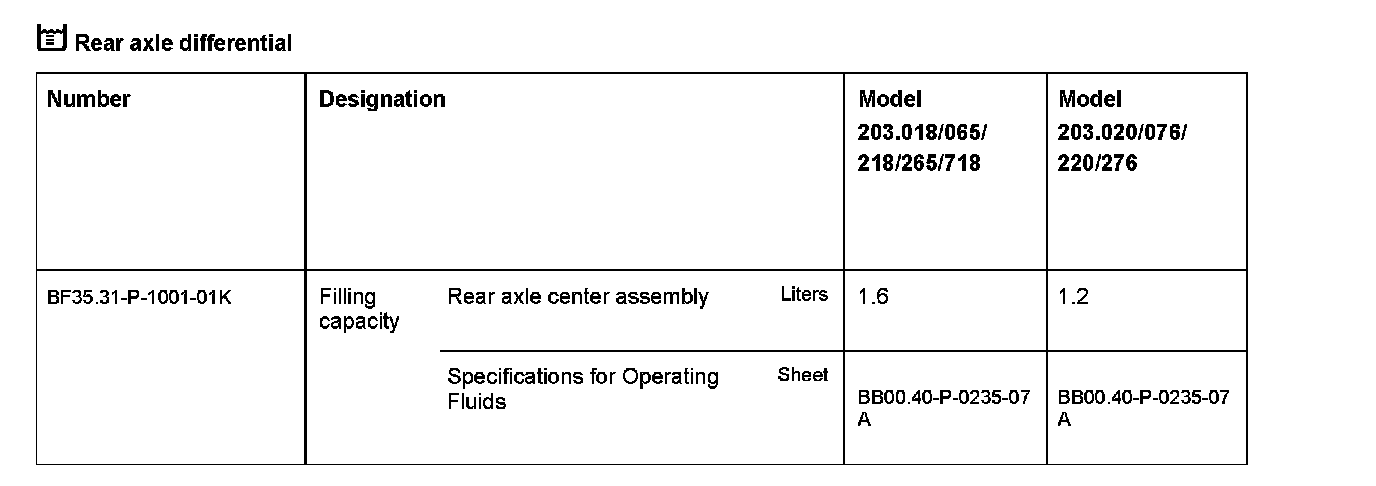

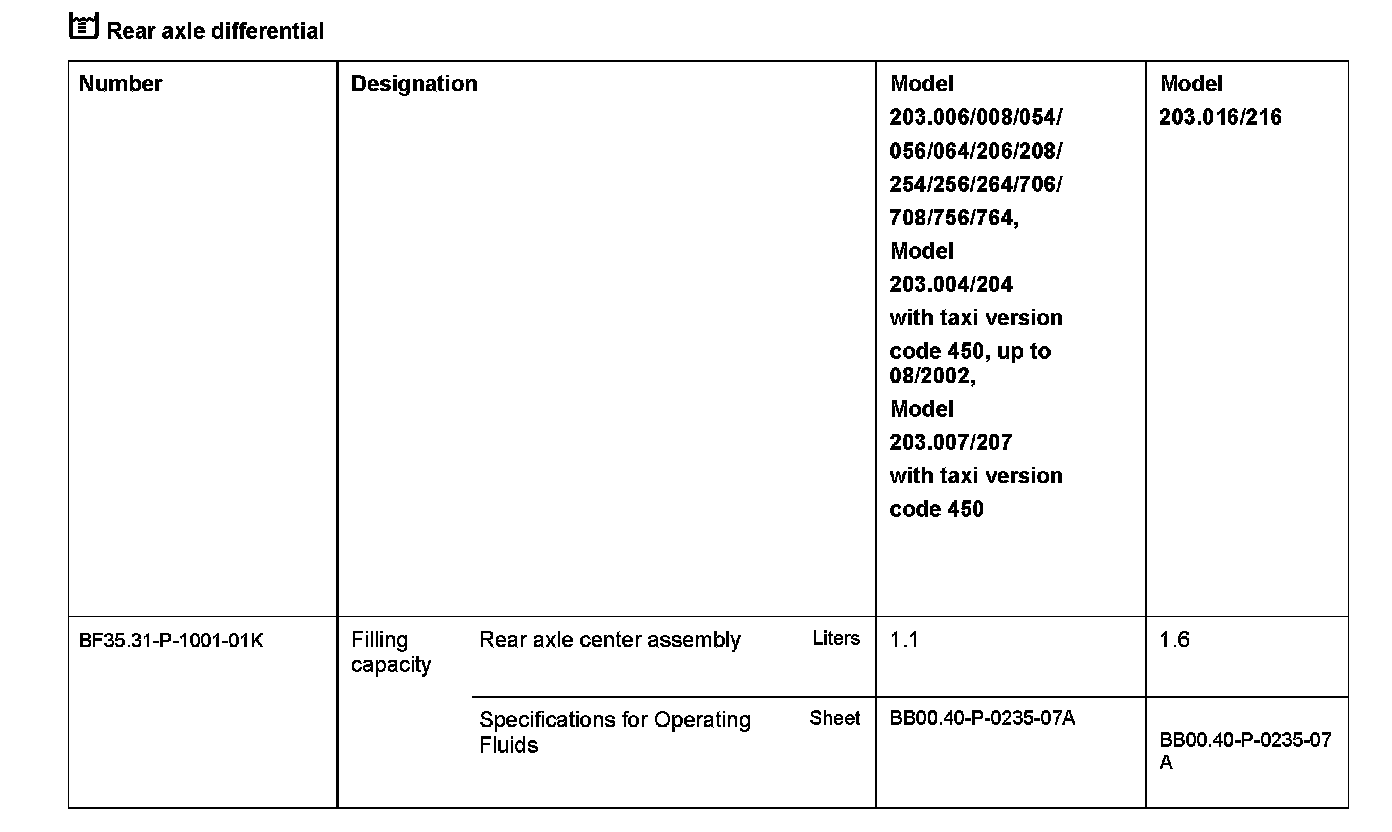

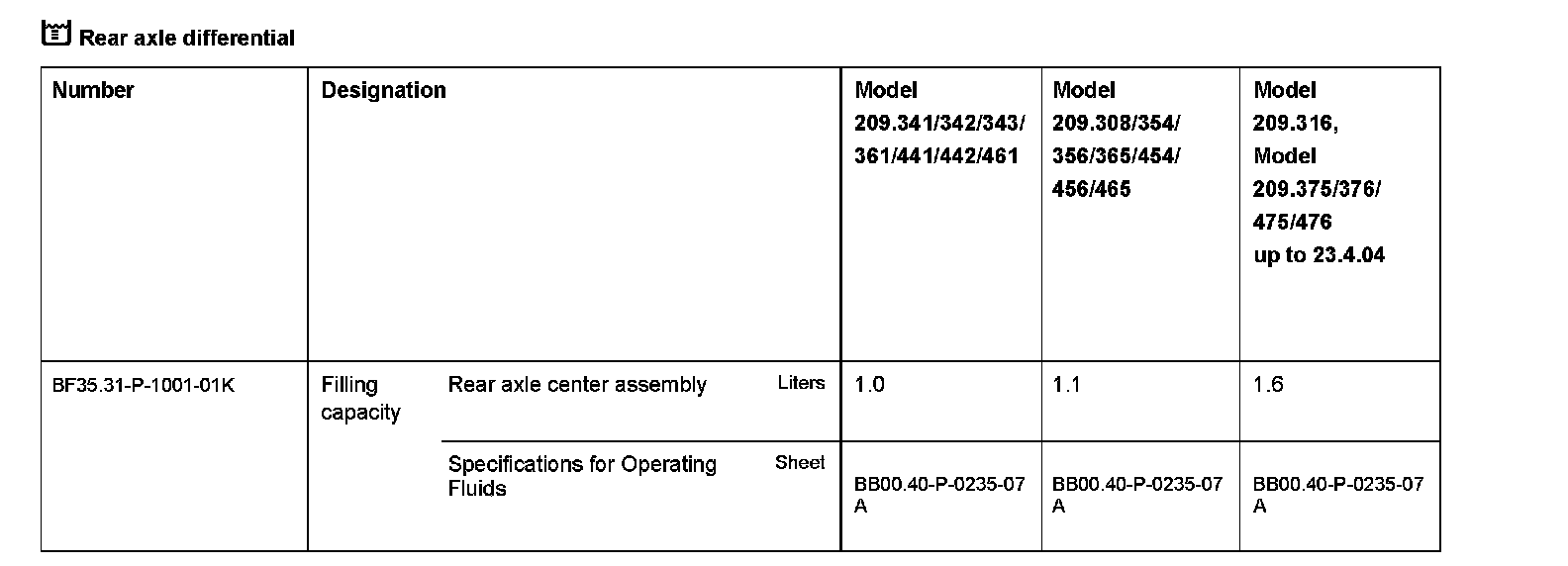

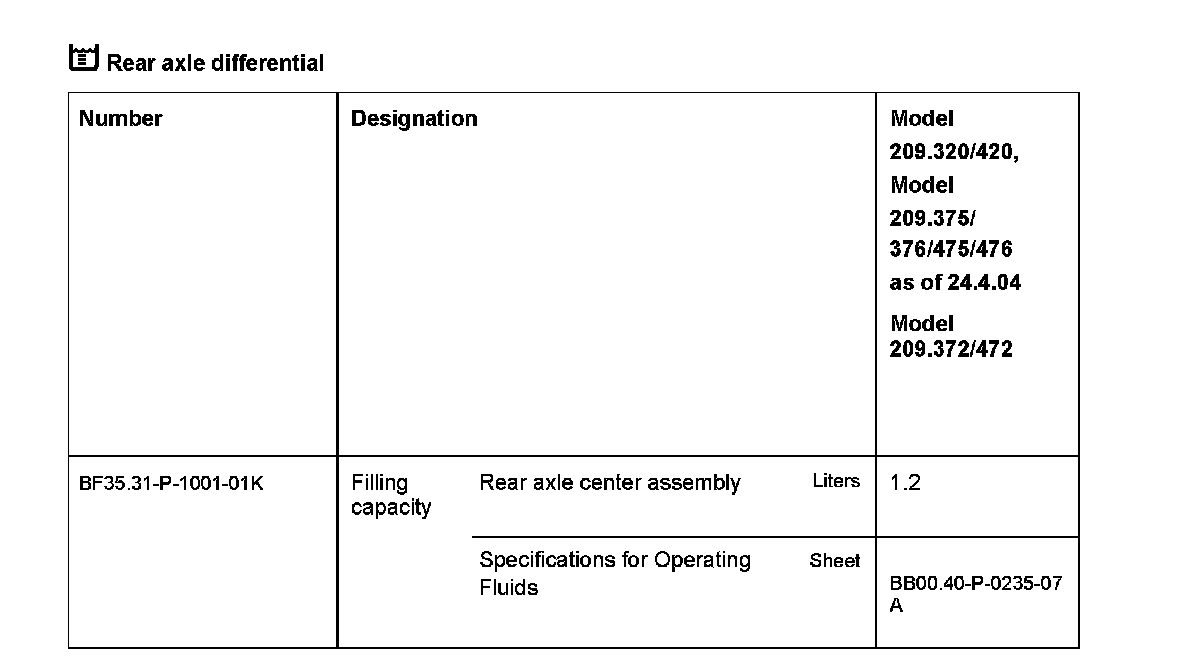

Rear axle differential:

Rear axle differential:

Rear axle differential:

Rear axle differential:

Rear axle differential:

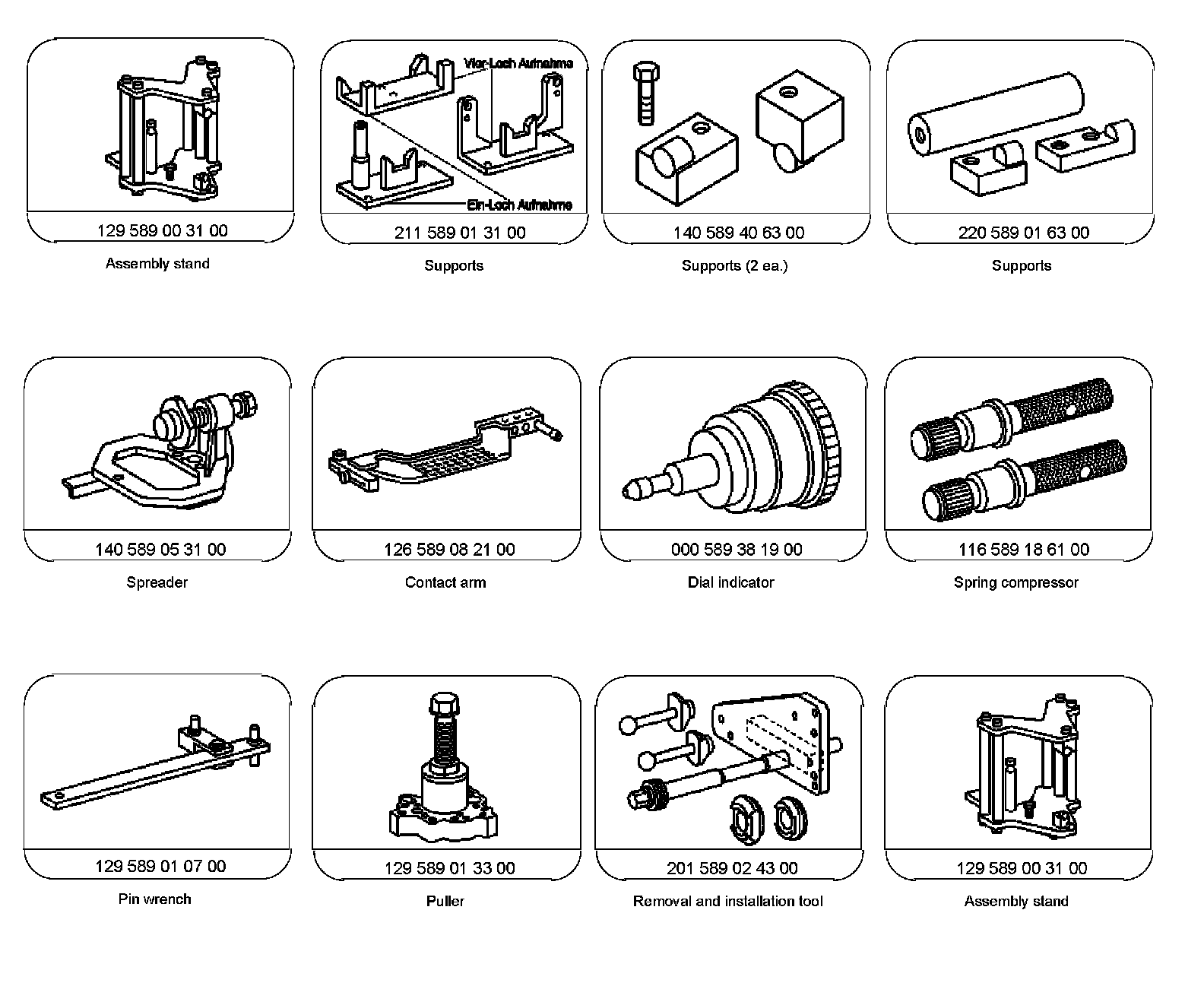

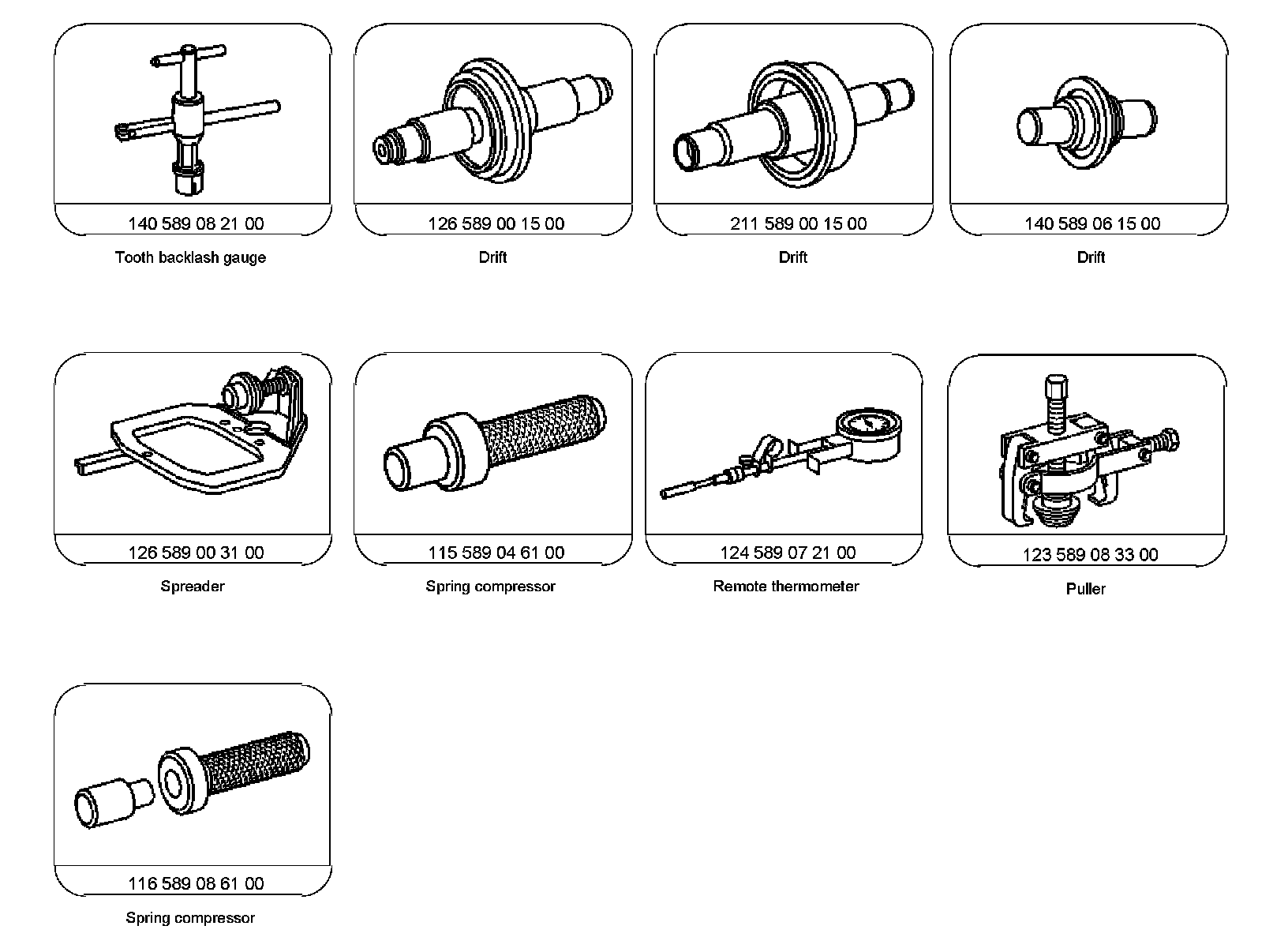

Special Tools:

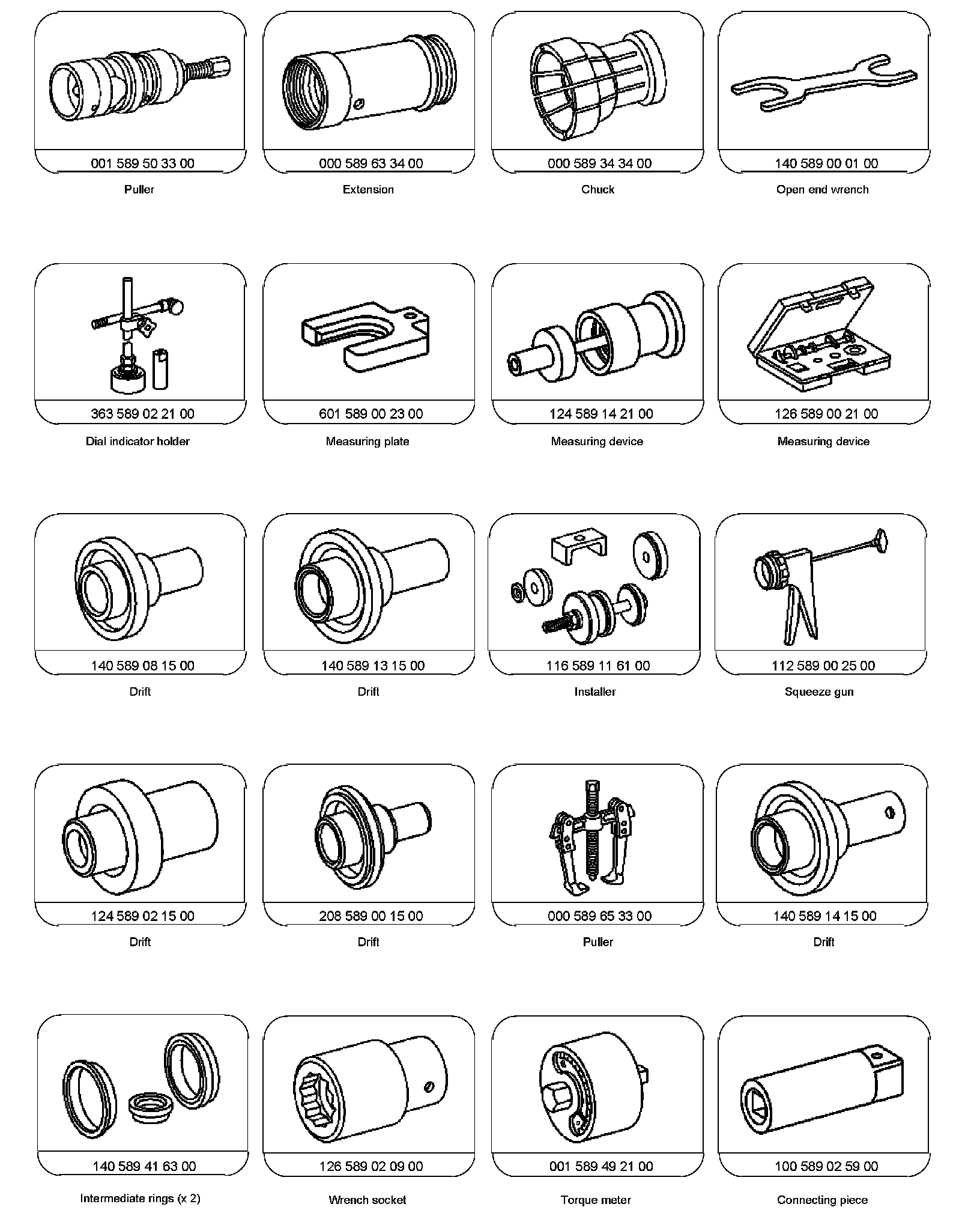

Special Tools:

Special Tools:

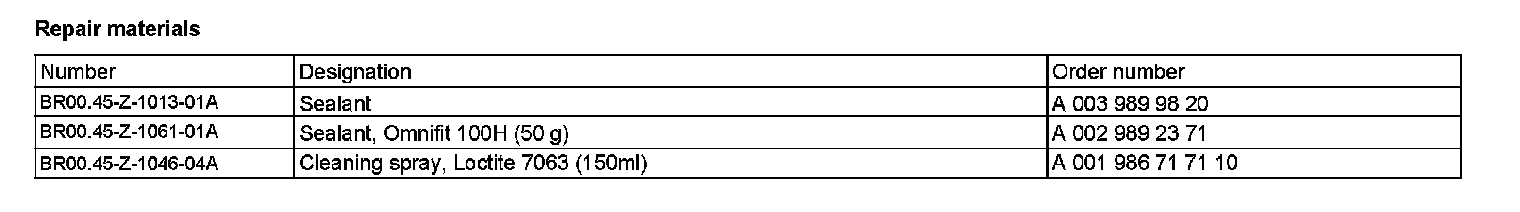

Repair materials:
