AR35.31-P-0541P Remove/Install Radial Sealing Ring of Rear Axle at Axle Housing

Remove/install Radial Sealing Ring Of Rear Axle Shaft At Rear Axle Housing

Work Instructions







DANGER:
- Risk of death. Death may result if vehicle slips or topples from the lifting platform.
- Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.

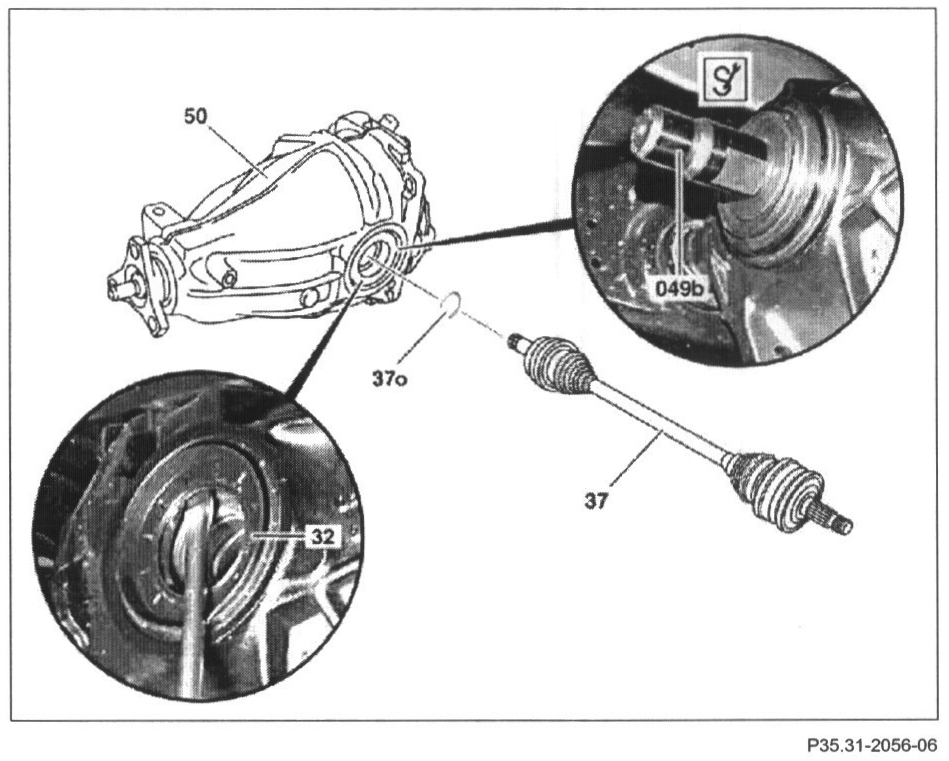

32 Radial seal ring

NOTE:
- Pry out radial sealing ring using a suitable tool
- Installation: Coat the lip of the radial sealing ring with Universal hypoid gear oil. Universal hypoid gear oil.

37.1 Remove/install rear axle shaft.
37.2 Circlip

CAUTION: Replace circlip.

50 Rear final-drive unit

NOTE:
- Installation: Check oil level, correct if necessary.

49b Drift
