AR35.31-P-0530AC Install New Radial Sealing Ring at Drive Pinion (Rear Axle Center Assembly Installed)



AR35.31-P-0530AC Install new radial sealing ring at drive pinion

Component Identification:

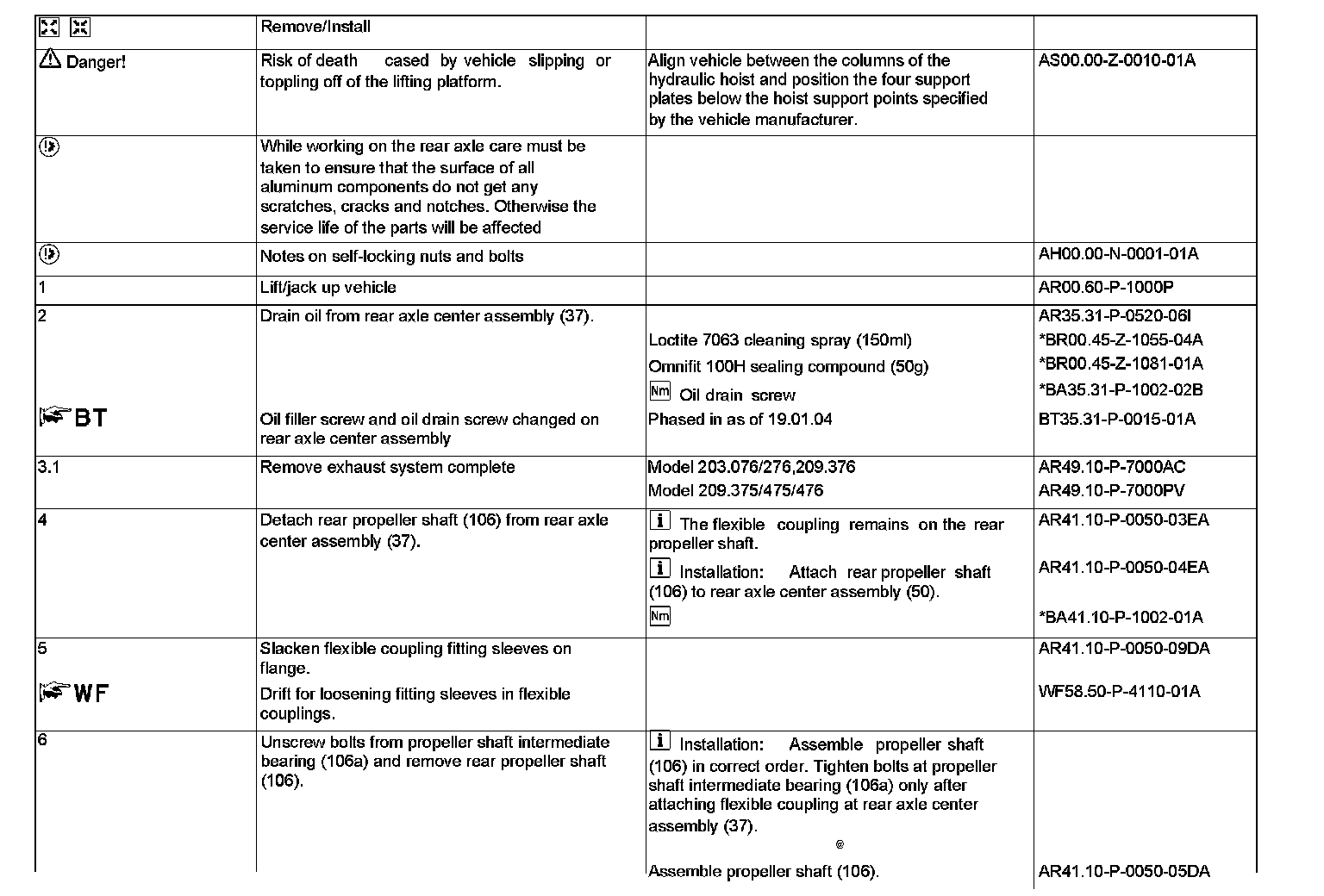

Steps 1 - 6:

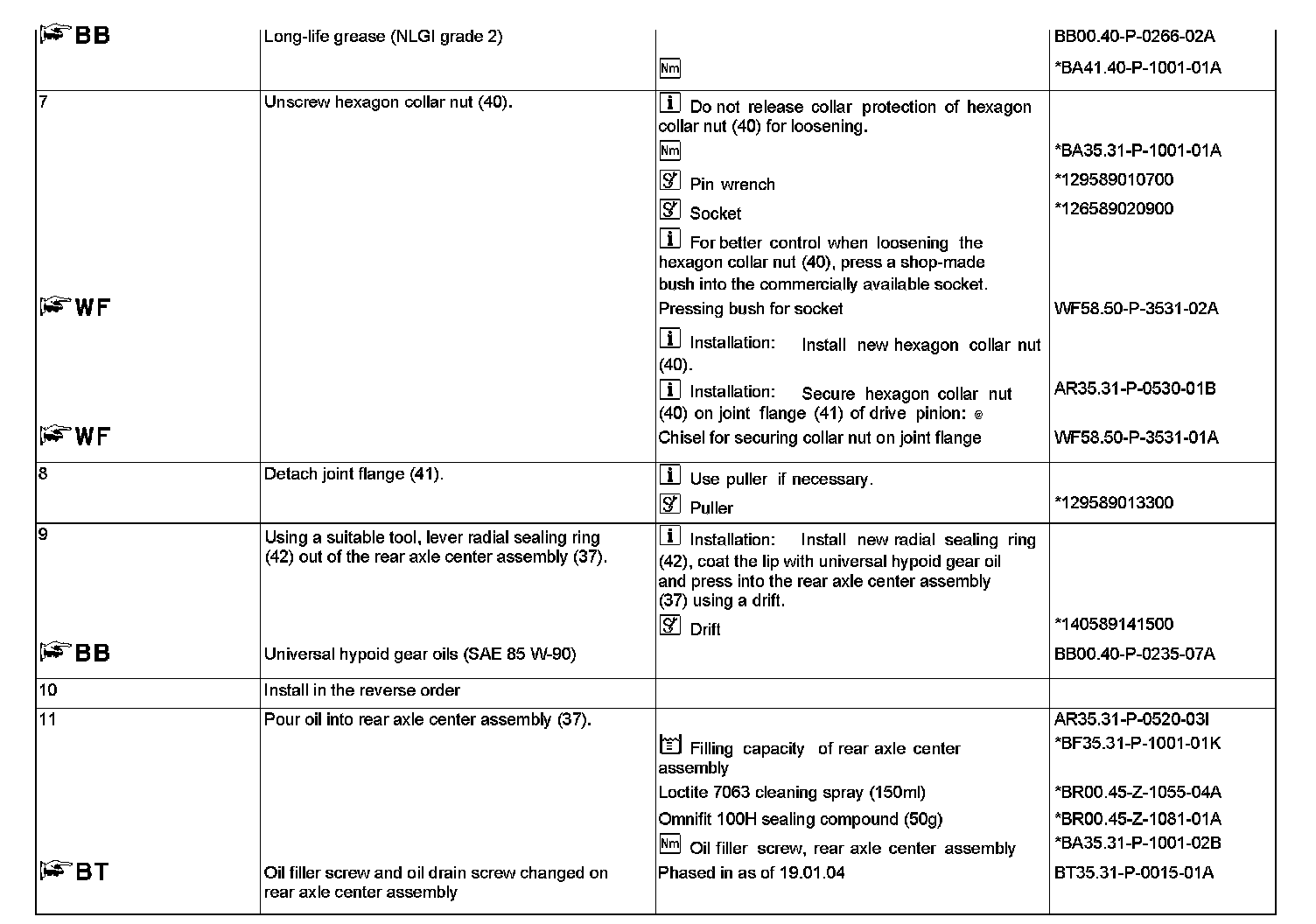

Steps 7 - 11:

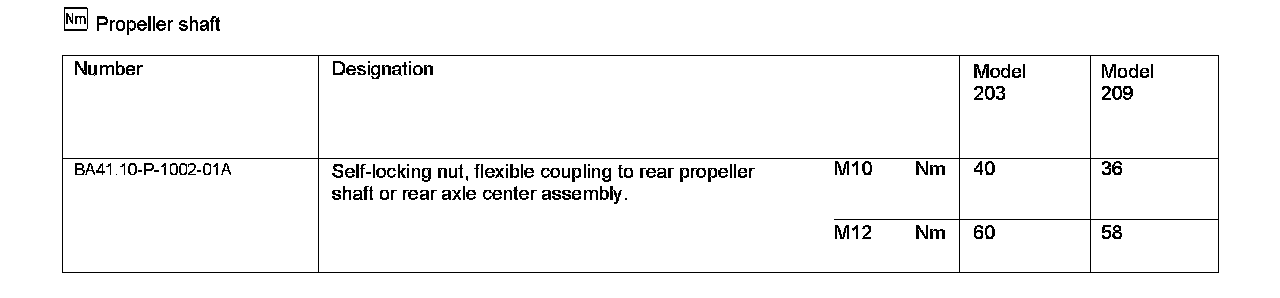

Propeller Shaft:

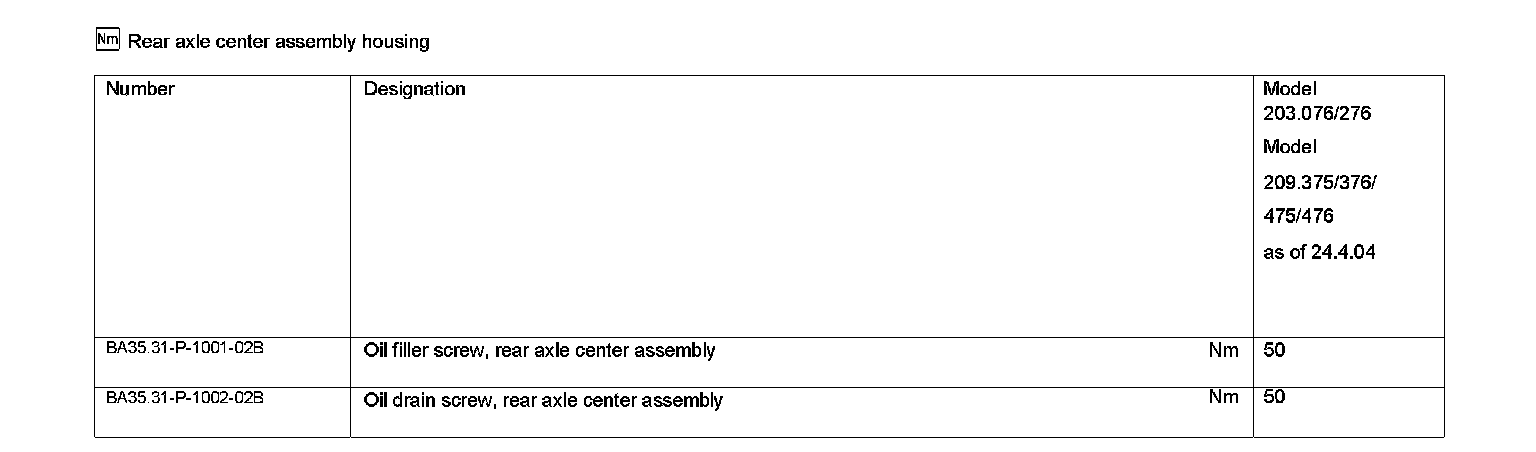

Rear Axle Center Assembly Housing:

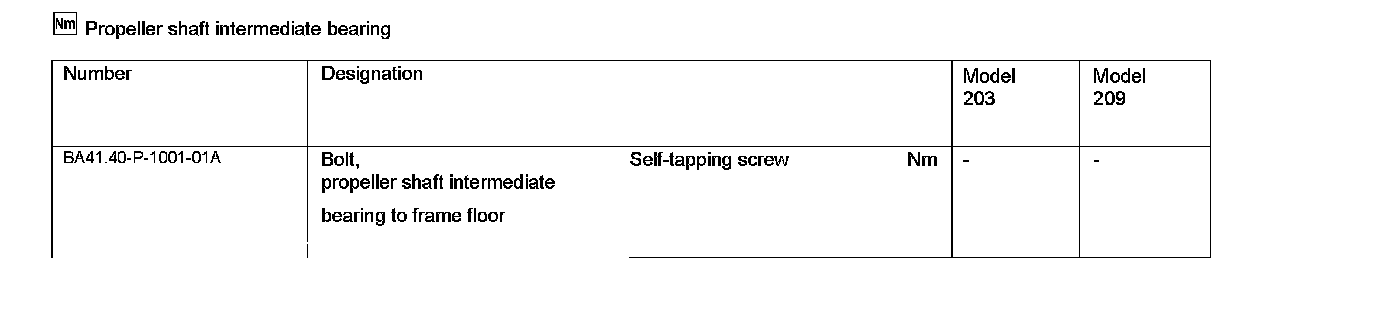

Propeller Shaft Intermediate Bearing:




Propeller Shaft Intermediate Bearing:

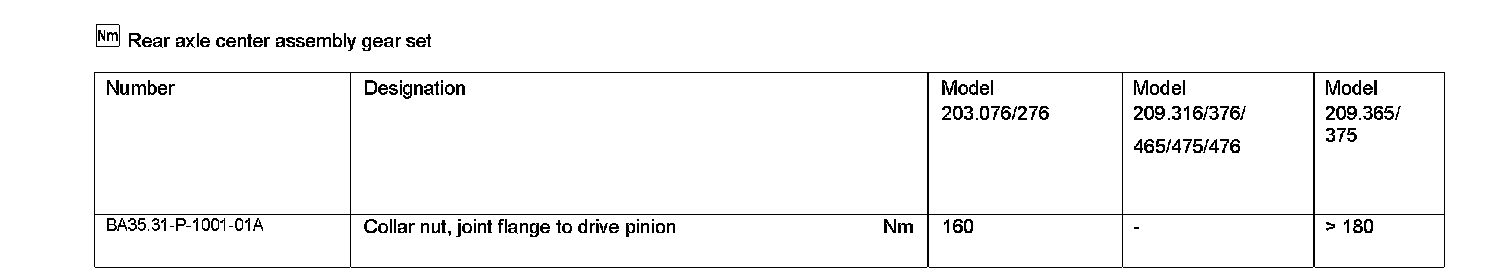

Rear Axle Center Assembly Gear Set:

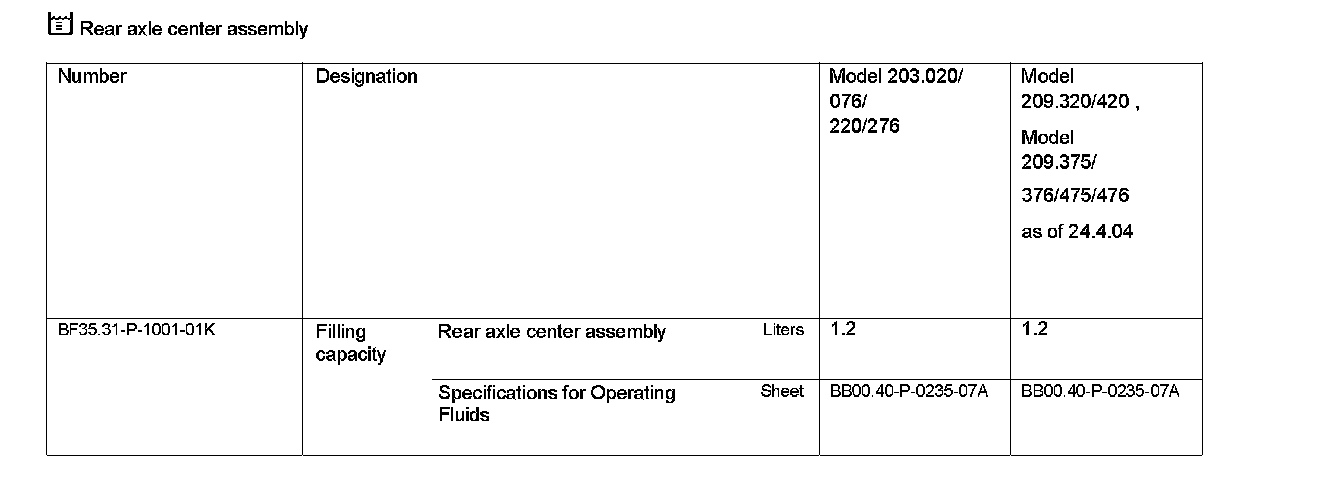

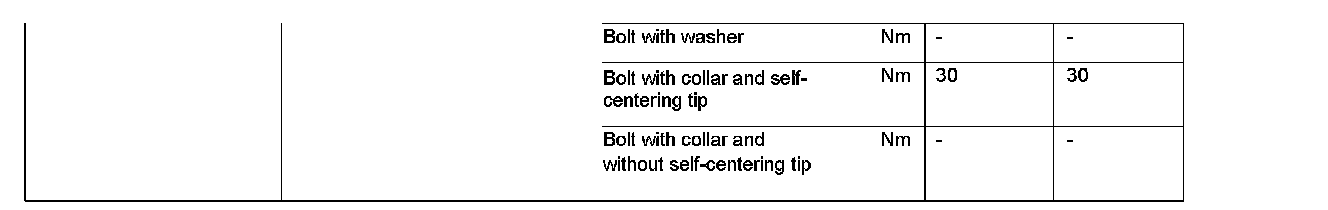

Rear Axle Center Assembly:

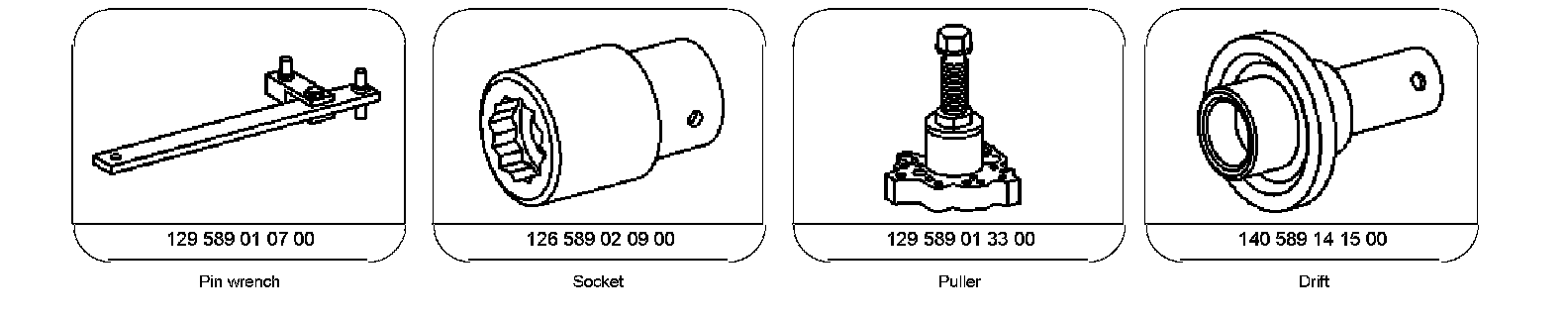

Special Tools:

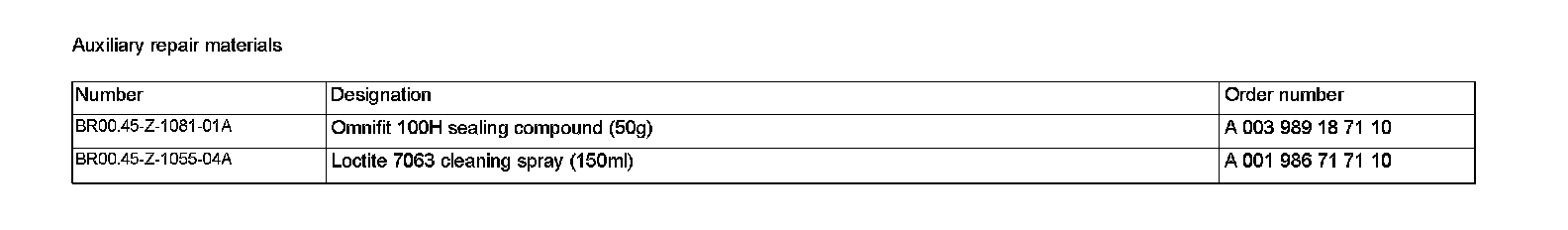

Auxiliary Repair Materials:
