AR35.10-P-0050-01A Install Front Differential Mount

AR35.10-P-0050-01A Install front differential mount
Front rear axle center assembly mounting modified
Front rear axle center assembly mounting modified

Rear axle carrier

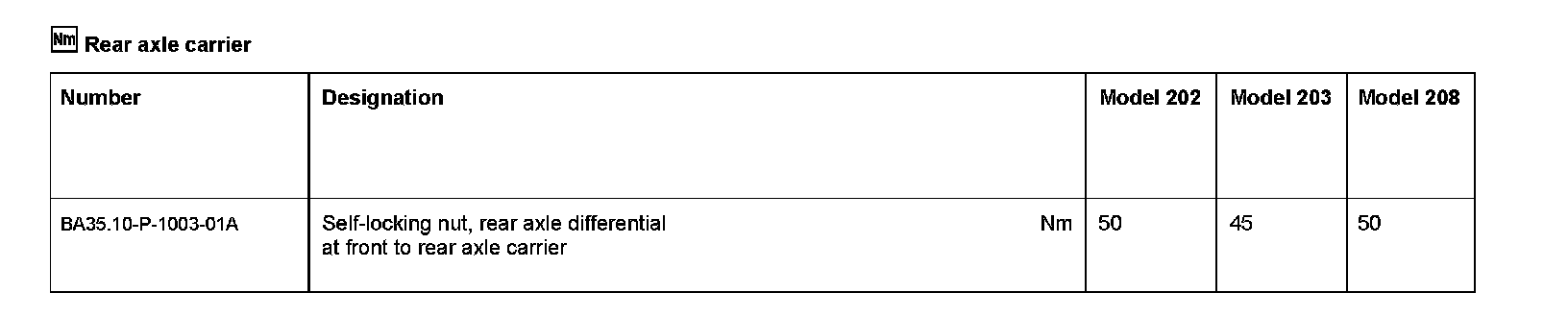

Rear axle carrier:

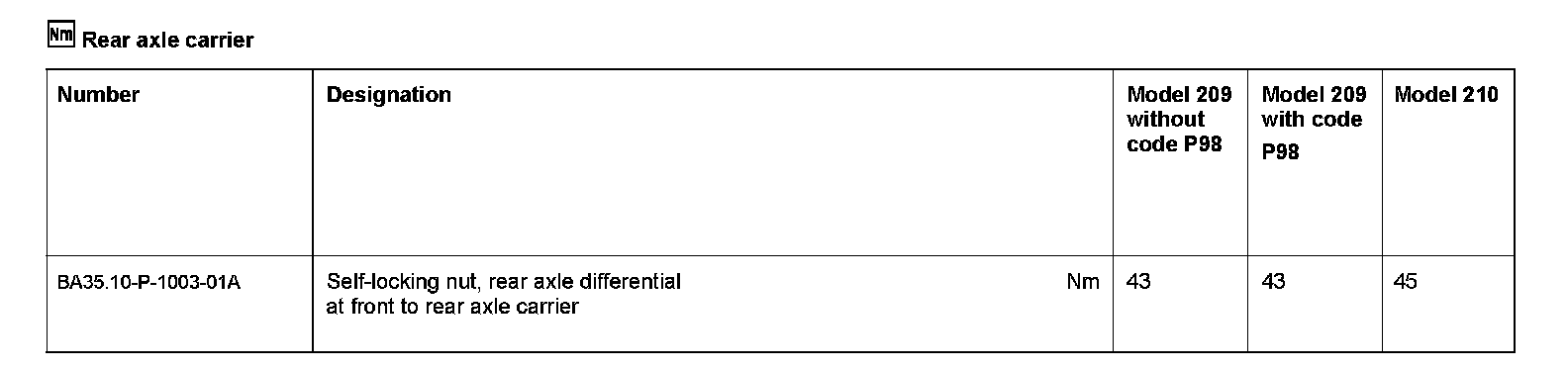

Rear axle carrier:

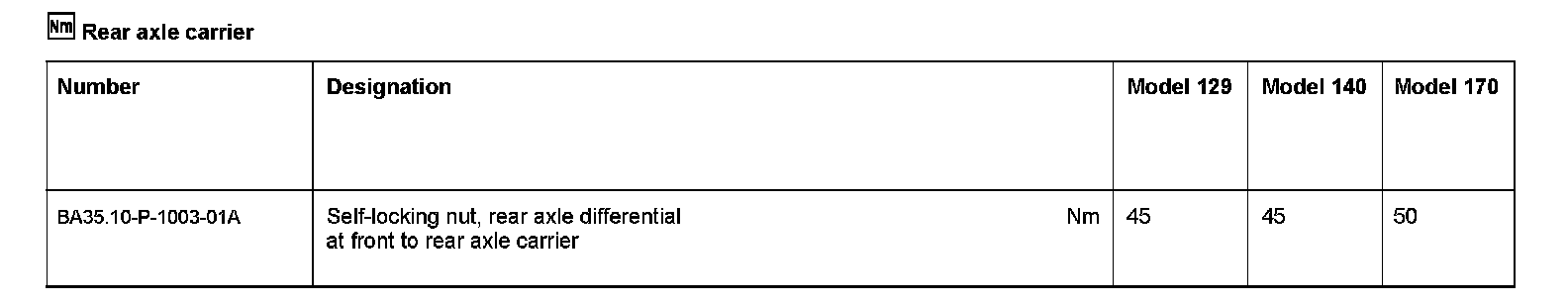

Rear axle carrier:

Component Identification:

Illustrated on model 140
1 Mount rubber mount (60b) and short plate with 14 mm height (60a) at the top in the rear axle carrier (1).
2 Mount rubber mount with guide collar (60c) and long plate with 17 mm height (60d) at the bottom, pay attention to proper seating of bearing.
3 Mount assigned shim (60e) between plate (60d) and rear axle differential (50).
4 Replace self-locking hexagon nut (52), mount rear axle differential (50) on rear axle carrier (1).

Component Identification:

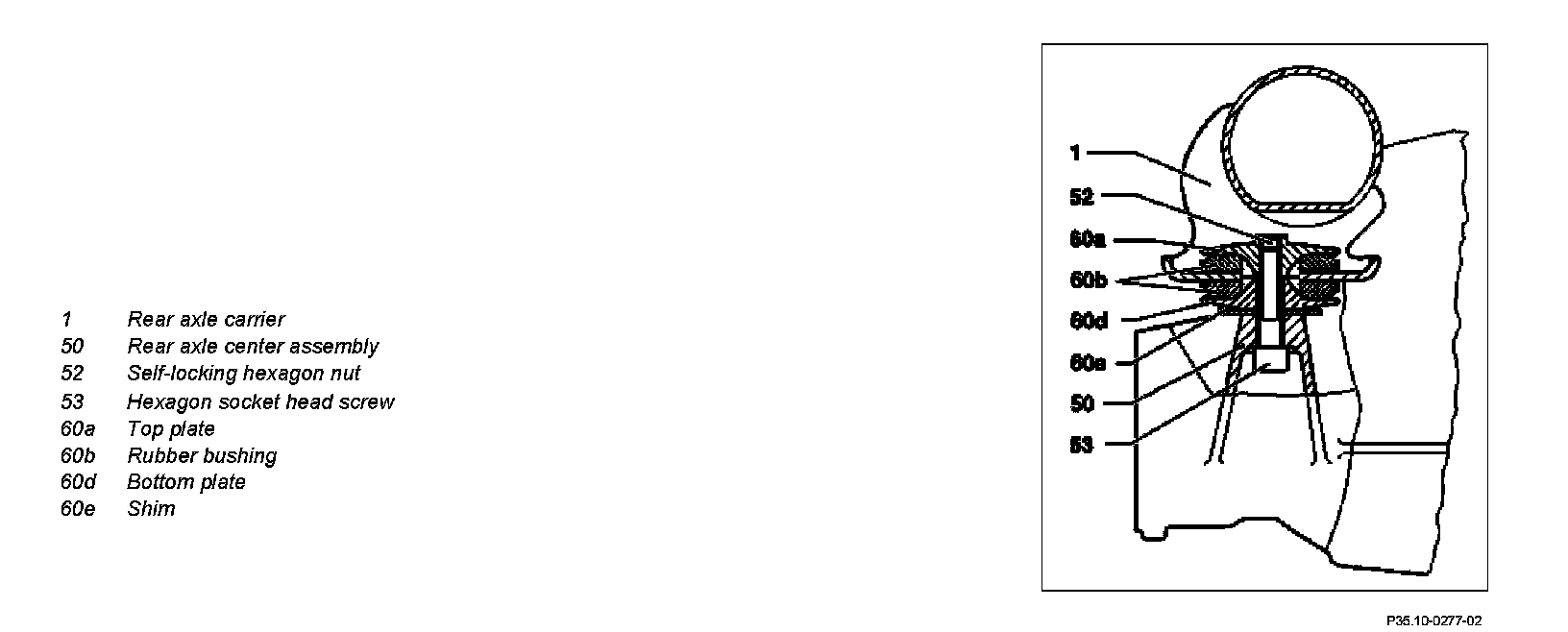

Installation model 129
On vehicles with automatic transmission up to approx. 08/89 install short plate with 14 mm height (60a) at the top and long plate with 17 mm height (60d) at the bottom.

On vehicles with automatic transmission as of 09/89 and on vehicles with manual transmission both plates (60a, 60d) have a height of 15 mm.
Mount assigned shim (60e with notches) towards rear axle differential (50).

Component Identification:

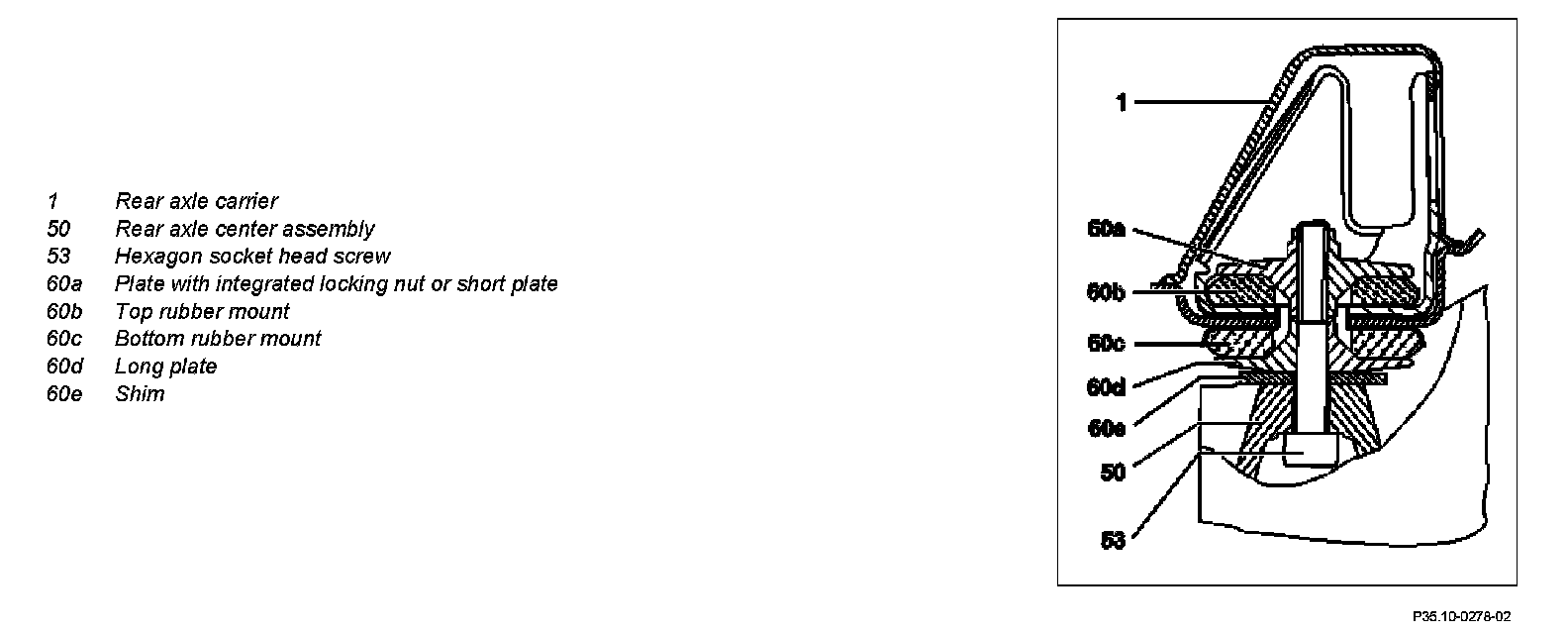

Installation model 170, 202, 203, 208, 209
Replace self-locking hexagon nut or plate with integrated locking nut (60a).

1-2 shims (60e) can be installed for the rear axle differential depending on the version.

Component Identification:

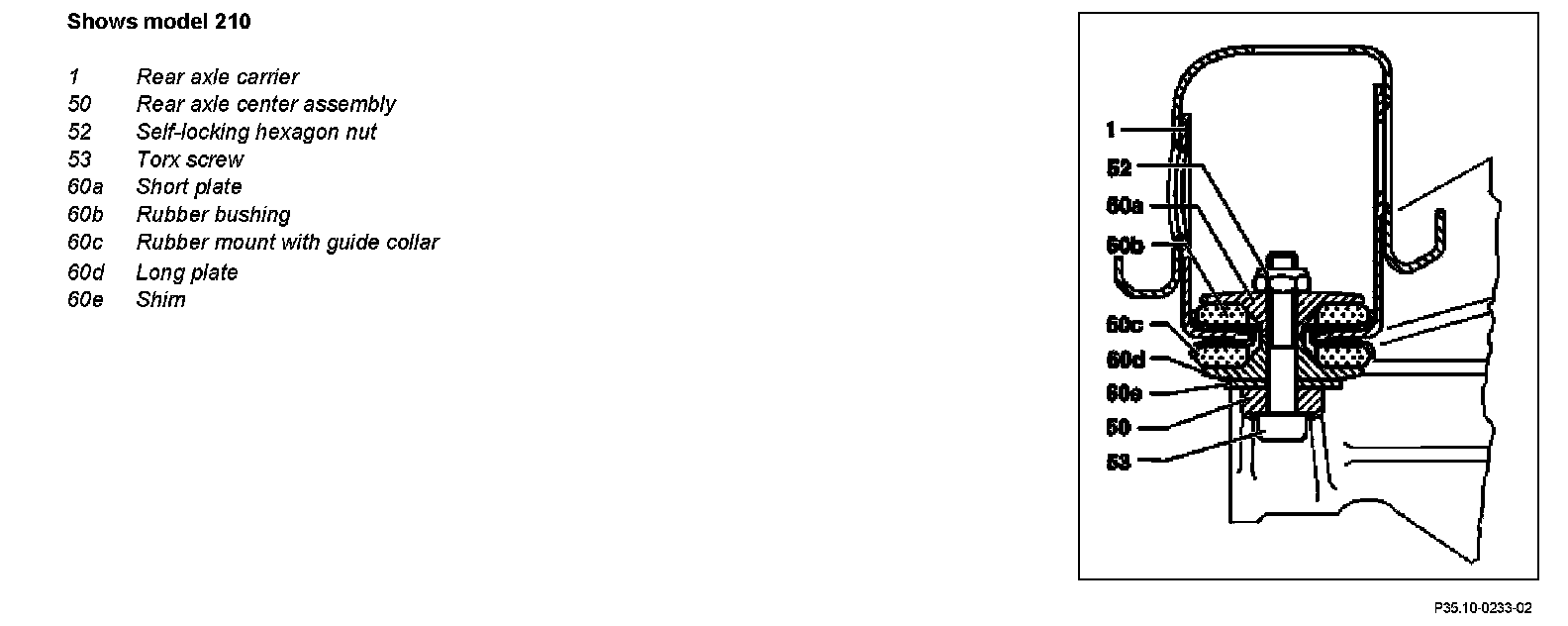

Shows model 210
