AR35.10-P-0040-03P Remove/Install Rear Rubber Mount In Rear Axle Mount

AR35.10-P-0040-03P Remove/install rear rubber mount in rear axle mount

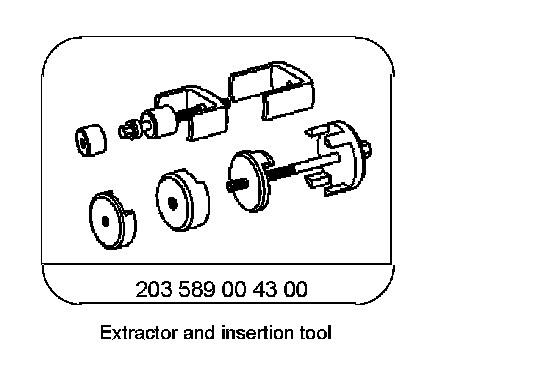

Special Tools:

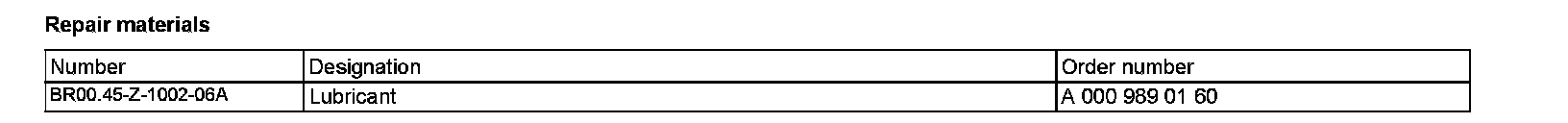

Repair materials:

Component Identification:

Remove

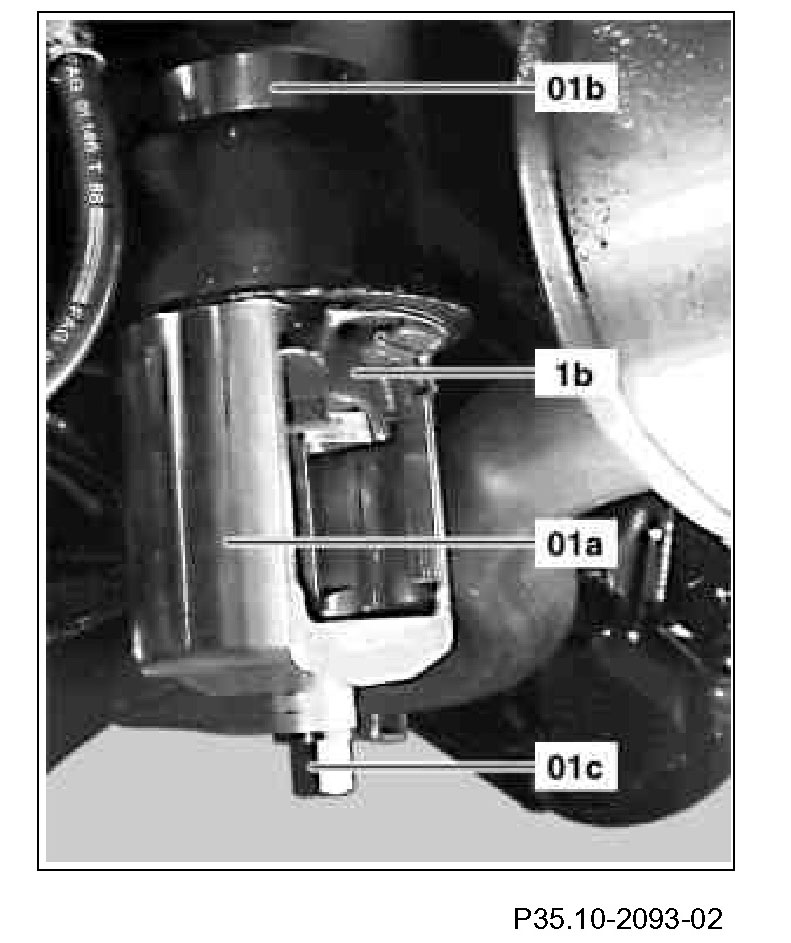

1 Press rubber mount (1b) out of rear axle carrier using puller tool (01a-01c).

Component Identification:

Install
2 Grease rubber mount (1b) with lubricant.

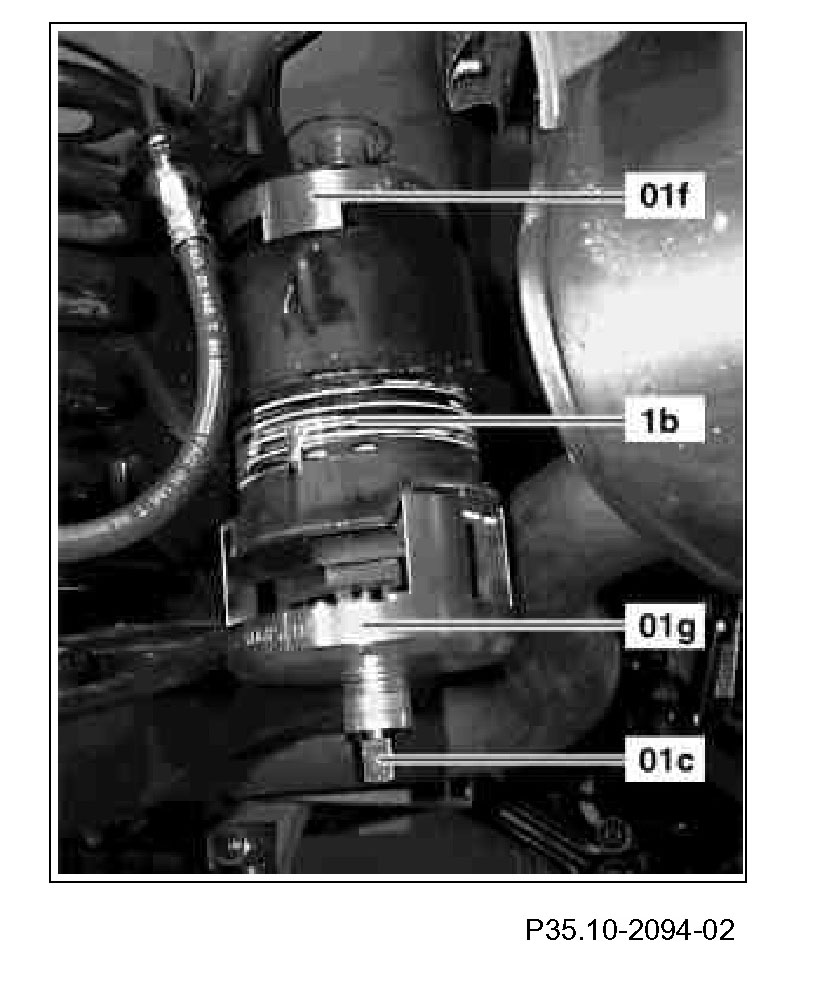

3 Pull in rubber mount (1b) using installation tool (01c, 01f, 01g).

Position lower part of installation tool (01g) on rubber mount (1b) such that the lugs are not damaged when the rubber mount is installed.
