AR35.10-P-0040-02P Remove/Install Front Rubber Mount In Rear Axle Mount

AR35.10-P-0040-02P Remove/install front rubber mount in rear axle mount

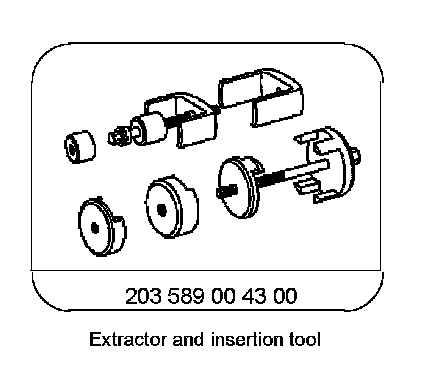

Special Tools:

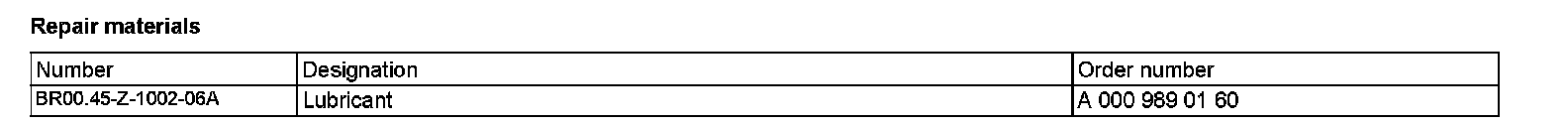

Repair materials:

Component Identification:

Remove

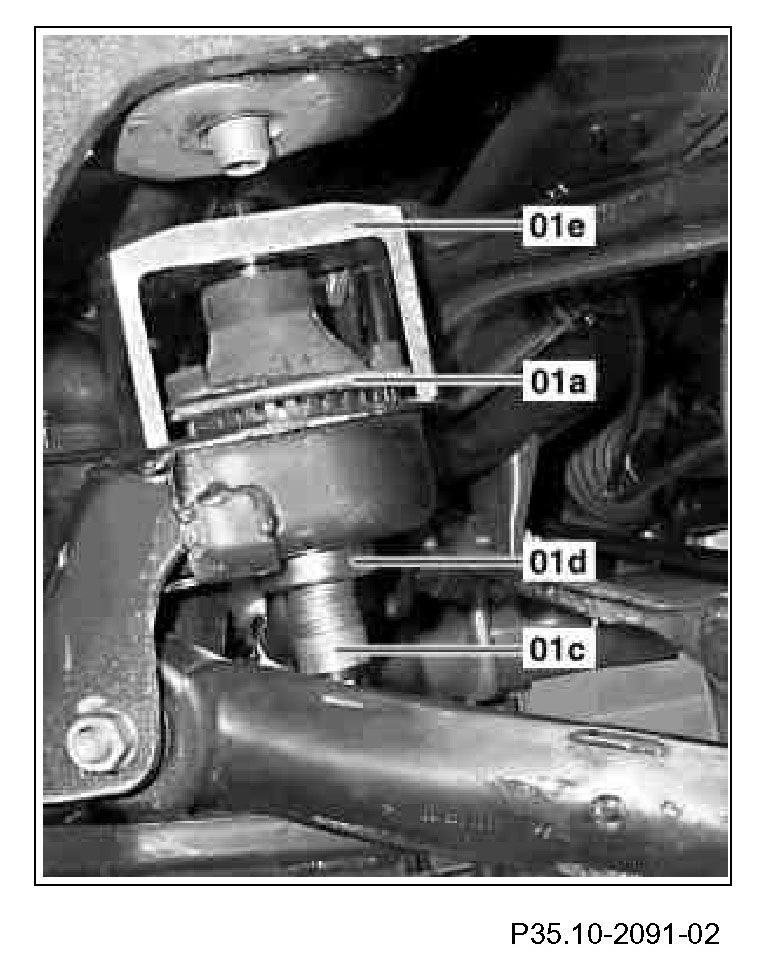

1 Press rubber mount (1a) out of rear axle carrier using extraction tool (01c, 01d, 01e).

Before inserting the bracket (01e), lower the rear axle a little if necessary or press down the rear axle carrier a little using a suitable tool.

If the Glycol oil is still in the rubber mount, cover the rubber mount using a suitable rag. The inner core may separate from the rubber mount.

Component Identification:

Install
2 Rub anti-friction fluid (1a) around edge of rubber mount.

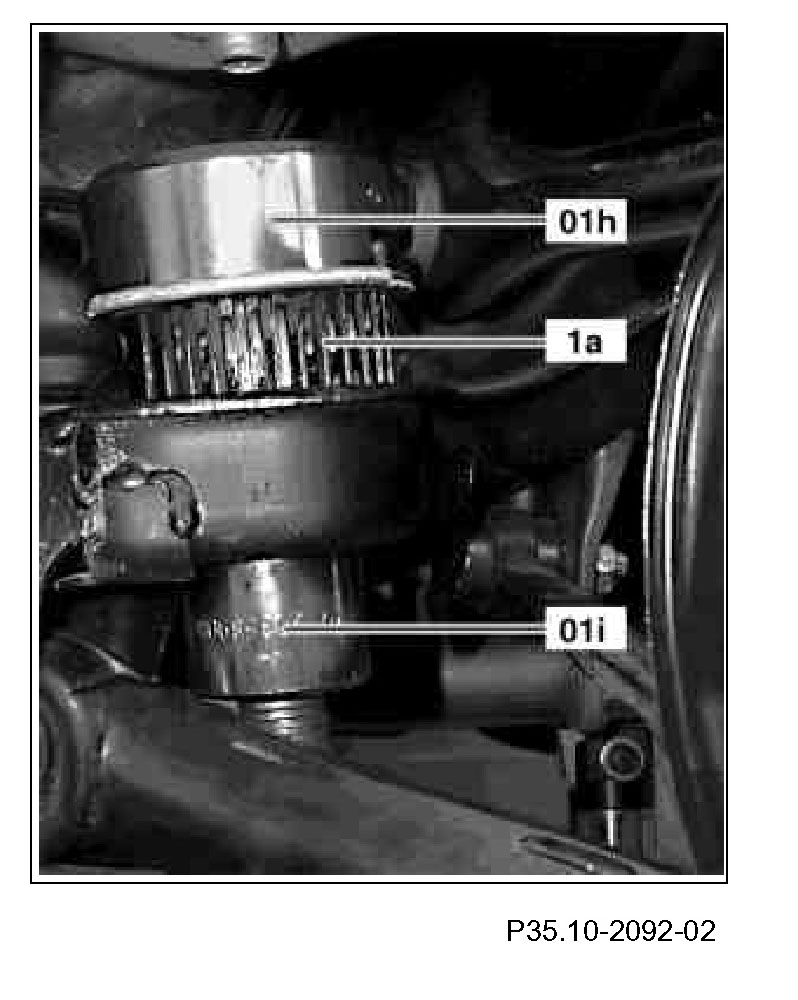

3 Pull in rubber mount (1b) using installation tool (01c, 01h, 01i).
