Rear Axle

AR35.31-P-0554QBS Remove/install end cover at rear axle differential
- with CODE (P98) Black Series
- Rear axle differential dia. 215

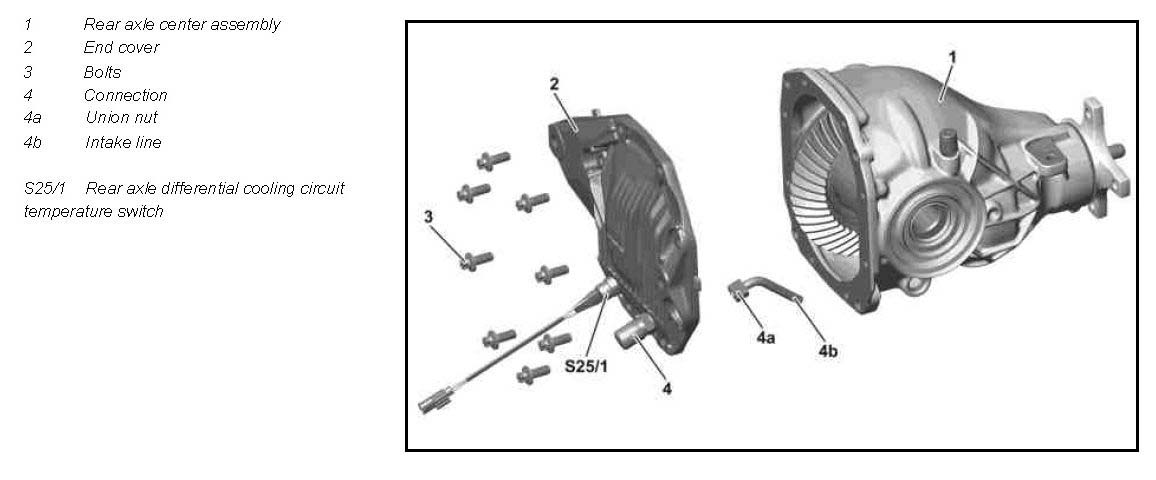

Component Identification:

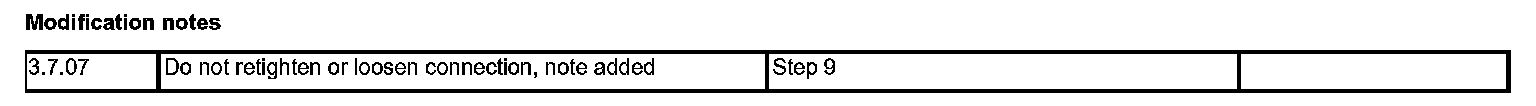

Modification notes:

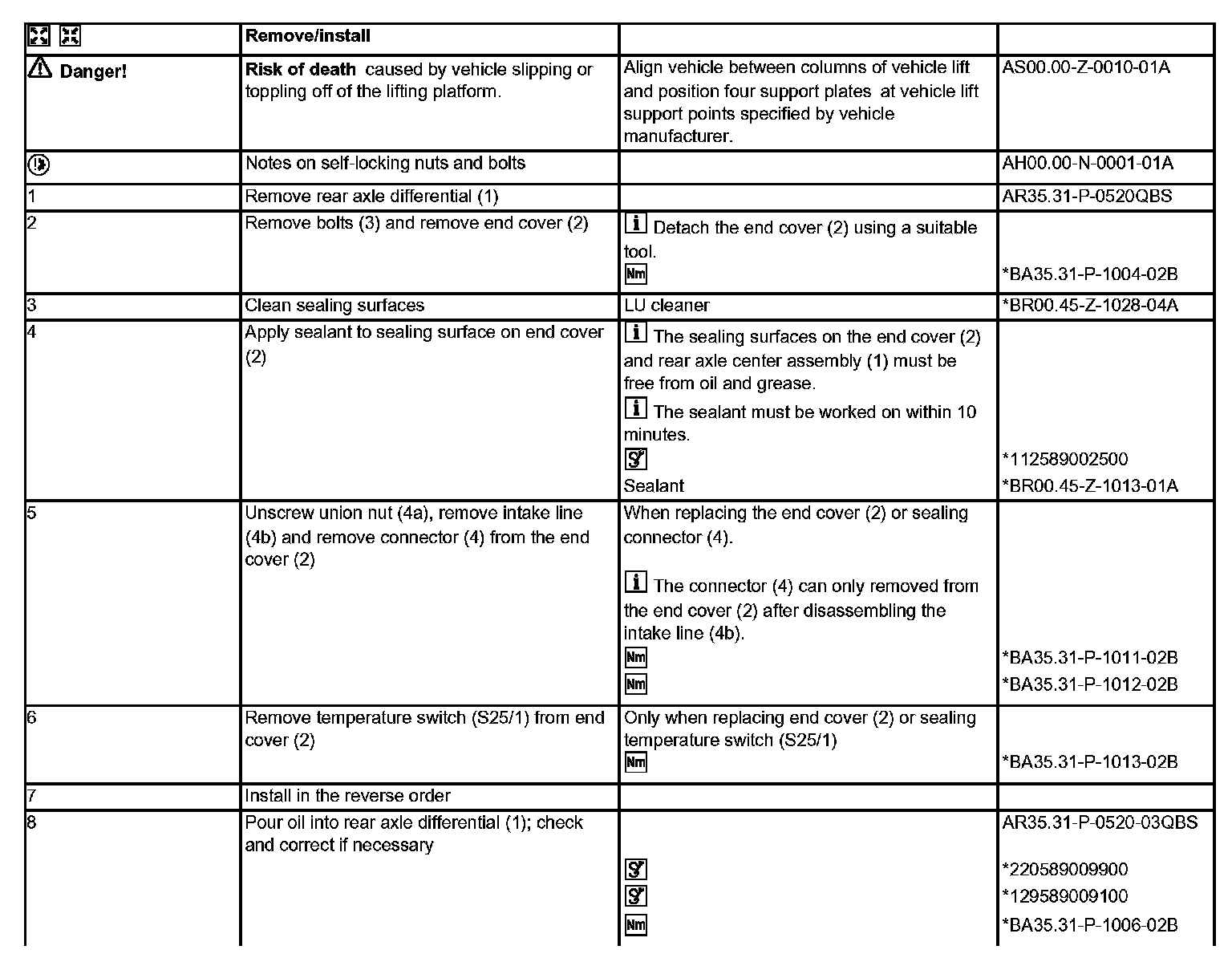

Remove/install Steps 1-8:

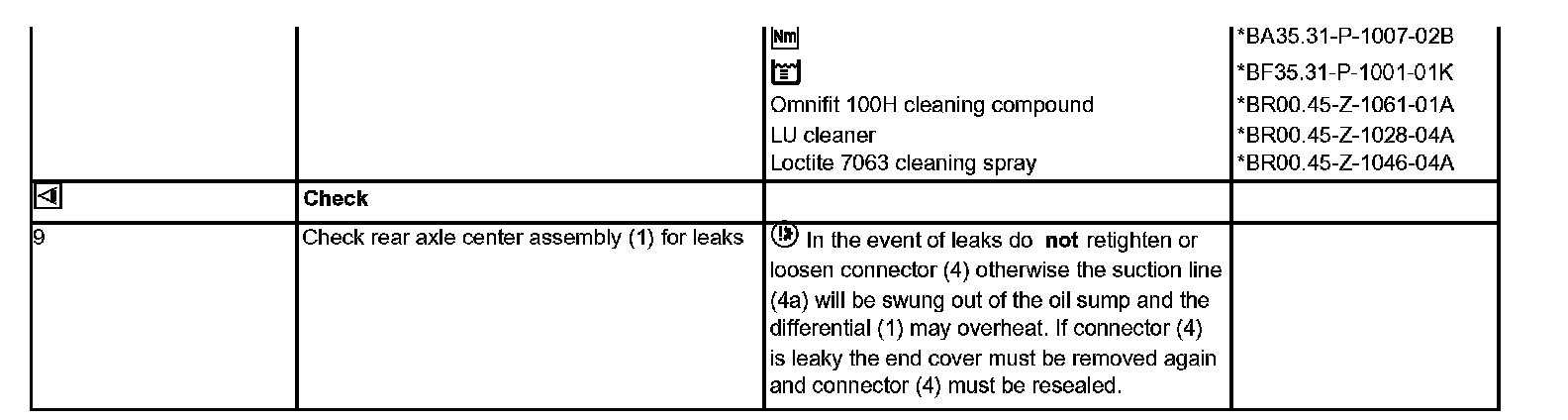

Remove/install Steps 8 (Continued)-9:

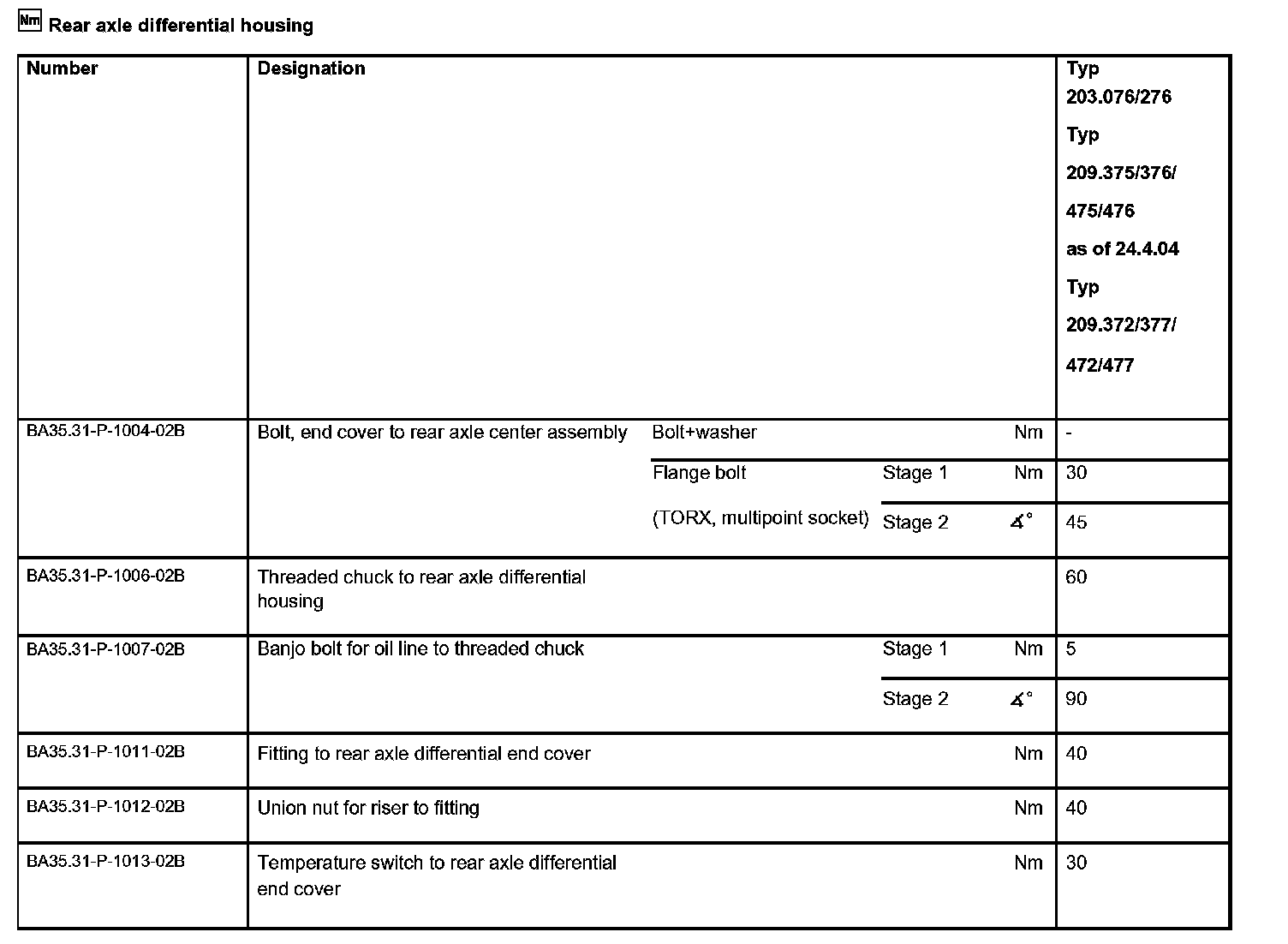

Rear axle differential housing:

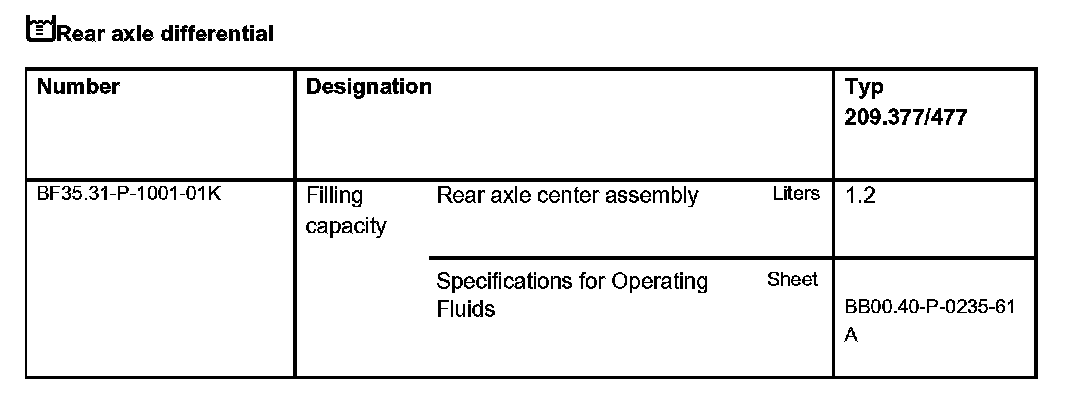

Rear axle differential:

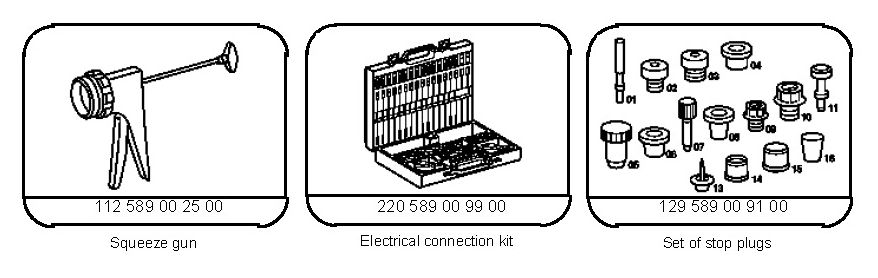

Special Tools:

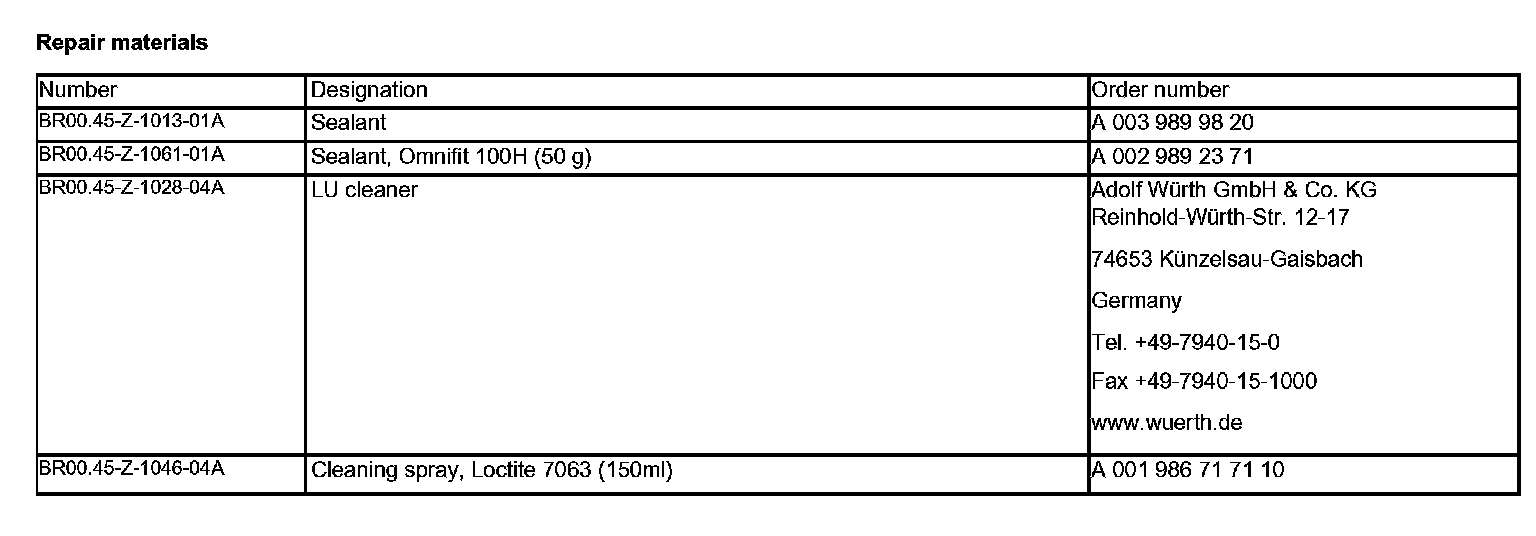

Repair materials:
