AR35.31-P-0554AF Install/Remove End Cover on Rear Axle Center Assembly
AR35.31-P-0554AF Install/Remove End Cover on Rear Axle Center Assembly

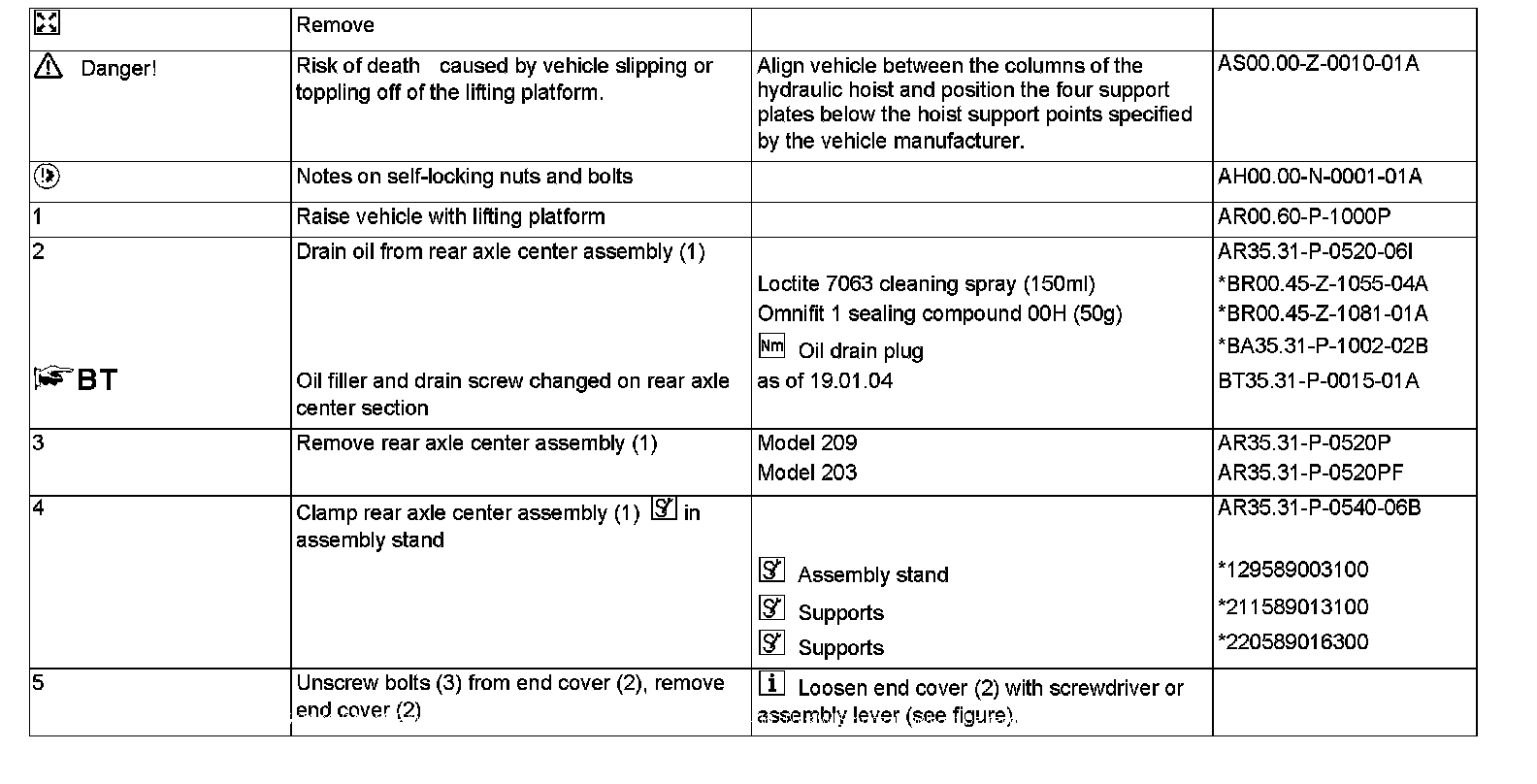

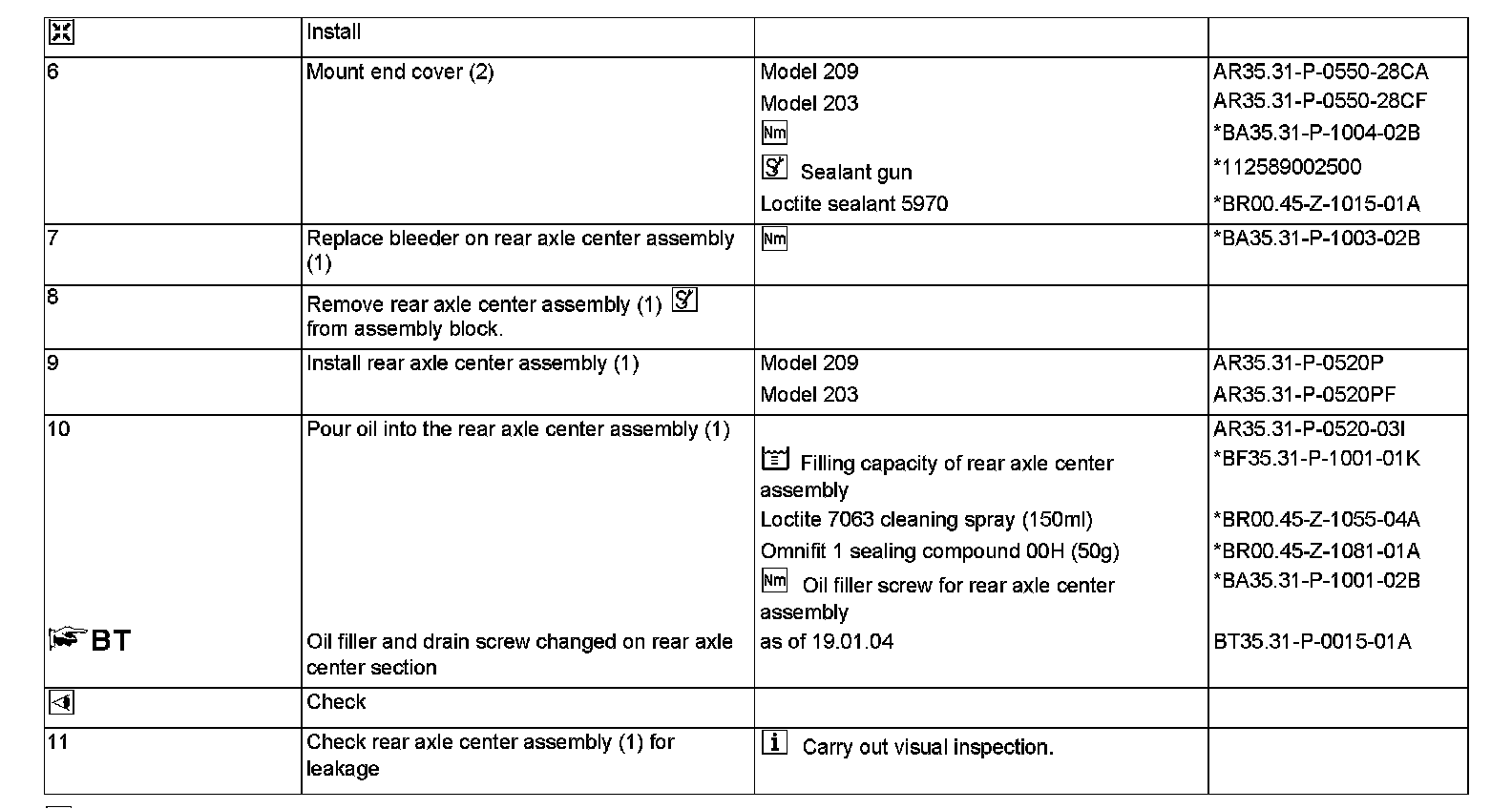

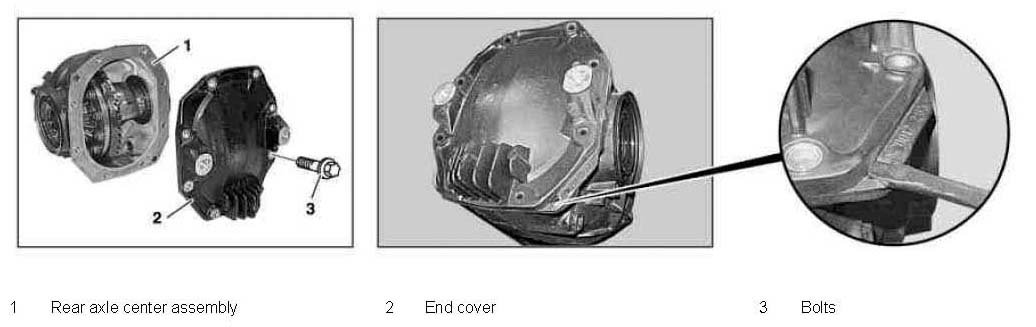

Install/remove end cover on rear axle center assembly
