Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shifter A/T >> Description and Operation >> GF27.19-P-5137PMA Steering Wheel Gear Shifter, Location/Task/Function

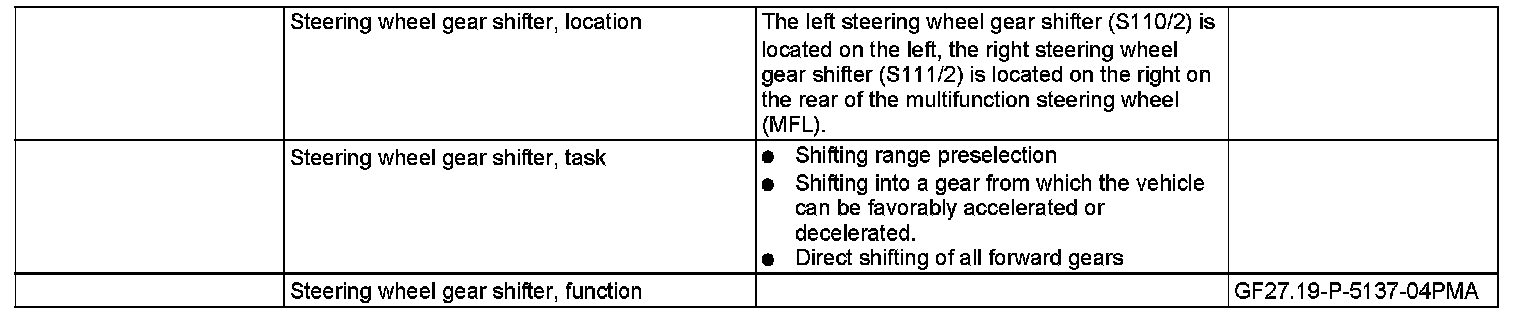

GF27.19-P-5137PMA Steering Wheel Gear Shifter, Location/Task/Function



GF27.19-P-5137PMA Steering wheel gear shifter, location/task/function
- TRANSMISSION 722.6
- 209
- 211 up to 31.5.06
- with CODE (428) Steering wheel shift buttons

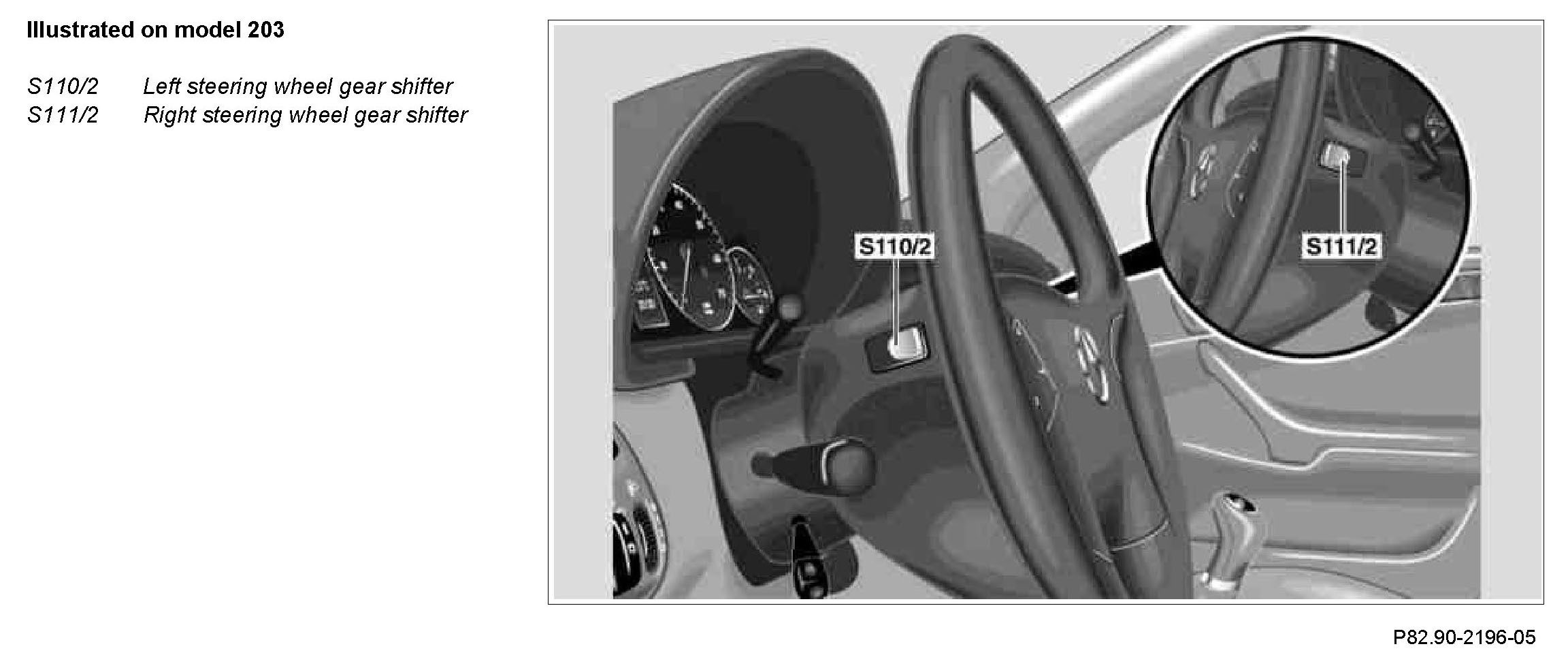

Component Identification:
