Seals and Gaskets: Service and Repair
AR27.30-P-4970QB Remove/install radial shaft sealing ring on front transmission cover
- Transmission 722.9

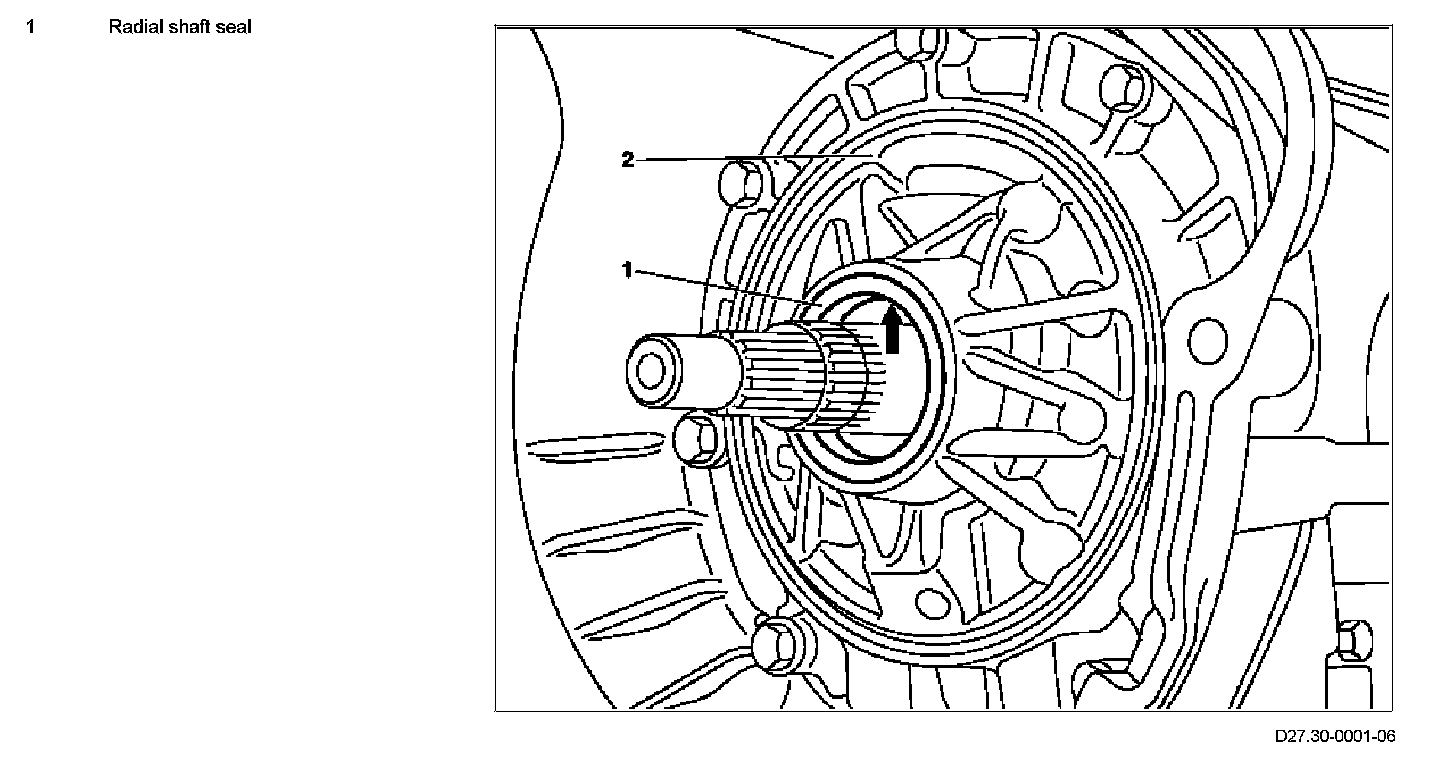

Component Identification:
Modification notes:

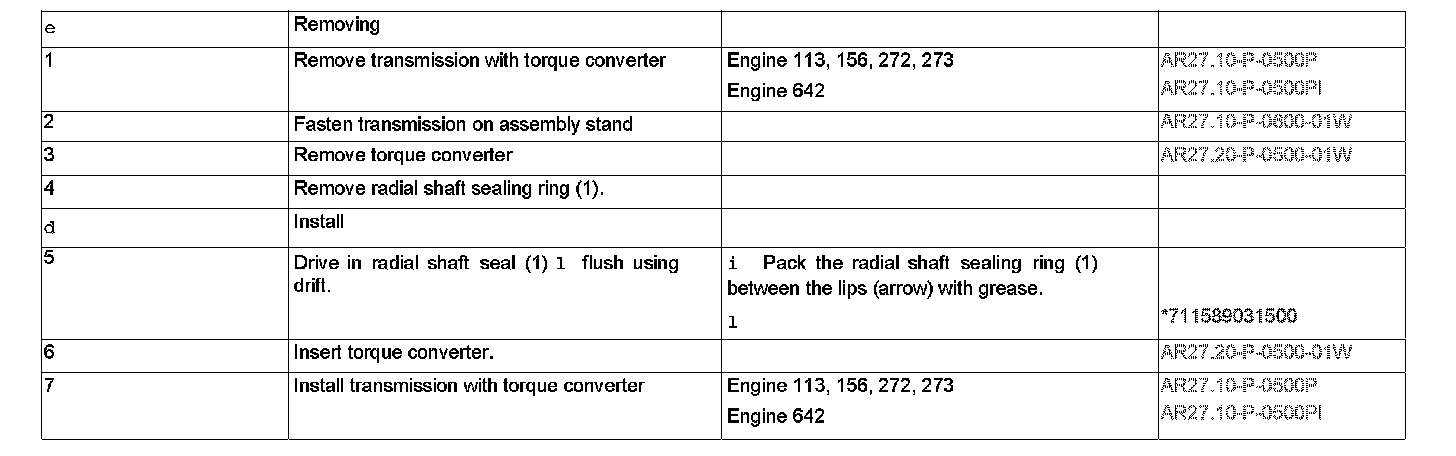

Steps 1-7:

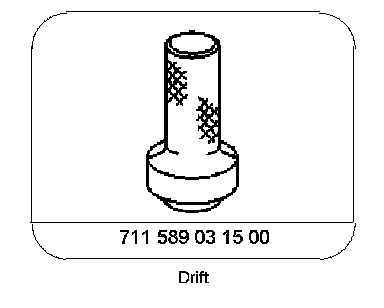

Special Tools:
AR27.30-P-4970QB Remove/install radial shaft sealing ring on front transmission cover
- Transmission 722.9
