GF27.10-P-0001-04NQL Automatic Transmission (AT), Location of Components, Floor Shift



GF27.10-P-0001-04NQL Automatic transmission (AT), location of components, floor shift
- Transmission 722.9
- with CODE (428a) Steering wheel shift buttons

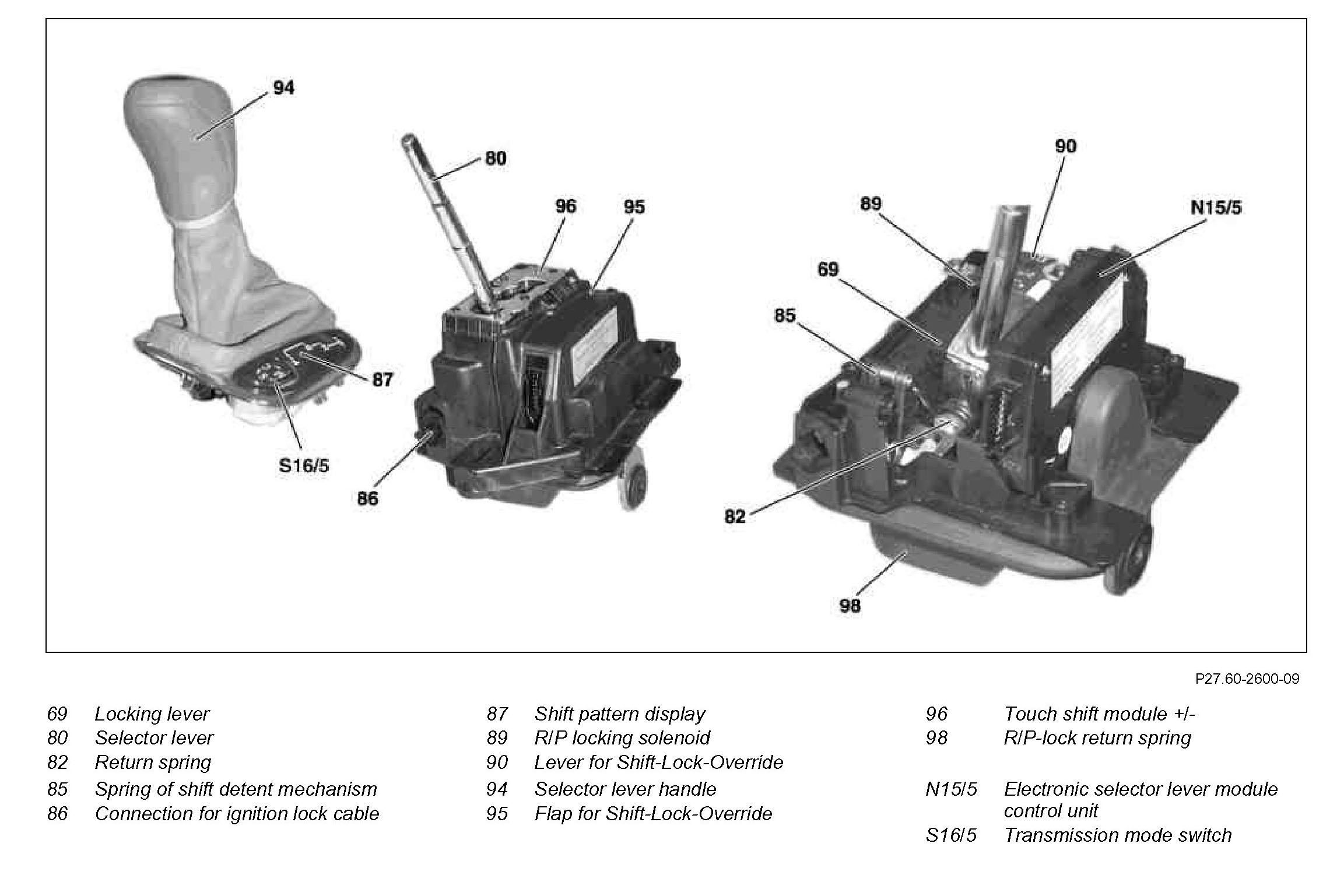

Component Identification:
