GF27.10-P-0001-02NQ Automatic Transmission (AT), Driver Information

GF27.10-P-0001-02NQ Automatic transmission (AT), driver information
- Transmission 722.9
- except CODE (428a) Steering wheel shift buttons

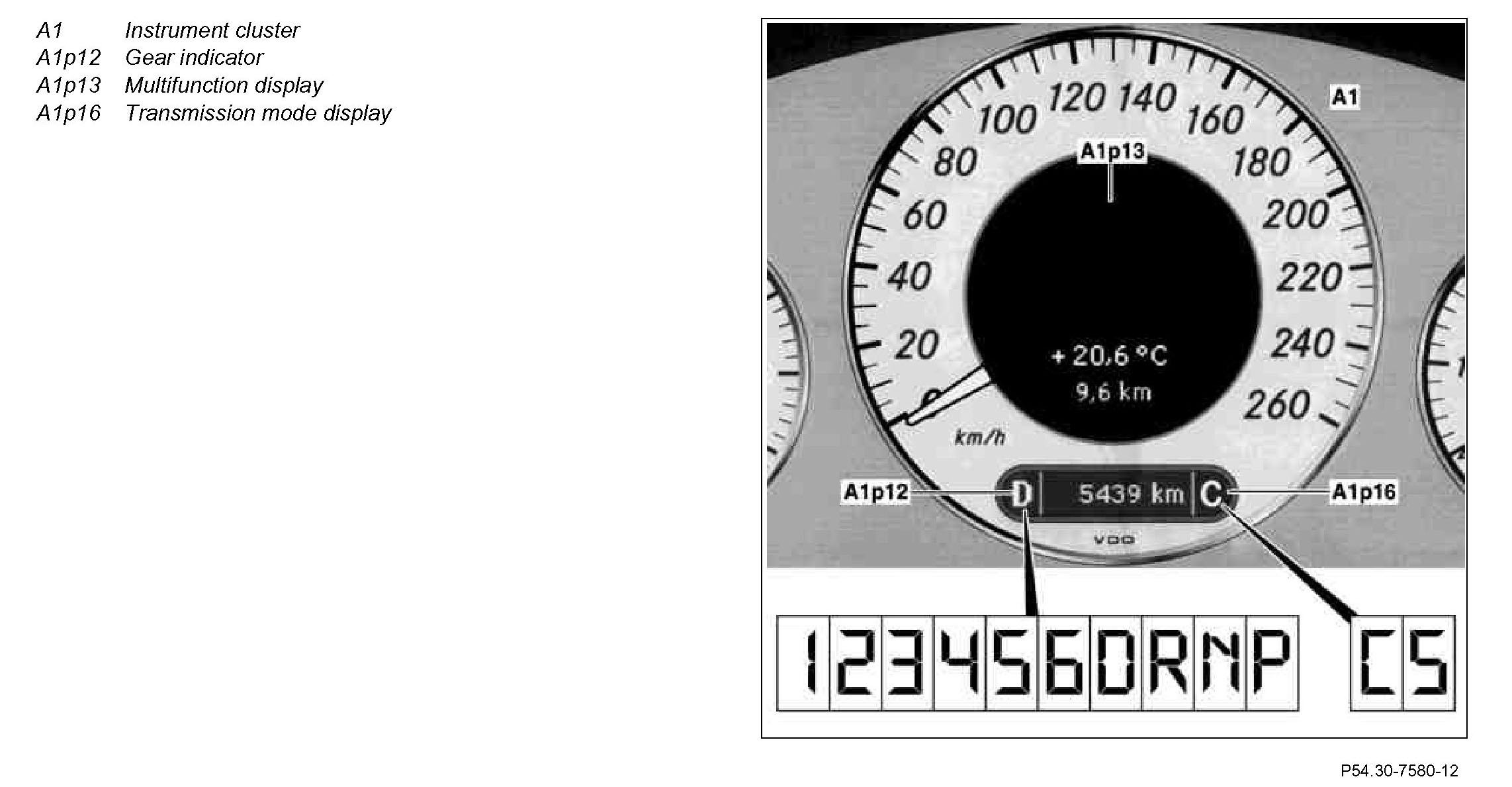

Component Identification:

Gear indicator (A1p12) in instrument cluster (A1):
It shows the driver the currently selected shift range "1", "2", "3", "4", "S", "6" or selector lever position "D", "R", "N" (neutral) or "P" (park).

Transmission mode display (A1p16) in instrument cluster (A1)
It shows the driver the program "S" (sport program) or "C" (comfort program) selected at the transmission mode switch (S16/5).
