Suspension - Rumbling Noises On Bumps/Rough Roads

Date: February 4, 2009

Order No.: P-B-33.10/11c

Supersedes: P-B-33.10/11b dated June 27, 2007

Group: 33

Revision History

Revision Date Purpose

c 2/4/09 Applicable Models Updated / VINs Included / Technical Content and Parts Information Revised

b 6/27/07 Warranty Information Updated

a 3/28/07 Technical Content Updated

- 4/7/04 Initial issue

SUBJECT:
Model 171.454/456/458/473
Model 203.040/061/064/065/261/264/740/764,
as of VIN A034000, F018700 and R001000

Model 209.365/375/376/465/475/476

Rumbling Noises While Driving Over Bumps or On Rough Roads

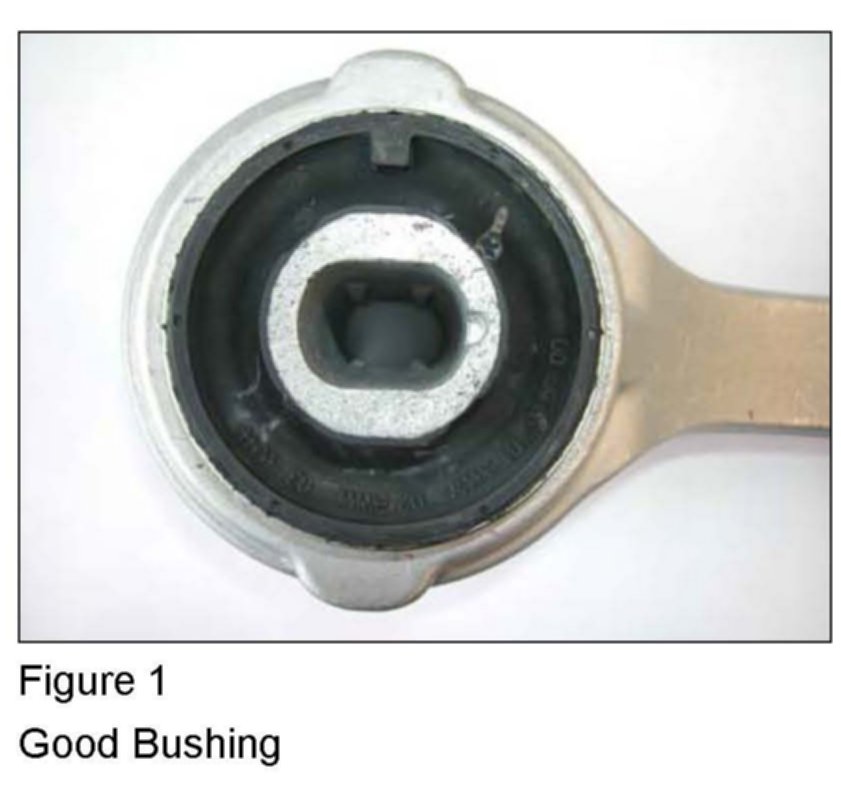

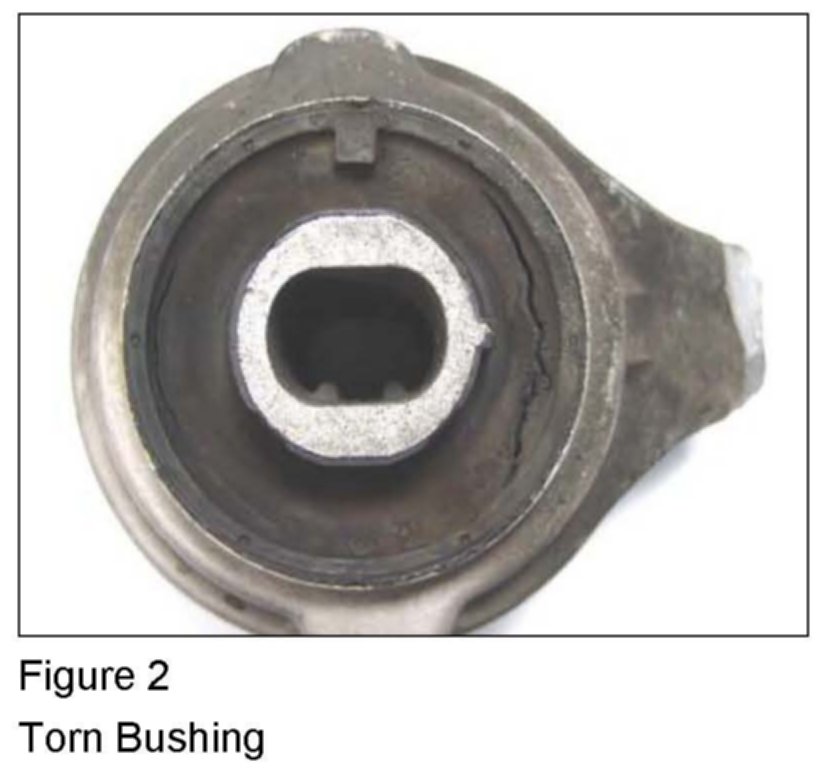

If you receive customer reports in the above model vehicles of rumbling noises while driving over bumps or on rough roads, the cause may be that the rubber mount on the torque strut is cracked and losing fluid. To resolve, replace the bushing only (not the torque strut). Refer to WIS document AR33.15-P-0160P.

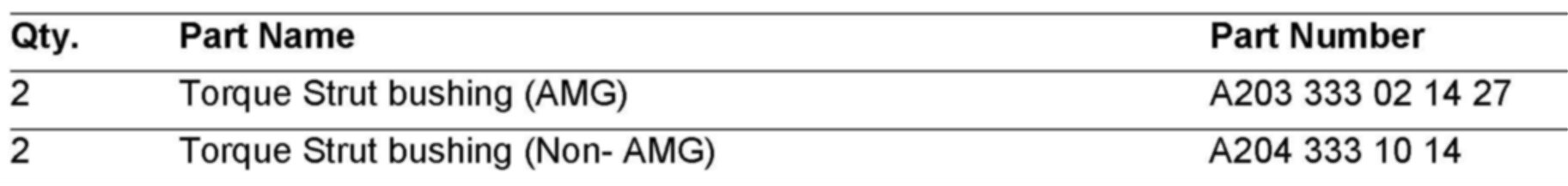

Parts Information

Note:

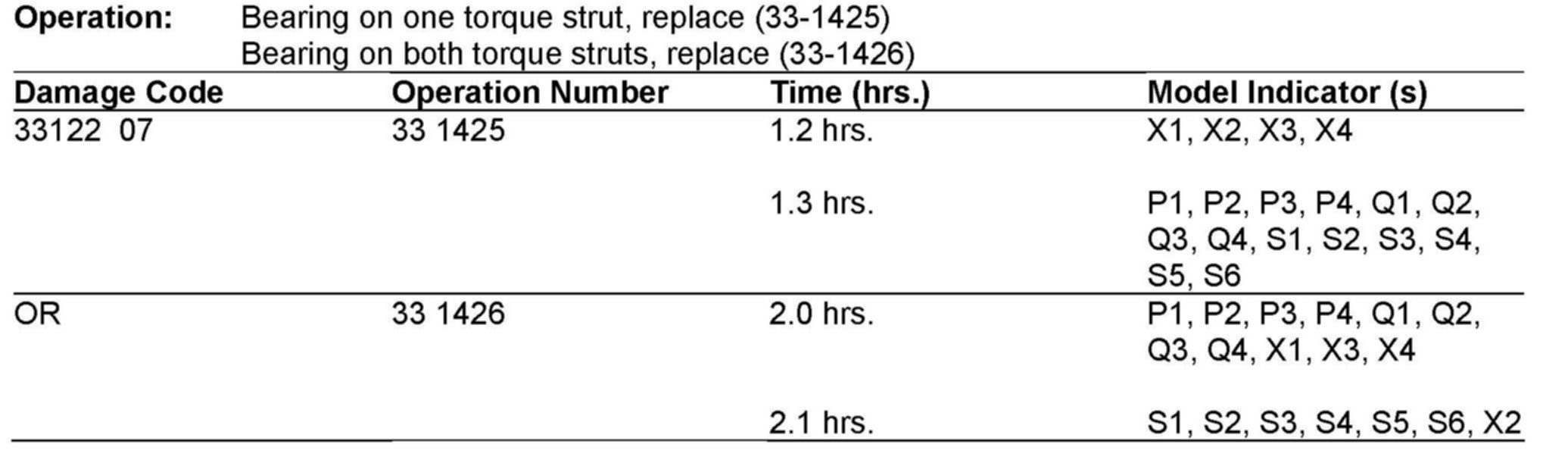

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on February 4, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
