G. Connecting the Microphone Array

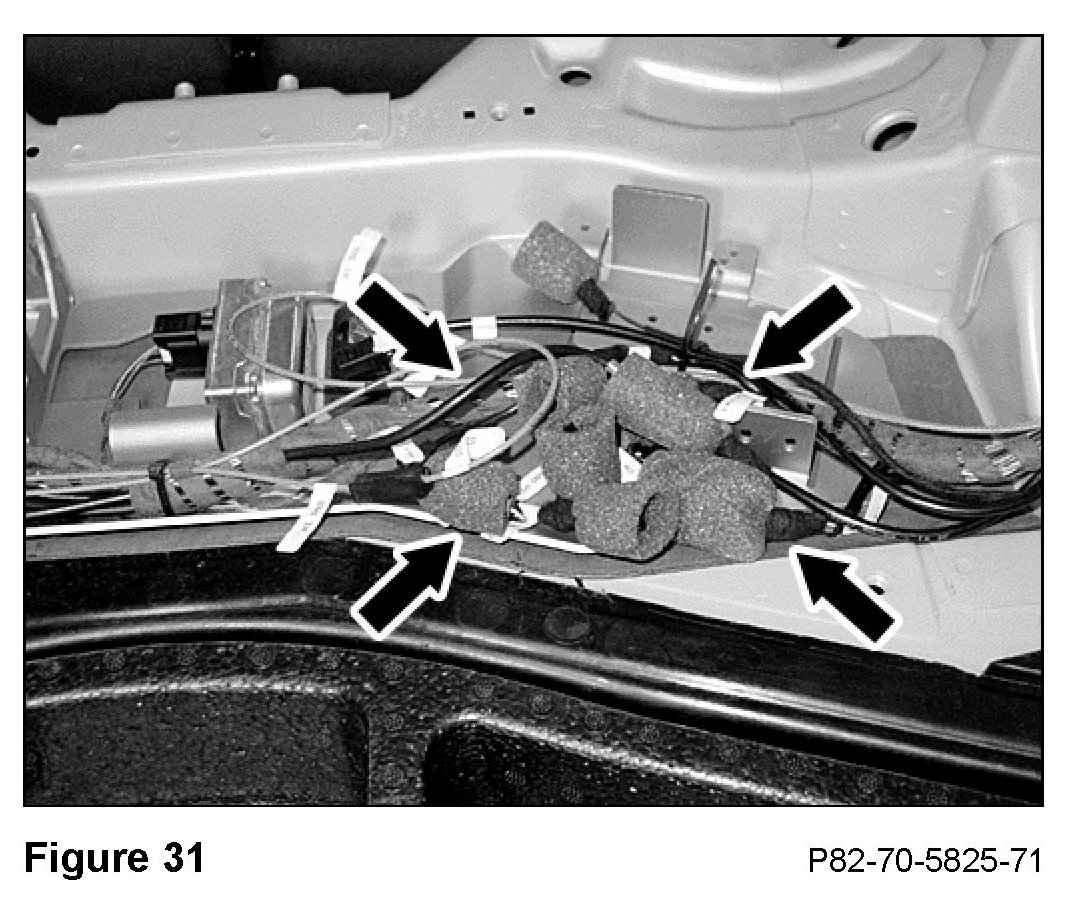

1. At the right side of the exposed trunk electronics compartment behind the rear seat, locate the foam-sleeve-covered connectors for the microphone array (Figure 31).

2. Fold back the foam sleeves to expose the connectors and identify the:

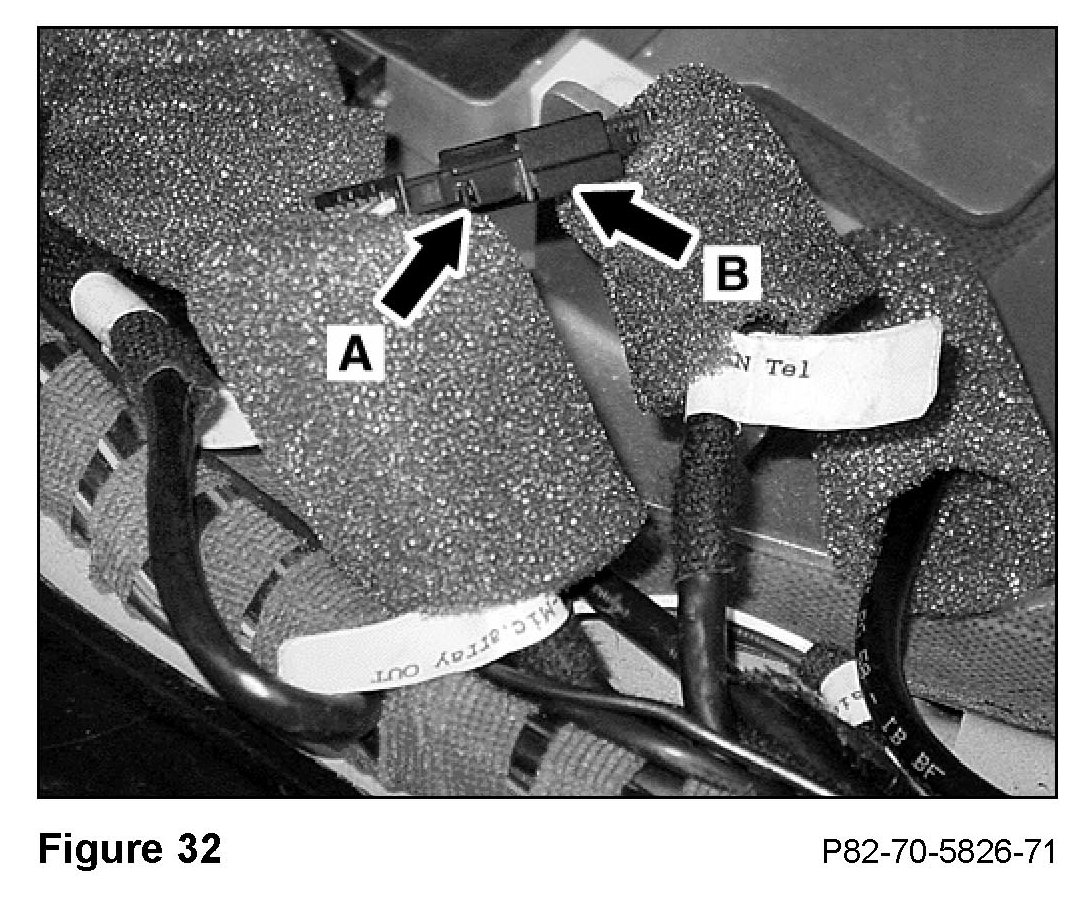

^ 36-pin female connector labeled 1 - MIC.ARRAY OUT" (A, Figure 32)

^ 6-pin male connector labeled 3 - MIC IN TEL" (B, Figure 32)

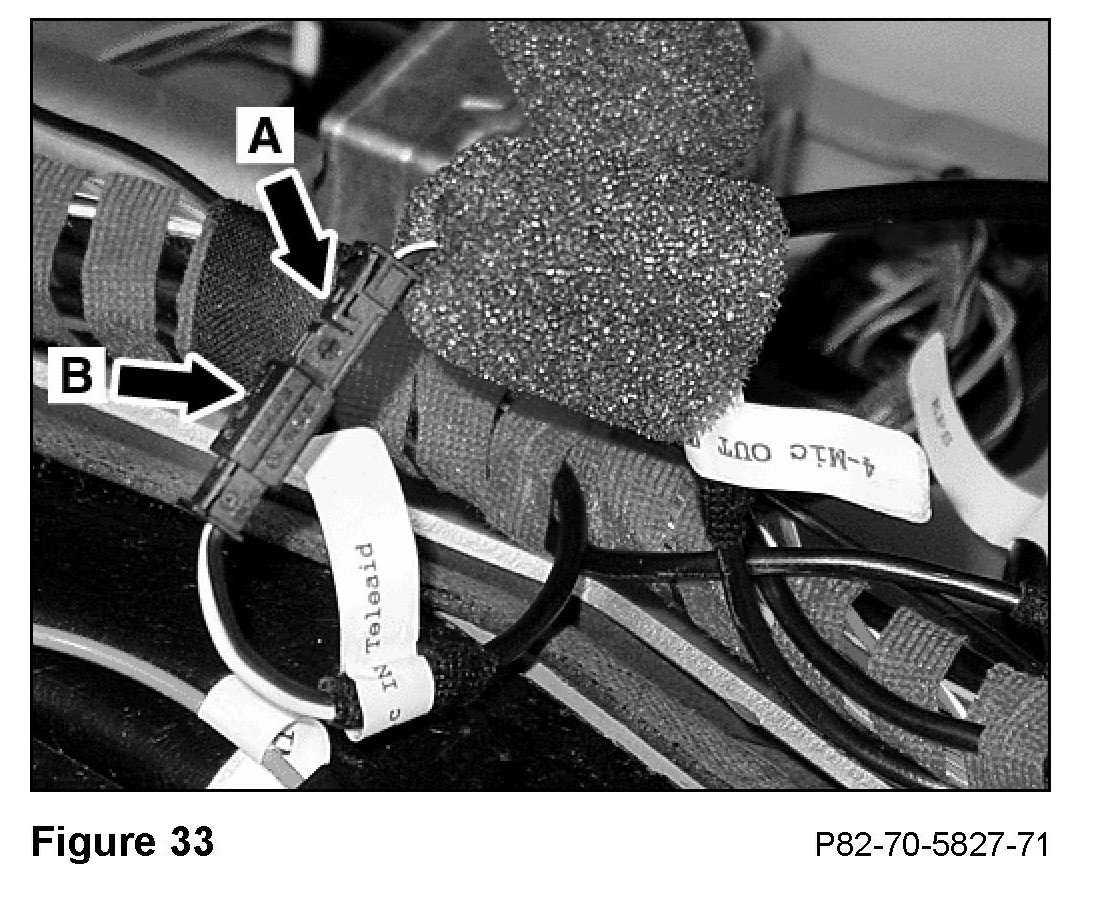

^ 2-pin female connector labeled 4 - MIC.OUT TEL" (A, Figure 33)

^ 2-pin male connector labeled 8 - MIC.IN Teleaid") (B, Figure 33)

3. Connect the 6-pin female connector labeled "1 - MIC.ARRAY OUT" (A, Figure 32) to the 6-pin male connector labeled "3 - MIC IN TEL" (B, Figure 32).

4. Connect the 2-pin female connector labeled "4 - MIC.OUT TEL" (A, Figure 33) to the 2-pin male connector labeled "8 - MIC.IN Teleaid") (B, Figure 33).
