F. Installing and Connecting the Antenna Switch

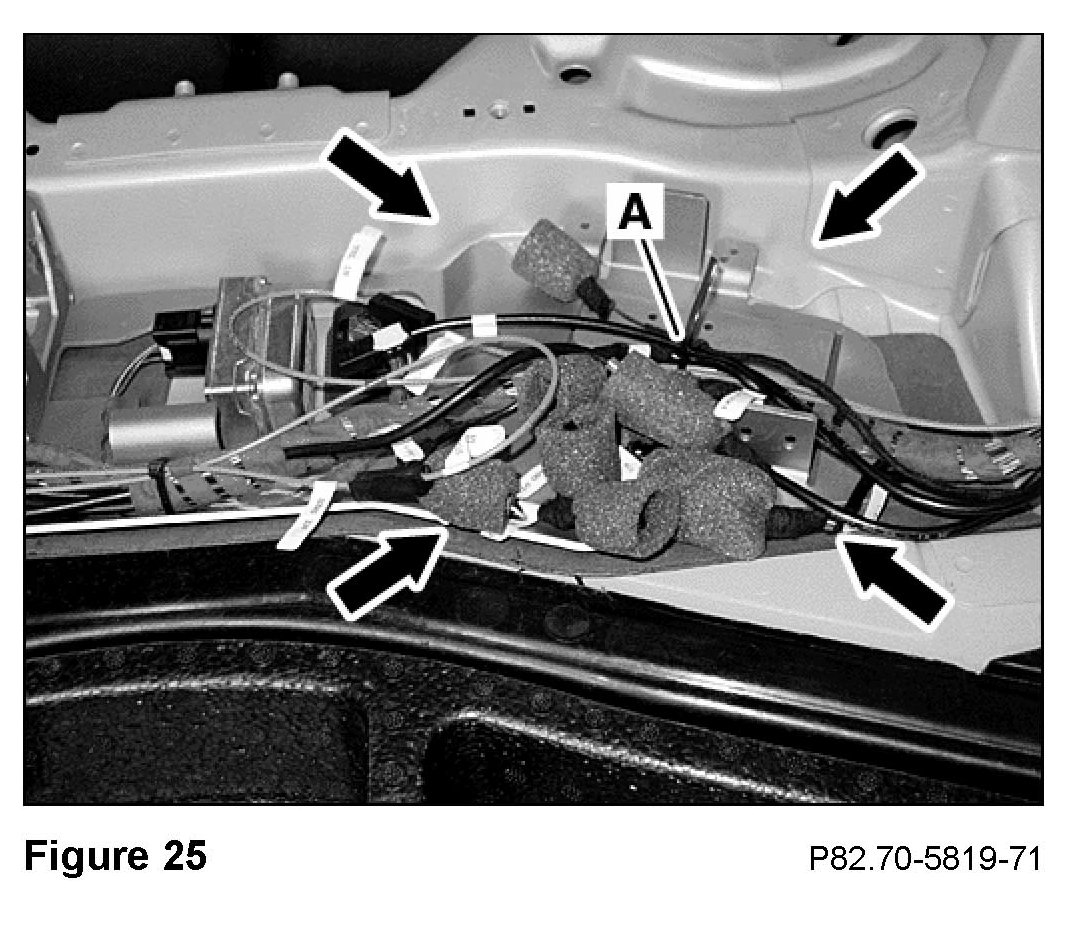

1. On the right side of the exposed trunk electronics compartment behind the rear seat, locate the foam-sleeve-covered cable connectors at the mounting place for the antenna switch (Arrows, Figure 25).

2. Carefully cut the wire tie bundling the cables and wiring harness together (A, Figure 25).

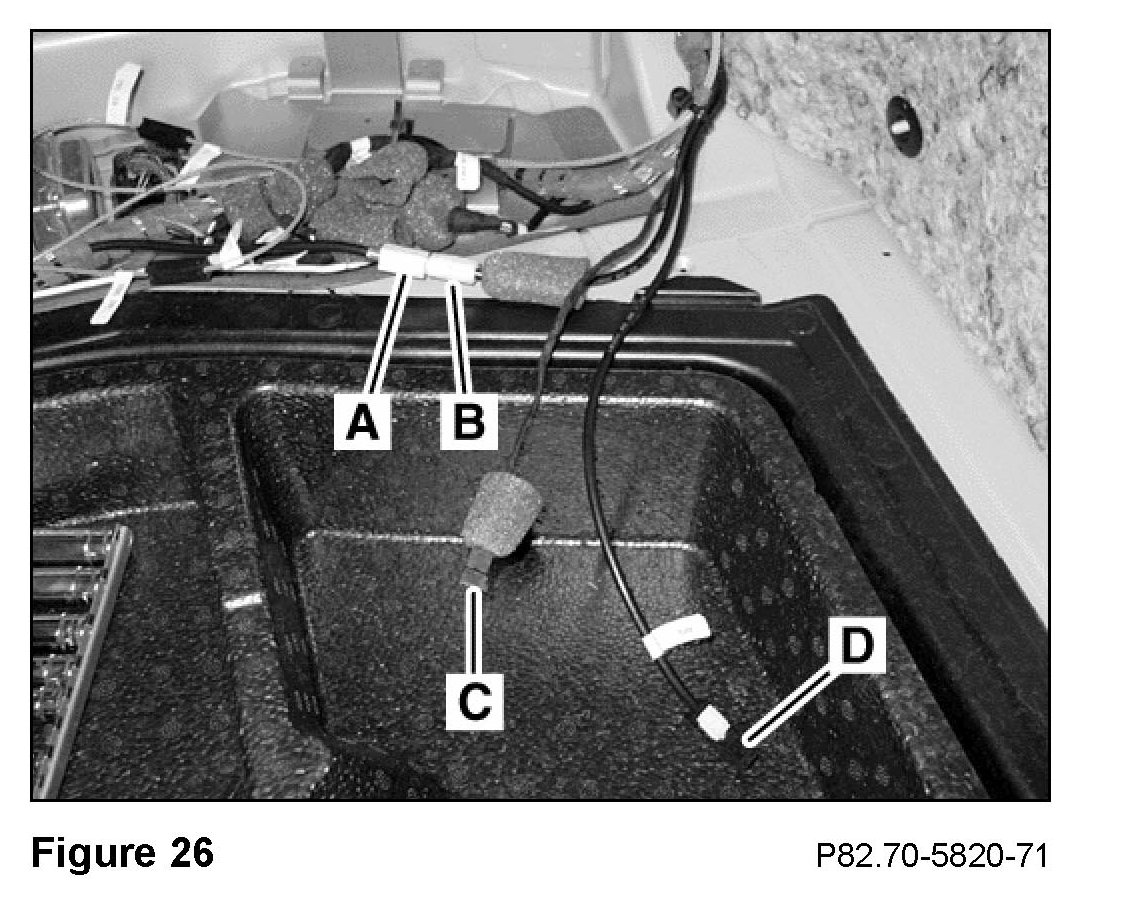

^ Telephone lead (black, female FAKRA) (D, Figure 26)

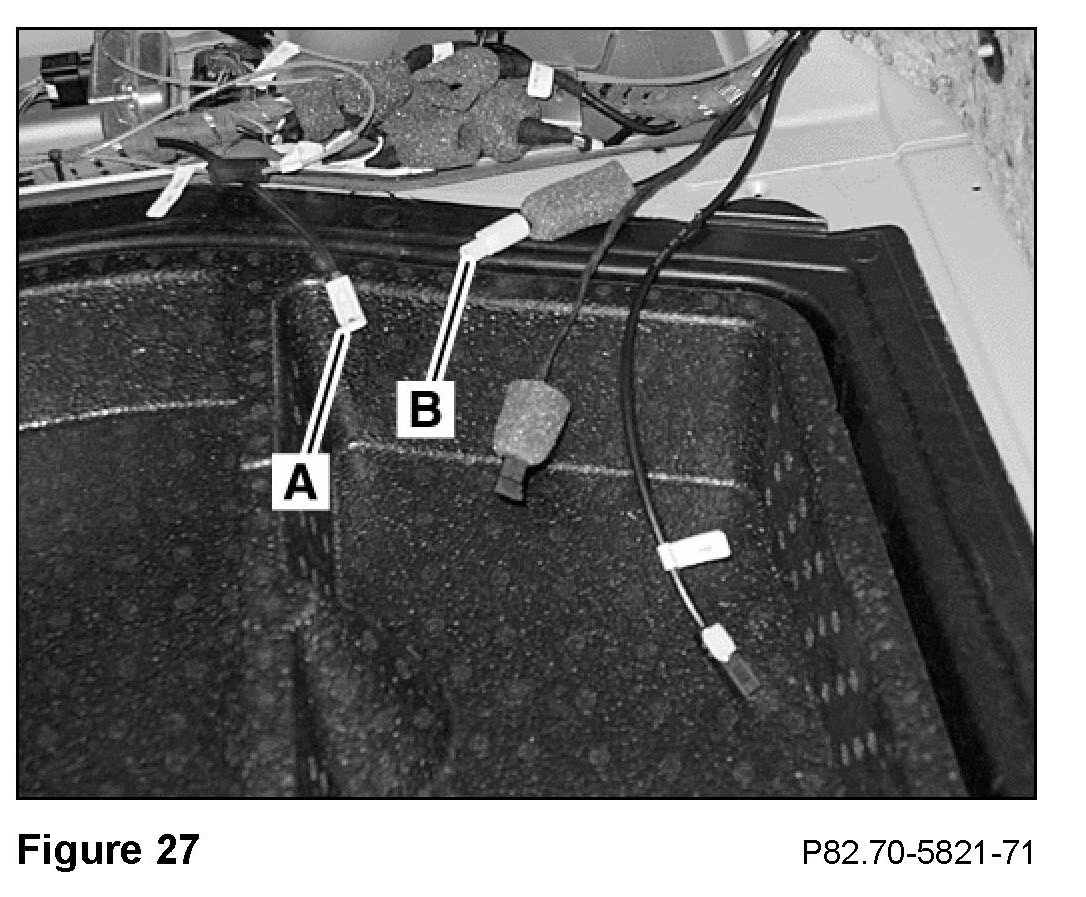

5. Disconnect the Tele Aid lead (white, female FAKRA) (A, Figure 27) from the main antenna lead (white, male FAKRA) (B, Figure 27).

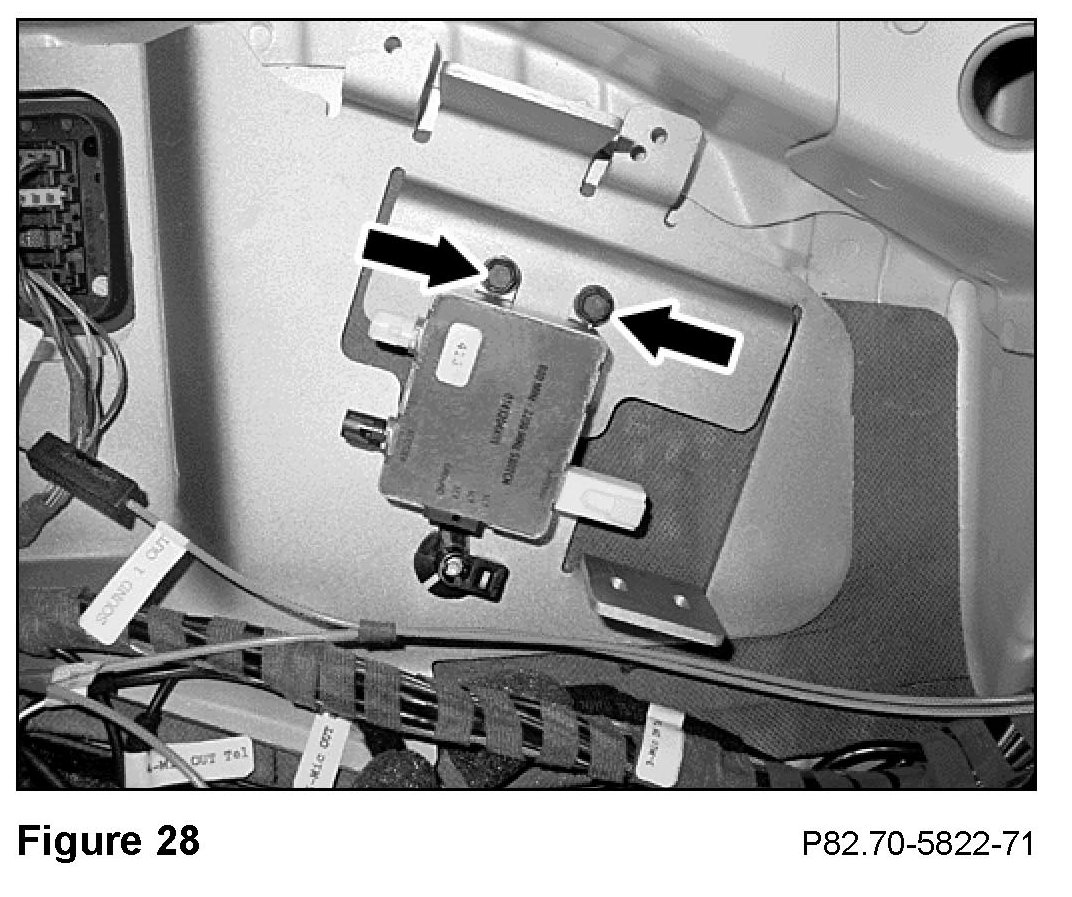

6. At the right side of the exposed trunk electronics compartment behind the rear seat, mount the antenna switch to the fixed floor bracket with two 8 mm self-tapping screws (Figure 28).

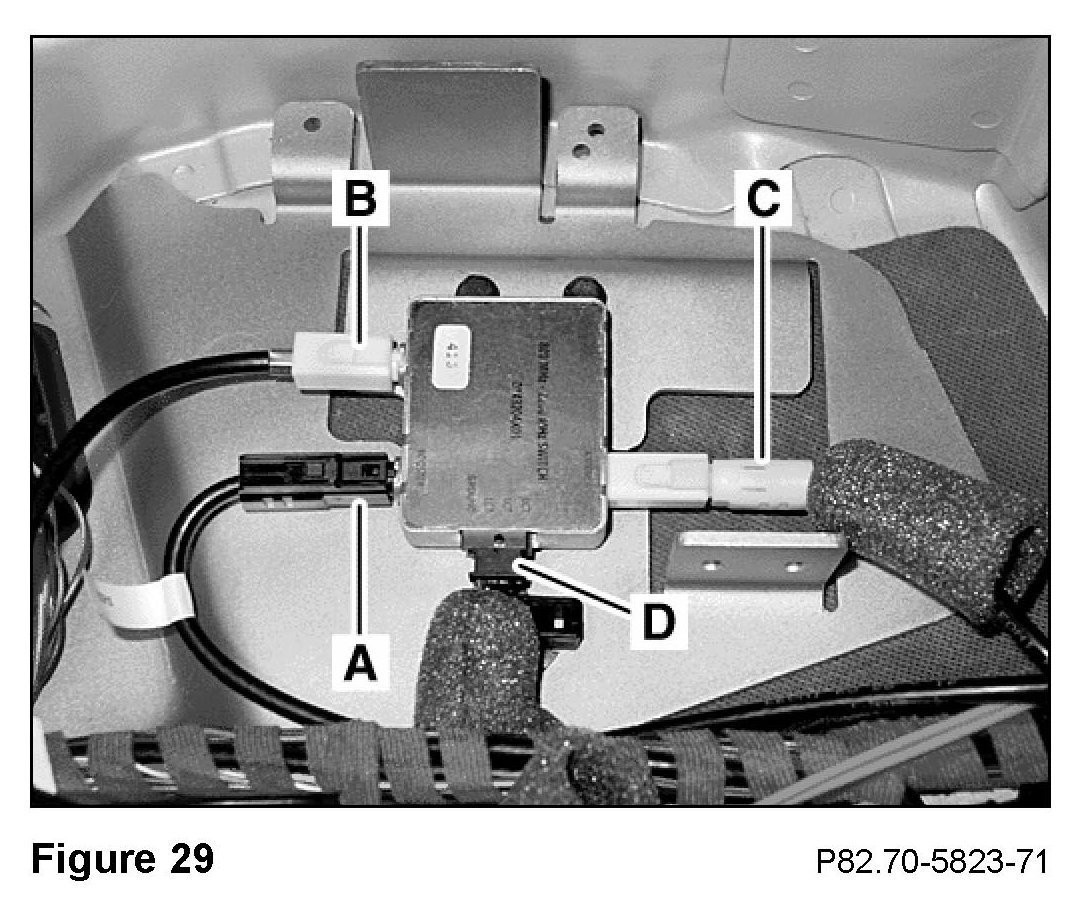

7. Connect the telephone lead (black, female FAKRA) to the antenna switch jack labeled "BOOSTER" (A, Figure 29).

8. Connect the Tele Aid lead (white, female FAKRA) to the antenna switch jack labeled "LCT" (B, Figure 29).

9. Connect the main antenna lead (white, male FAKRA) to the antenna switch jack labeled "ANTENNA" (C, Figure 29).

10. Connect the 2-pin power supply connector to the antenna switch (D, Figure 29).

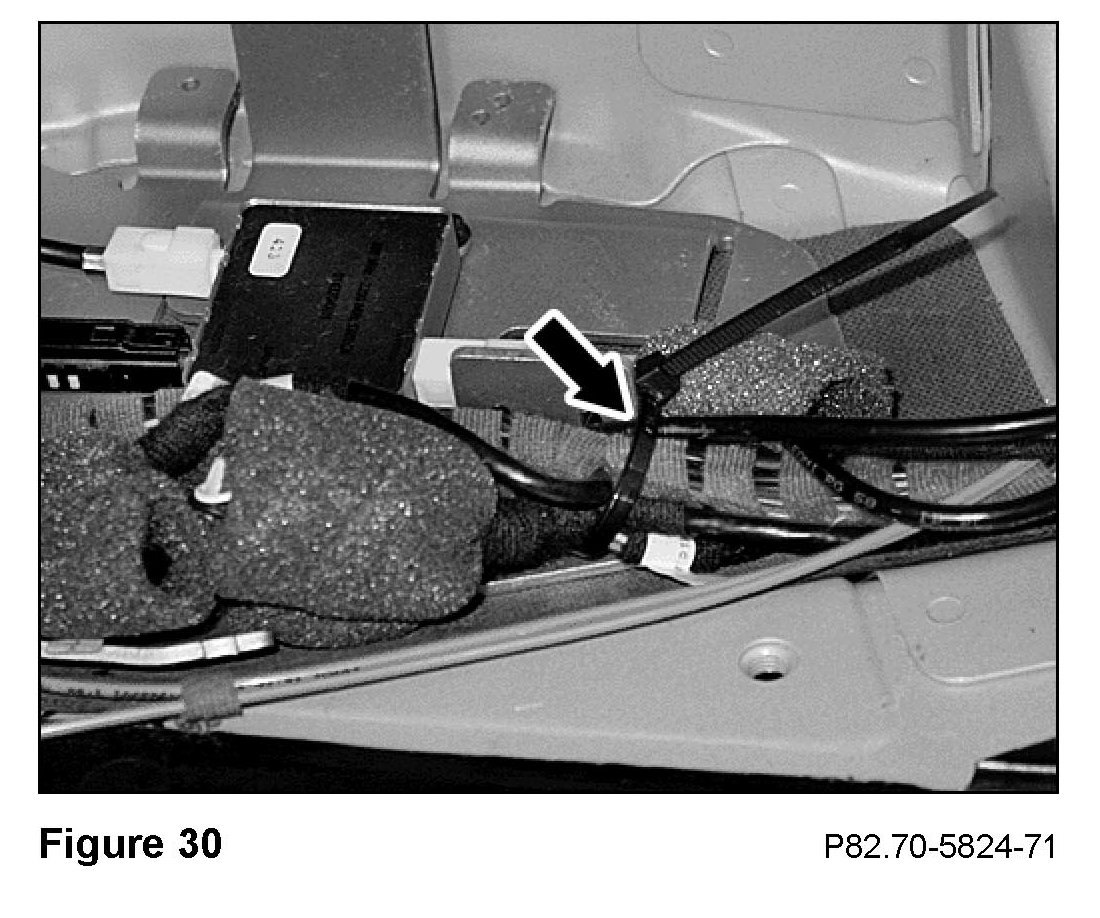

11. Bundle the loose cables and wiring harness together and secure them to the electronics compartment floor with a wire tie (Figure 30).
