E. Mounting the Bracket Assembly and Connecting the MHI Control Module, Linear Compensator

1. If sound system equipped, reconnect and reinstall the amplifier/bracket assembly, by connecting the power supply connector and MOST connector to the amplifier underside and reusing the 8 mm collar nut (A, Figure 3), 8 mm hex head bolt (B, Figure 3) to fasten the bracket.

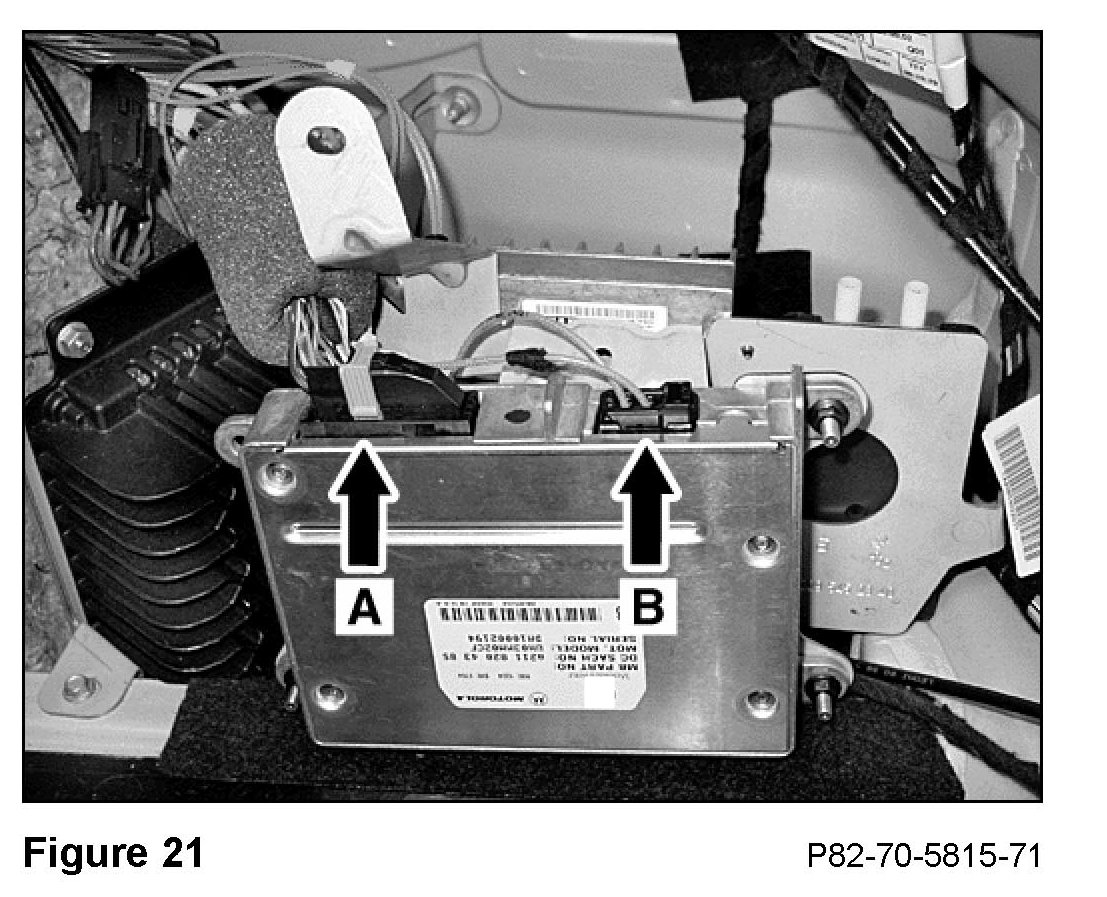

2. Place the MHI/linear compensator/antenna splitter bracket assembly near its mounting place (Figure 21).

3. Connect the MHI power supply connector to the MHI control module (A, Figure 21).

4. Connect the MHI MOST connector to the MHI control module (B, Figure 21).

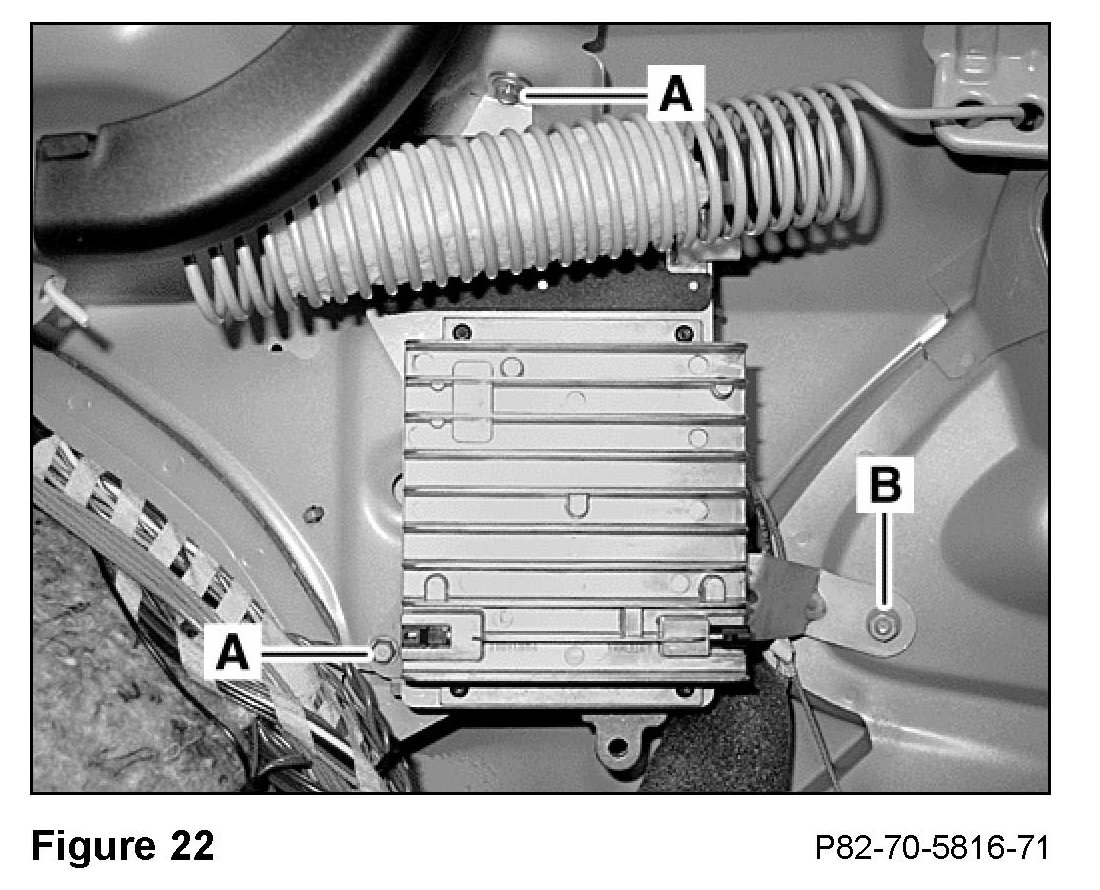

5. Mount the bracket assembly, with the linear compensator facing out, to the upper area of the exposed quarter panel interior with an 8 mm hex head, self-tapping screw at the upper and lower, front arms of the bracket (A, Figure 22), and the existing 10 mm flange nut at the lower, rear arm of the bracket (B, Figure 22).

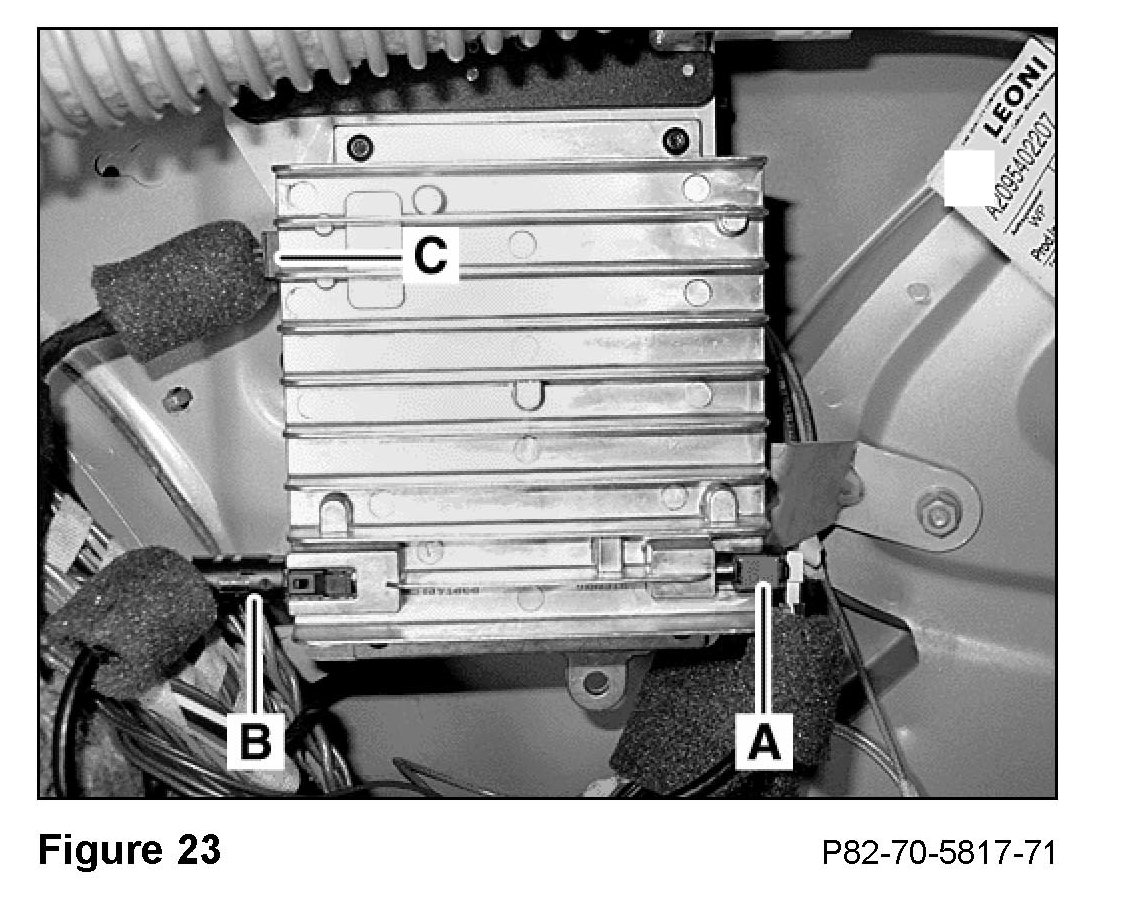

6. Connect the Female FAKRA antenna lead to the linear compensator jack labeled "ANTENNA" (A, Figure 23).

7. Connect the male FAKRA antenna lead to the linear compensator jack labeled PORTABLE" (B, Figure 23).

8. Connect the power supply to the linear compensator (C, Figure 23).

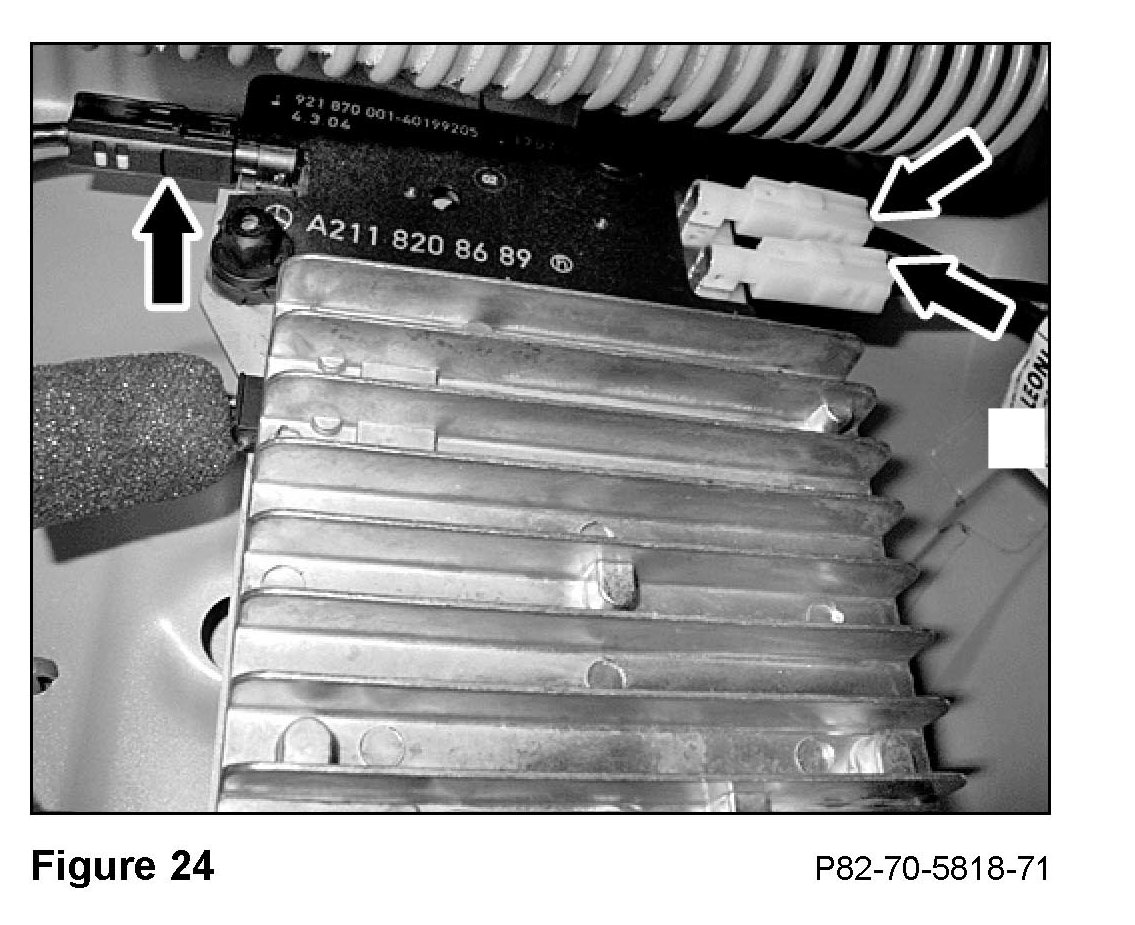

9. Reconnect the antenna leads to the antenna splitter (Figure 24).
