C. Mounting the Linear Compensator, Antenna Splitter, & MHI Control Module to the Bracket

1. Mount the linear compensator to the bracket front with four T15 Torx self-tapping screws (Arrows, Figure 5).

Note:
Position the linear compensator so the connector receptacles face the bracket end with the longer mounting arm (Figure 5).

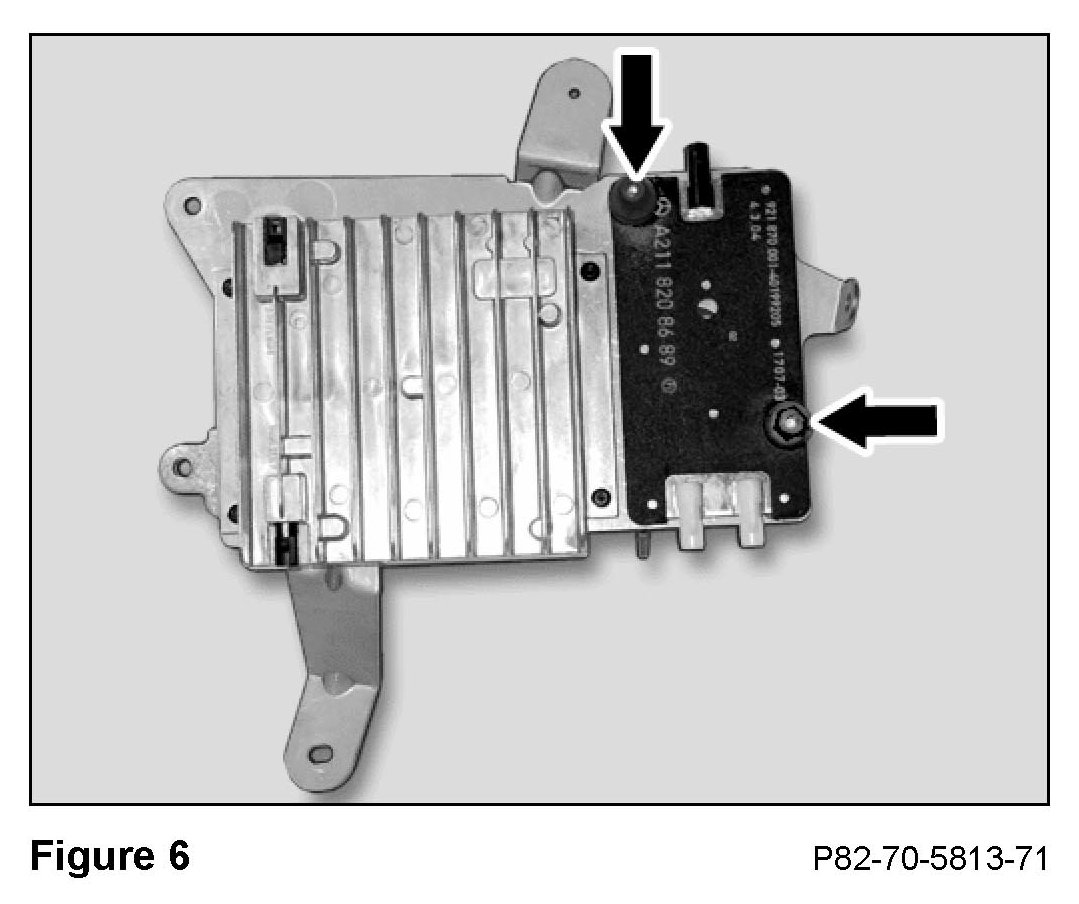

2. Mount the antenna splitter removed in Section A, step 7 to the bracket with two kit-included, M10 plastic nuts (Figure 6).

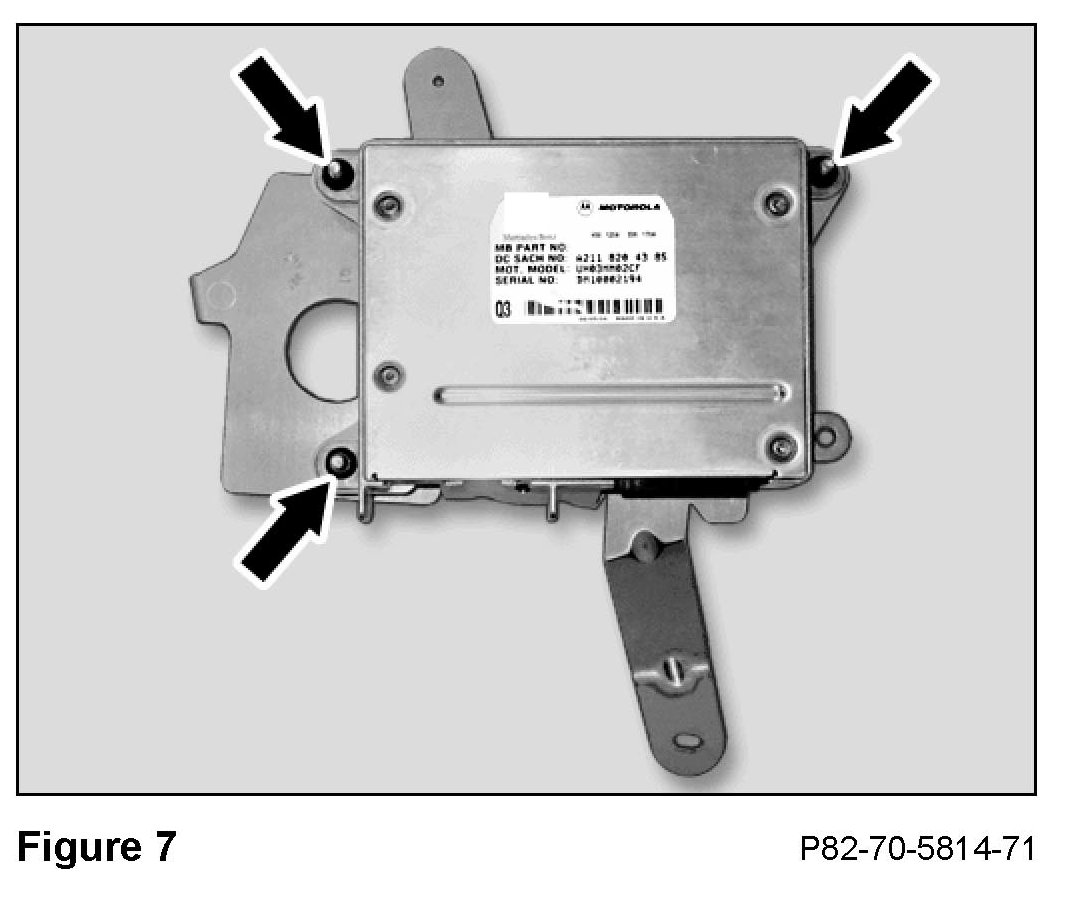

3. Mount the MHI control module to the threaded studs on the bracket backside with three MS hex nuts (Figure 7).

Note:
The MHI control module fits the keyed threaded studs only one way (i.e. it is not possible to incorrectly mount the MHI control module to the bracket).
