B. Identifying the Cables

1. In the exposed right side well in the trunk, find the foam-sleeve-covered cable connectors for the linear compensator and MHI control module.

2. Fold back the foam sleeves to expose the connectors and identify the:

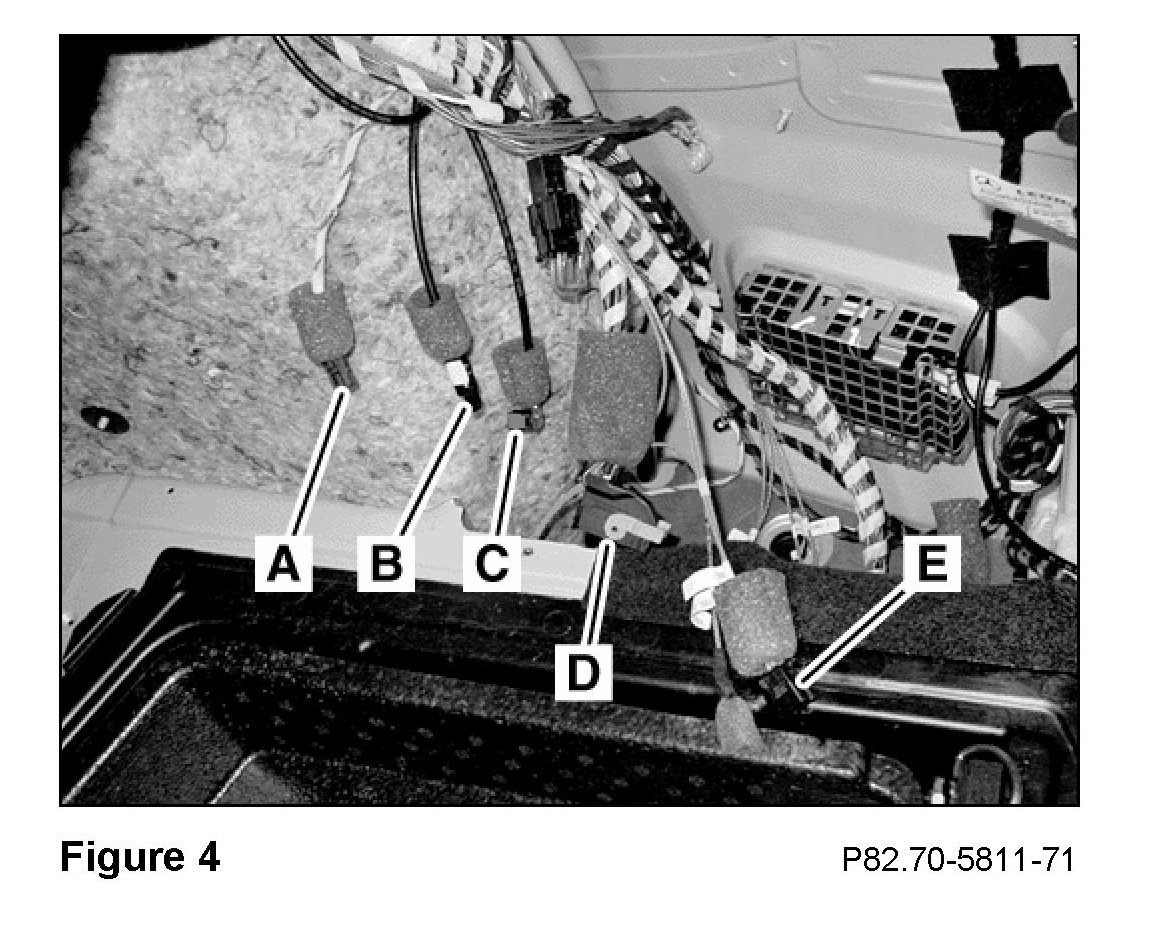

^ Linear compensator power supply connector (A, Figure 4)

^ Male FAKRA antenna lead (B, Figure 4)

^ Female FAKRA antenna lead (C, Figure 4)

^ MHI power supply connector (D, Figure 4)

^ MHI MOST connector (E, Figure 4)
