AZ40.10-P-0003Q Retrofit AMG Light Alloy Wheels

AZ40.10-P-0003Q Retrofit AMG light alloy wheels

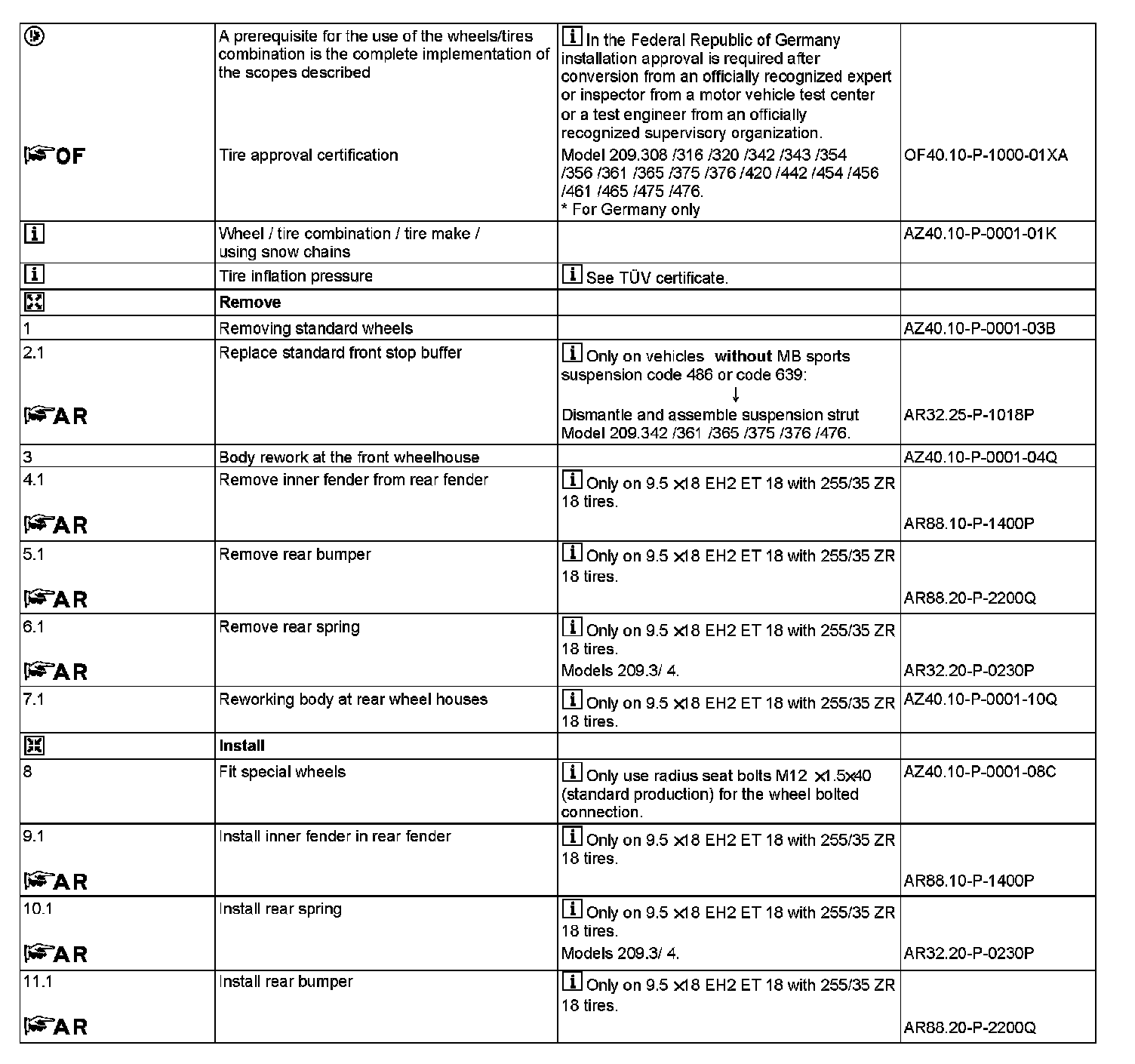

Steps 1-11.1:

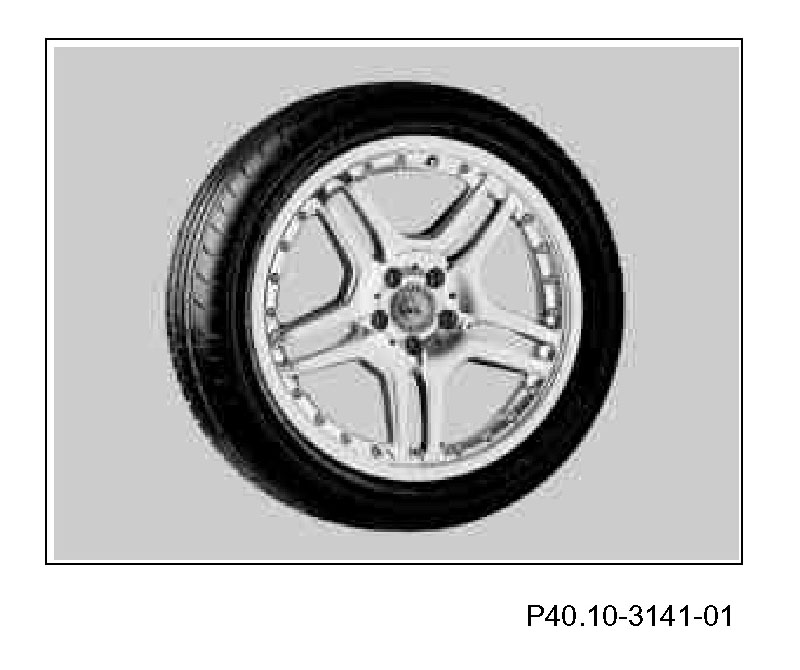

AMG spoke wheel, Styling IV

Combination 1
Front axle/rear axle: 8.5 x18 EH2 ET 30 (B6 603 1362), tire size 225/40 ZR 18

Combination 2
Front axle: 8.5x18 EH2 ET 30 (B6 603 1362), tire size 225/40 ZR 18

Rear axle: 9.5x18 EH2 ET 18 (B6 603 1363), tire size 255/35 ZR 18

Refer to the Technical Inspection Association reports for further tire options.

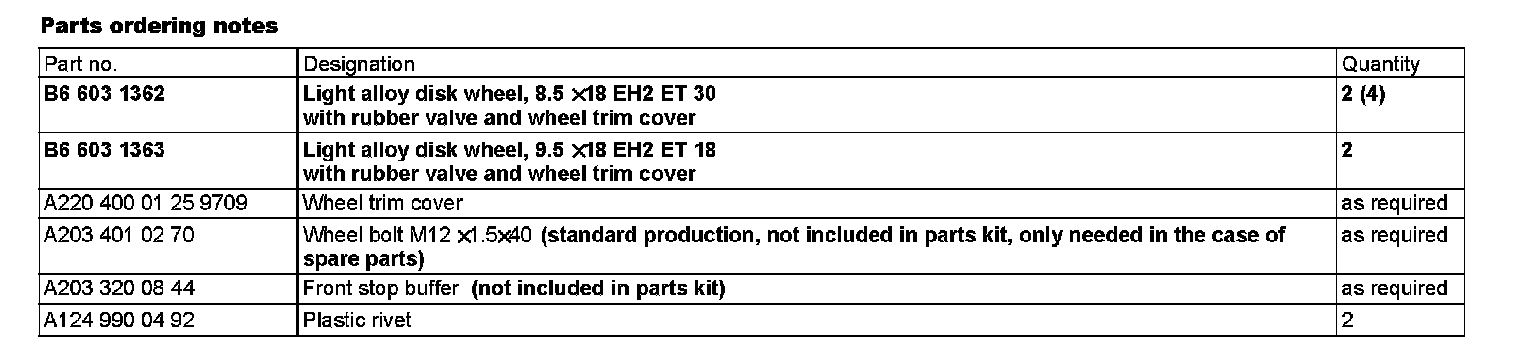

Parts ordering notes:
