AZ40.10-P-0001-10Q Reworking Body at Rear Wheel Houses

AZ40.10-P-0001-10Q Reworking body at rear wheel houses

Component Identification:

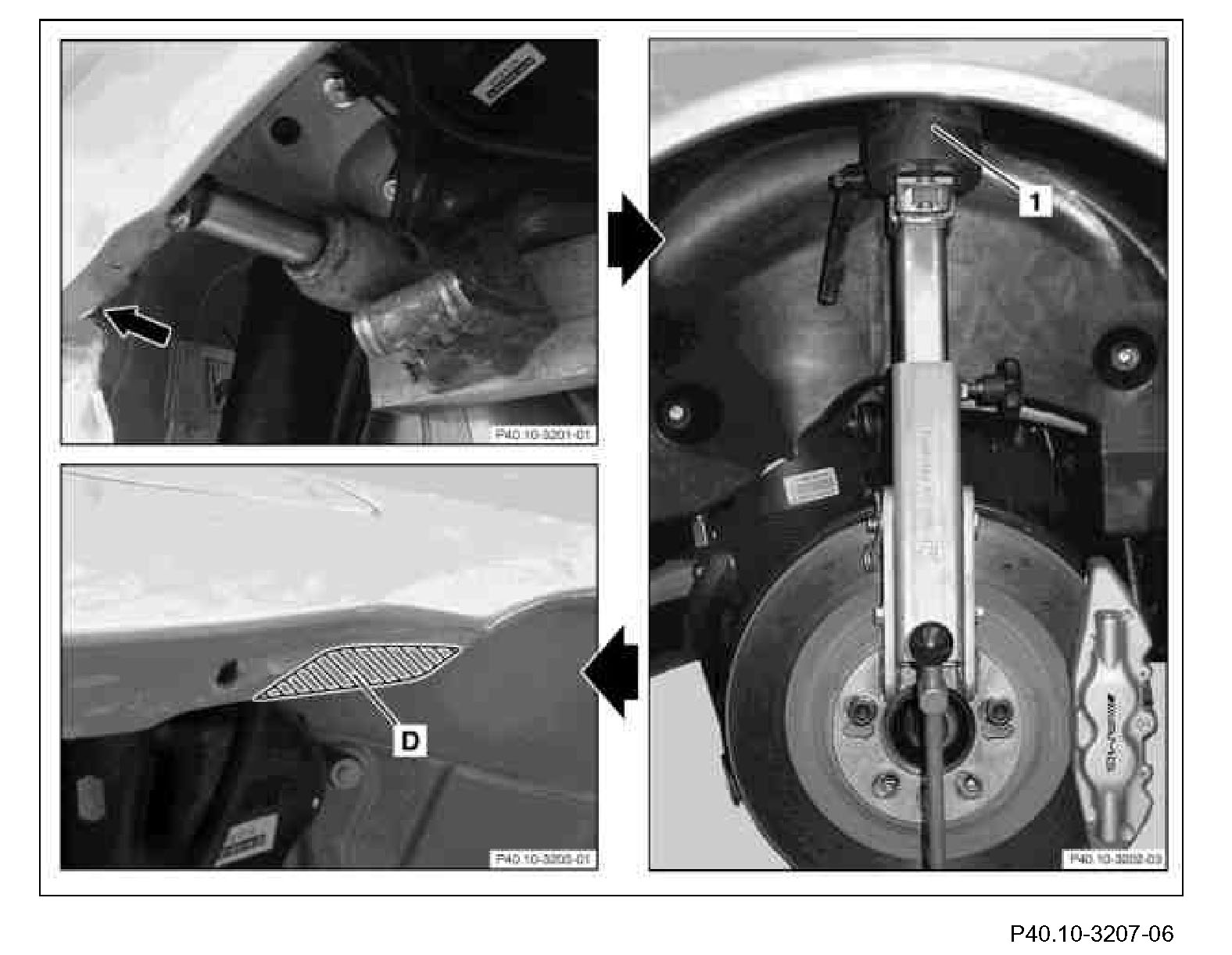

1 Press out fender tip approx. 5 - 6 mm using a suitable pressing tool.
2 Using a suitable plastic mallet, knock out the side wall that is under pressure in inner wheel house (see arrow).
3 Completely fold over the fold in the wheel house while under pressure up to lower edge of lateral protective strip.
4 Press out fender panel with edge roller (1) until panel is vertical.
5 Angle inner edge 90 degrees upwards in indicated area (D).

Component Identification:

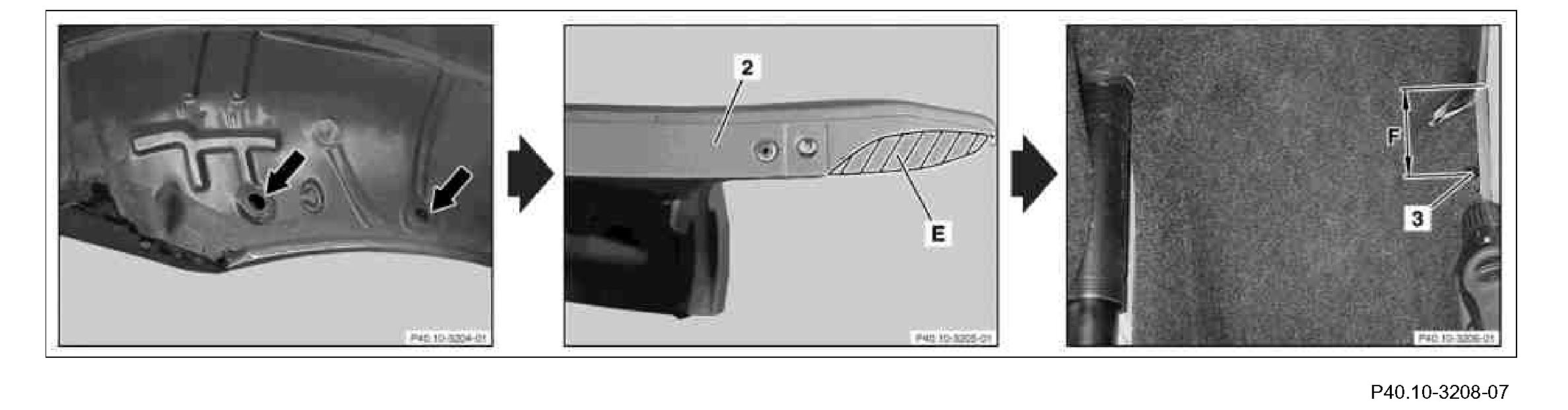

6 Drive both indicated openings (see arrows) slightly outwards.

Avoid contact with outer side wall (pressure marks).

7 Check tire clearance with fully compressed rear suspension; at least 5 mm.
8 Grind the reworked area with scouring pad, clean, prime and seal.
9 When the primer has dried, paint the reworked area and seal with protective wax.
10 Cut rear apron (2) on both sides in indicated area (E).
11 Drill hole with a diameter of 7 mm for plastic rivet (3) according to specifications.

Dimension F=100 mm is measured from the upper edge of the rear apron.
12 Secure left and right wheel house insert using plastic rivet (3).

Component Identification:

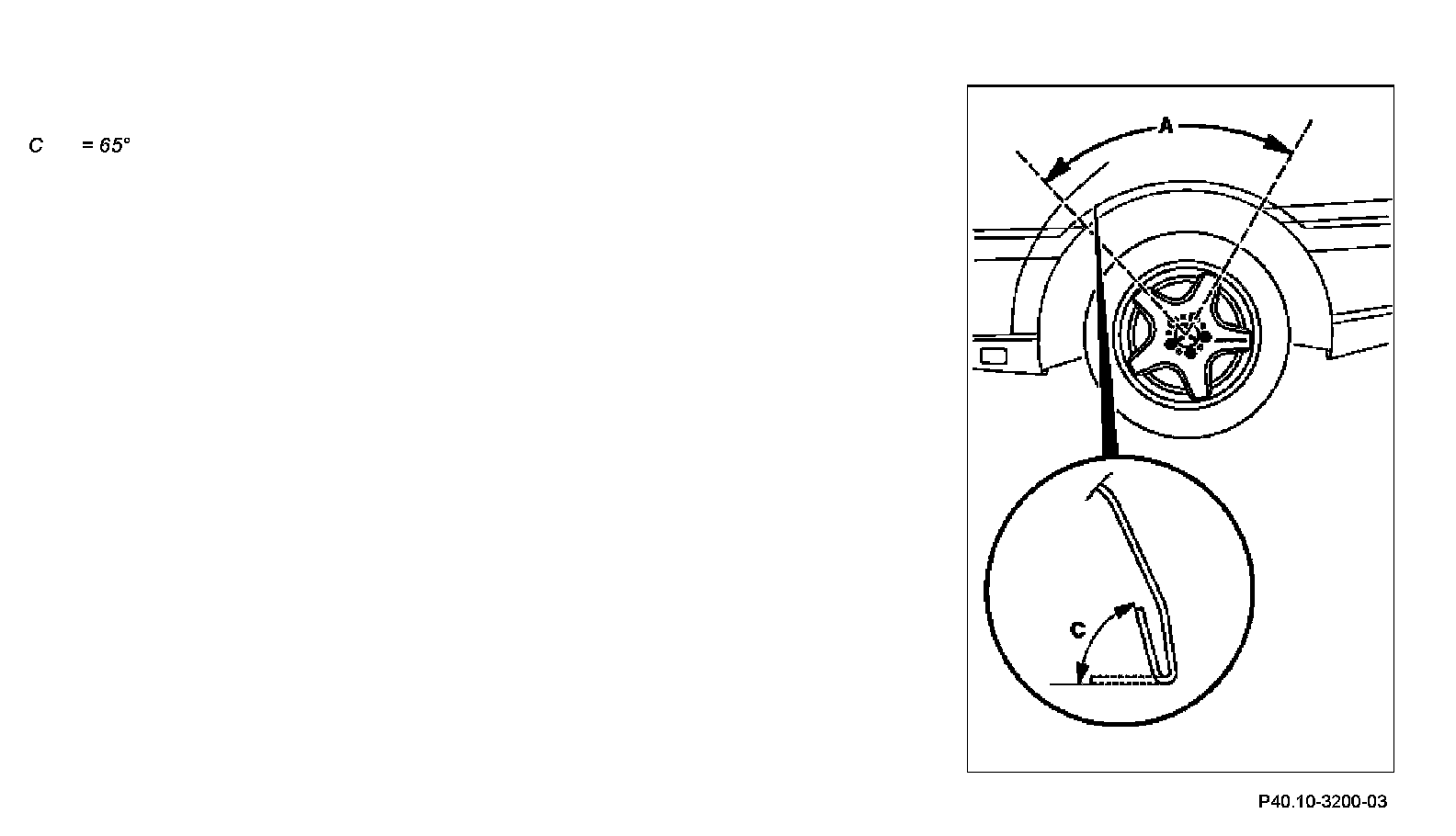

13 Fold the fender panel in several stages to dimension (C) in indicated area (A).
C = 65 degrees
