AZ40.10-P-0001-04Q Reworking Body at Front Fenders

AZ40.10-P-0001-04Q Reworking body at front fenders

Component Identification:

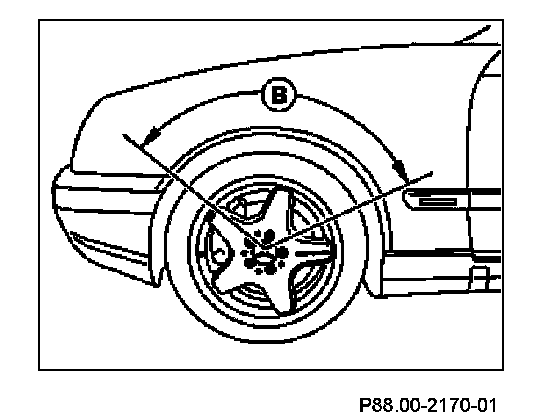

1 Fold inner edge of fender upwards 45 degrees in indicated area (B) from upper edge of lateral protective strip to approx. 5 cm above upper edge of front apron.

An edge roller or plastic mallet must be used to avoid damaging the paint.

Carefully heat outer edges of fender to max. 70 - 80 degrees C using a hot air blower. Repair any damage to the paint.

Component Identification:

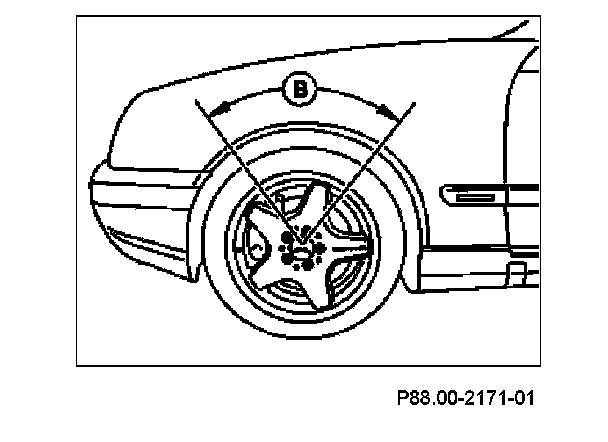

2 Press out the wheel cutout by approx. 5 mm in indicated area (B) using edge roller.
3 Tape fender edges and spray stone shield on reworked area.
4 When the stone shield has dried seal inner edge with protective wax.
